Toyota COROLLA 侧梁 — Figure 6101

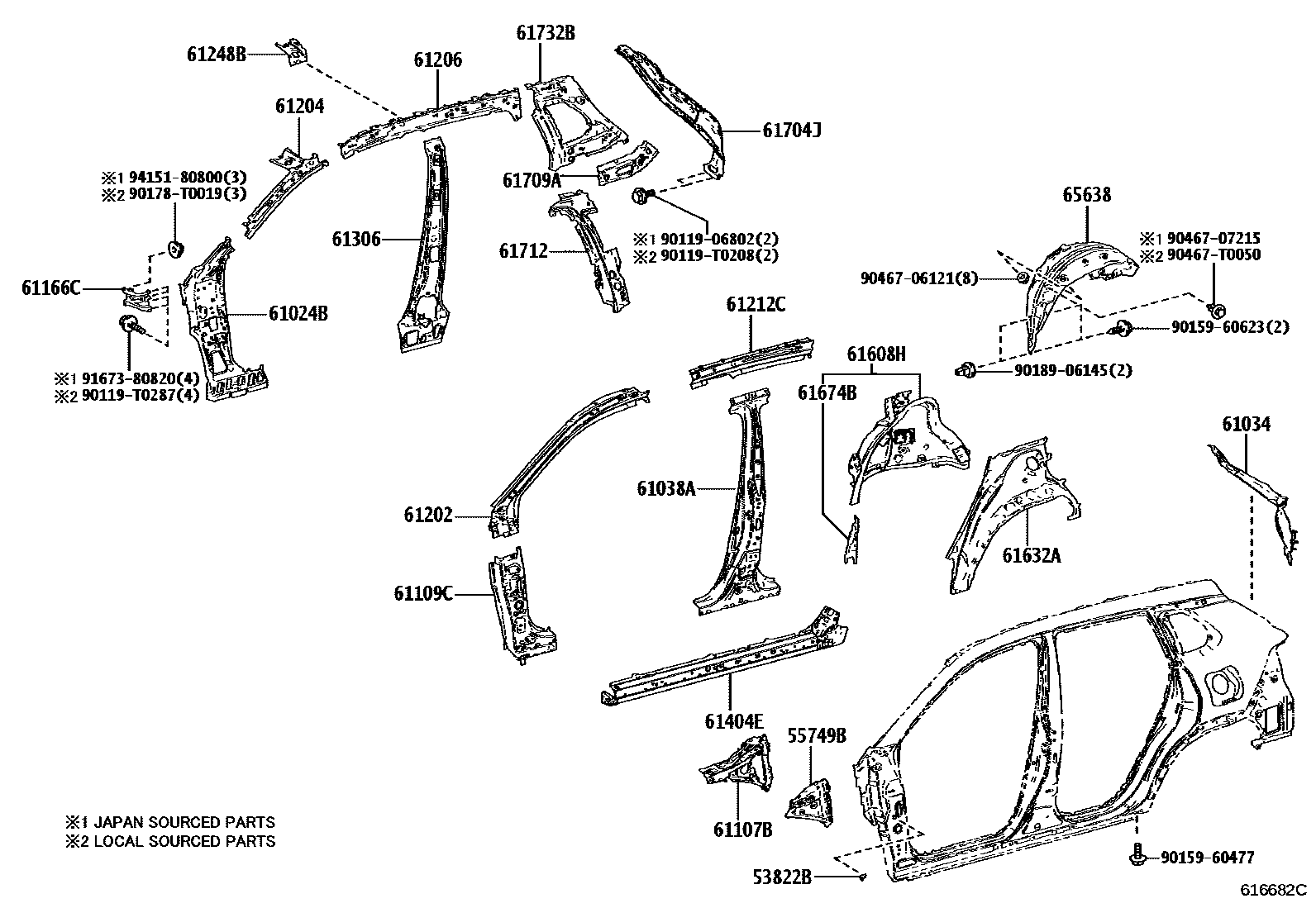

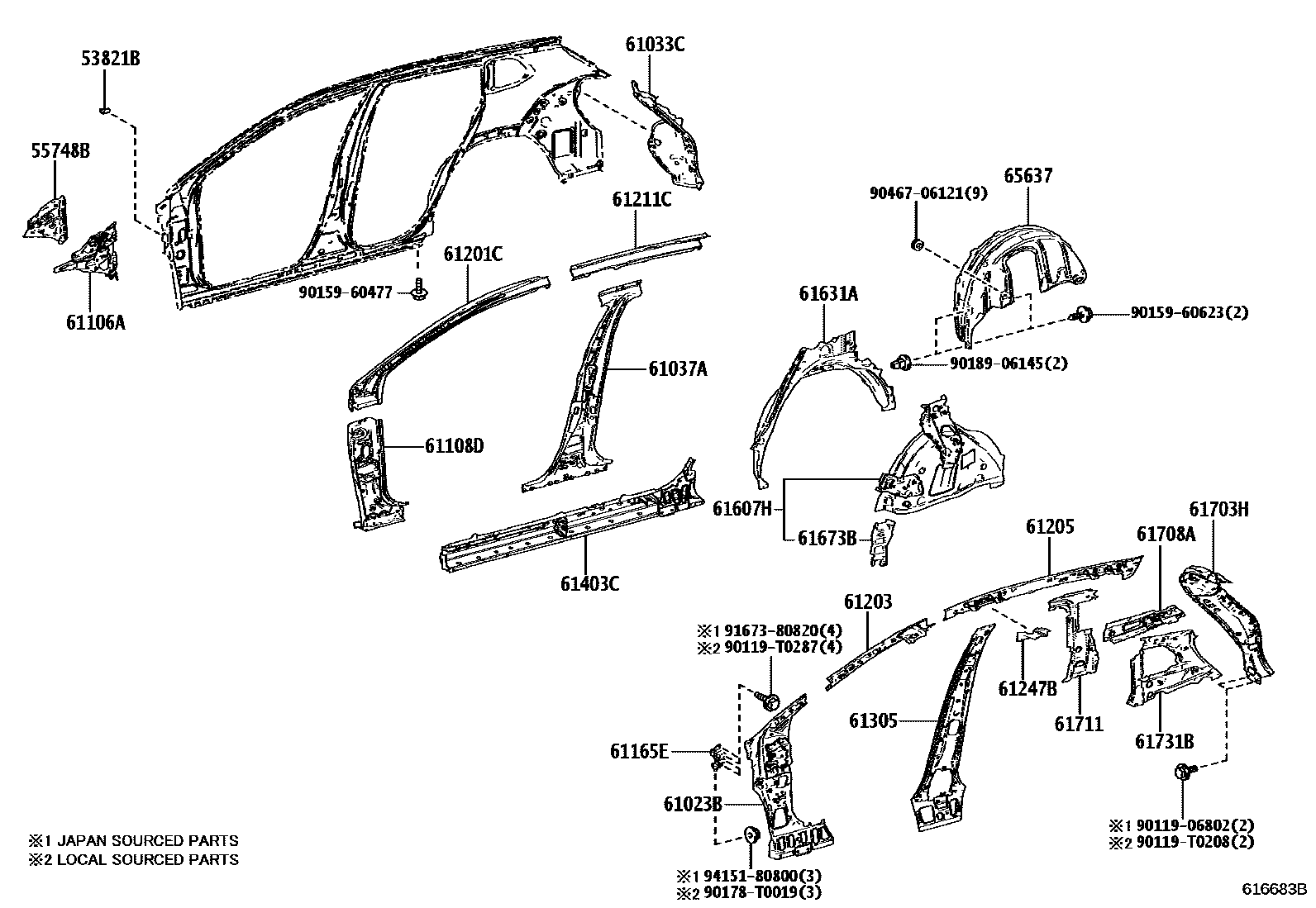

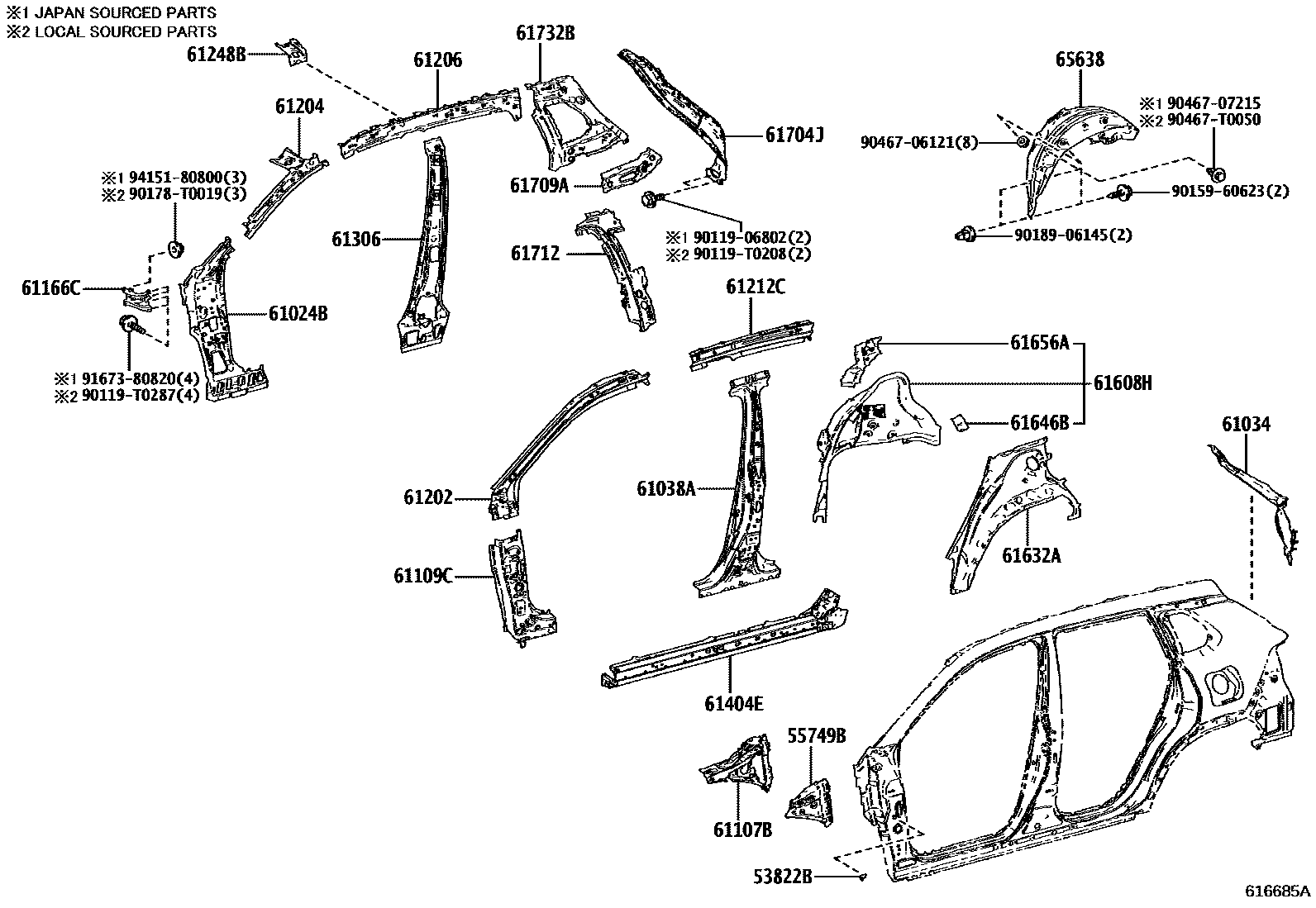

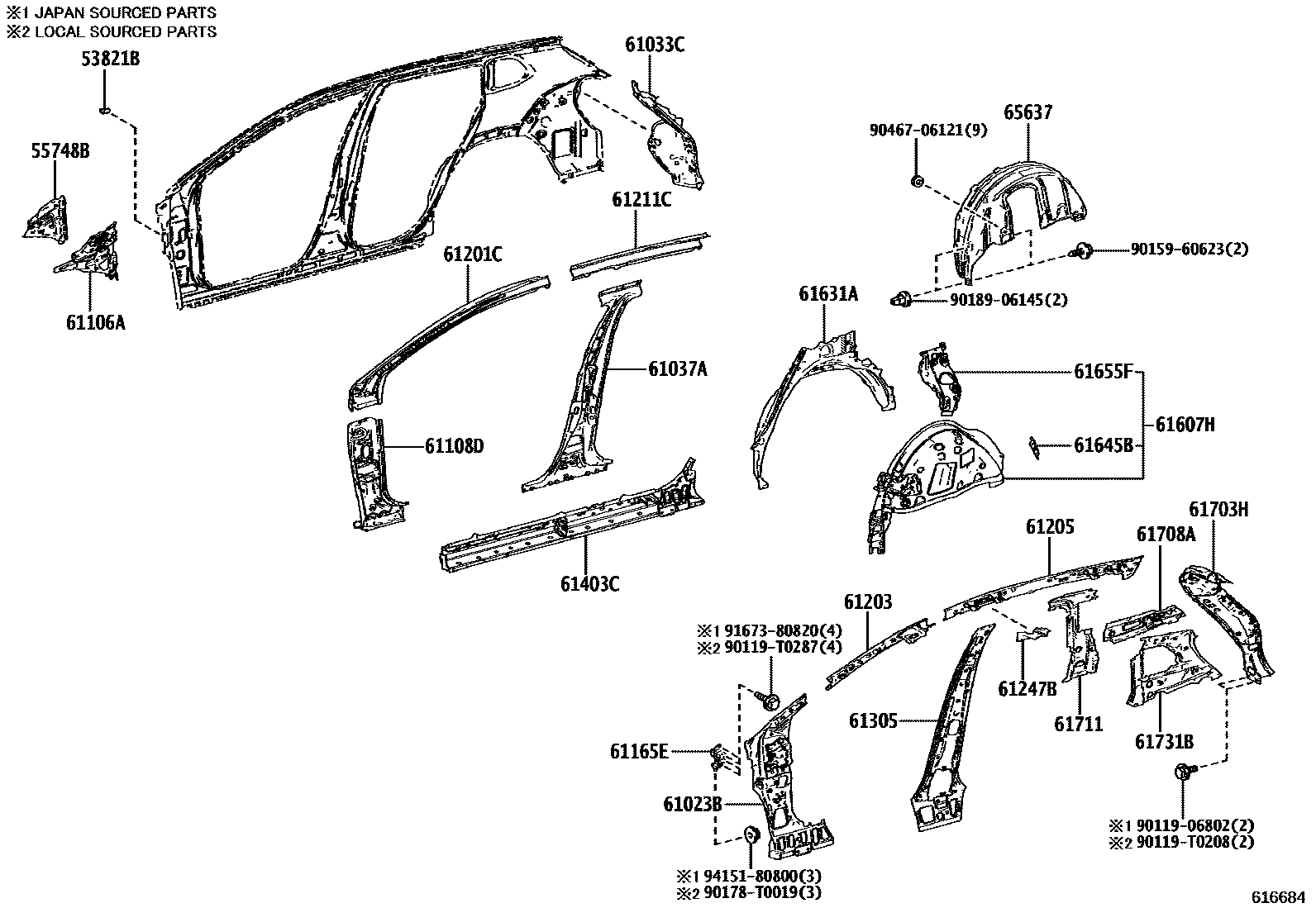

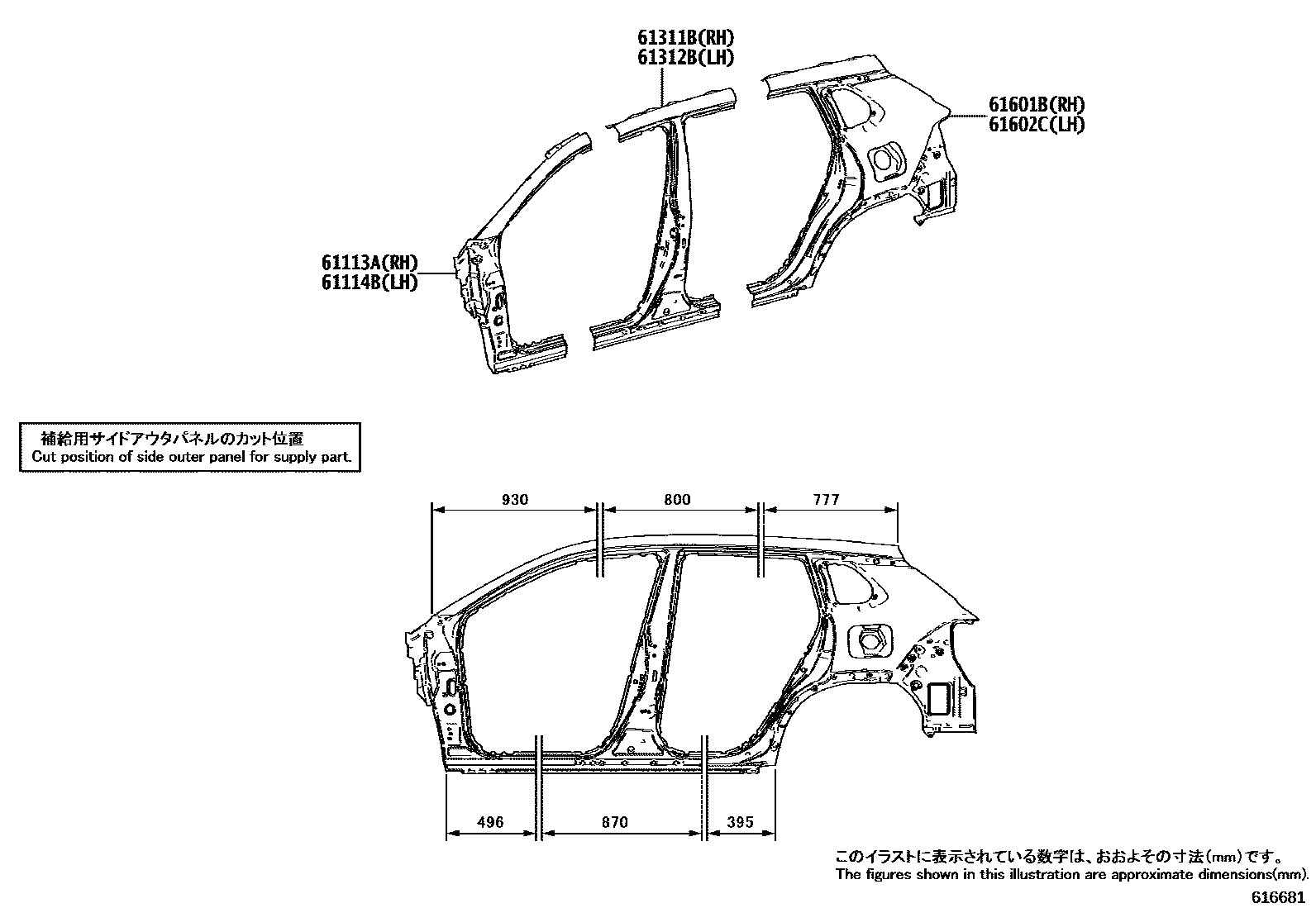

Toyota COROLLA EPC diagram 6101, 侧梁, with 5 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-06210 · 53821-K1010 |
| 53822B | Left front fender rear support | 53821-06210 · 53821-K1010 |
| 55748B | From the upper inner part of the cowl to the right bracket of the column | 55748-0A020 · 55748-0A030 · 55748-F4030 · 55748-K1010 |
| 55749B | From the upper inner part of the cowl to the left bracket of the column | 55749-0A020 · 55749-0A030 · 55749-F4020 · 55749-K1010 |
| 61023B | Right body inner front pillar sub-assembly | 61023-0A040 · 61023-0A050 · 61023-0A060 · 61023-0A100 |
| 61024B | Left body inner front pillar sub-assembly | 61024-0A040 · 61024-0A050 · 61024-0A060 · 61024-0A100 |
| 61033C | Back door opening right side reinforcement sub-assembly | 61033-0A010 · 61033-0A020 · 61033-0A030 · 61033-0A040 · 61033-0A050 · 61033-0A090 · 61033-0A110 · 61033-0A120 · 61033-0A140 |
| 61034 | Rear door opening left reinforcement sub-assembly | 61034-0A010 · 61034-0A020 · 61034-0A030 · 61034-0A040 · 61034-0A050 · 61034-0A090 · 61034-0A110 · 61034-0A120 · 61034-0A140 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-0A030 · 61037-0A040 · 61037-0A050 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-0A040 · 61038-0A050 · 61038-0A060 |
| 61106A | Right body front pillar reinforcement sub-assembly | 61106-0A010 · 61106-0A020 · 61106-0A030 · 61106-0A070 |
| 61107B | Left side body front pillar reinforcement sub-assembly | 61107-0A010 · 61107-0A020 · 61107-0A030 · 61107-0A070 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-0A070 · 61108-0A080 · 61108-0A090 · 61108-0A100 · 61108-K1010 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-0A070 · 61109-0A080 · 61109-0A090 · 61109-0A100 · 61109-K1010 |
| 61113A | No. 2 right outer panel | 61113-0A020 · 61113-0A021 · 61113-0A030 · 61113-0A040 · 61113-0A080 · 61113-0A090 |
| 61114B | No. 2 left outer panel | 61114-0A030 · 61114-0A031 · 61114-0A040 · 61114-0A050 · 61114-0A090 · 61114-0A100 |
| 61165E | Dashboard to right front wall side bracket | 61165-02040 · 61165-02050 · 61165-02070 · 61165-0A010 |
| 61166C | Dashboard to left front wall side bracket | 61166-02040 · 61166-02050 · 61166-02070 · 61166-0A010 |
| 61201C | Roof right outer longitudinal beam sub-assembly | 61201-K1010 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-K1010 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-0A090 · 61203-K1010 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-0A090 · 61204-K1010 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-K1010 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-K1010 |
| 61211C | Roof right side rail | 61211-K1010 |
| 61212C | Roof left side rail | 61212-K1010 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-0A050 · 61247-0A100 · 61247-K1010 · 61247-K1020 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-0A050 · 61248-0A100 · 61248-K1010 · 61248-K1020 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-0A010 · 61305-0A020 · 61305-0A030 · 61305-0A070 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-0A010 · 61306-0A020 · 61306-0A030 · 61306-0A070 |
| 61311B | Right body outer center pillar | 61311-0A020 · 61311-0A021 · 61311-0A030 · 61311-0A040 · 61311-0A080 · 61311-0A090 |
| 61312B | Left body outer center pillar | 61312-0A020 · 61312-0A021 · 61312-0A030 · 61312-0A040 · 61312-0A080 · 61312-0A090 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-0A900 · 61403-0A901 · 61403-0A902 · 61403-0A905 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-0A900 · 61404-0A901 · 61404-0A902 · 61404-0A905 |
| 61601B | Right side enclosure sub-assembly | 61601-0A020 · 61601-0A021 · 61601-0A030 · 61601-0A040 · 61601-0A080 · 61601-0A090 |
| 61602C | Left side enclosure sub-assembly | 61602-0A030 · 61602-0A031 · 61602-0A040 · 61602-0A050 · 61602-0A090 · 61602-0A100 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-0A030 · 61607-0A040 · 61607-0A050 · 61607-0A100 · 61607-0A110 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-0A030 · 61608-0A040 · 61608-0A050 · 61608-0A100 · 61608-0A110 |
| 61631A | Right wheel cover outer panel | 61631-0A050 · 61631-0A060 · 61631-K1010 |
| 61632A | Left side wheel cover outer panel | 61632-0A050 · 61632-0A060 · 61632-0A070 · 61632-0A080 |
| 61645B | Right rear side wheel housing corner panel | 61645-K1010 |
| 61646B | Left rear side wheel housing corner panel | 61646-K1010 |
| 61655F | Upper bracket of support rod on the right side of the back door | 61655-K1010 |
| 61656A | Left side wheel housing inner corner panel | 61656-K1010 |
| 61673B | Right wheel housing lining panel reinforcement | 61673-K1010 |
| 61674B | Left side wheel housing lining plate reinforcement | 61674-K1010 |
| 61703H | Roof inner right reinforcement sub-assembly | 61703-0A040 · 61703-0A050 · 61703-K1020 |
| 61704J | Roof inner left reinforcement sub-assembly | 61704-0A040 · 61704-0A050 · 61704-0A060 · 61704-0A070 · 61704-0A080 |
| 61708A | Right seat belt anchor reinforcement sub-assembly | 61708-0A040 · 61708-0A050 · 61708-K1020 |
| 61709A | Left seat belt anchor reinforcement sub-assembly | 61709-0A040 · 61709-0A050 · 61709-K1010 |
| 61711 | Roof right side outer panel | 61711-K1010 |
| 61712 | Roof left outer panel | 61712-K1010 |
| 61731B | Roof right inner panel | 61731-0A060 · 61731-K1010 |
| 61732B | Roof left inner panel | 61732-0A060 · 61732-K1010 |
| 65637 | Right rear wheel house lining | 65637-0A010 · 65637-0A020 · 65637-0A030 · 65637-0A070 |
| 65638 | Left rear wheel house lining | 65638-0A010 · 65638-0A020 · 65638-0A030 · 65638-0A070 |
