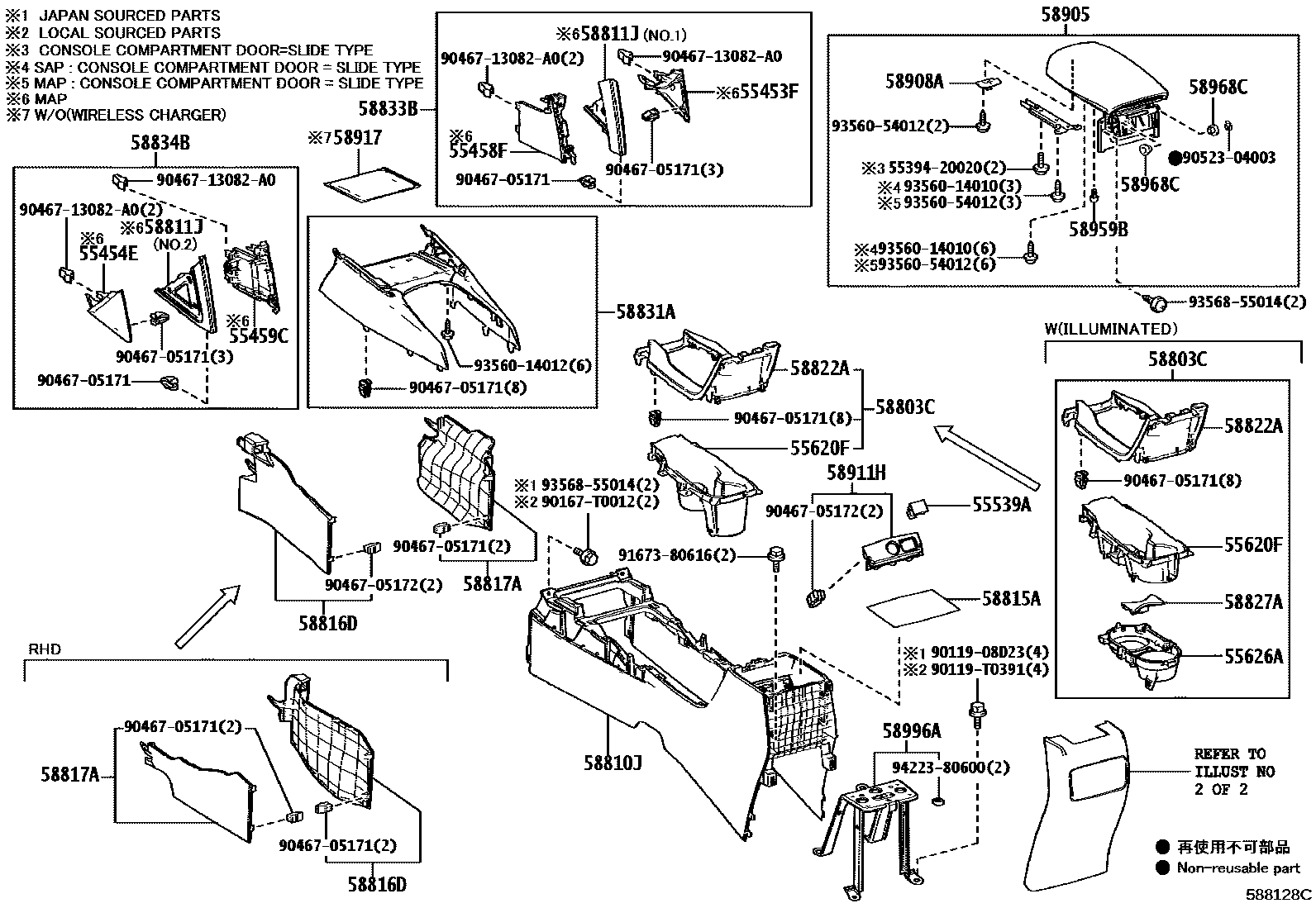

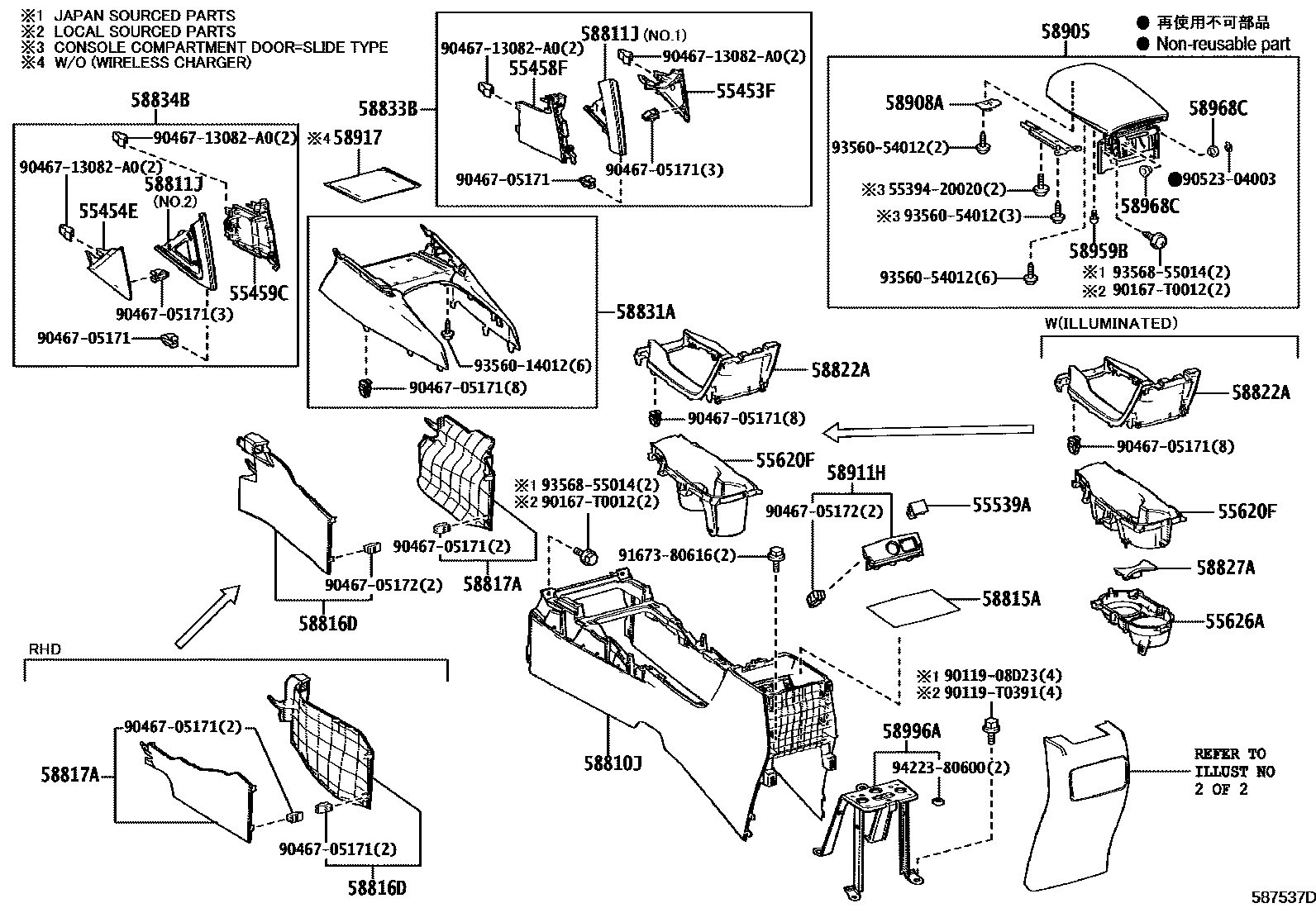

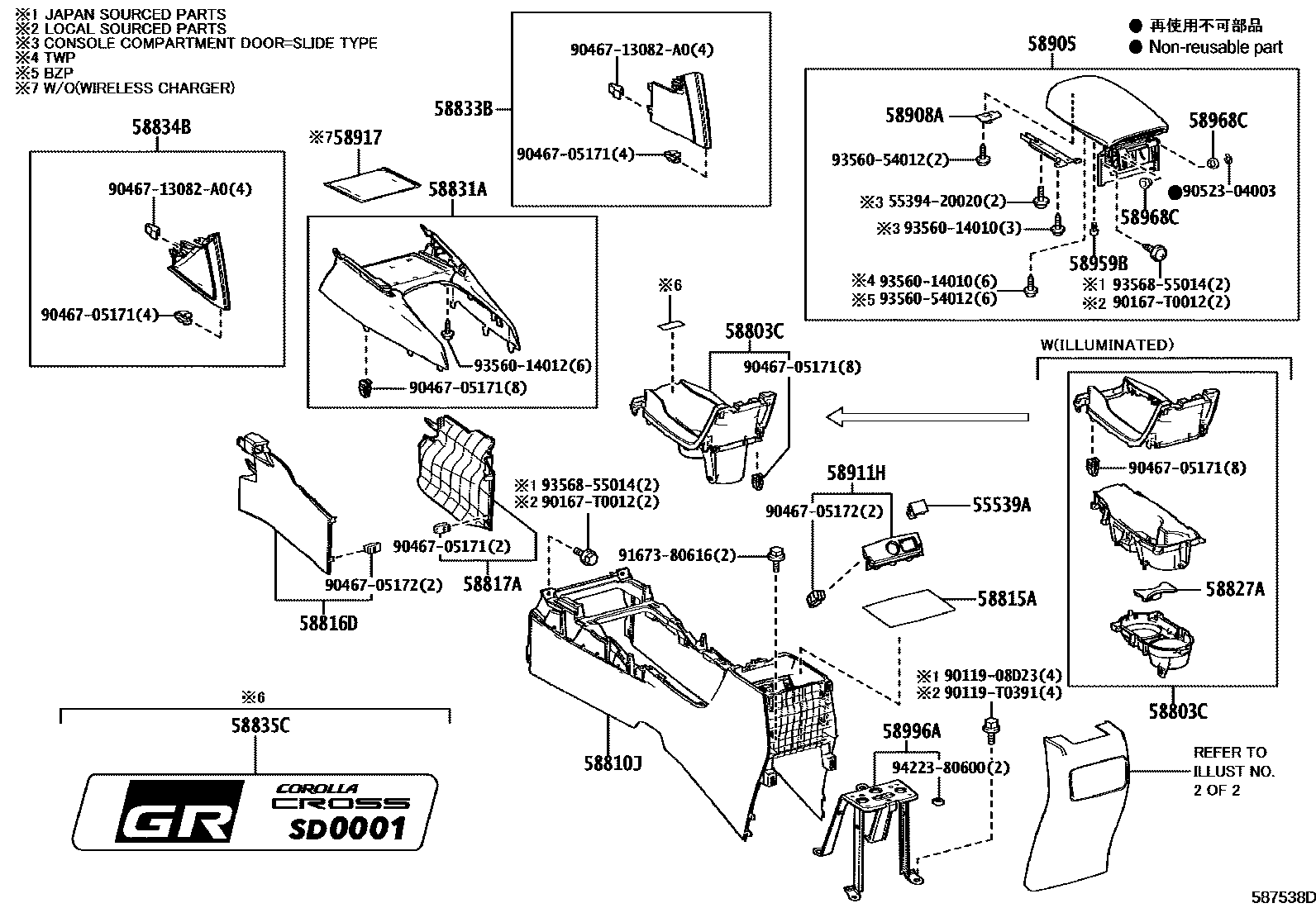

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55453F | Dashboard lower right pad | 55453-0A010 · 55453-0A080 |
| 55454E | Dashboard lower left pad | 55454-0A050 · 55454-0A180 |
| 55458F | Instrument panel lower right cover | 55458-0A010 · 55458-0A080 |
| 55459C | Instrument panel lower left cover | 55459-0A010 · 55459-0A080 |
| 55620F | Armrest box cup holder assembly | 55620-0A010 · 55620-0A030 · 55620-0A120 · 55620-0A150 · 55620-0A180 · 55620-0A190 · 55620-0A280 |
| 55626A | Instrument panel bottom bracket partition fastener | 55626-0A010 · 55626-0A070 |
| 58803C | Armrest box cup holder sub-assembly | 58803-0A040 · 58803-0A050 · 58803-0A060 · 58803-0A070 · 58803-0A080 · 58803-0A090 · 58803-0A260 · 58803-0A270 · 58803-0A280 · 58803-0A290 · 58803-0A300 · 58803-0A310 · 58803-0A320 · 58803-0A340 · 58803-YY030 |
| 58815A | Armrest box felt pad | 58815-02450 · 58815-02460 · 58815-02470 · 58815-0A010 |
| 58822A | Rear armrest box upper panel | 58822-0A060 · 58822-0A070 · 58822-0A150 |
| 58827A | Armrest box groove decorative parts | 58827-12020 |
| 58831A | Front armrest box upper panel decorative parts | 58831-0A260 |
| 58835C | Armrest box decorative parts | 58835-YY010 |
| 58860A | Armrest box air regulator assembly | 58860-02030 · 58860-02040 · 58860-0A010 |
| 58863C | Armrest box No. 3 air duct | 58863-02010 · 58863-02020 · 58863-0A010 · 58863-0A070 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58917 | Armrest box bottom pad No. 2 | 58917-0A010 · 58917-0A020 · 58917-0A130 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58968C | Armrest box lid stopper gasket | 58968-33010 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-0A010 · 58996-0A020 · 58996-0A030 · 58996-0A080 · 58996-0A090 |
