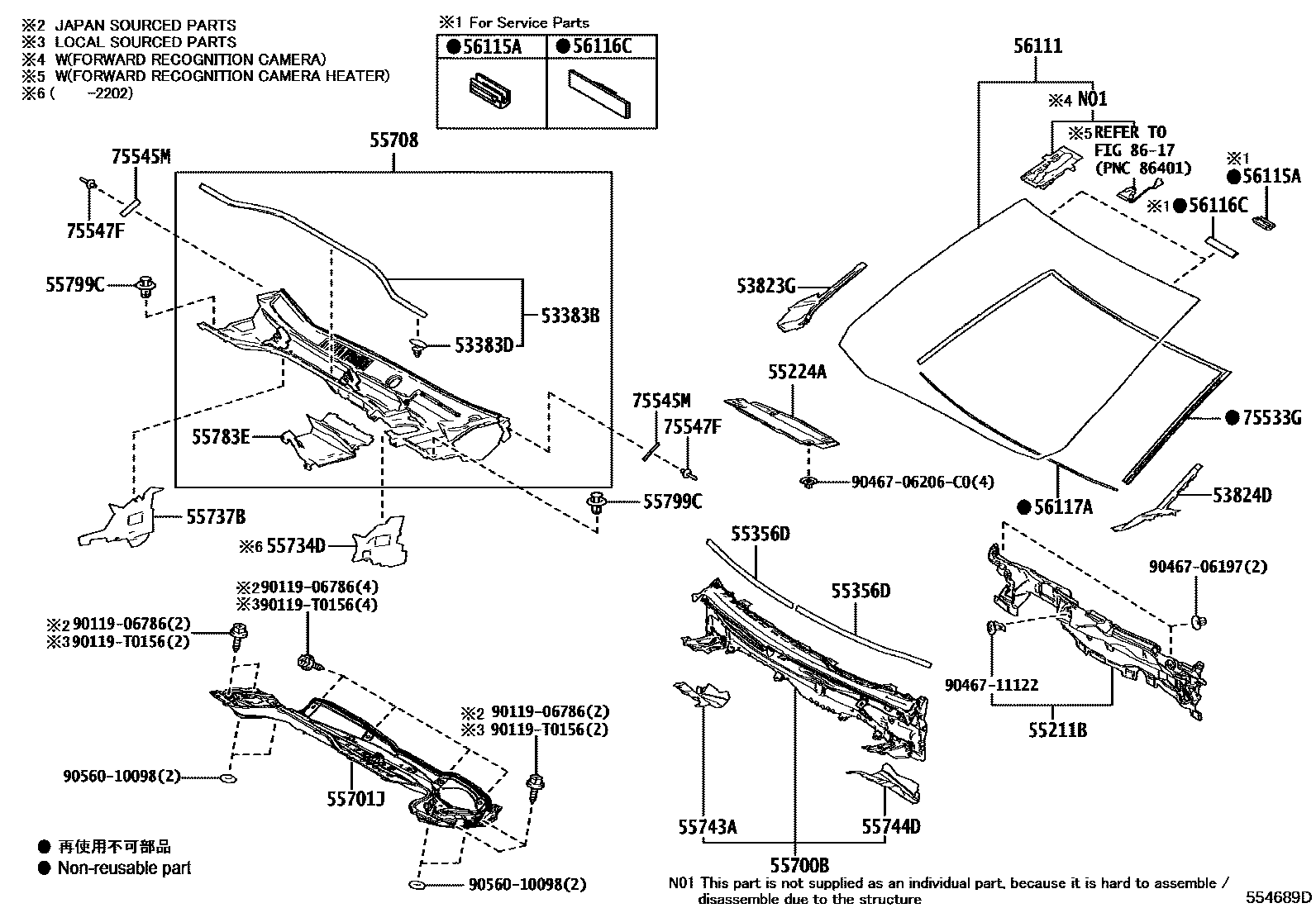

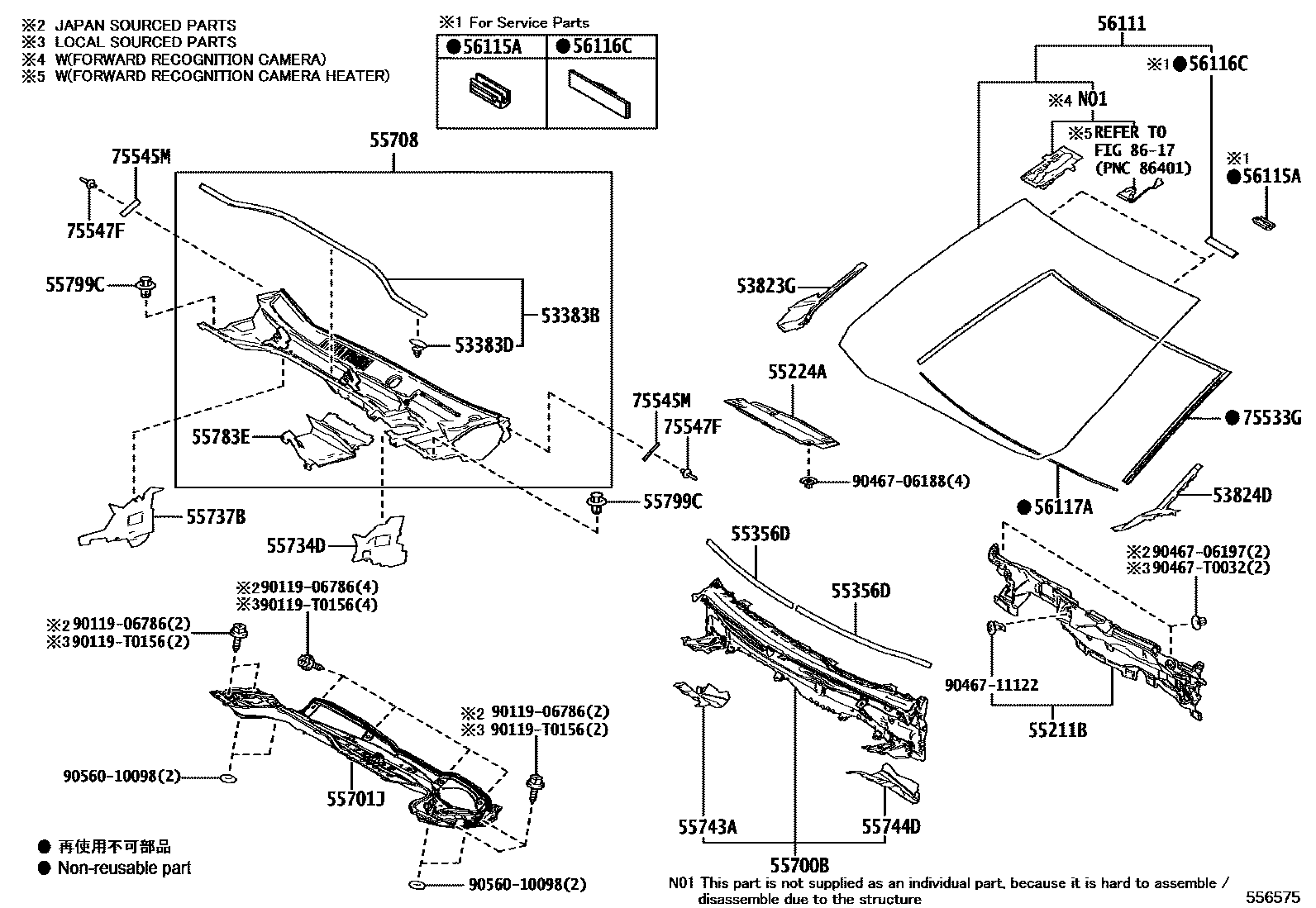

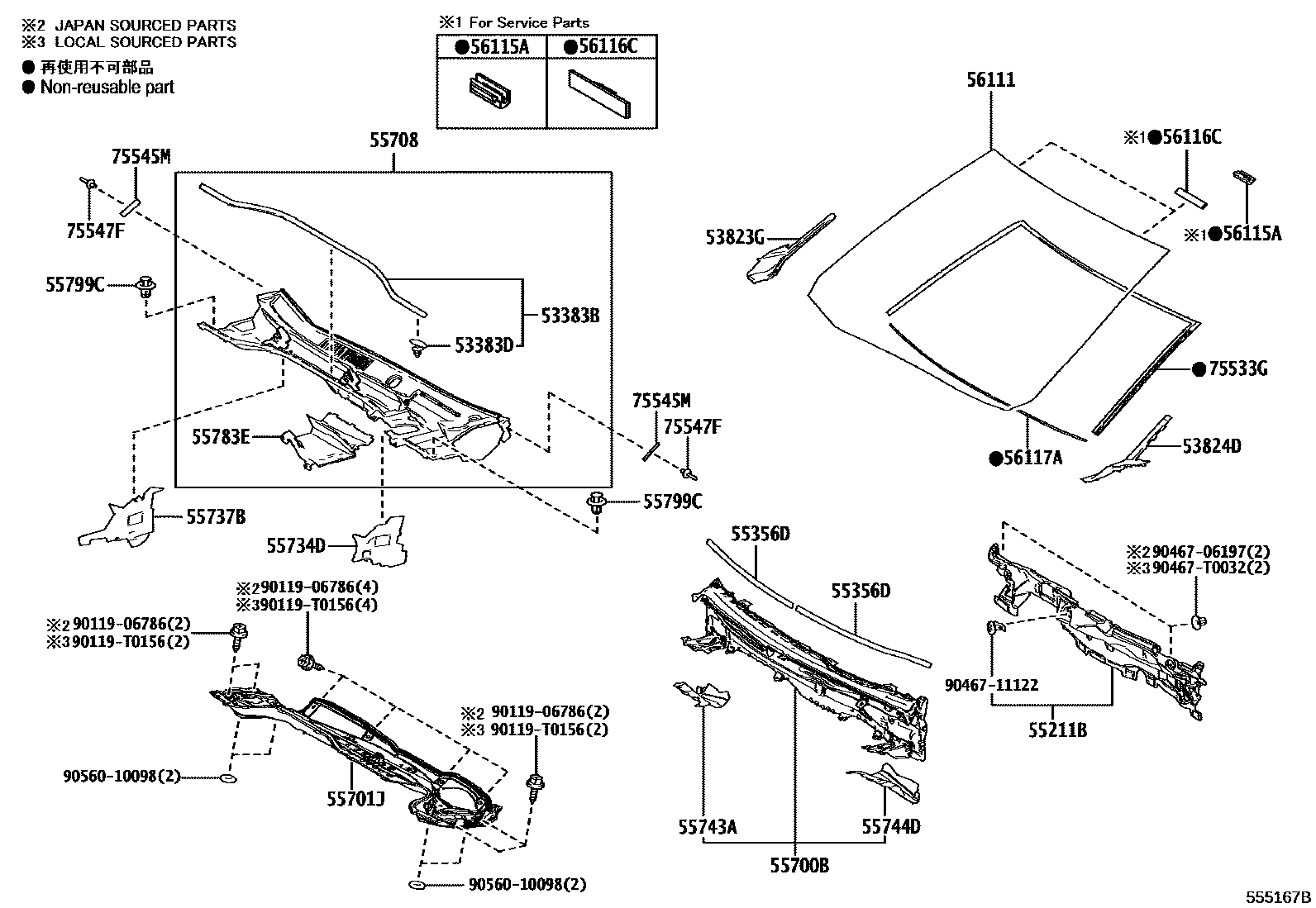

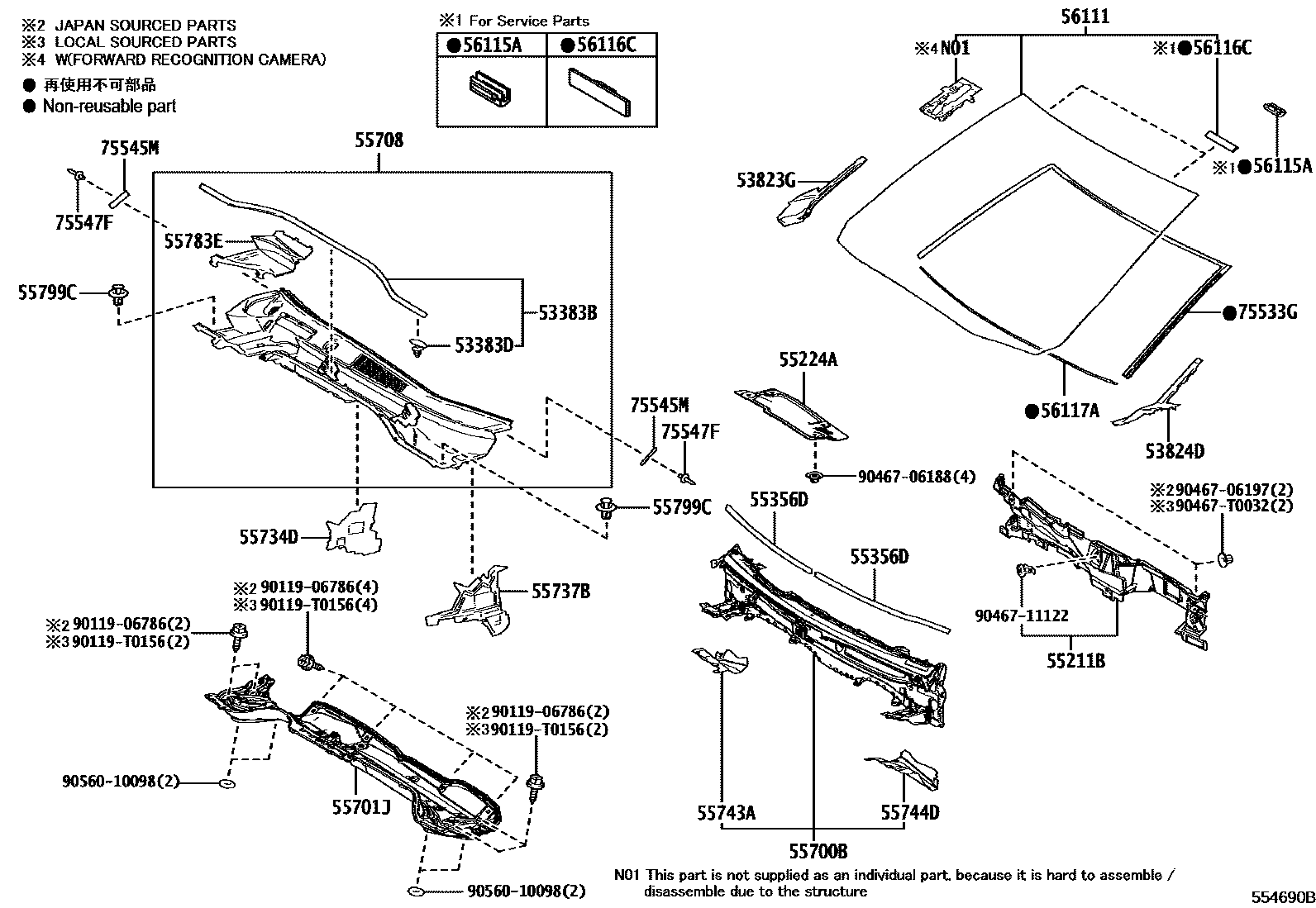

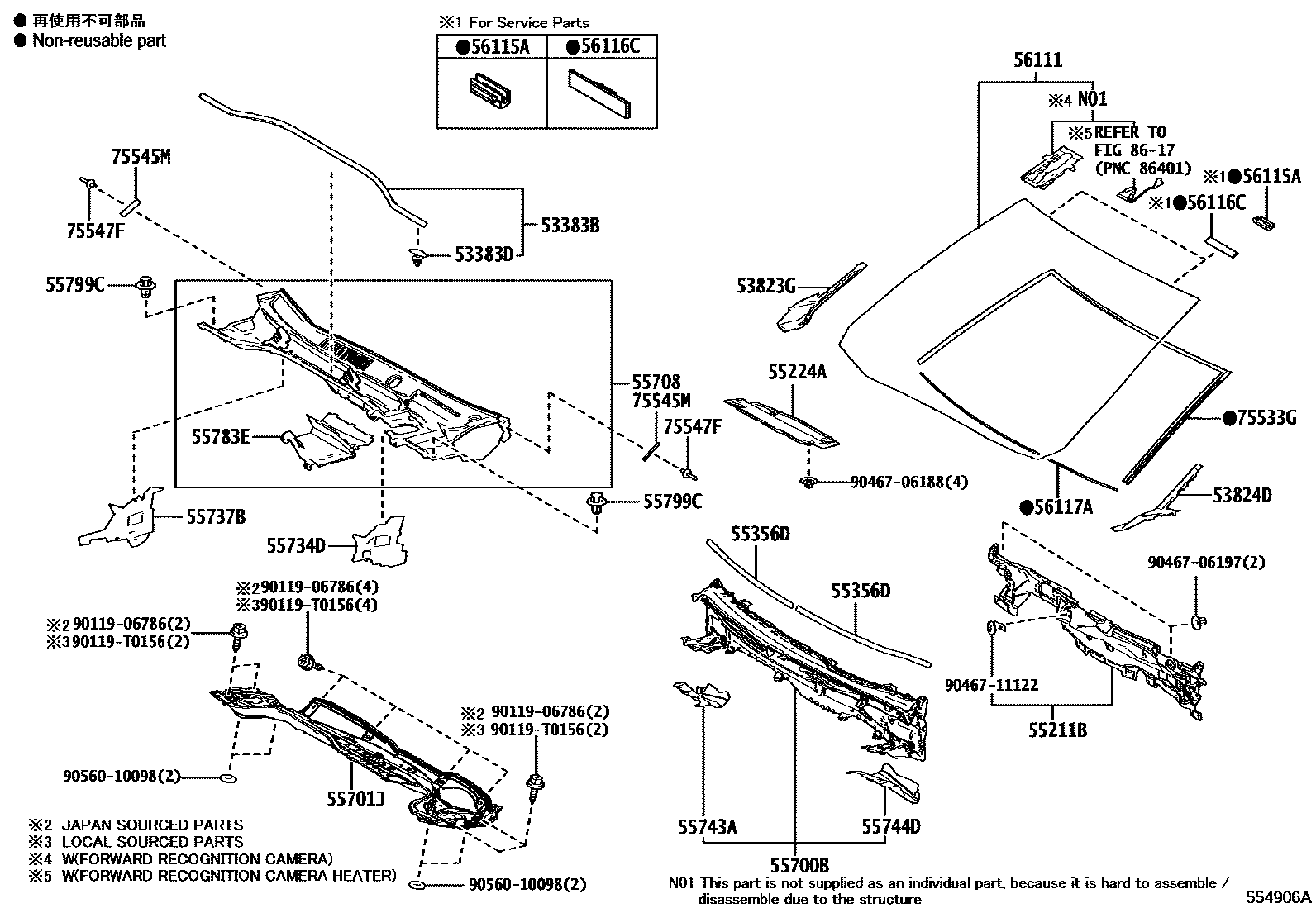

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-0A020 · 53383-0A030 · 53383-0A050 · 53383-0A070 · 53383-0A090 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-0K010 · 67867-12150 |
| 53823G | No. 2 right front side panel protector | 53823-0A010 · 53823-0A020 · 53823-0A030 · 53823-0A070 |
| 53824D | No. 2 left front side panel protector | 53824-0A010 · 53824-0A020 · 53824-0A030 · 53824-0A070 |
| 55211B | Front panel silencer | 55211-0A030 · 55211-0A040 · 55211-0A050 · 55211-0A060 · 55211-0A110 · 55211-0A130 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-0A010 · 55224-0A020 · 55224-0A030 · 55224-0A040 · 55224-0A080 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-02530 · 55356-02540 · 55356-02590 · 55356-0A050 · 55356-0A060 |
| 55700B | Front apron assembly | 55700-0A030 · 55700-0A090 · 55700-0A100 · 55700-0A110 · 55700-K1020 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-0A020 · 55701-0A040 · 55701-0A050 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-0A030 · 55708-0A040 · 55708-0A050 · 55708-0A060 · 55708-0A130 · 55708-0A150 |
| 55734D | Waterproof cover panel | 55734-0A010 · 55734-0A030 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-0A010 · 55737-0A020 · 55737-0A030 |
| 55743A | Right front wall to front wall side extension | 55743-0A040 · 55743-K1010 |
| 55744D | Left front wall to front wall side extension | 55744-0A040 · 55744-K1010 |
| 55783E | Ventilation grille on center cowl | 55783-0A010 · 55783-0A020 · 55783-0A030 · 55783-0A040 · 55783-0A080 · 55783-0A100 |
| 55799C | Ventilation grille clips on front apron | 90467-09242 |
| 56111 | windshield | 56101-0A900 · 56101-0A901 · 56101-0A902 · 56101-0A903 · 56101-0A904 · 56101-0A905 · 56101-0A906 · 56101-0A907 · 56101-0A908 · 56101-0A909 · 56101-0A910 · 56101-0A911 · 56101-0A912 · 56101-0A913 · 56101-0A914 · 56101-0A915 · 56101-0A916 · 56101-0A917 · 56101-0A918 · 56101-0A919 · 56101-0A920 · 56101-0A921 · 56101-0A922 · 56101-0A923 · 56101-0A924 · 56101-0A925 · 56101-0A926 · 56101-0A927 · 56101-0A928 · 56101-0A929 · 56101-0A930 · 56101-0A931 · 56101-0A932 · 56101-0A933 · 56101-0A934 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-0A010 · 56117-0A030 |
| 75533G | Windshield outer protective strip | 75533-0A030 · 75533-0A040 · 75533-0A050 · 75533-0A100 |
| 75545M | Windshield outer protective strip clip | 75545-16040 |
| 75547F | Windshield outer protective strip clip | 75547-51021 |
