Toyota COROLLA 仪表板和手套箱 — Figure 5501

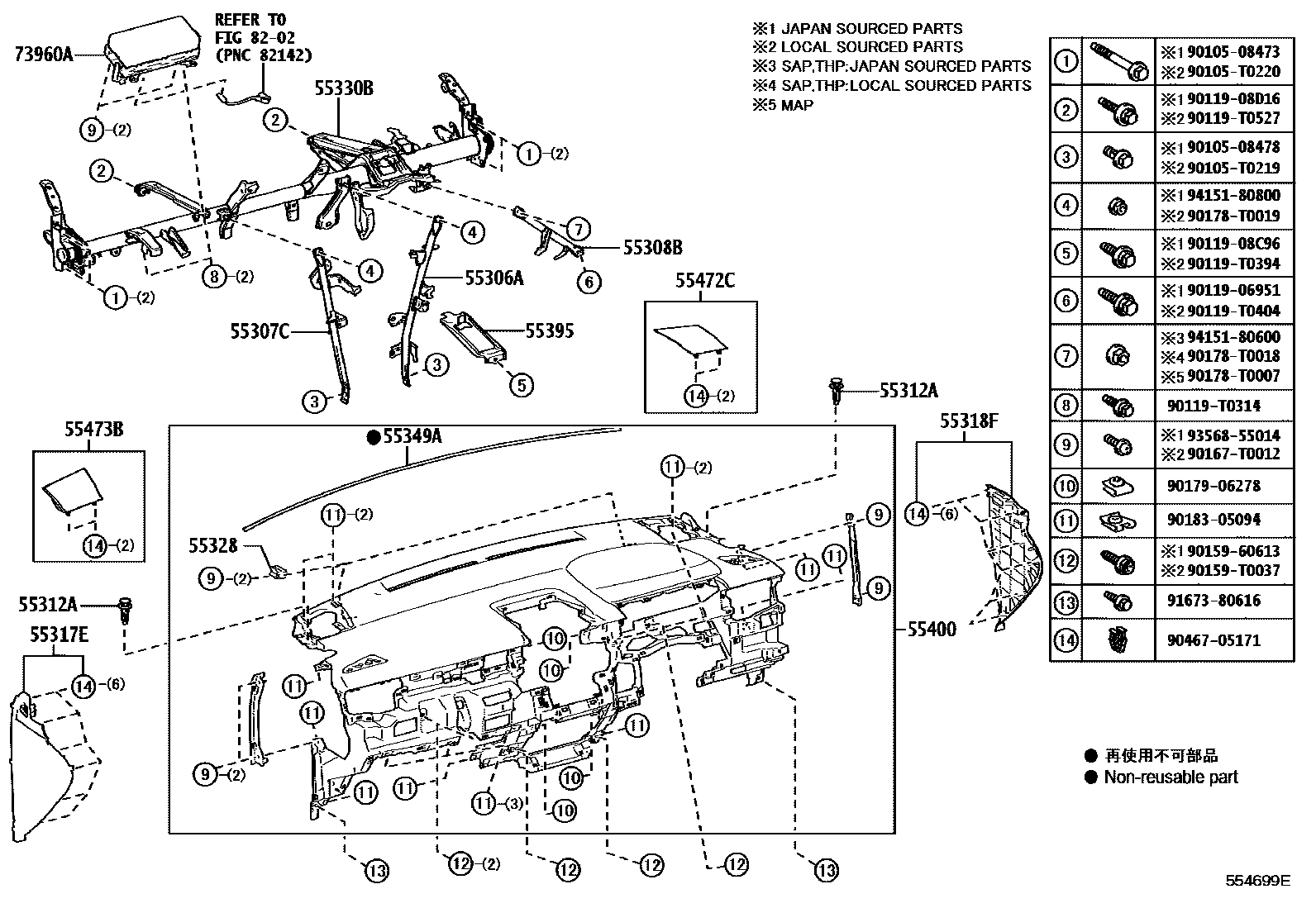

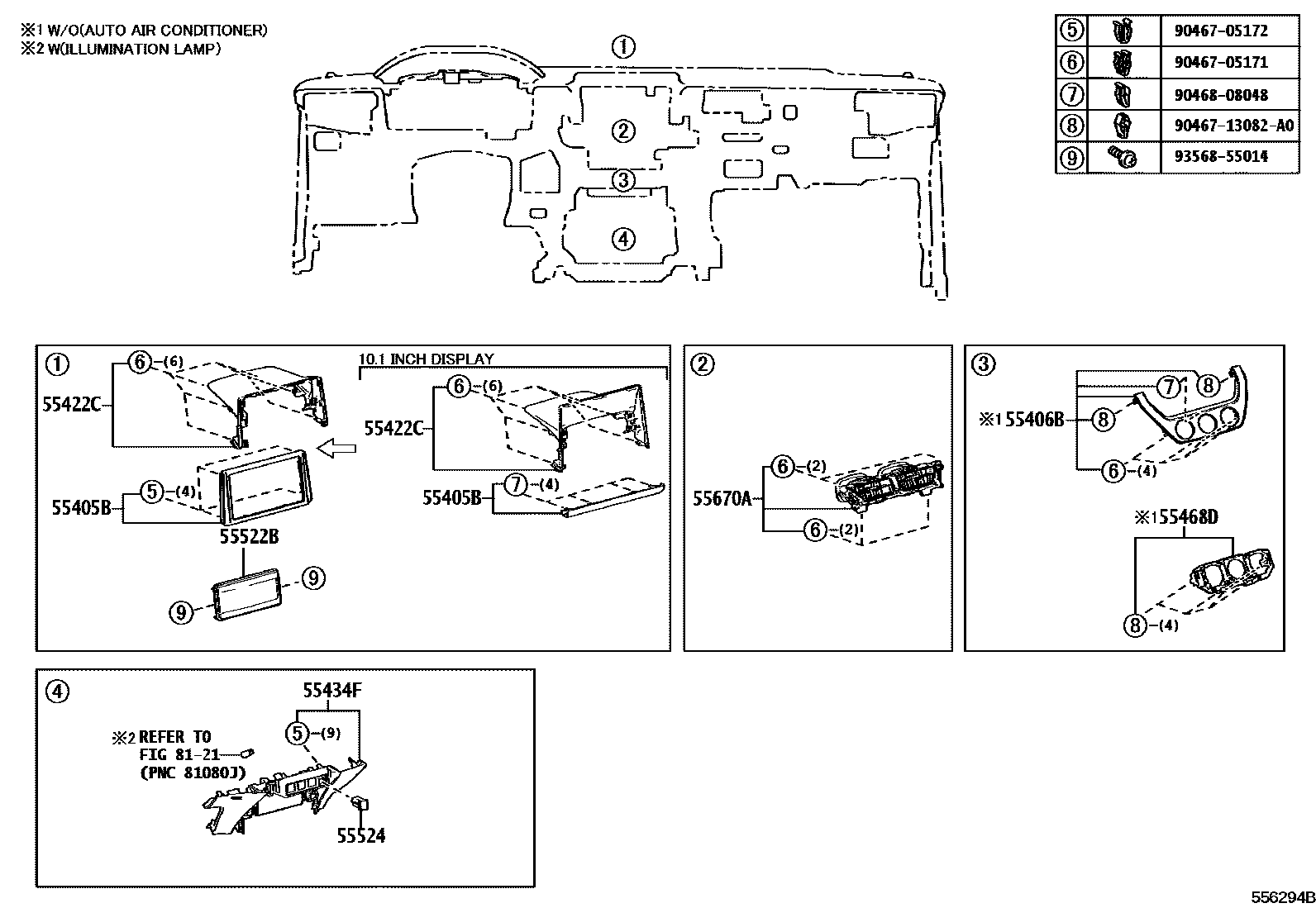

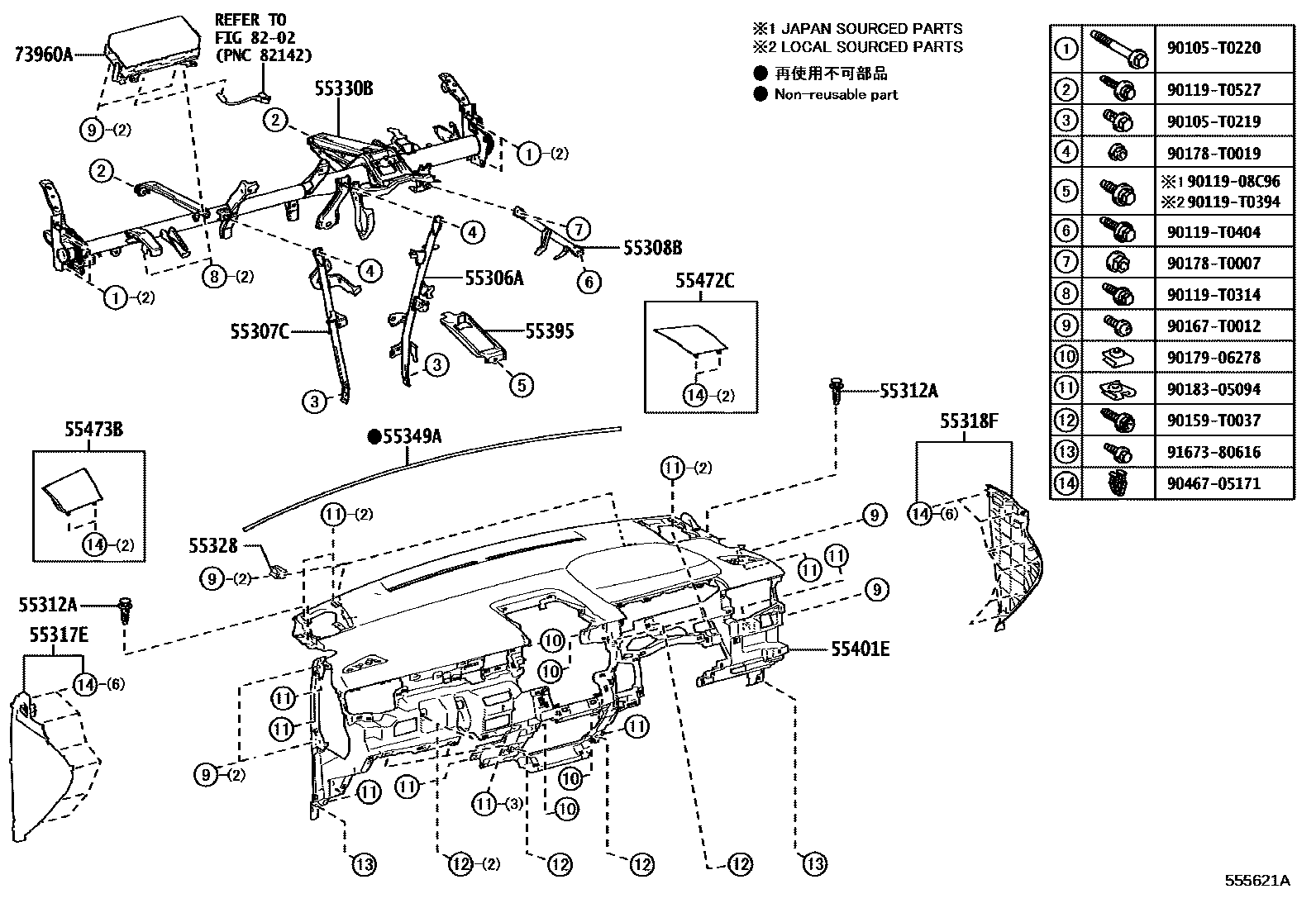

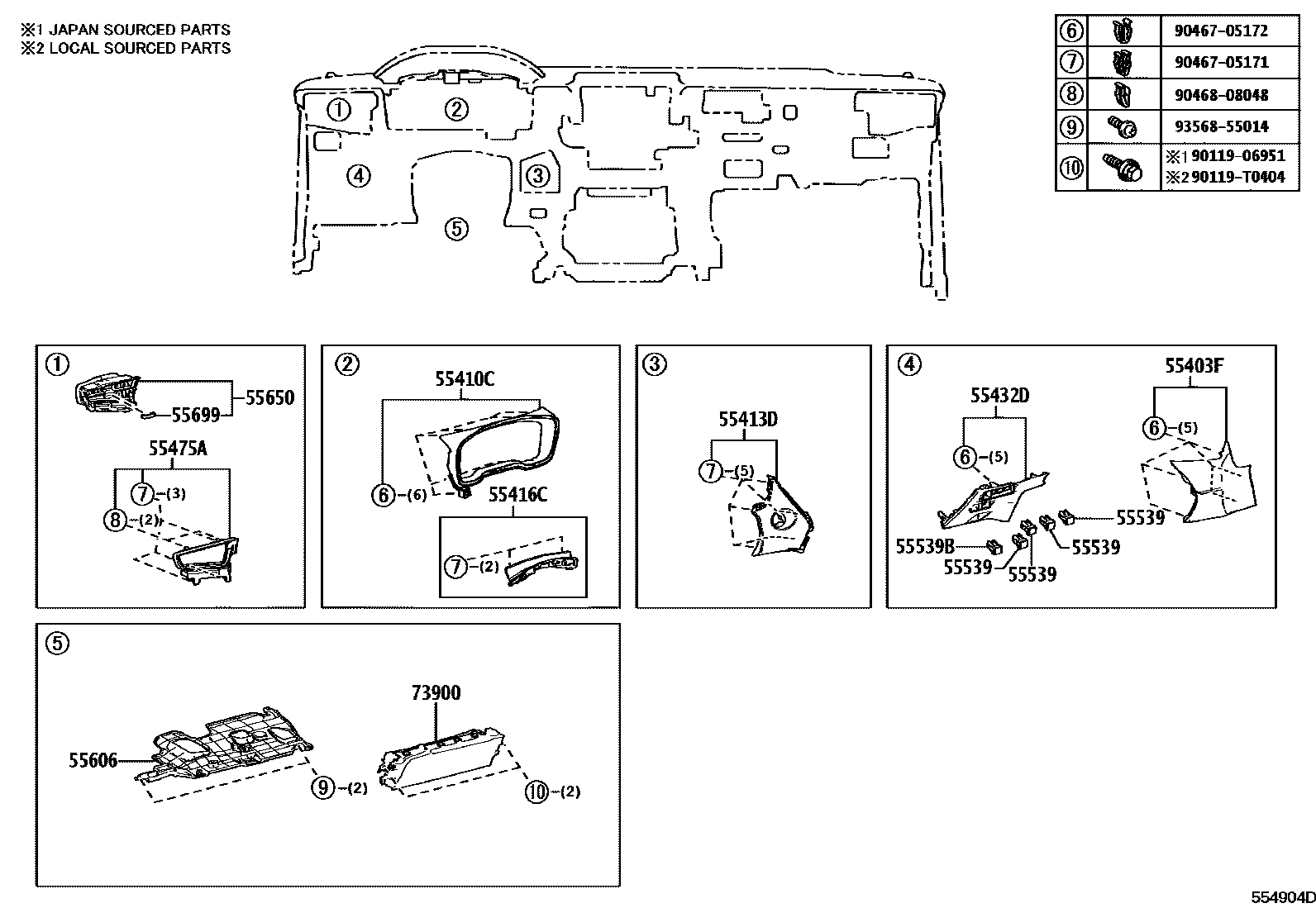

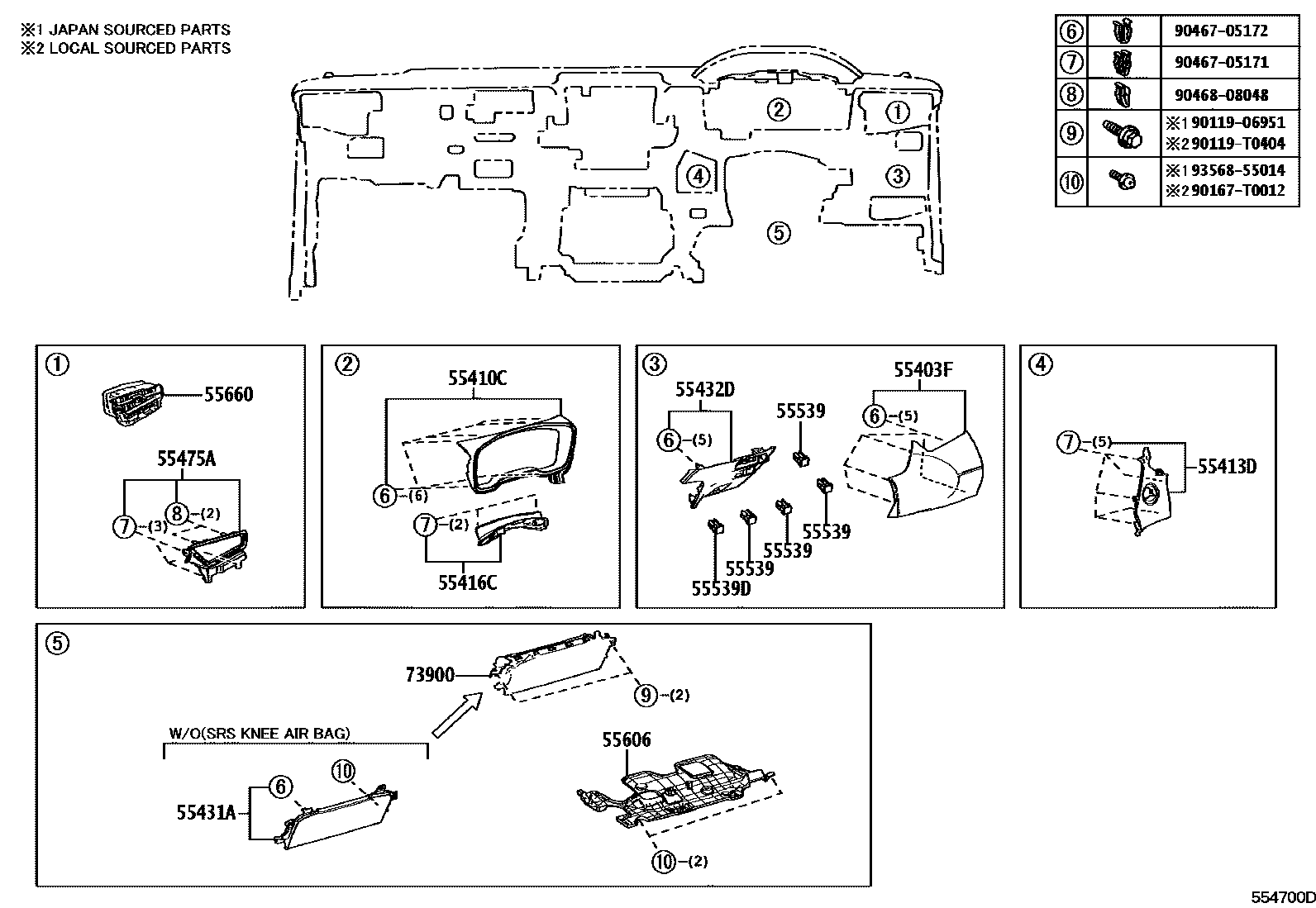

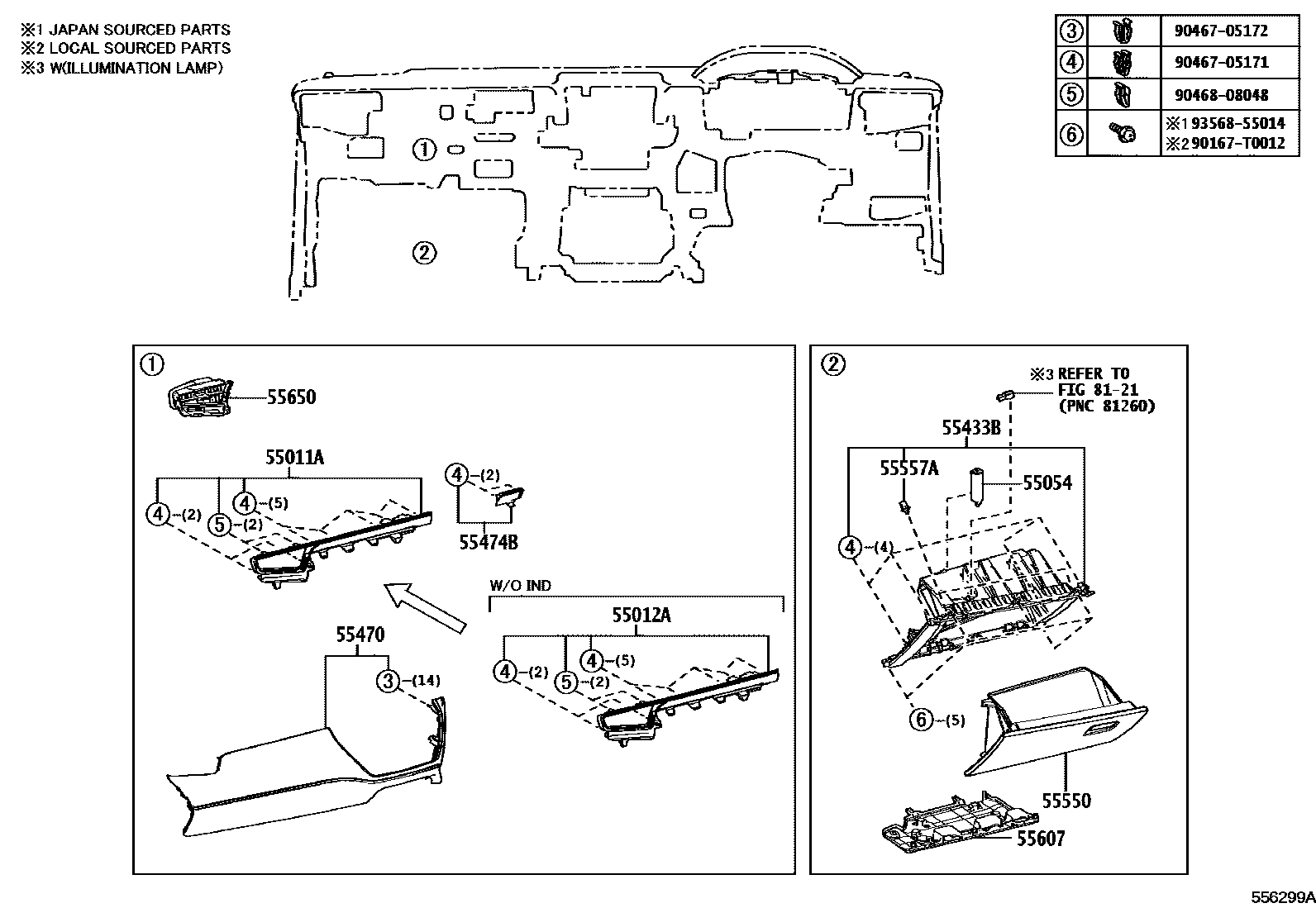

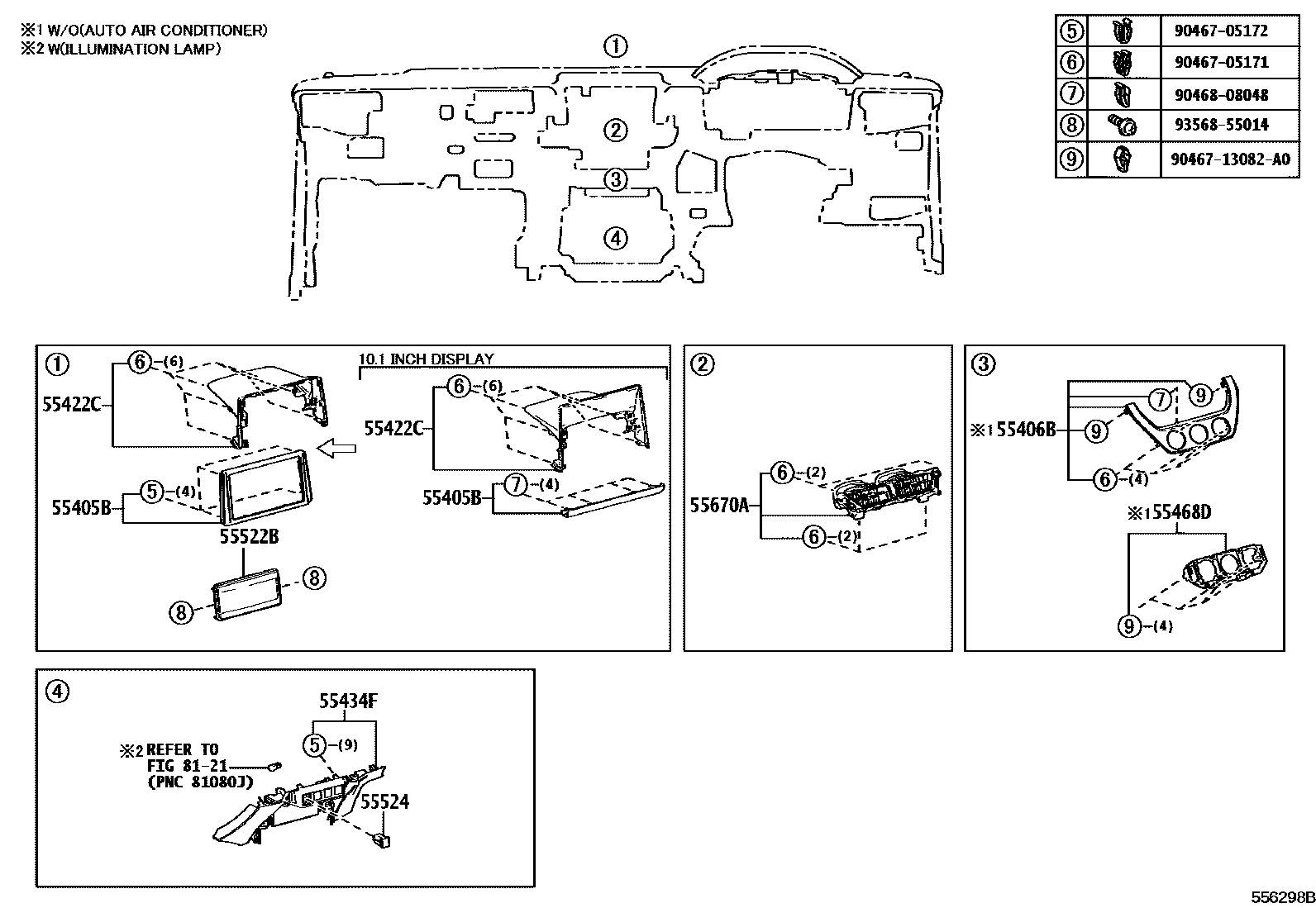

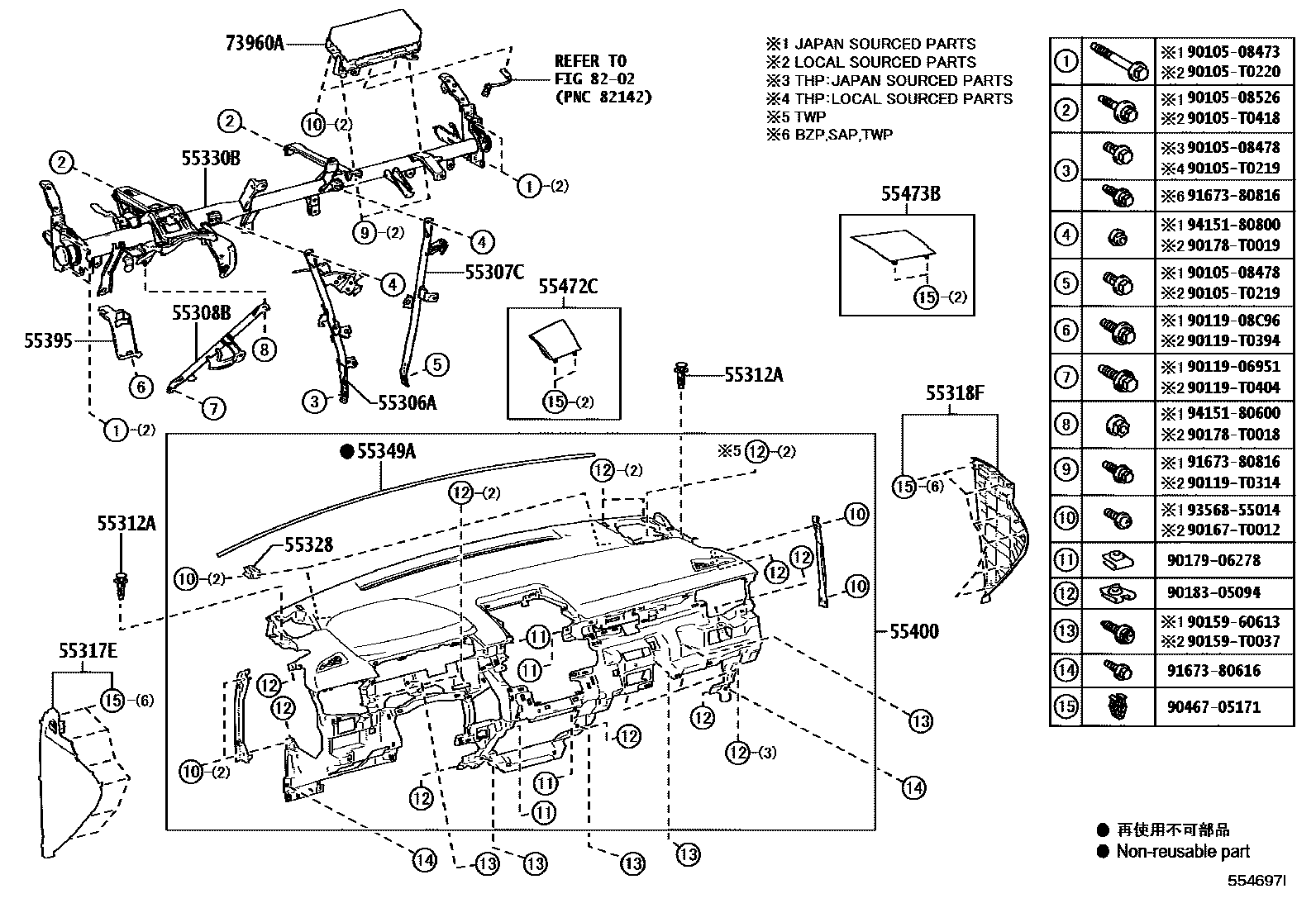

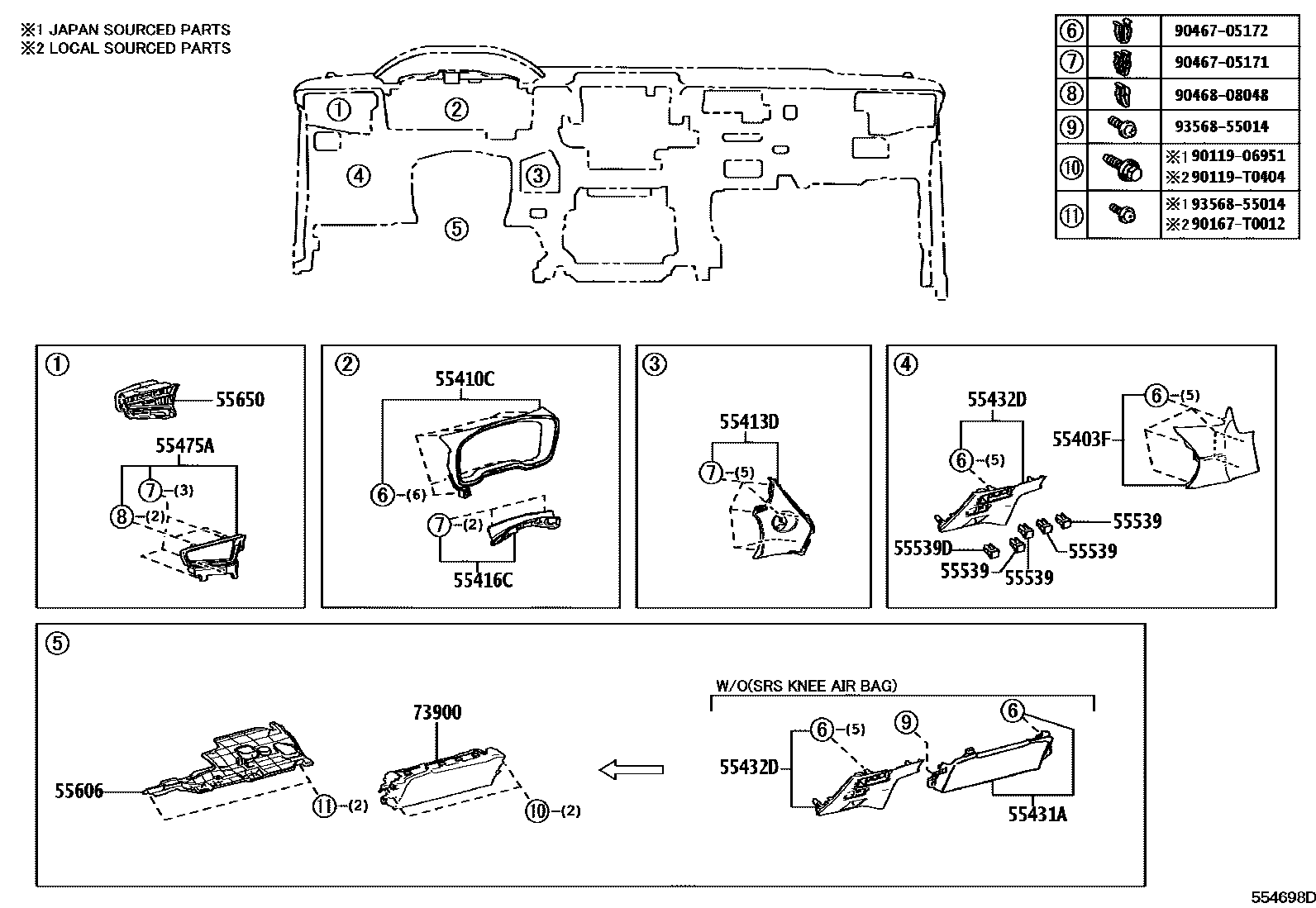

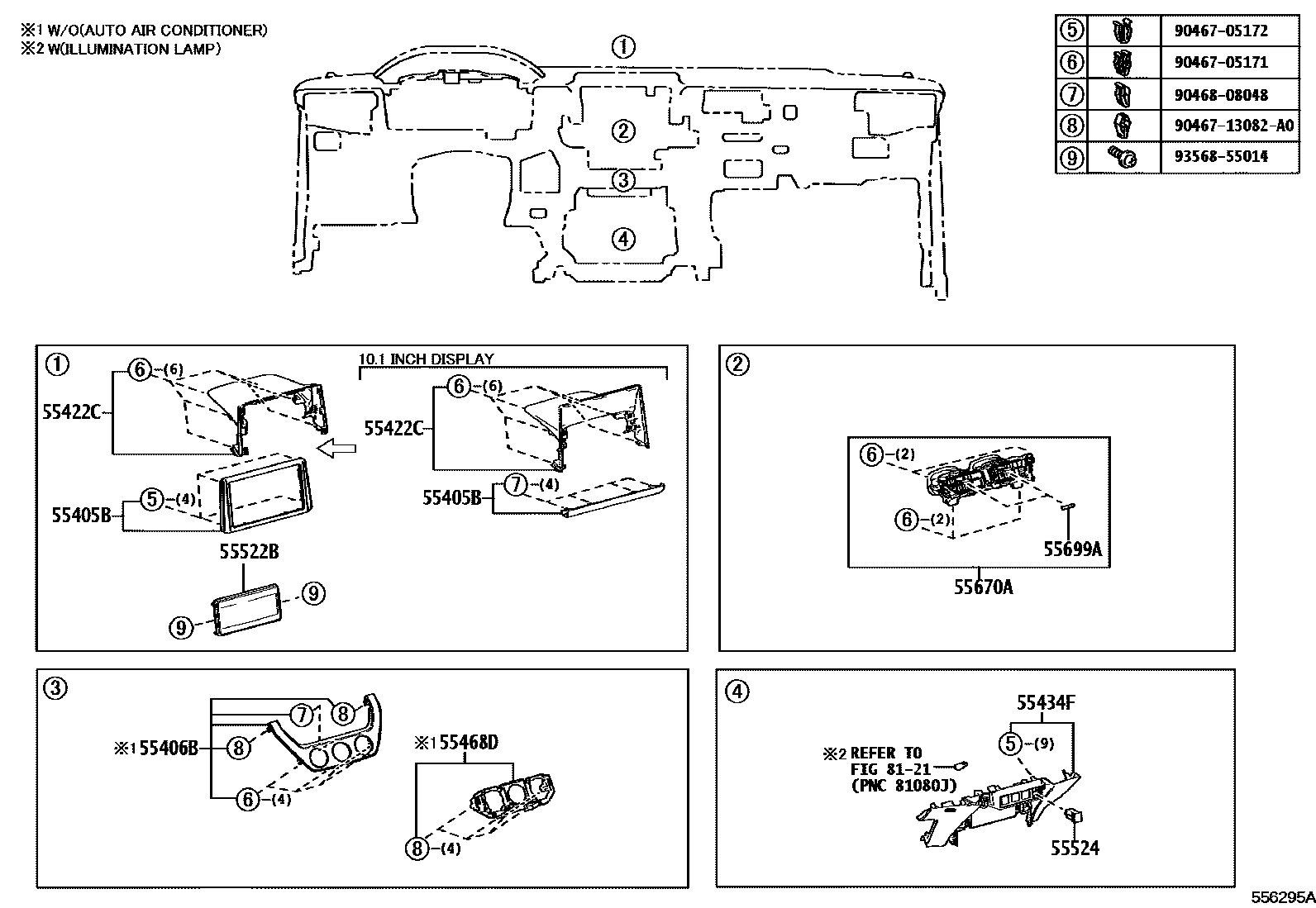

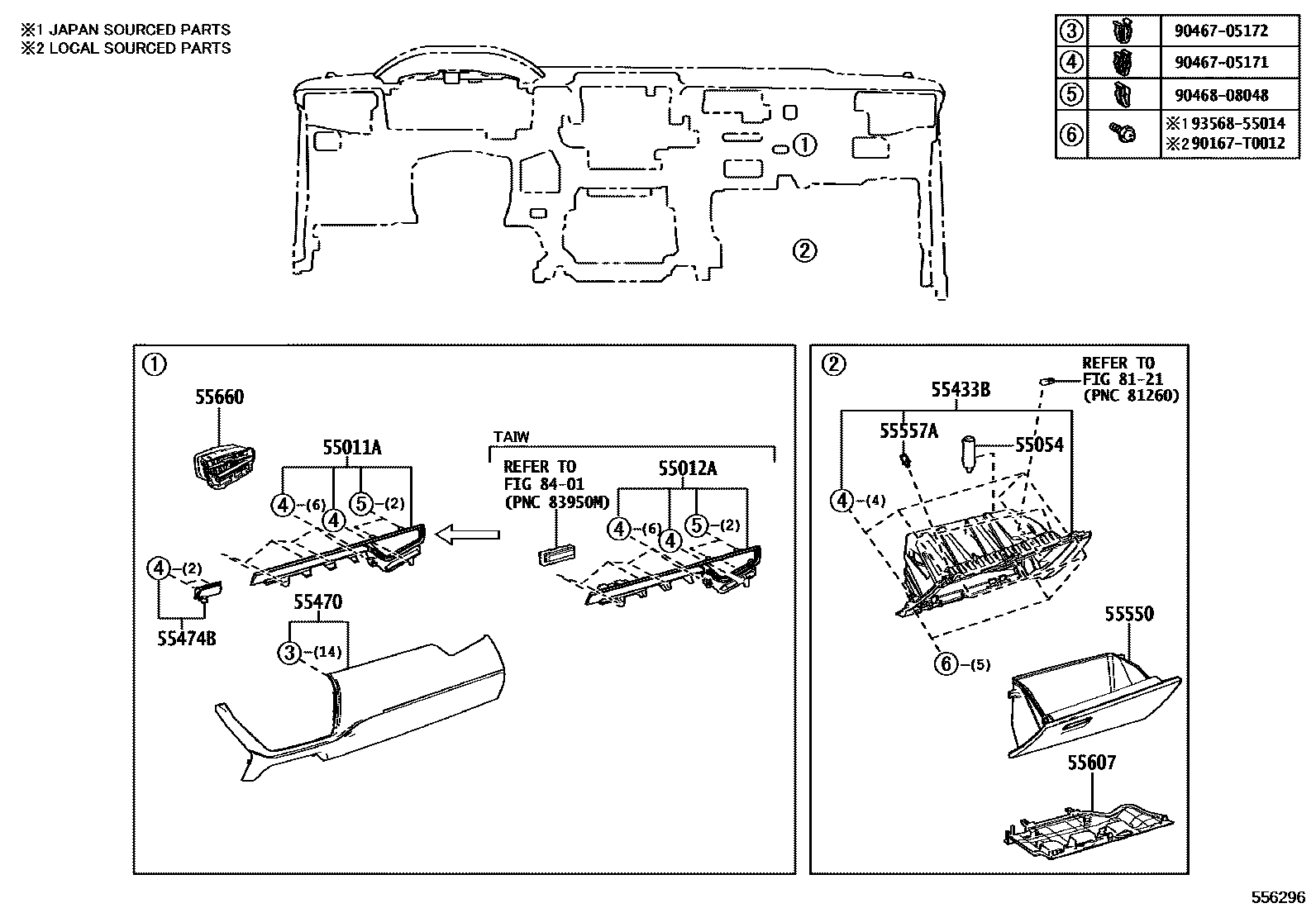

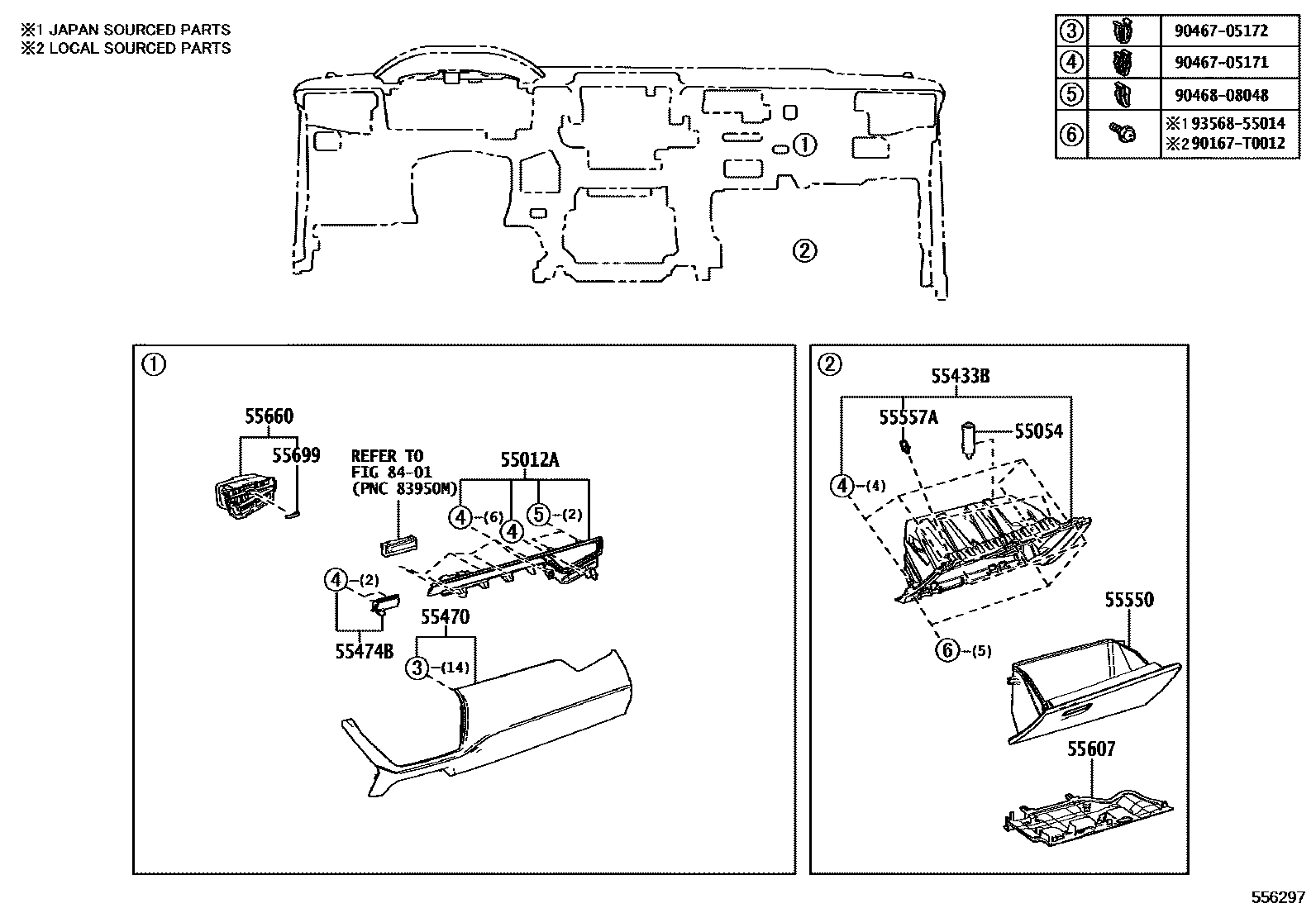

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 12 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0A030 · 55306-0A040 · 55306-0A050 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-0A050 · 55307-0A060 · 55307-0A070 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-0A030 · 55308-0A040 · 55308-0A050 · 55308-0A120 |
| 55312A | Dashboard clip | 52161-0K040 · 52161-0K060 · 52161-16010 |
| 55328 | Instrument panel pin 1 | 55328-12430 |
| 55330B | Instrument panel reinforcement assembly | 55330-0A040 · 55330-0A050 · 55330-0A060 · 55330-0A070 · 55330-0A110 · 55330-0A120 · 55330-0A130 · 55330-0A140 · 55330-0A200 · 55330-0A210 · 55330-0A220 · 55330-0A230 · 55330-0A240 · 55330-0A250 · 55330-0A260 |
| 55349A | Dashboard cushion | 55349-0D240 · 55349-0D280 · 55349-0D300 |
| 55395 | Dashboard to pedal bracket | 55395-0A020 · 55395-0A030 · 55395-0A070 · 55395-10010 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02830 · 55405-02F80 · 55405-02G00 · 55405-02G90 · 55405-02J10 · 55405-02J50 · 55405-0A010 · 55405-0A080 · 55405-0A090 · 55405-0A120 · 55405-YY020 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-02680 · 55406-02690 · 55406-02700 |
| 55410C | Instrument cluster decorative panel assembly | 55410-02680 · 55410-02700 · 55410-02720 · 55410-0A080 · 55410-0A090 |
| 55416C | Instrument cluster decorative panel fixings | 55416-02280 · 55416-02410 · 55416-02430 · 55416-0A010 |
| 55422C | Center instrument cluster upper decorative panel | 55422-02790 · 55422-02810 · 55422-0A080 · 55422-0A110 · 55422-0A170 · 55422-YY040 |
| 55432D | No. 1 lower decorative panel of instrument panel | 55432-0A131 |
| 55468D | Dashboard safety mat central fixing | 55468-02440 · 55468-02450 · 55468-02470 |
| 55522B | Radio tuner opening cover | 55522-0K010 · 55522-52020 |
| 55539 | Spare switch hole cover | 55539-06130 |
| 55557A | Glove box cover limit pad | 55557-52030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0A010 · 55606-0A020 · 55606-0A030 · 55606-0A040 · 55606-0A080 · 55606-0A090 · 55606-0A110 · 55606-0A120 · 55606-0A130 · 55606-0A150 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02340 · 55607-02350 · 55607-02360 · 55607-02380 · 55607-0A020 · 55607-0A030 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-02890 · 55650-02A10 · 55650-02A21 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-02560 · 55660-02580 · 55660-02591 |
| 55670A | Instrument panel central air register assembly | 55670-02880 · 55670-02A00 · 55670-02A11 |
| 55699 | Dashboard air register control button | 55699-02281 |
| 55699A | No. 2 air register control button on the instrument panel | 55699-02281 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0A010 · 73960-0A050 |
