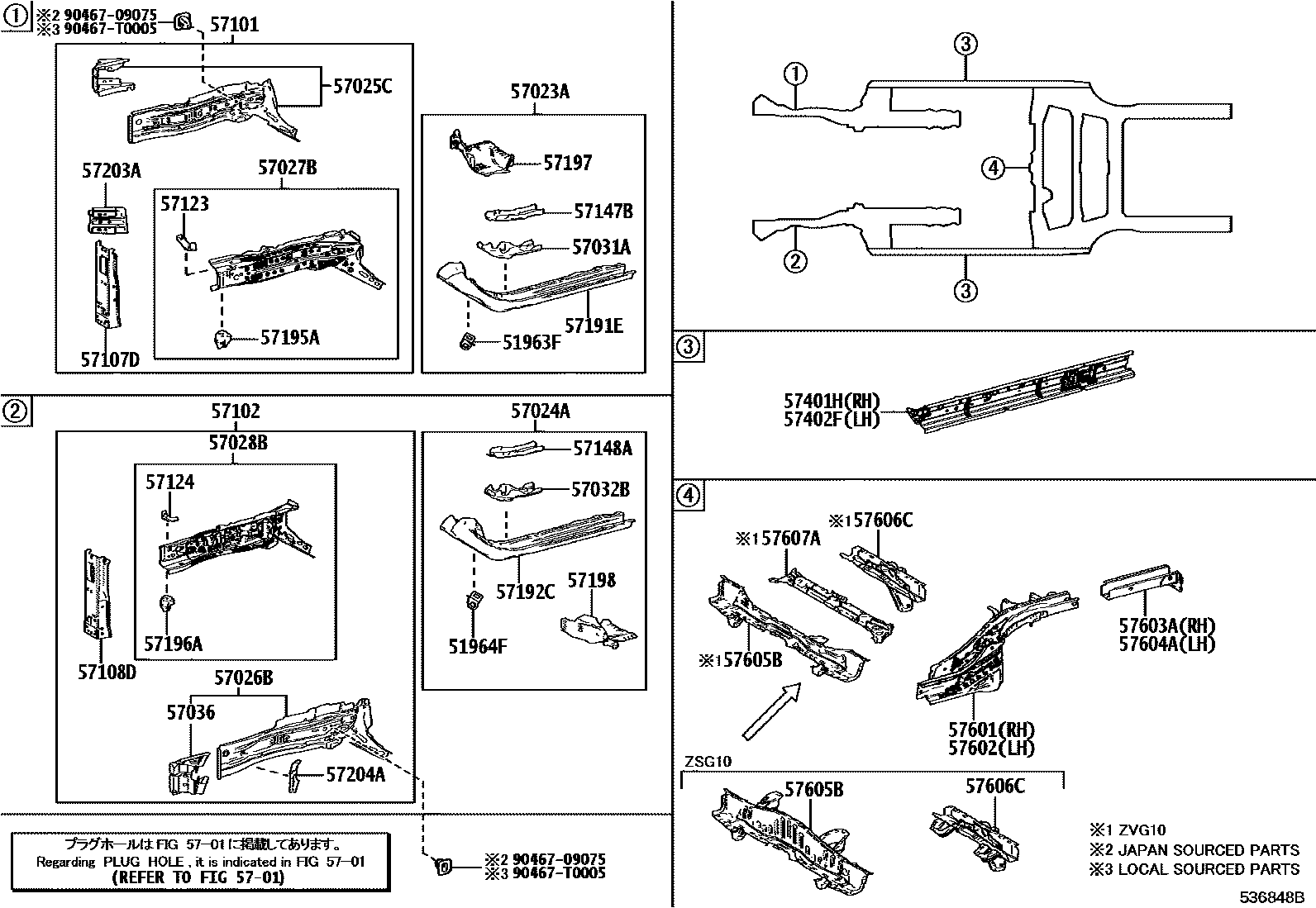

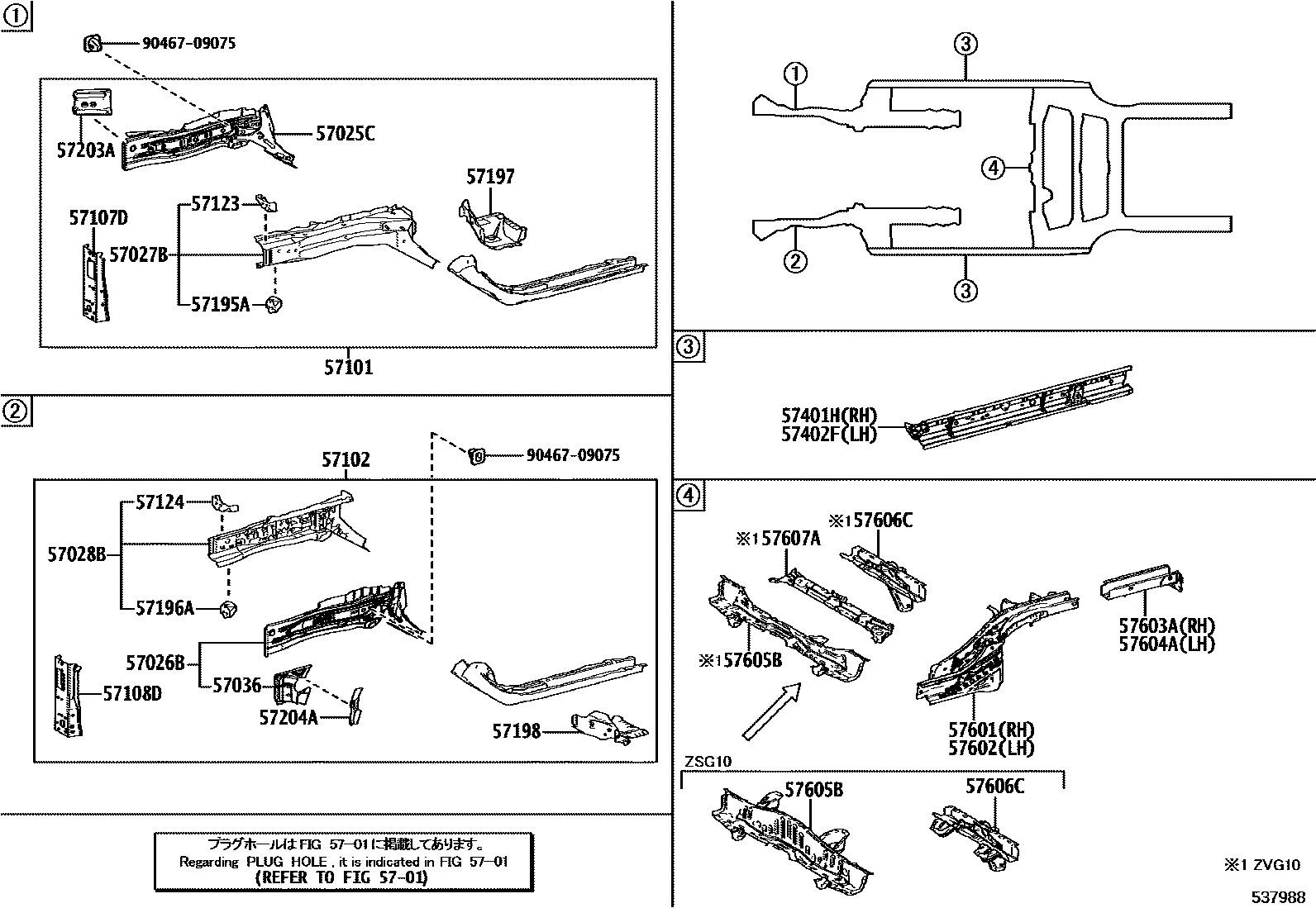

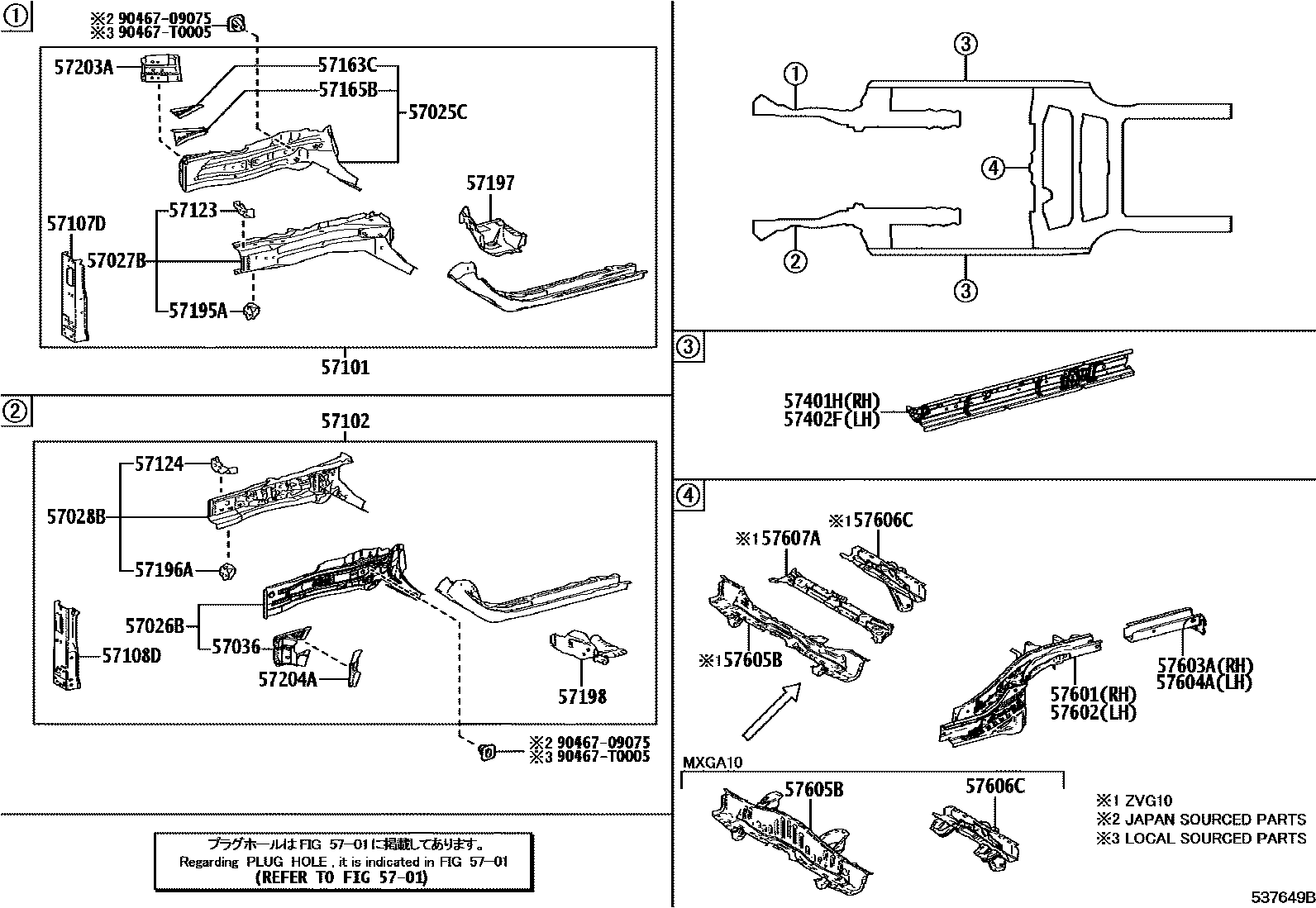

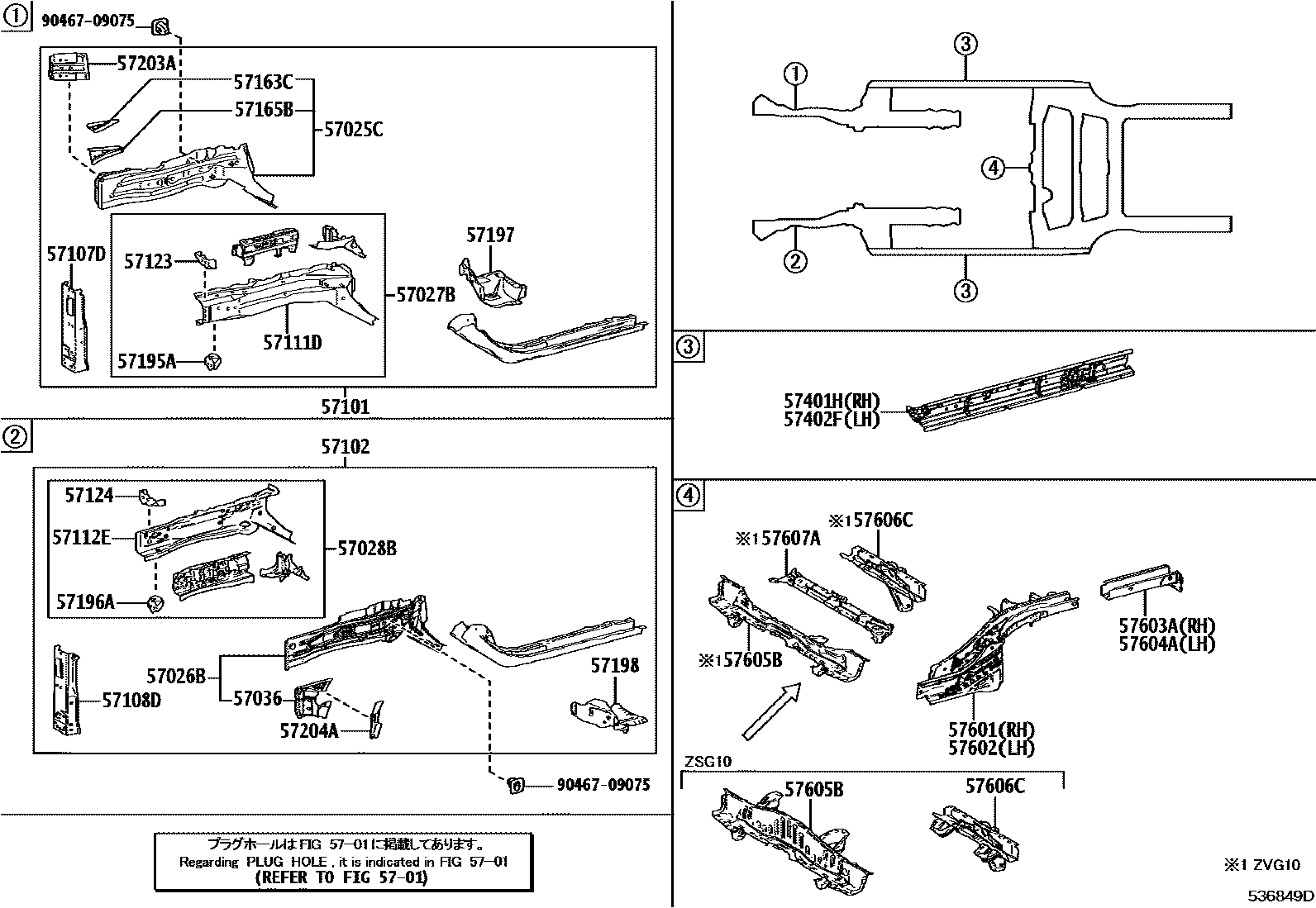

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 4 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51963F | transport hook | 51093-0A030 · 51093-10020 · 51093-F4040 |
| 51964F | left transport hook | 51094-0A030 · 51094-10010 · 51094-F4040 |
| 57023A | Right rear longitudinal beam sub-assembly | 57023-02140 · 57023-0A030 |
| 57024A | Left rear longitudinal beam sub-assembly | 57024-02150 · 57024-0A030 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-02080 · 57025-02100 · 57025-02110 · 57025-0A020 · 57025-0A030 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-02101 · 57026-02120 · 57026-0A020 · 57026-0A030 · 57026-F4020 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-02110 · 57027-02130 · 57027-02140 · 57027-0A020 · 57027-0A030 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-02121 · 57028-02140 · 57028-0A020 · 57028-0A030 · 57028-F4020 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-0A020 · 57031-F4020 |
| 57032B | No. 2 left front longitudinal beam reinforcement sub-assembly | 57032-0A020 · 57032-F4020 |
| 57036 | Left front running board panel sub-assembly | 57036-02071 · 57036-02080 · 57036-F4020 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-02580 · 57101-02600 · 57101-02928 · 57101-0A040 · 57101-0A070 · 57101-0A900 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-02791 · 57102-02810 · 57102-02945 · 57102-0A040 · 57102-0A070 · 57102-0A900 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57107-02110 · 57107-02120 · 57107-02140 · 57107-0A020 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57108-02110 · 57108-02120 · 57108-02140 · 57108-0A020 |
| 57111D | Inner right front longitudinal beam | 57111-02240 |
| 57112E | Inboard left front longitudinal beam | 57112-02201 |
| 57123 | Right front longitudinal beam bracket | 57123-02080 · 57123-02100 · 57123-0A020 · 57123-47020 · 57123-F4020 |
| 57124 | Left front longitudinal beam bracket | 57124-02080 · 57124-02100 · 57124-0A020 · 57124-47020 · 57124-F4020 |
| 57147B | Right front longitudinal beam rear panel | 57147-02140 · 57147-0A010 |
| 57148A | Left front longitudinal beam rear panel | 57148-02130 · 57148-0A010 |
| 57163C | No. 1 front cross member right reinforcement | 57163-02110 · 57163-02130 |
| 57165B | No. 2 front cross member right reinforcement | 57165-02150 · 57165-02170 |
| 57191E | Right rear longitudinal beam sub-assembly inside front floor | 57191-F4020 |
| 57192C | Left rear longitudinal beam sub-assembly inside the front floor | 57192-F4020 |
| 57195A | Right front longitudinal beam front reinforcement | 57195-02080 · 57195-02100 · 57195-0A020 · 57195-47010 · 57195-F4020 |
| 57196A | Left front longitudinal beam front reinforcement | 57196-02090 · 57196-02110 · 57196-0A020 · 57196-47030 · 57196-F4020 |
| 57197 | Right front torsion box section piece | 57197-02150 · 57197-02170 · 57197-02180 · 57197-0A020 |
| 57198 | Left front anti-torsion box section piece | 57198-02150 · 57198-02170 · 57198-02180 · 57198-0A020 |
| 57203A | No. 2 right front longitudinal beam extension sub-assembly | 57215-02040 · 57215-02060 · 57215-02070 · 57215-0A020 |
| 57204A | No. 2 left front longitudinal beam extension sub-assembly | 57204-02071 · 57204-02080 · 57204-47011 · 57204-F4020 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-0A020 · 57401-0A030 · 57401-0A040 · 57401-0A080 · 57401-0A090 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-0A020 · 57402-0A030 · 57402-0A040 · 57402-0A090 · 57402-0A100 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-0A030 · 57601-0A040 · 57601-0A050 · 57601-0A100 · 57601-0A110 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-0A030 · 57602-0A040 · 57602-0A050 · 57602-0A051 · 57602-0A060 · 57602-0A061 · 57602-0A110 · 57602-0A120 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-0A010 · 57603-0A011 · 57603-0A020 · 57603-0A030 · 57603-0A081 · 57603-0A090 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-0A010 · 57604-0A011 · 57604-0A020 · 57604-0A030 · 57604-0A031 · 57604-0A081 · 57604-0A091 · 57604-0A100 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-02331 · 57605-02361 · 57605-0A030 · 57605-0A031 · 57605-0A041 · 57605-0A050 · 57605-0A101 · 57605-0A111 · 57605-0A120 · 57605-0A130 · 57605-F4040 · 57605-F4041 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-0A060 · 57606-0A070 · 57606-0A080 · 57606-0A090 · 57606-0A100 · 57606-0A110 · 57606-0A120 · 57606-0A130 · 57606-0A140 · 57606-0A150 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-0A010 · 57607-0A011 · 57607-0A020 · 57607-0A021 · 57607-0A030 · 57607-0A031 · 57607-0A040 |
