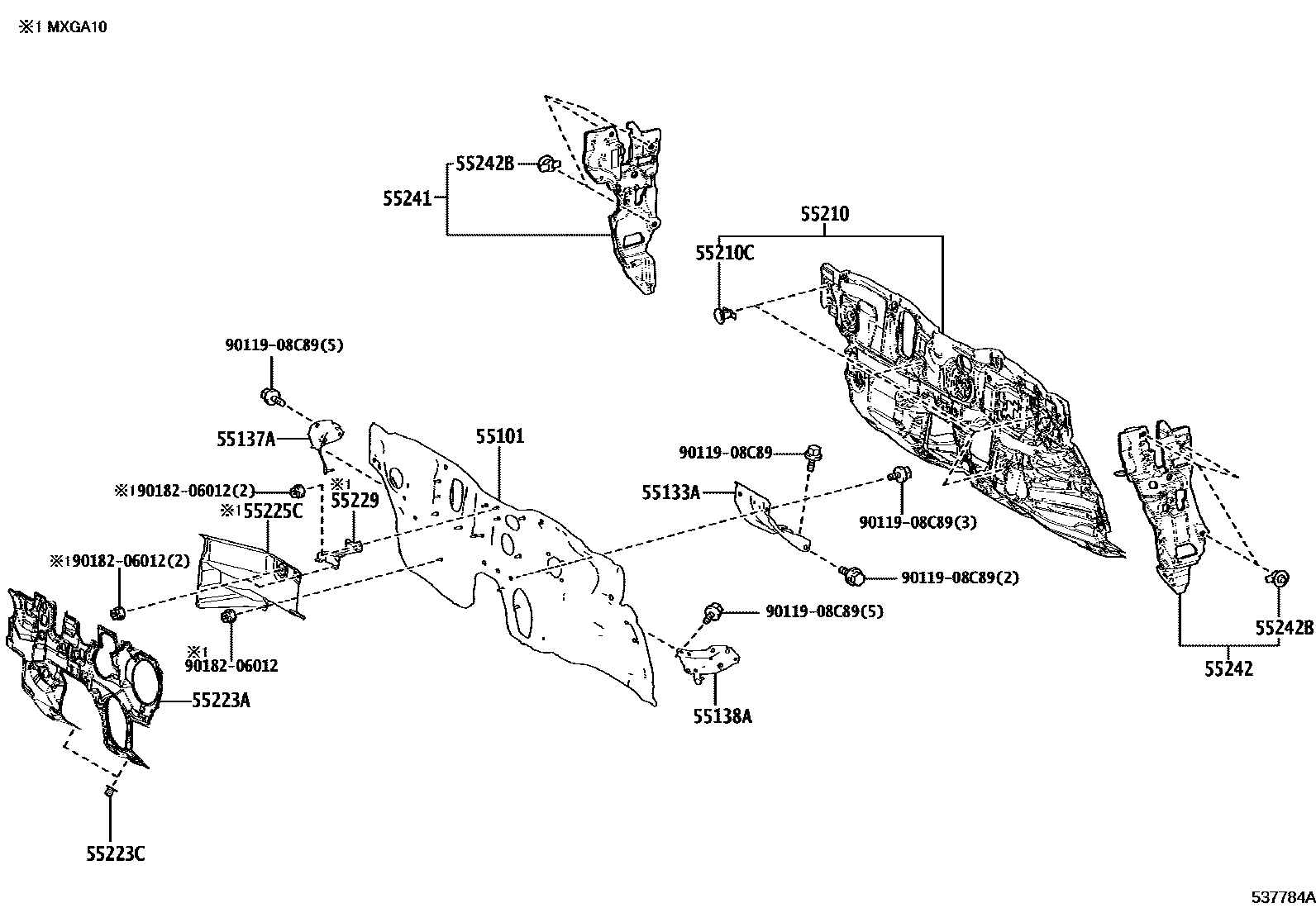

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

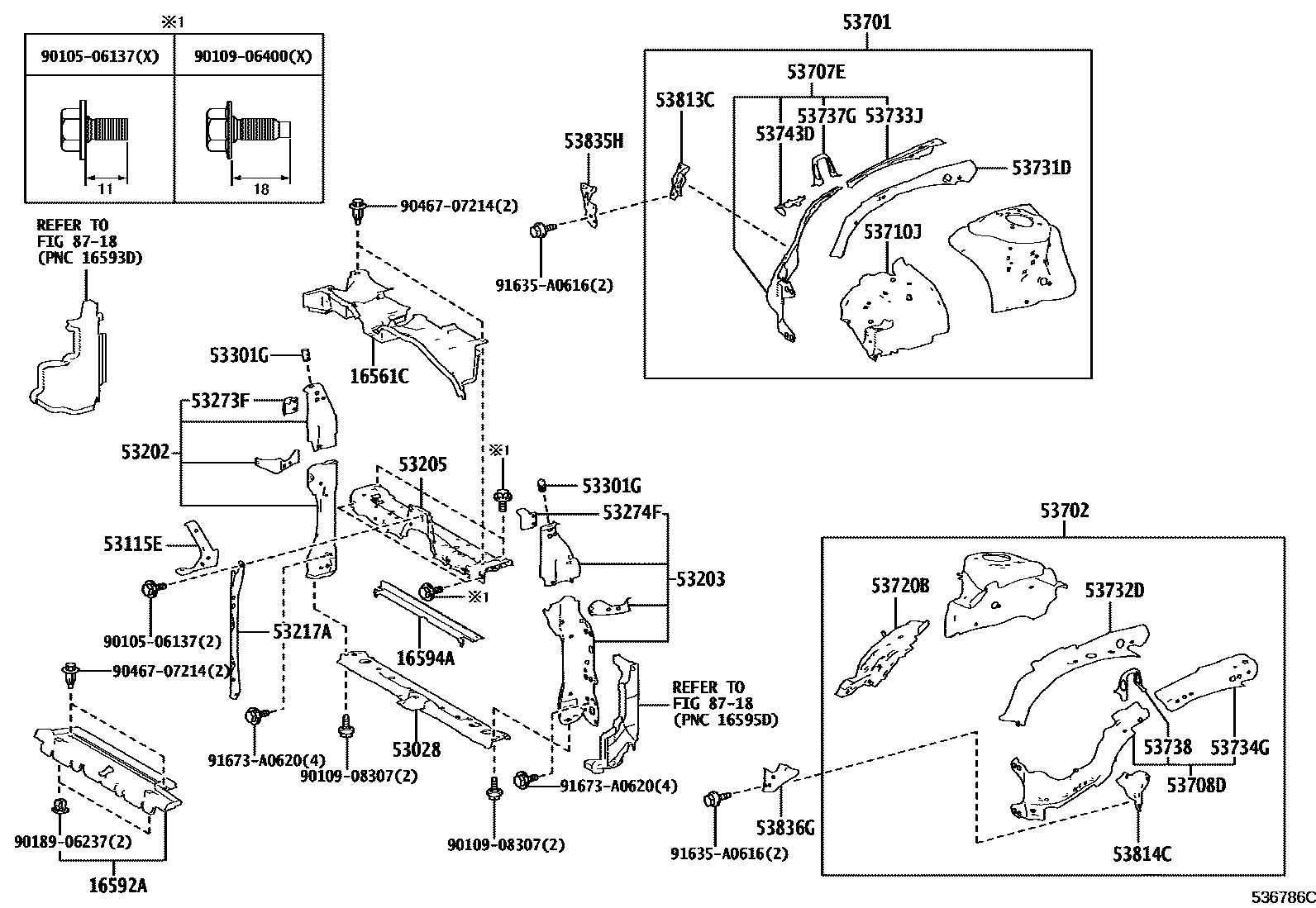

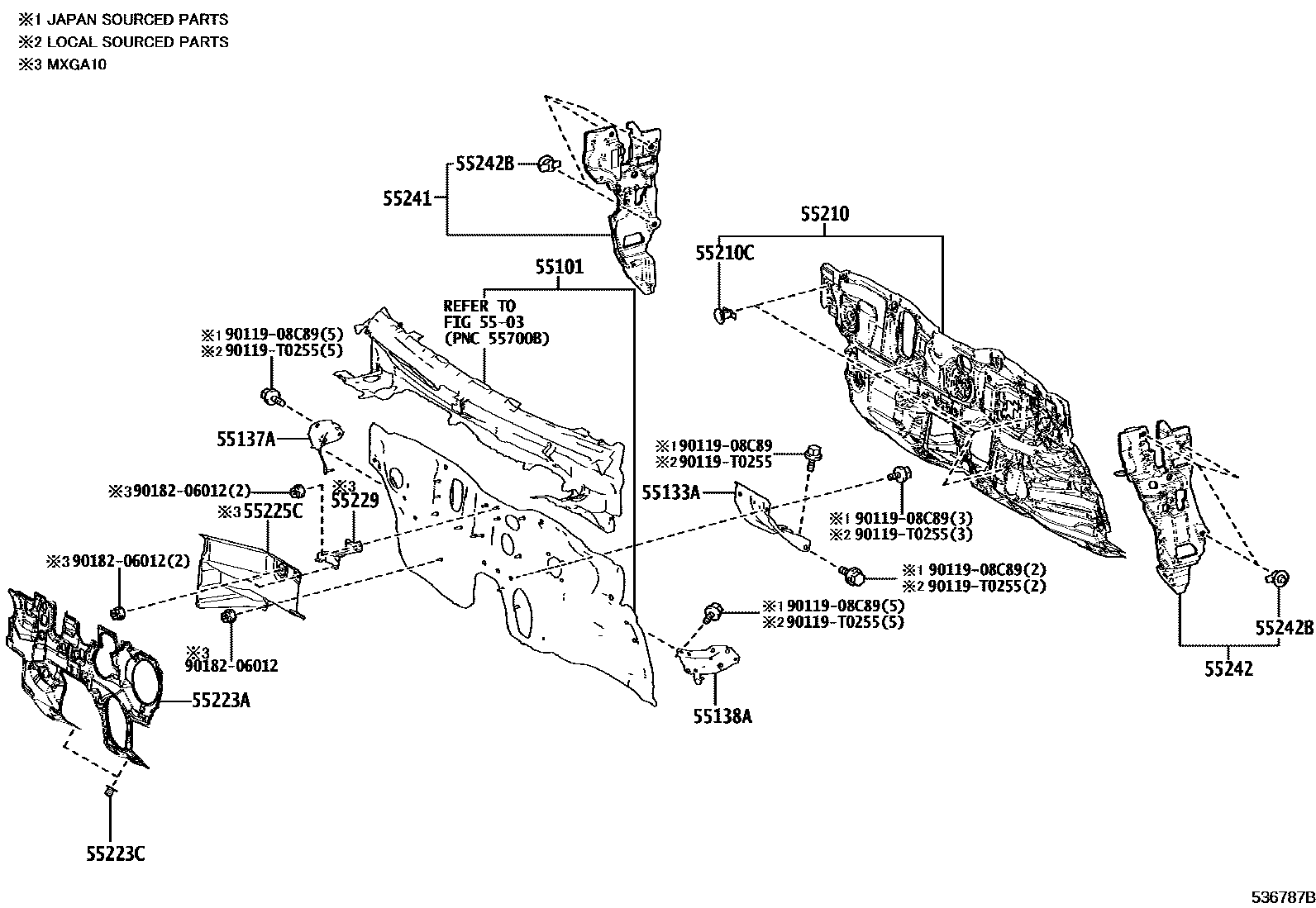

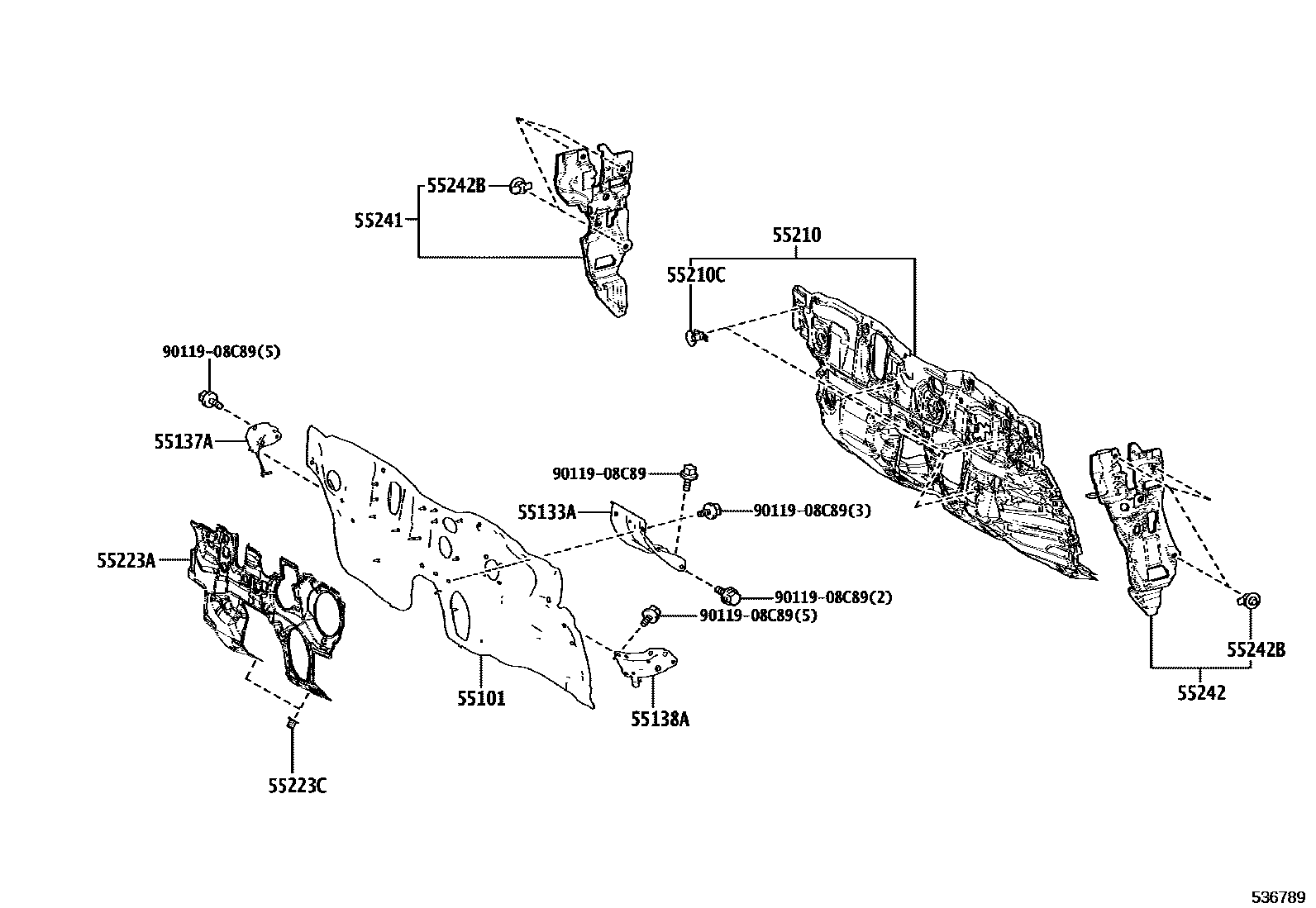

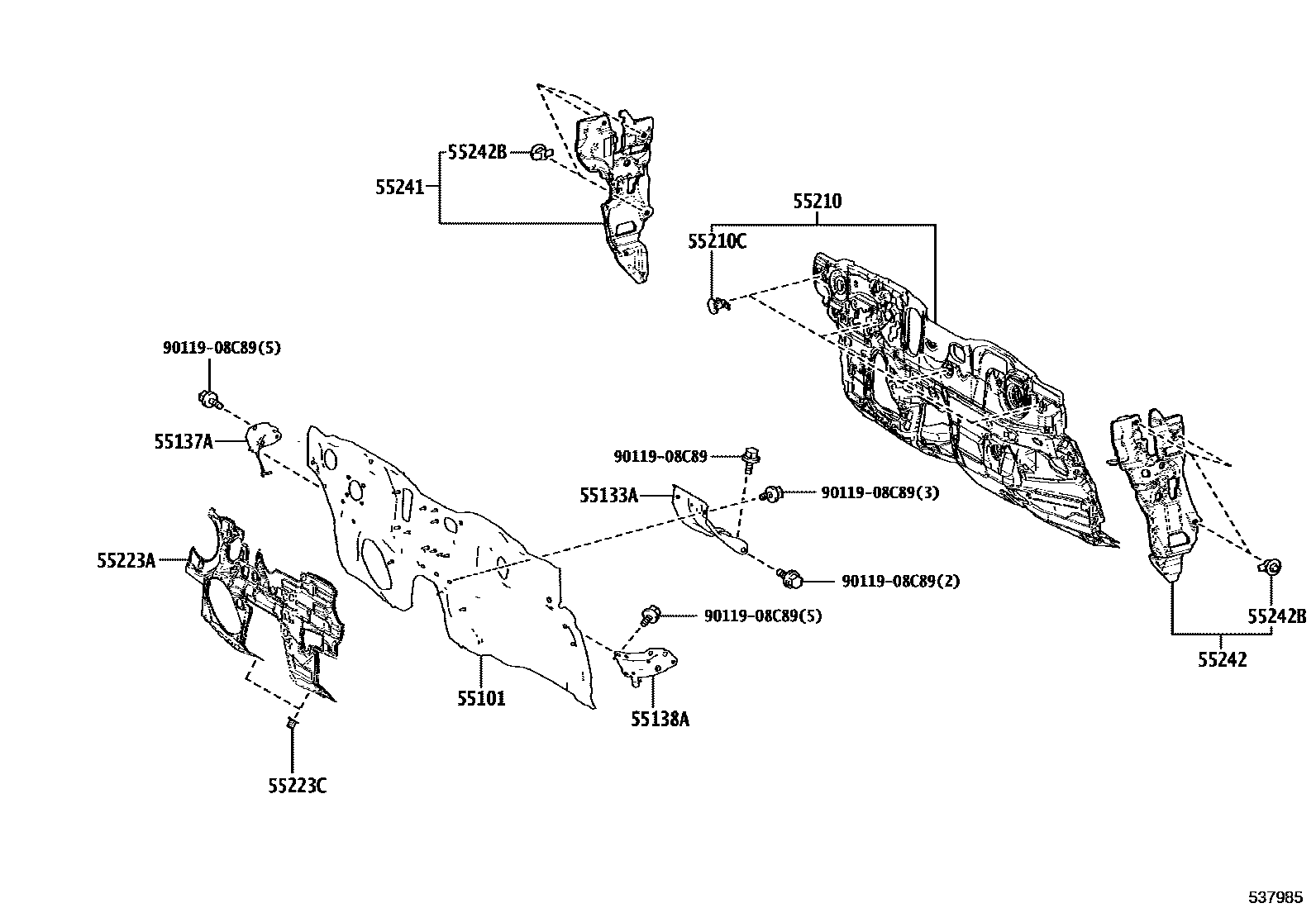

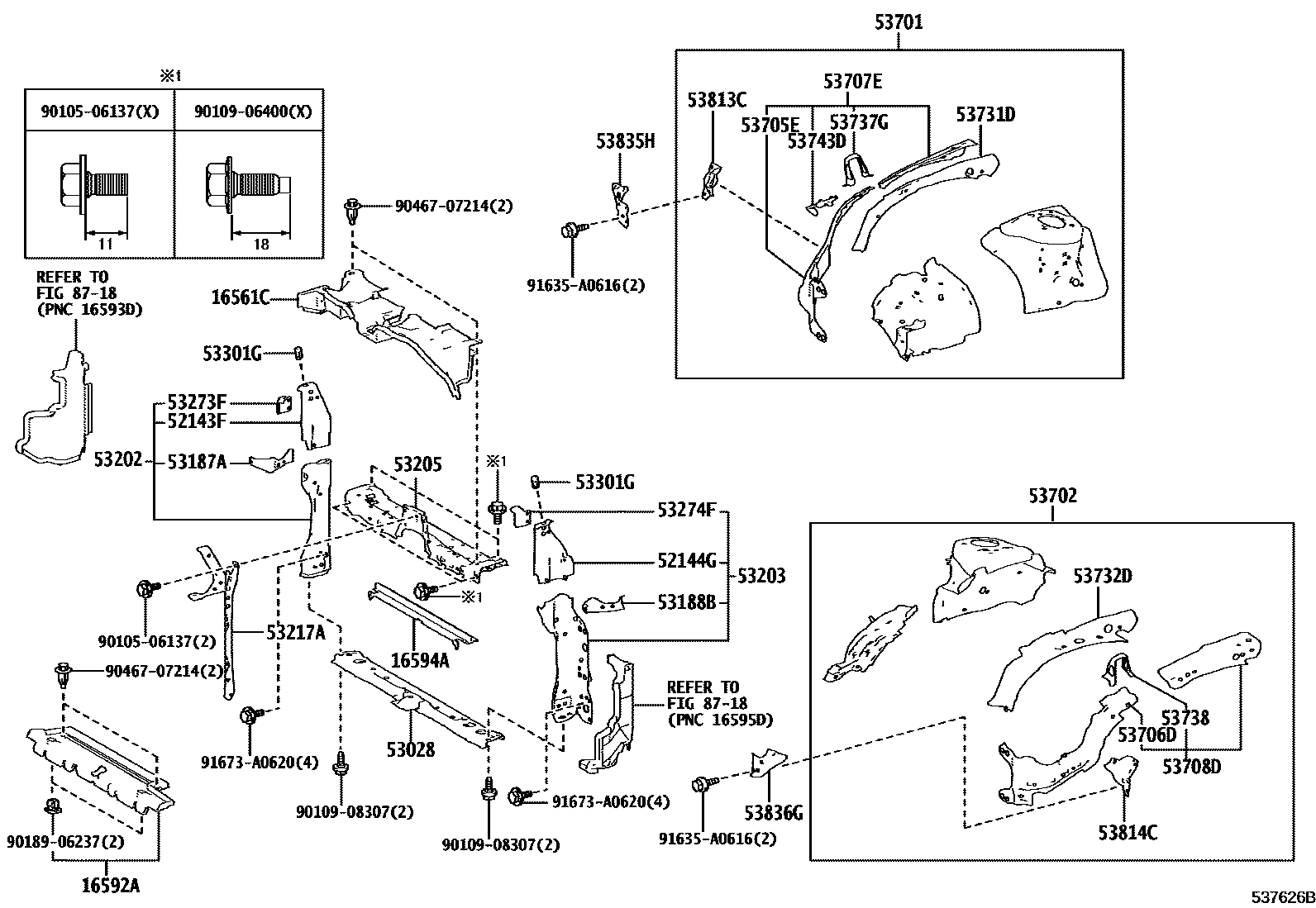

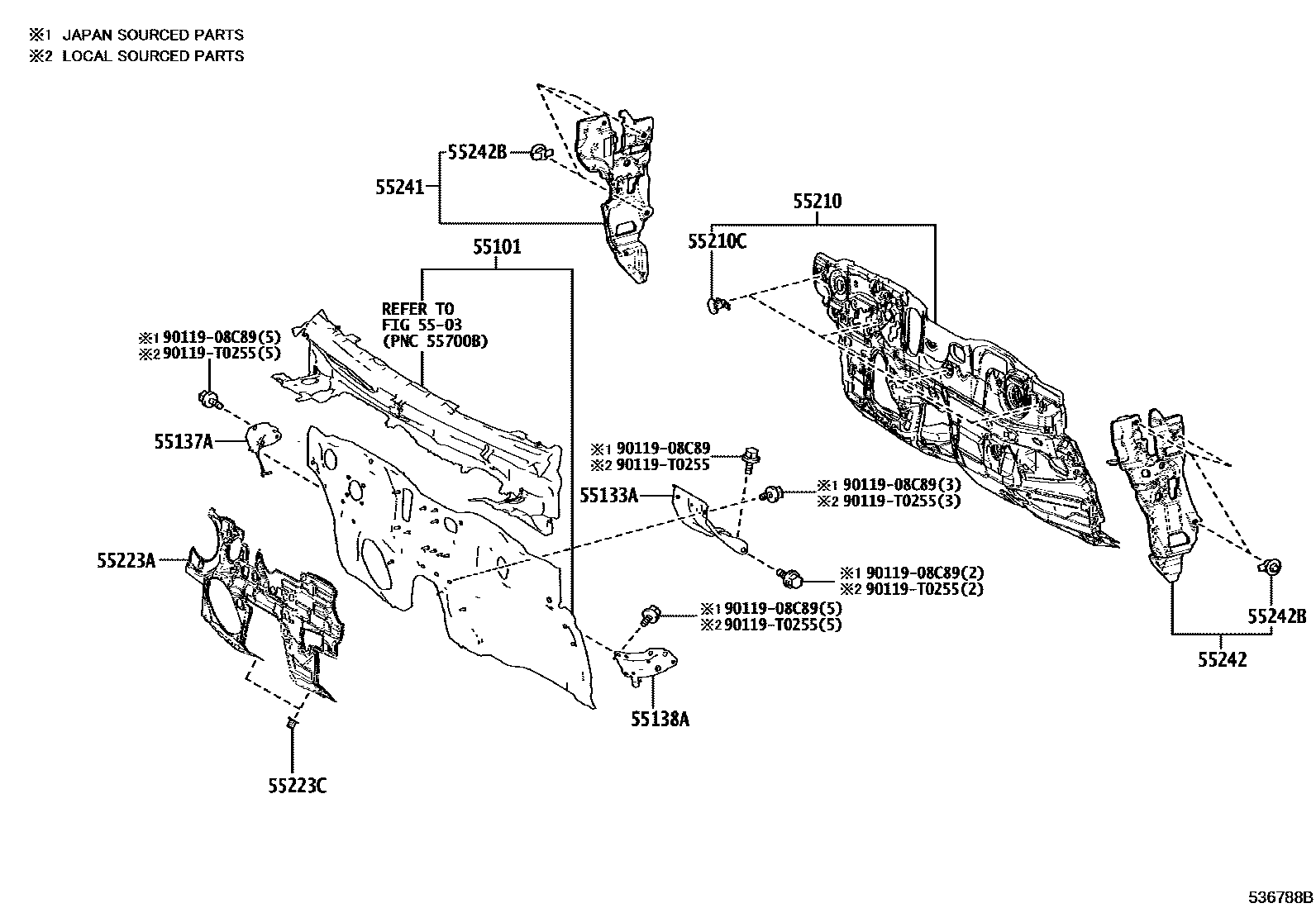

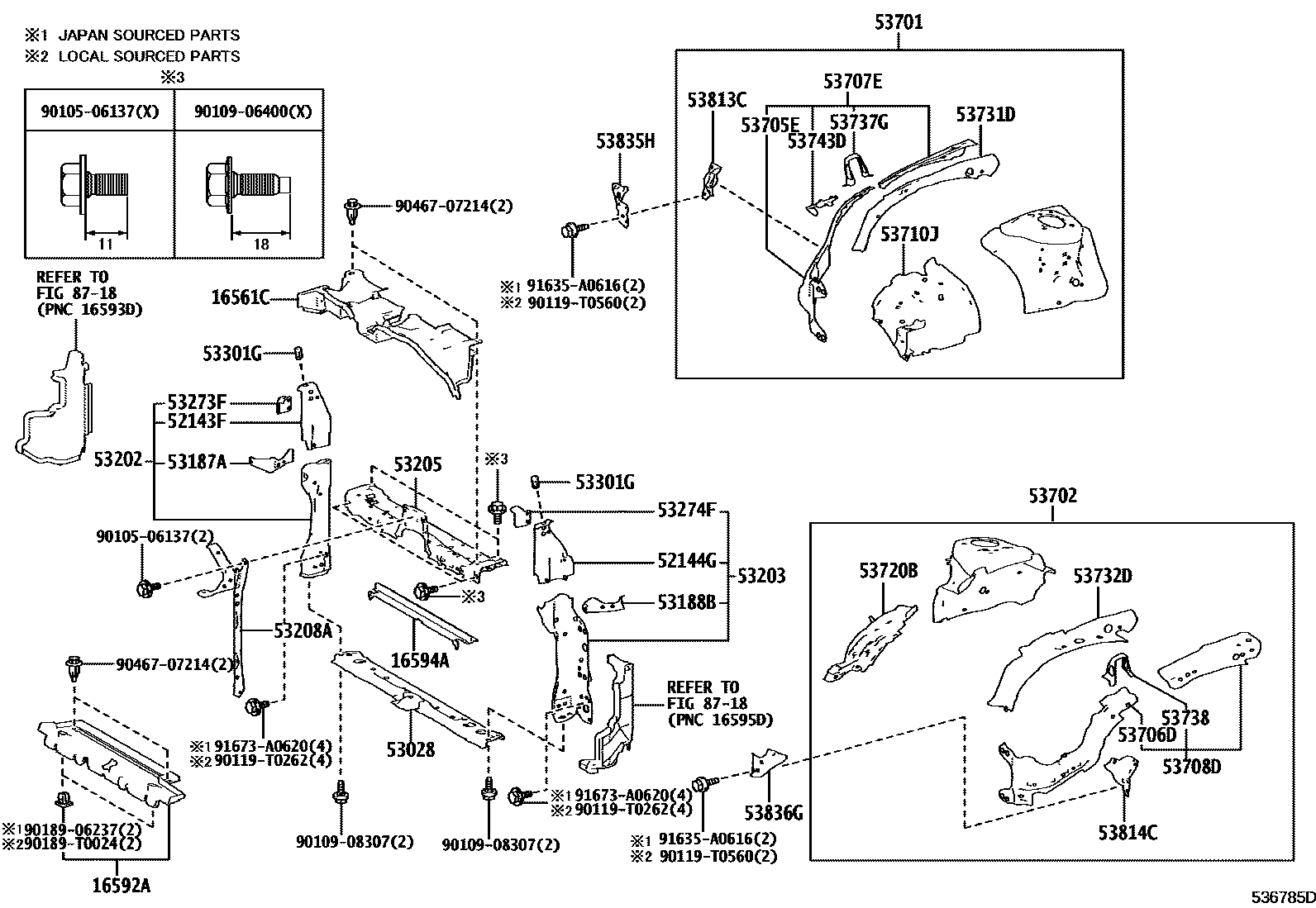

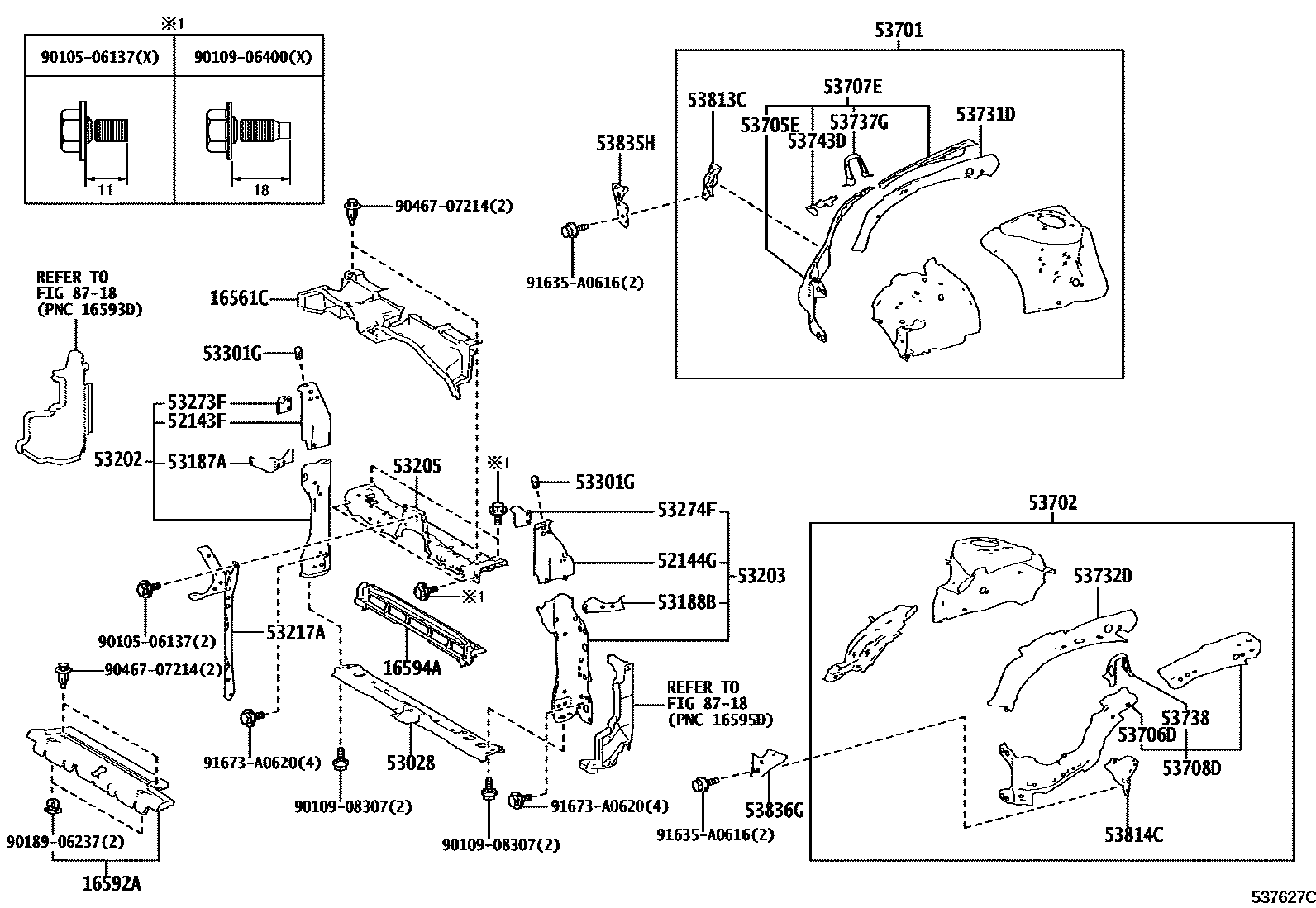

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 9 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16561C | Seal No. 1 (radiator to bracket) | 16561-0T220 · 16561-0T290 · 16561-0T300 · 16561-0T310 · 16561-F2130 |
| 16592A | Radiator deflector No. 3 | 16592-0T310 · 16592-0T330 · 16592-0T340 · 16592-0T370 |
| 16594A | Radiator deflector No. 2 | 16594-0T070 · 16594-0T080 · 16594-0T100 · 16594-0T110 · 16594-0T120 · 16594-0T210 · 16594-F2070 · 16594-F2180 |
| 52143F | Front bumper right side bracket | 52143-0A040 · 52143-0A060 |
| 52144G | Front bumper left bracket | 52144-0A040 · 52144-0A060 |
| 53028 | Radiator lower bracket sub-assembly | 53028-02090 · 53028-02100 · 53028-02130 · 53028-02140 · 53028-0A030 |
| 53115E | Radiator grille bracket | 53115-0A060 |
| 53187A | Radiator right side bracket stay | 53187-0A040 · 53187-0A060 |
| 53188B | Radiator left bracket stay | 53188-0A040 · 53188-0A060 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0A900 · 53202-0A901 · 53202-0A902 · 53202-0A904 |
| 53203 | Radiator left bracket sub-assembly | 53203-0A900 · 53203-0A901 · 53203-0A902 · 53203-0A904 |
| 53205 | Radiator upper bracket sub-assembly | 53205-0A020 · 53205-0A030 · 53205-0A040 · 53205-0A050 · 53205-0A090 · 53205-0A100 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-0A900 · 53217-0A902 |
| 53217A | engine cover lock bracket | 53217-0A050 · 53217-0A900 · 53217-0A901 |
| 53273F | Front bumper right fixed mounting bracket | 53273-0A040 · 53273-0A050 · 53273-0A060 |
| 53274F | Front bumper left fixed mounting bracket | 53274-0A040 · 53274-0A050 · 53274-0A060 |
| 53301G | engine cover cushion | 90541-15037 |
| 53701 | Right front fender fender sub-assembly | 53701-0A050 · 53701-0A060 · 53701-0A070 · 53701-0A110 · 53701-0A120 |
| 53702 | Left front fender fender sub-assembly | 53702-0A040 · 53702-0A050 · 53702-0A060 · 53702-0A100 · 53702-0A110 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-02120 · 53705-02130 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-02120 · 53706-02130 |
| 53707E | Fender right fender sub-assembly | 53707-0A010 · 53707-0A020 · 53707-0A030 · 53707-0A070 |
| 53708D | Fender left fender sub-assembly | 53708-0A010 · 53708-0A020 · 53708-0A030 · 53708-0A070 |
| 53710J | Right front fender fender assembly | 53710-02150 · 53710-0A030 · 53710-F4020 |
| 53720B | Left front fender fender assembly | 53720-02170 · 53720-0A030 · 53720-F4020 |
| 53731D | Right front fender to cowl side upper beam | 53731-02140 · 53731-02160 · 53731-02170 · 53731-0A020 |
| 53732D | Left front fender to cowl side upper beam | 53732-02140 · 53732-02160 · 53732-02170 · 53732-0A020 |
| 53733J | Right front fender to front wall side outer beam | 53733-02100 |
| 53734G | Left front fender to front wall side outer beam | 53734-02100 |
| 53737G | Right front fender to front wall side sill | 53737-0A040 · 53737-0A050 · 53737-0A060 |
| 53738 | Left front fender to front wall side sill | 53738-0A040 · 53738-0A050 · 53738-0A060 |
| 53743D | Right front fender fender front extension reinforcement | 53743-0A050 · 53743-0A060 · 53743-0A070 |
| 53813C | Right front fender extension | 53813-02200 · 53813-02220 · 53813-0A020 · 53813-F4020 |
| 53814C | Left front fender extension | 53814-02210 · 53814-02230 · 53814-0A020 · 53814-F4020 |
| 53835H | Right front fender to extension stay | 53835-0A040 · 53835-0A050 · 53835-0A060 · 53835-0A080 |
| 53836G | Left front fender to extension stay | 53836-0A040 · 53836-0A050 · 53836-0A060 · 53836-0A080 |
| 55101 | Front apron sub-assembly | 55101-0A110 · 55101-0A120 · 55101-0A150 · 55101-0A160 · 55101-0A900 · 55101-0A901 · 55101-0A903 |
| 55133A | Right reinforcement (front wall to floor) | 55133-02080 · 55133-02100 · 55133-0A030 · 55133-0A040 · 55133-F4020 |
| 55137A | Right side bracket (front wall to frame) | 55137-02160 · 55137-02170 · 55137-02230 · 55137-0A010 |
| 55138A | Left side bracket (front wall to frame) | 55138-02150 · 55138-02210 · 55138-02230 · 55138-0A010 |
| 55210 | Front wall insulation pad assembly | 55210-02710 · 55210-02720 · 55210-02730 · 55210-02750 · 55210-02800 · 55210-02810 · 55210-0A050 · 55210-0A060 · 55210-0A140 · 55210-0A150 · 55210-0A160 · 55210-0A180 |
| 55210C | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-02440 · 55223-02460 · 55223-02480 · 55223-0A020 · 55223-0A030 · 55223-0A040 · 55223-F4030 |
| 55223C | clip | 90467-06197 · 90467-T0032 |
| 55225C | Front wall insulation pad | 55225-02080 · 55225-02081 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-02050 |
| 55241 | Front panel No. 1 right side silencer | 55241-02080 · 55241-02090 · 55241-02110 · 55241-0A010 |
| 55242 | Front panel No. 1 left side silencer | 55242-02070 · 55242-02080 · 55242-02100 · 55242-0A010 |
| 55242B | Front panel side muffler clip | 90467-13079 |
