Toyota COROLLA 发动机盖锁和铰链 — Figure 5303

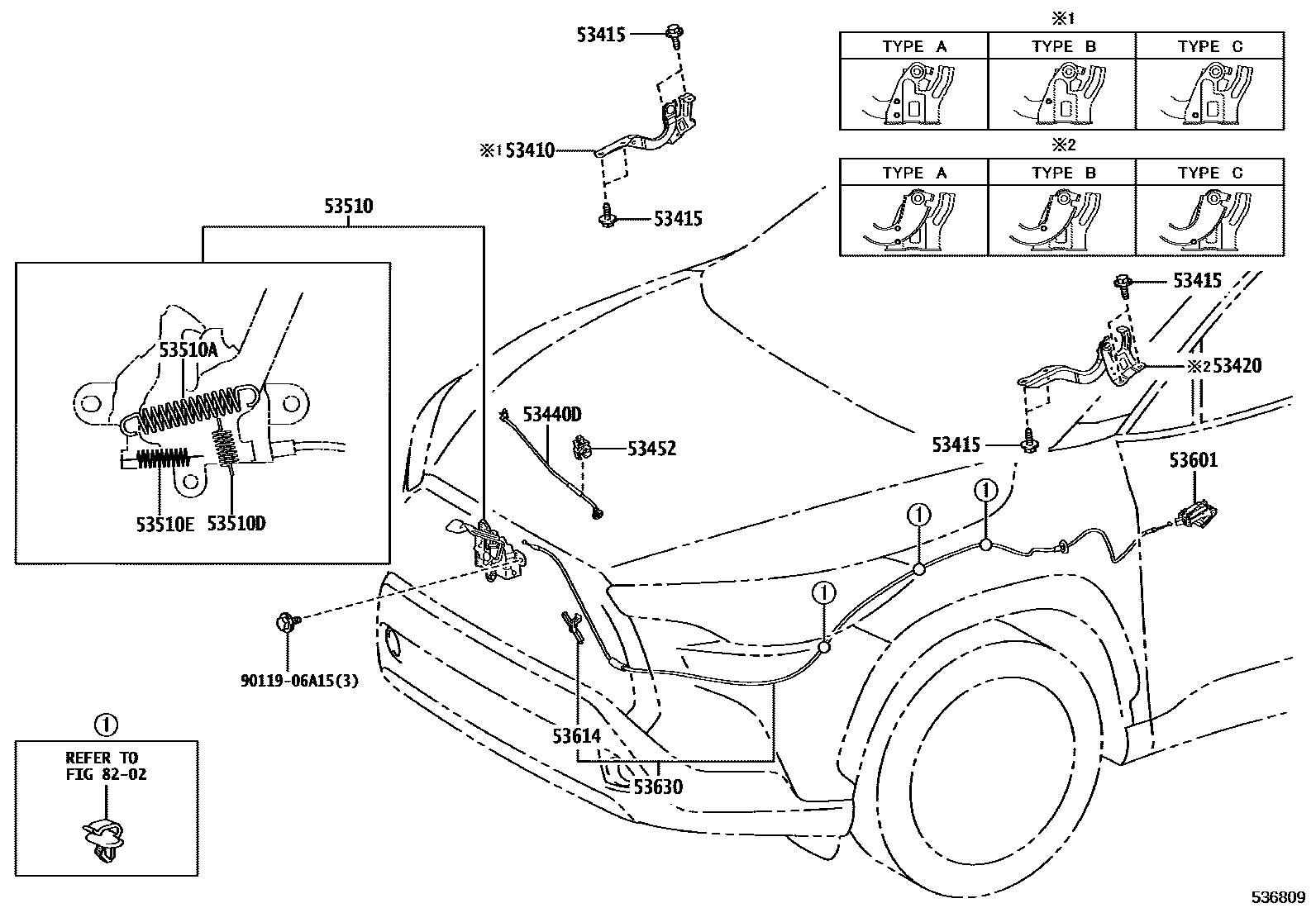

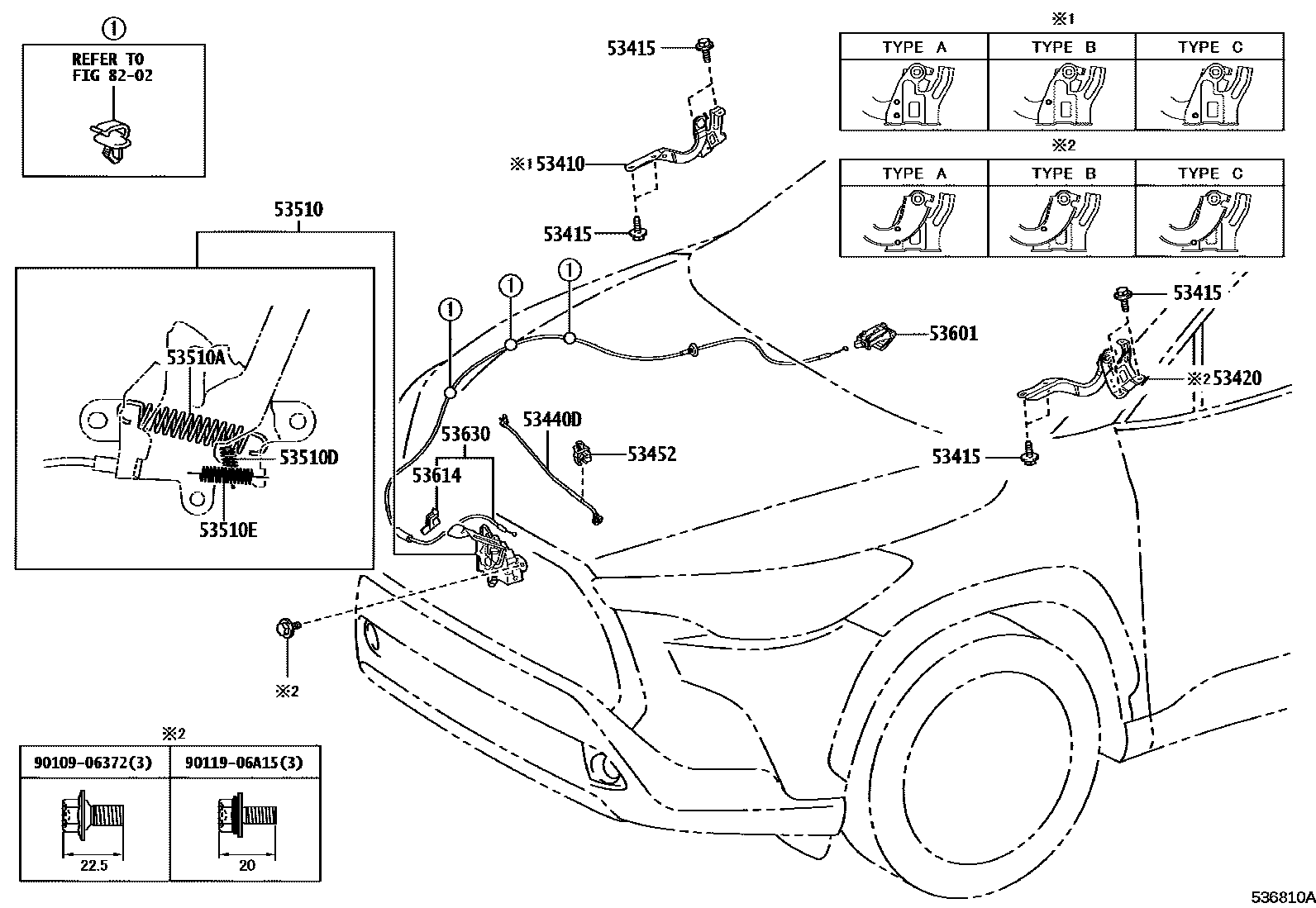

Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0A030 · 53410-0A040 · 53410-0A050 · 53410-0A060 · 53410-0A090 · 53410-0A100 · 53410-0A110 · 53410-0A210 · 53410-0A220 · 53410-0A230 |
| 53415 | Engine cover hinge bolts | 90105-T0120 · 91551-80820 |
| 53420 | Engine cover left hinge assembly | 53420-0A030 · 53420-0A040 · 53420-0A050 · 53420-0A060 · 53420-0A090 · 53420-0A100 · 53420-0A110 · 53420-0A210 · 53420-0A220 · 53420-0A230 |
| 53440D | Engine cover support rod assembly | 53440-0A010 · 53440-0A020 · 53440-0A030 · 53440-0A070 |
| 53452 | Engine cover stay rod fixing | 53452-02360 · 53452-02380 · 53452-15020 |
| 53510 | Engine cover lock assembly | 53510-0A030 · 53510-0A050 · 53510-0A060 · 53510-0A100 · 53510-0A110 · 53510-0A130 · 53510-0A160 · 53510-0A170 · 53510-16301 · 53510-16351 |
| 53510A | Tension spring (for hood lock) | 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 · 90506-18067 |
| 53510E | Tension spring (for hood lock) | 90506-18067 · 90506-T0004 |
| 53614 | Engine hood lock control cable clip | 53614-16010 · 53614-16020 |
| 53630 | Engine hood lock control cable assembly | 53630-0A030 · 53630-0A040 · 53630-0A050 · 53630-0A060 · 53630-0A100 · 53630-0A120 |
