Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

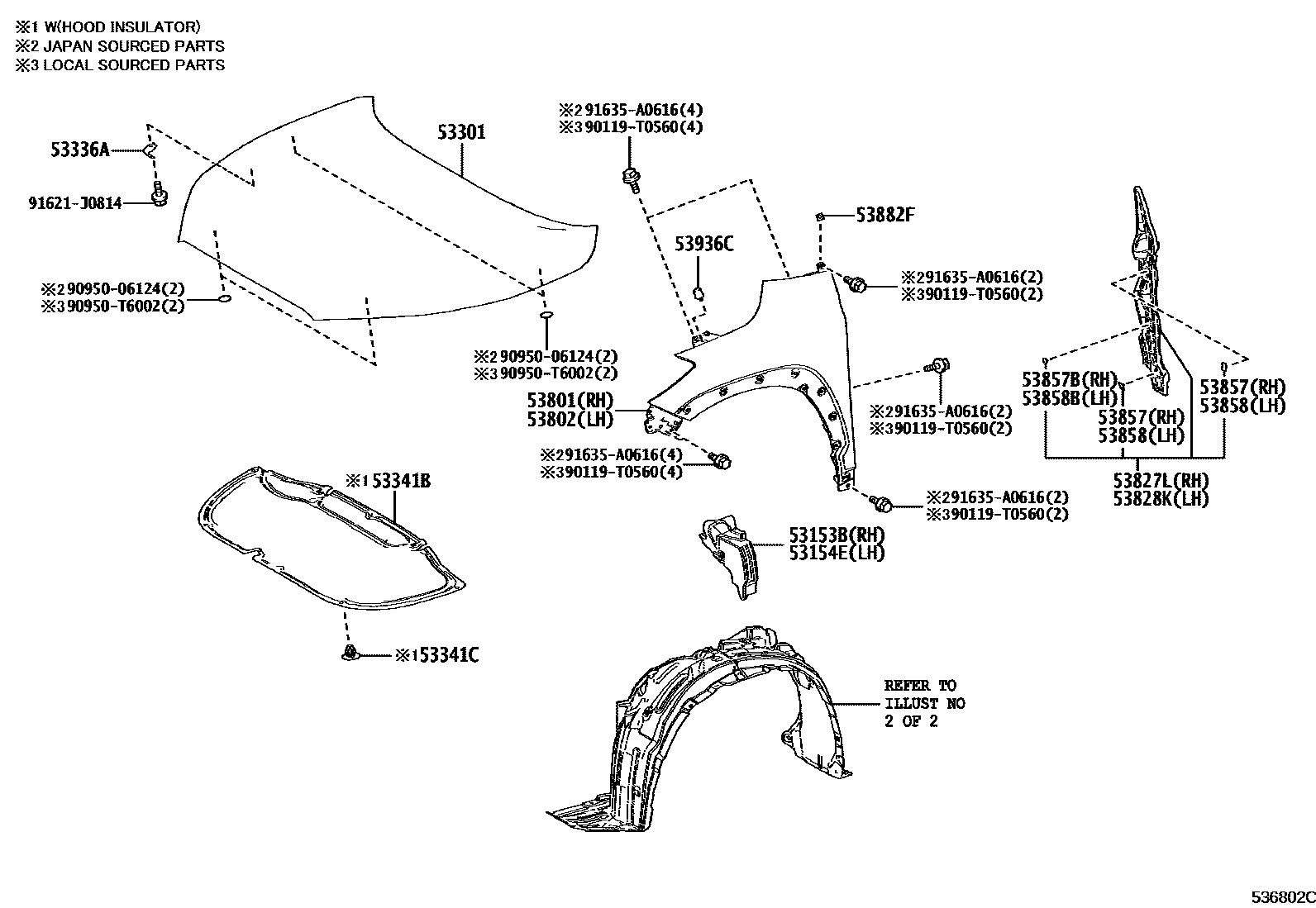

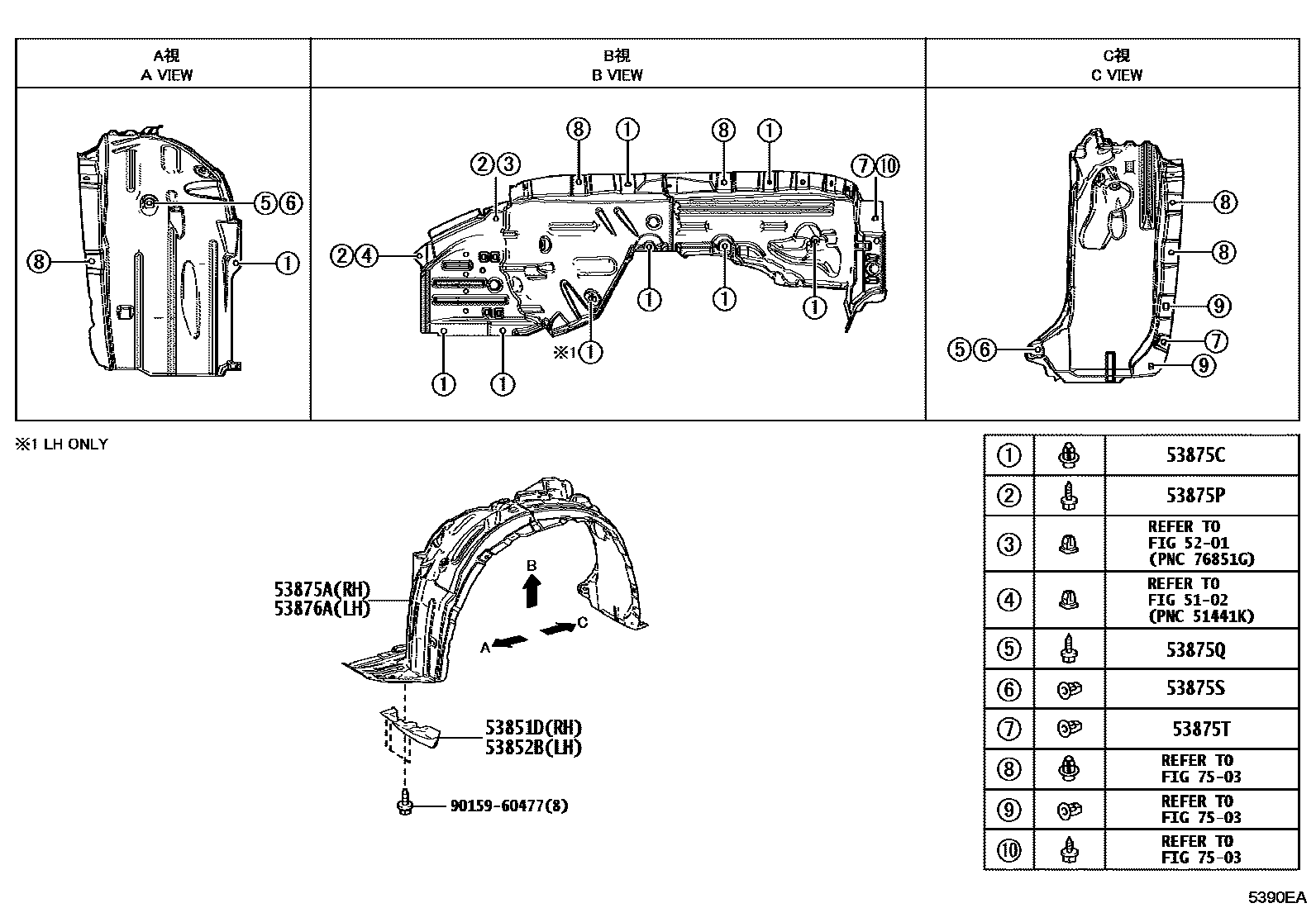

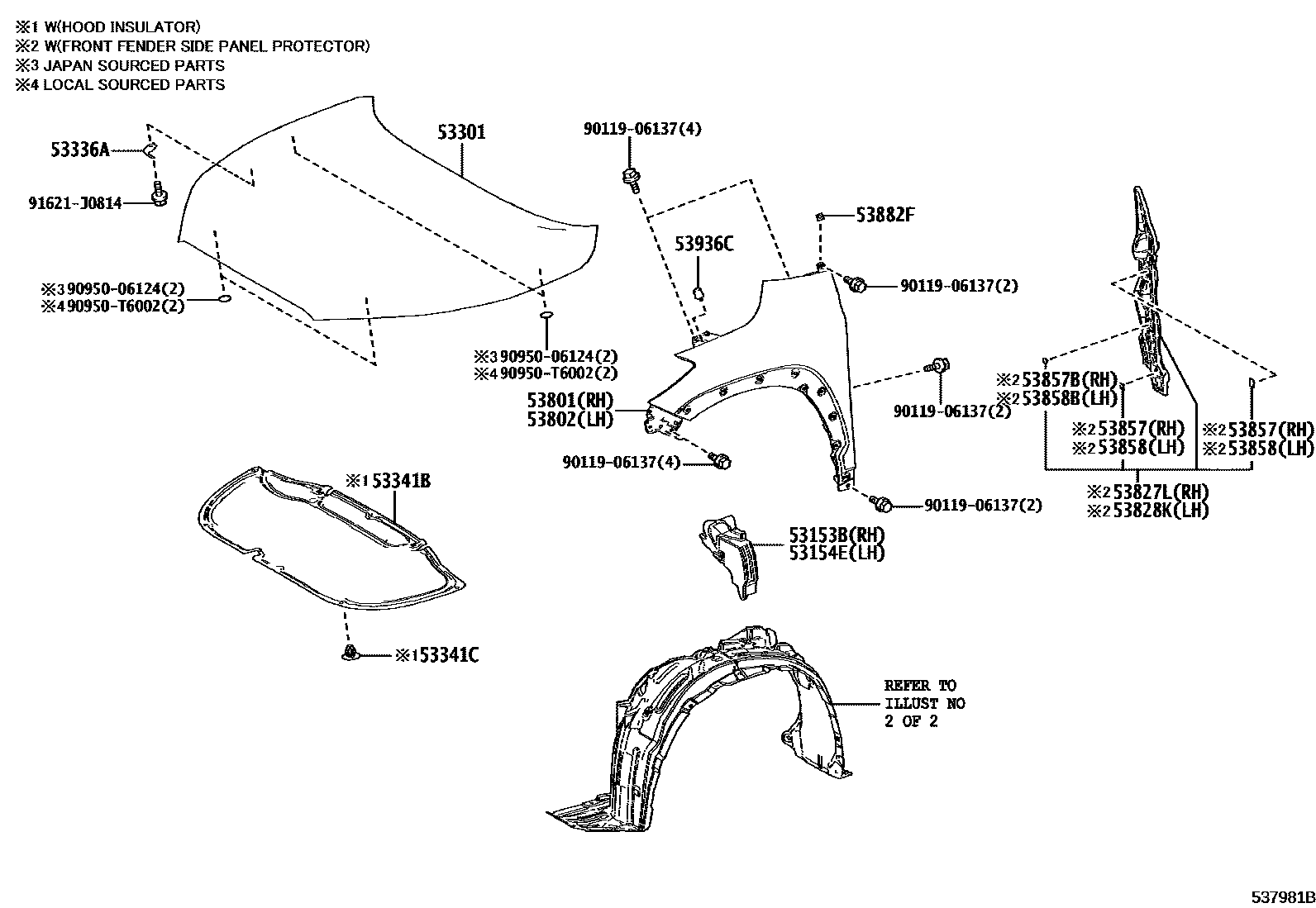

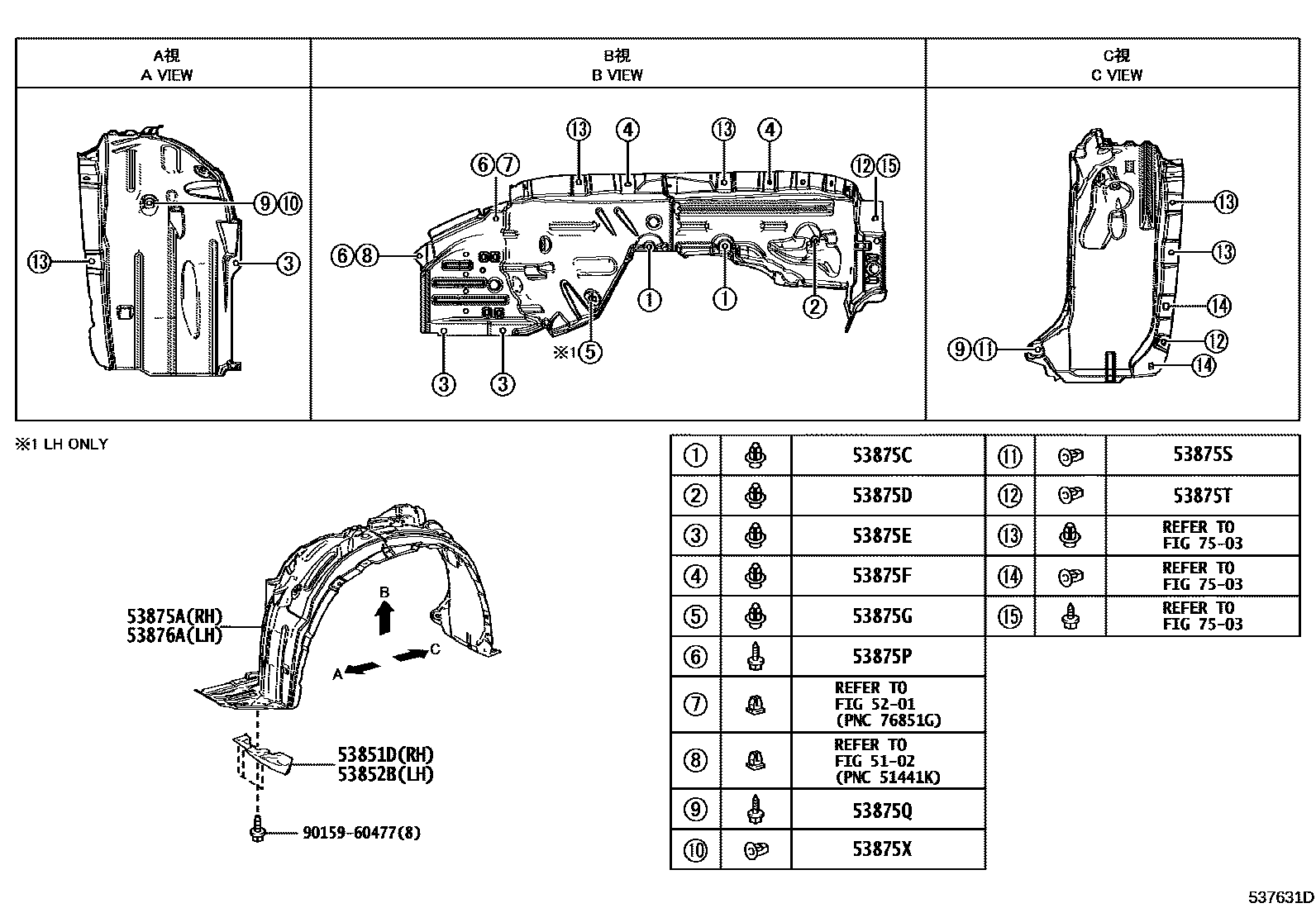

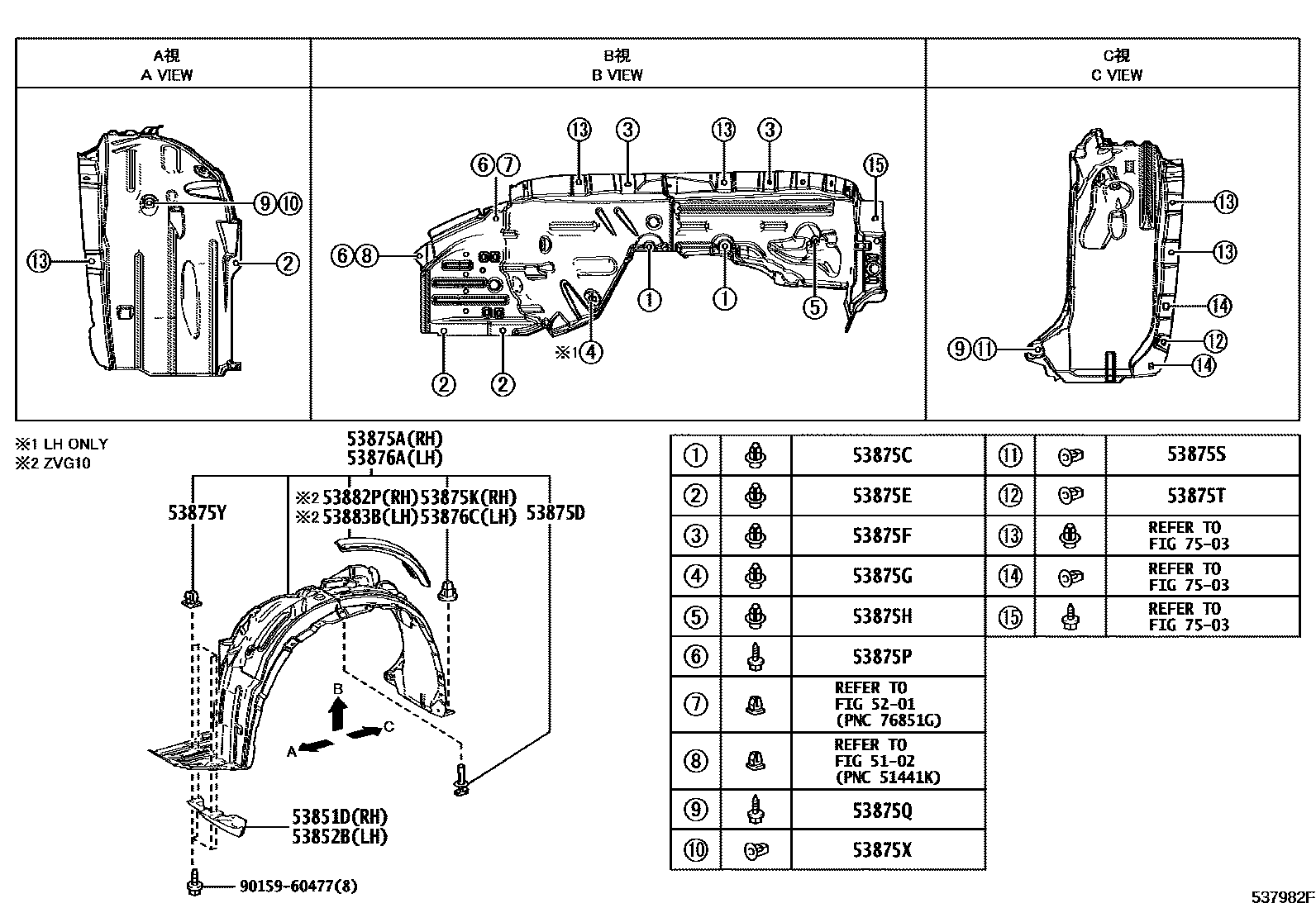

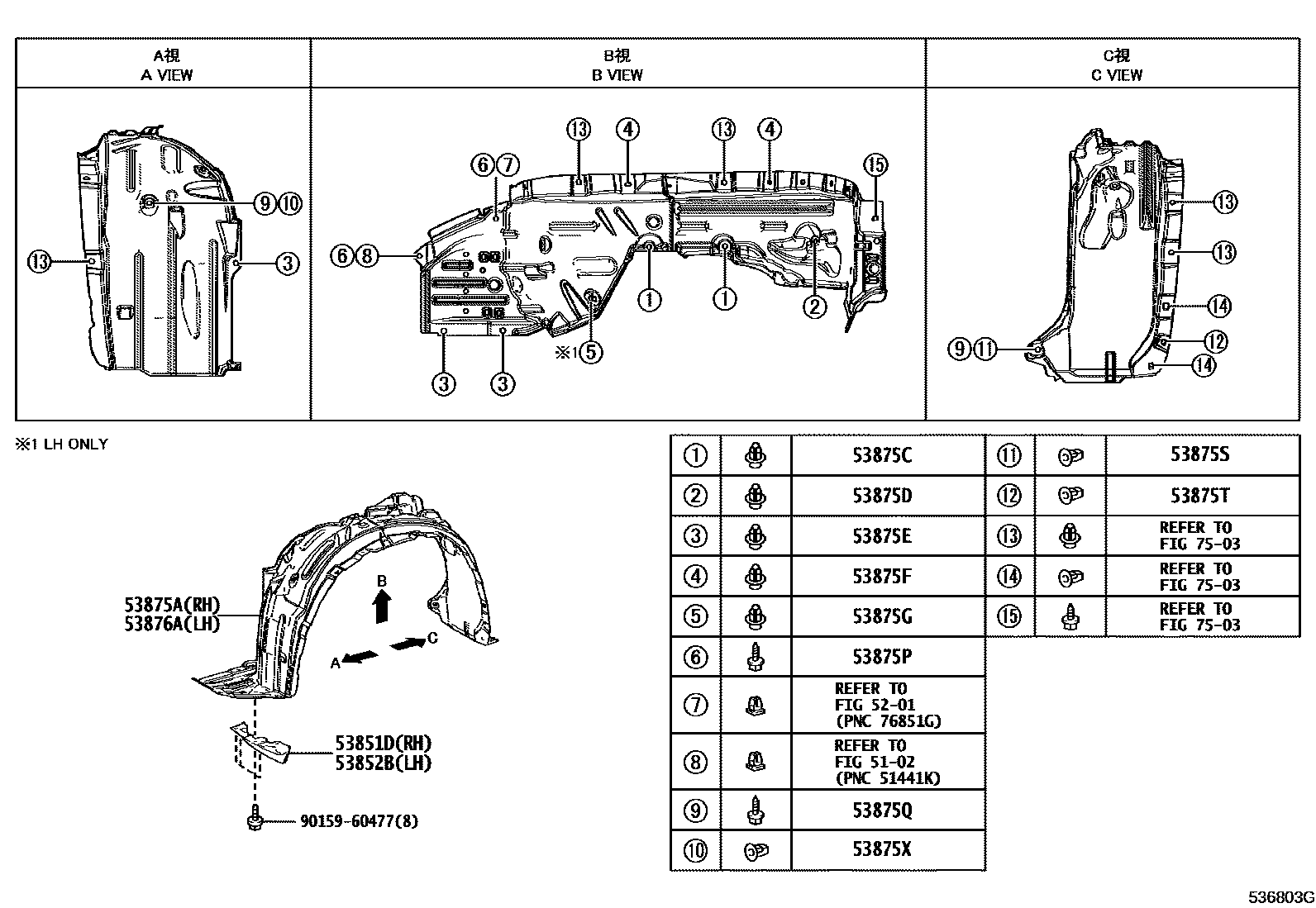

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 7 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153B | front side deflector | 53153-0A010 · 53153-0A020 · 53153-0A030 |
| 53154E | No. 2 front side deflector | 53154-0A010 · 53154-0A020 · 53154-0A030 |
| 53301 | Engine cover sub-assembly | 53301-0A020 · 53301-0A030 · 53301-0A040 · 53301-0A090 · 53301-0A100 |
| 53336A | Engine cover strut bracket | 53336-02040 · 53336-02050 · 53336-02080 · 53336-0A060 · 53336-16010 |
| 53341B | engine cover gasket | 53341-0A010 · 53341-0A030 · 53341-0A070 · 53341-0A090 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-T0014 |
| 53801 | Right front fender sub-assembly | 53801-0A050 · 53801-0A060 · 53801-0A070 · 53801-K1010 |
| 53802 | Left front fender sub-assembly | 53802-0A050 · 53802-0A060 · 53802-0A070 · 53802-K1010 |
| 53827L | Right front fender side panel protector | 53827-0A010 · 53827-0A020 · 53827-0A030 · 53827-0A070 · 53827-0A080 |
| 53828K | Left front fender side panel protector | 53828-0A010 · 53828-0A020 · 53828-0A030 · 53828-0A070 · 53828-0A080 |
| 53851D | Right front fender outer panel pad | 53851-0A010 · 53851-0A020 · 53851-0A030 · 53851-0A040 · 53851-0A050 |
| 53852B | Left front fender exterior panel pad | 53852-0A010 · 53852-0A020 · 53852-0A030 · 53852-0A060 · 53852-0A080 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53875-0A040 · 53875-0A050 · 53875-0A060 · 53875-0A070 · 53875-0A080 · 53875-0A090 · 53875-0A160 · 53875-0A170 · 53875-0A180 · 53875-0A190 |
| 53875C | Front fender lining clip | 90467-07214 · 90467-07215 · 90467-T0050 |
| 53875D | No. 2 front fender lining clip | 90467-05127 · 90467-07214 · 90467-07215 · 90467-T0050 |
| 53875E | No. 3 front fender lining clip | 90467-07214 · 90467-07215 · 90467-T0050 |
| 53875F | No. 4 front fender lining clip | 90467-07214 · 90467-07215 · 90467-T0050 |
| 53875G | No. 5 front fender lining clip | 90467-07214 · 90467-07215 · 90467-T0050 |
| 53875H | No. 6 front fender lining clip | 90467-07214 |
| 53875K | screw seal | 90189-06065 · 90189-T0014 |
| 53875P | Screw No. 1 | 90159-60477 |
| 53875Q | No. 2 screw | 90159-60623 |
| 53875S | Gasket No. 1 | 90189-06006 · 90189-T0022 |
| 53875T | Gasket No. 2 | 90189-06065 |
| 53875X | Gasket No. 3 | 90189-06006 · 90189-T0022 |
| 53875Y | No. 4 gasket | 90189-06193 |
| 53876A | Left front fender lining | 53876-0A050 · 53876-0A060 · 53876-0A070 · 53876-0A080 · 53876-0A090 · 53876-0A100 · 53876-0A170 · 53876-0A180 · 53876-0A190 · 53876-0A200 |
| 53876C | screw seal | 90189-06065 · 90189-T0014 |
| 53882F | front fender seal | 53882-33060 |
| 53882P | Right front fender seal | 53882-0A080 |
| 53883B | Left front fender seal | 53882-0A080 |
| 53936C | Cushion pad | 90541-09145 |
