Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

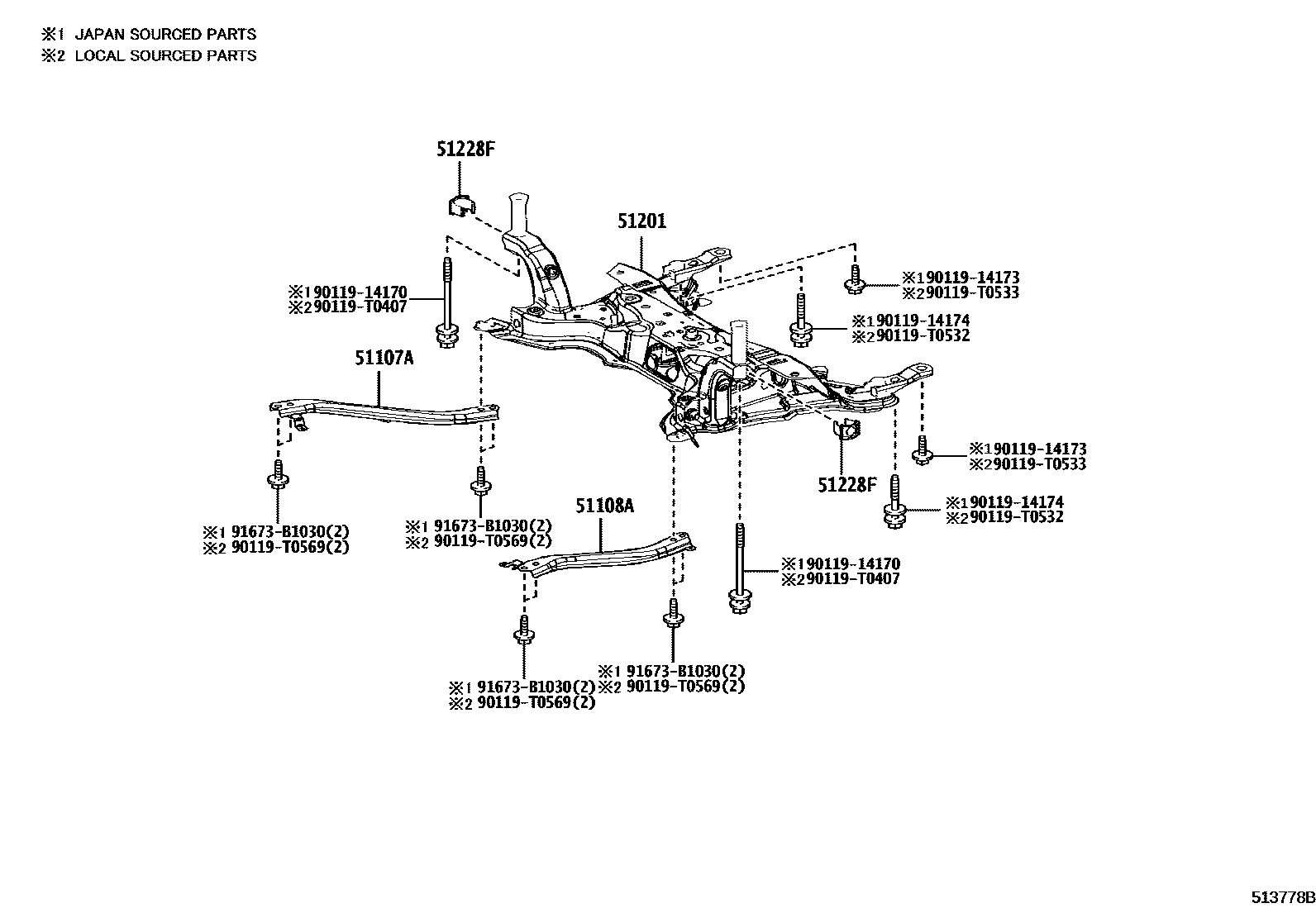

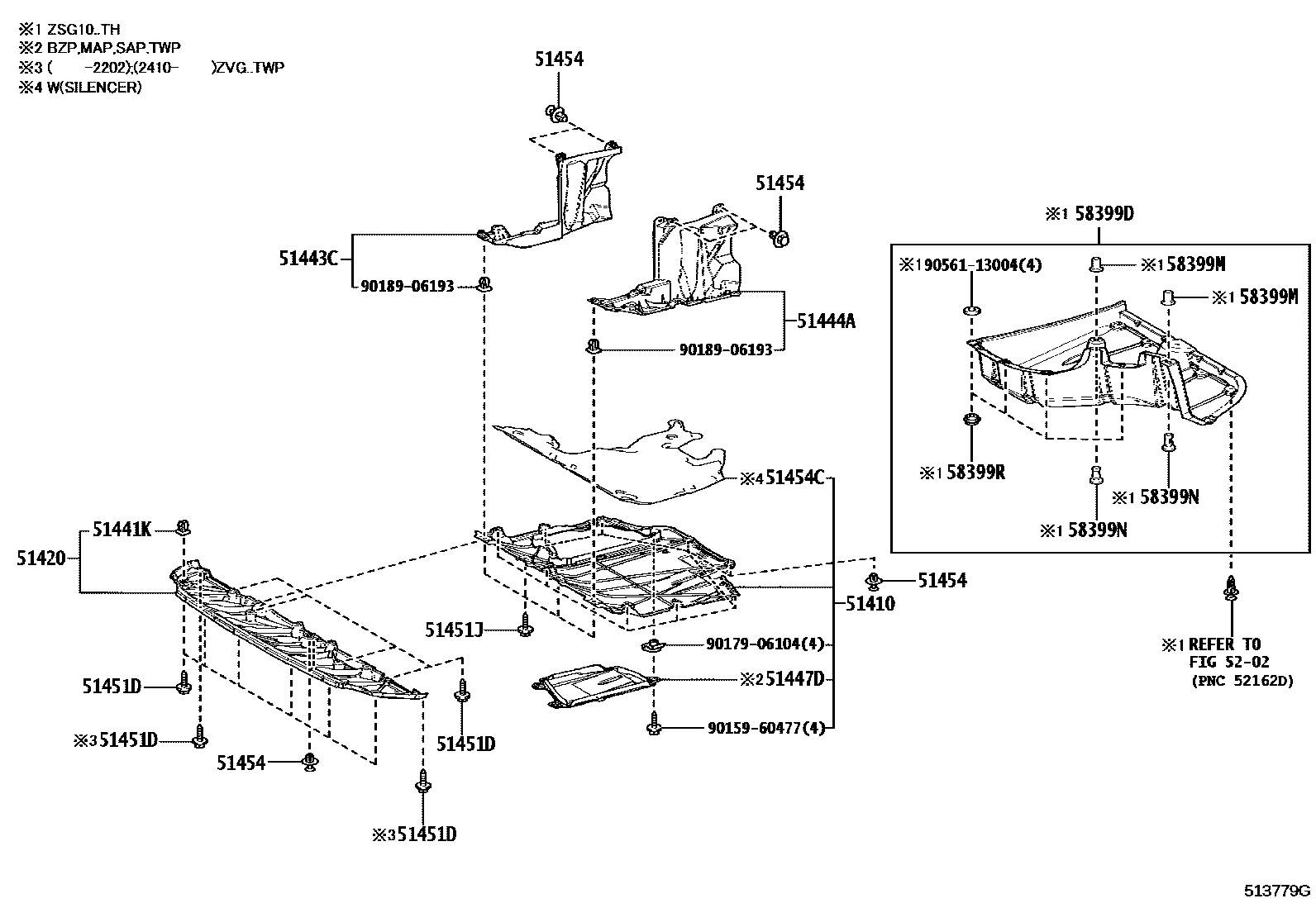

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-0A010 · 51107-0A030 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-0A010 · 51108-0A030 |
| 51201 | Front suspension cross member sub-assembly | 51201-0A011 · 51201-0A021 · 51201-0A031 · 51201-0A050 |
| 51228F | Front suspension cross member damper plate | 51228-02070 · 51228-0A010 · 51228-47010 · 51228-F4020 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-0A070 · 51410-0A090 · 51410-0A100 · 51410-0A110 · 51410-0A160 · 51410-0A180 |
| 51420 | Engine No. 2 bottom cover assembly | 51420-0A030 · 51420-0A040 · 51420-0A050 · 51420-0A060 |
| 51441K | Gasket (for engine underhood) | 90189-06237 · 90189-T0024 |
| 51443C | Engine right rear bottom cover | 51443-0A040 · 51443-0A050 · 51443-0A060 · 51443-0A070 · 51443-0A080 |
| 51444A | Engine left rear bottom cover | 51444-0A040 · 51444-0A050 · 51444-0A060 · 51444-0A070 · 51444-0A080 |
| 51447D | No. 4 engine center bottom cover | 51447-0A060 · 51447-0A070 · 51447-0A090 · 51447-0A100 |
| 51451D | Screw No. 1 | 90159-60477 |
| 51451J | Bolt No. 1 | 90119-06A13 · 90119-T0556 |
| 51454 | clip | 90467-07220 |
| 51454C | Engine rear bottom cover silencer panel | 51454-0A050 |
| 58399D | Floor No. 2 lower cover | 58399-0A020 |
| 58399R | Lower floor cover clip No. 3 | 90467-14054 |
