Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

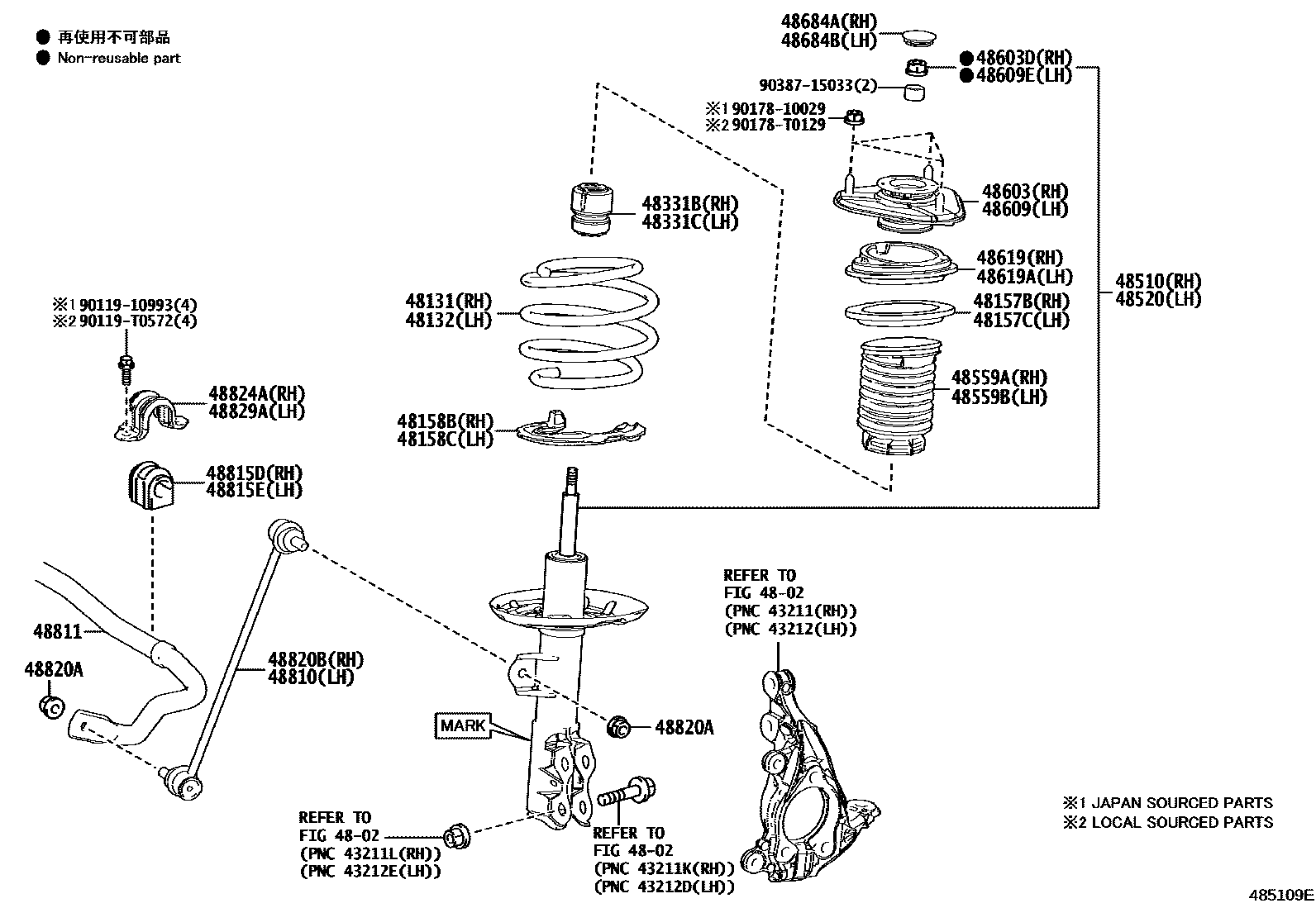

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0A070 · 48131-0A080 · 48131-0A090 · 48131-0A100 · 48131-0A110 · 48131-0A230 · 48131-0A240 · 48131-0A250 · 48131-0A270 · 48131-0A300 |
| 48132 | Left front coil spring | 48131-0A070 · 48131-0A080 · 48131-0A090 · 48131-0A100 · 48131-0A110 · 48131-0A230 · 48131-0A240 · 48131-0A250 · 48131-0A270 · 48131-0A300 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02360 · 48157-02380 · 48157-F4020 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02360 · 48157-02380 · 48157-F4020 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02250 · 48158-02270 · 48158-F4020 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02250 · 48158-02270 · 48158-F4020 |
| 48331B | Right front spring buffer block | 48331-02190 · 48331-10120 |
| 48331C | Left front spring buffer block | 48331-02190 · 48331-10120 |
| 48510 | Right front shock absorber assembly | 48510-8Z462 · 48510-8Z463 · 48510-8Z464 · 48510-8Z465 · 48510-8Z466 · 48510-8Z467 · 48510-8Z468 · 48510-8Z470 · 48510-8Z471 · 48510-8Z482 · 48510-8Z483 · 48510-8Z484 · 48510-8Z497 · 48510-8Z498 · 48510-8Z500 · 48510-8Z501 · 48510-8Z502 · 48510-8Z503 · 48510-8Z504 · 48510-8Z528 · 48510-8Z529 · 48510-8Z551 · 48510-8Z685 · 48510-8Z686 · 48510-8Z687 · 48510-8Z741 |
| 48520 | Left front shock absorber assembly | 48520-8Z309 · 48520-8Z310 · 48520-8Z311 · 48520-8Z312 · 48520-8Z313 · 48520-8Z314 · 48520-8Z315 · 48520-8Z317 · 48520-8Z318 · 48520-8Z327 · 48520-8Z328 · 48520-8Z329 · 48520-8Z338 · 48520-8Z339 · 48520-8Z341 · 48520-8Z342 · 48520-8Z343 · 48520-8Z344 · 48520-8Z345 · 48520-8Z369 · 48520-8Z370 · 48520-8Z381 · 48520-8Z490 · 48520-8Z491 · 48520-8Z492 · 48520-8Z509 |
| 48559A | Right front shock absorber No. 1 dust cover | 48559-02060 · 48559-F4020 |
| 48559B | Left front shock absorber No. 1 dust cover | 48559-02060 · 48559-F4020 |
| 48603 | Right front suspension bearing sub-assembly | 48609-02340 · 48609-F4020 |
| 48603D | Nut (for front mount to right front shock absorber) | 90177-14007 |
| 48609 | Left front suspension bearing sub-assembly | 48609-02340 · 48609-F4020 |
| 48609E | Nut (for front mount to left front shock absorber) | 90177-14007 |
| 48619 | Bearing installed on the right sliding column | 48619-F4010 |
| 48619A | Bearing installed on the left sliding column | 48619-F4010 |
| 48684A | Right front suspension support dust cover | 48684-02030 · 48684-02040 · 48684-05020 · 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-02030 · 48684-02040 · 48684-05020 · 48684-52010 |
| 48810 | Left front stabilizer bar link assembly | 48820-02130 · 48820-47040 · 48820-F4010 |
| 48811 | front stabilizer bar | 48811-02430 · 48811-02480 · 48811-0A020 · 48811-0A100 |
| 48815D | Right front stabilizer bar bushing | 48815-0A020 · 48815-0A030 · 48815-0A100 |
| 48815E | Left front stabilizer bar bushing | 48815-0A020 · 48815-0A030 · 48815-0A100 |
| 48820A | Nut (for front stabilizer bar link) | 90178-T0087 · 94151-21241 |
| 48820B | Right front stabilizer bar link assembly | 48820-02130 · 48820-47040 · 48820-F4010 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-02120 · 48824-0A080 · 48824-47020 · 48824-F4020 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-02120 · 48824-0A080 · 48824-47020 · 48824-F4020 |
