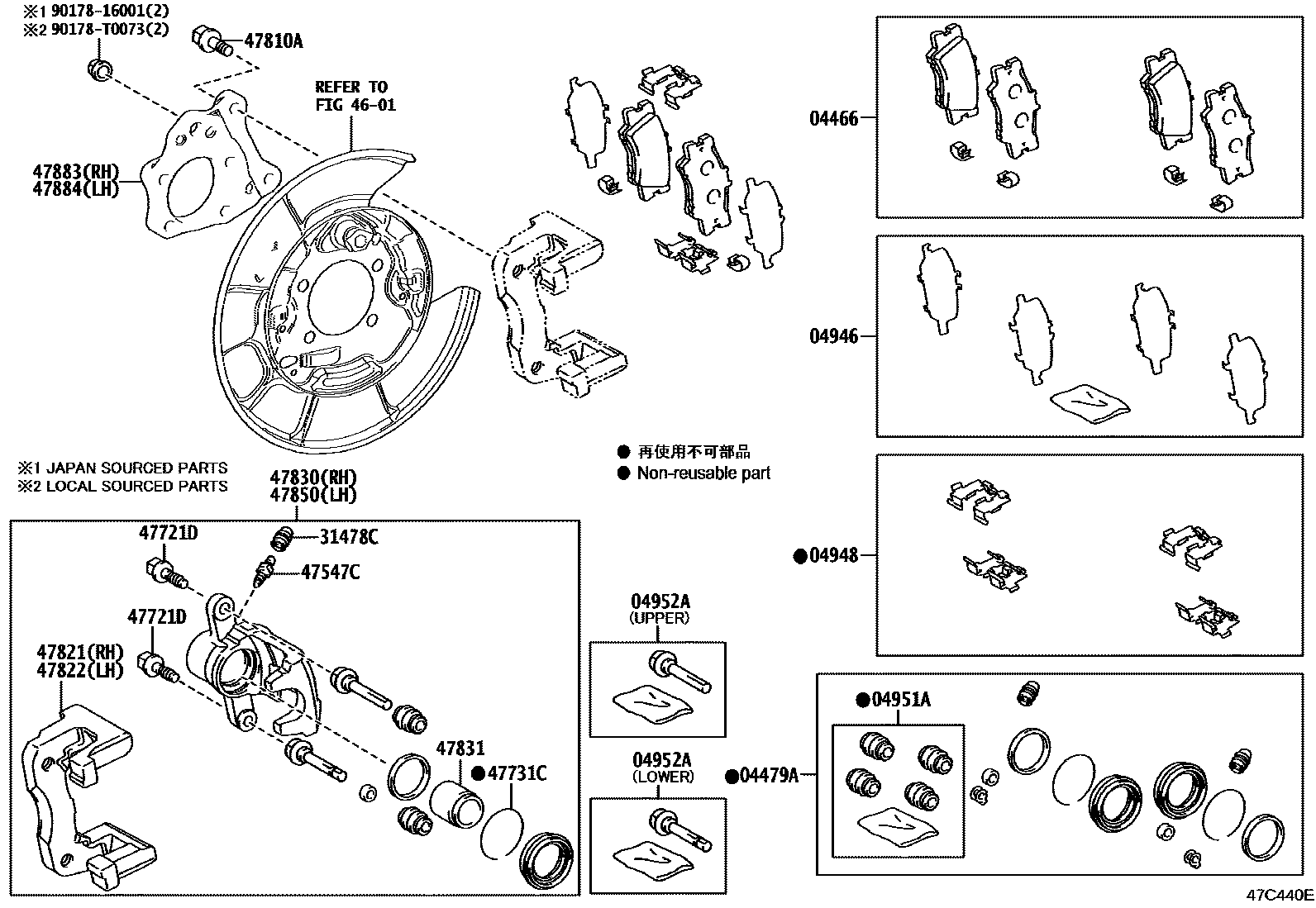

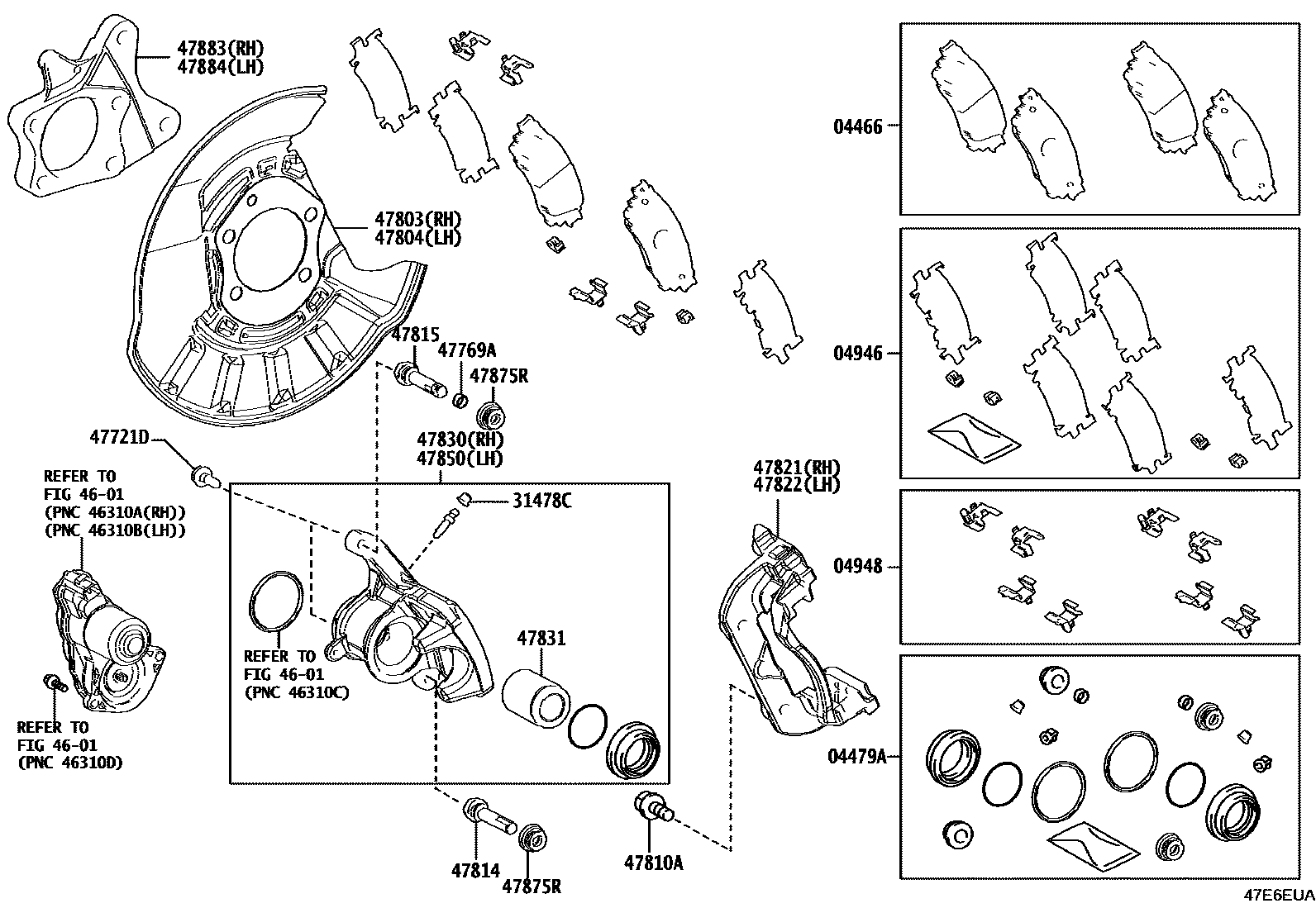

Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-0A010 · 04466-0A020 |
| 04479A | Rear disc brake cylinder assembly | 04479-0A010 · 04479-0A020 · 04479-0A021 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-0A010 · 04946-0A030 |
| 04948 | Rear disc brake mounting assembly | 04948-0A010 · 04948-12071 |
| 04951A | Rear disc brake bushing assembly | 04951-0K040 |
| 04952A | Rear disc brake cylinder sliding pin assembly | 04952-0K080 · 04952-0K090 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-06010 · 31478-0D040 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90015-AA603 · 90016-AA603 |
| 47731C | retaining ring (for rear disc brake piston) | 90016-AU501 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47769-0K220 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47803-0A040 · 47803-0A050 · 47803-0A060 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47804-0A040 · 47804-0A050 · 47804-0A060 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-12208 · 90105-T0186 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-0A030 · 47814-78010 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-0A030 · 47815-78010 |
| 47821 | Right rear disc brake cylinder retainer | 47821-0A010 · 47821-0A030 |
| 47822 | Left rear disc brake cylinder retainer | 47822-0A010 · 47822-0A030 |
| 47830 | Right rear disc brake cylinder assembly | 47830-0A010 · 47830-0A030 |
| 47831 | rear disc brake piston | 47831-06090 · 47831-0A030 · 47831-48130 |
| 47850 | Left rear disc brake cylinder assembly | 47850-0A010 · 47850-0A030 |
| 47875R | Bushing boot (for rear disc brake) | 47875-0E090 · 47875-33270 |
| 47883 | Right rear brake caliper bracket | 47883-0A010 · 47883-0A020 · 47883-0A030 · 47883-0A070 · 47883-0A080 · 47883-0A090 · 47883-0A100 · 47883-0A110 |
| 47884 | Left rear brake caliper bracket | 47884-0A010 · 47884-0A020 · 47884-0A030 · 47884-0A070 · 47884-0A080 · 47884-0A090 · 47884-0A100 · 47884-0A110 |
