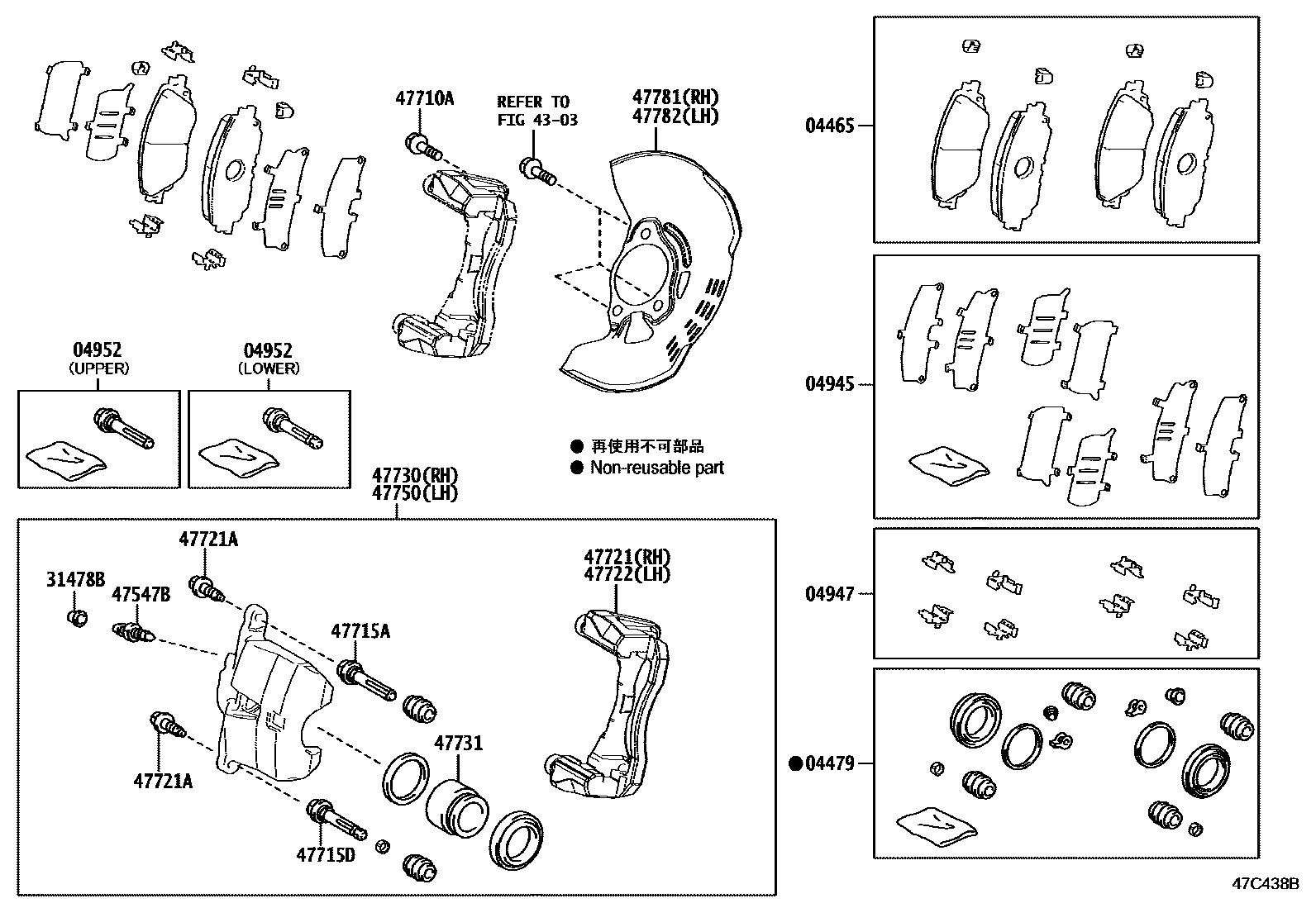

Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-06160 · 04465-0A010 |
| 04479 | Front disc brake cylinder assembly | 04478-06330 · 04478-0A010 |
| 04945 | Front silencer gasket assembly | 04945-0A010 · 04945-0A020 |
| 04947 | Front disc brake mounting kit | 04947-06121 · 04947-33281 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04952-0K020 · 04952-0K030 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-0D040 · 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-0D030 · 47547-20010 · 90016-AJ004 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 · 90105-T0186 |
| 47715A | Front disc brake cylinder sliding pin | 47714-06250 · 47714-0K220 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-06250 · 47715-0K220 |
| 47721 | Right front disc brake cylinder retainer | 47721-0A010 · 47721-0A030 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90016-AA603 · 90080-10247 |
| 47722 | Left front disc brake cylinder retainer | 47722-0A010 · 47722-0A030 |
| 47730 | Right front disc brake cylinder assembly | 47730-0A010 · 47730-0A030 |
| 47731 | Front disc brake piston | 47731-06330 · 47731-0D290 |
| 47750 | Left disc brake cylinder assembly | 47750-0A010 · 47750-0A030 |
| 47781 | Right front disc brake dust cover | 47781-02280 · 47781-02310 · 47781-0A030 · 47781-F4020 |
| 47782 | Left front disc brake dust cover | 47782-02270 · 47782-02310 · 47782-0A030 · 47782-F4020 |
