Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

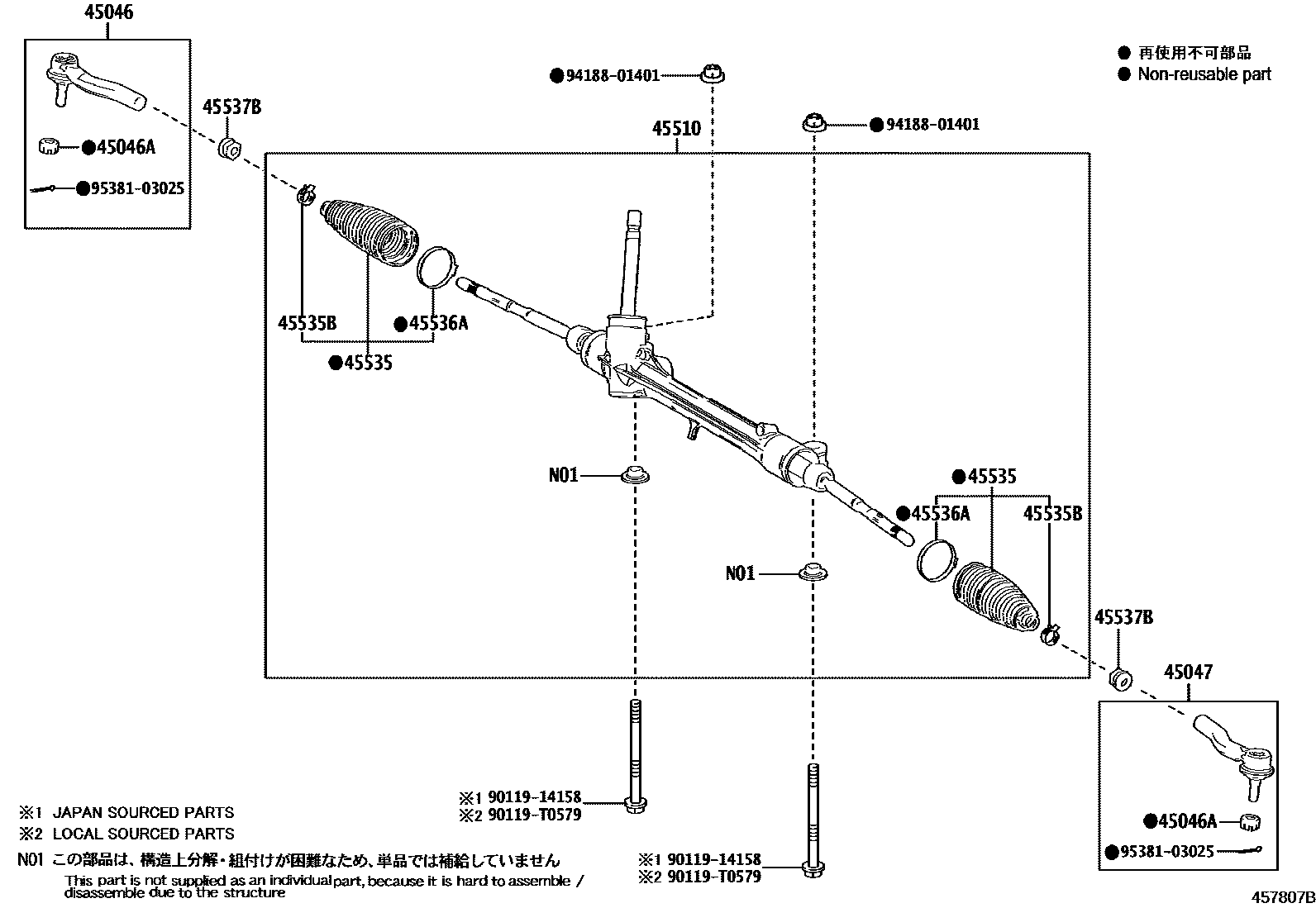

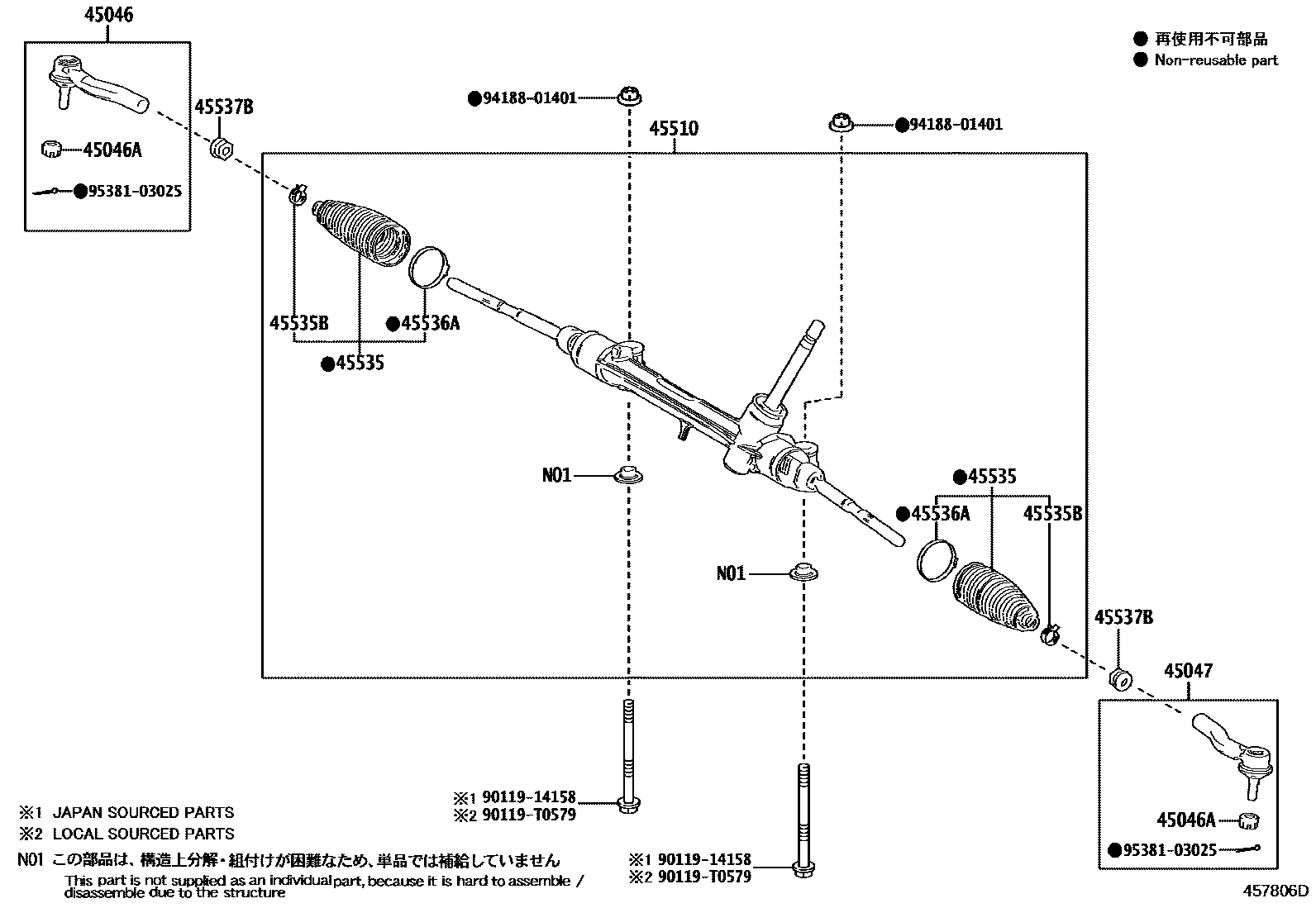

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-09890 · 45046-09A10 · 45046-49255 · 45046-F9010 · 45046-F9020 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 · 90171-T0004 |
| 45047 | Left tie rod end sub-assembly | 45046-F9020 · 45047-09420 · 45047-09440 · 45047-49195 · 45047-F9010 |
| 45510 | Steering gear assembly | 45510-0A020 · 45510-0A030 · 45510-0A040 · 45510-0A050 · 45510-0A070 · 45510-F4010 · 45510-F4011 · 45510-F4020 · 45510-F4021 |
| 45535 | No. 1 steering rack dust cover | 45535-09560 · 45535-09570 · 45535-09610 |
| 45535B | Clamp (for steering rack dust boot) | 45537-0D040 · 45537-0D100 · 90467-19021 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-0D060 · 45538-0D090 · 45538-0D110 |
| 45537B | Rack end lock nut | 90178-16001 · 90178-T0073 |
