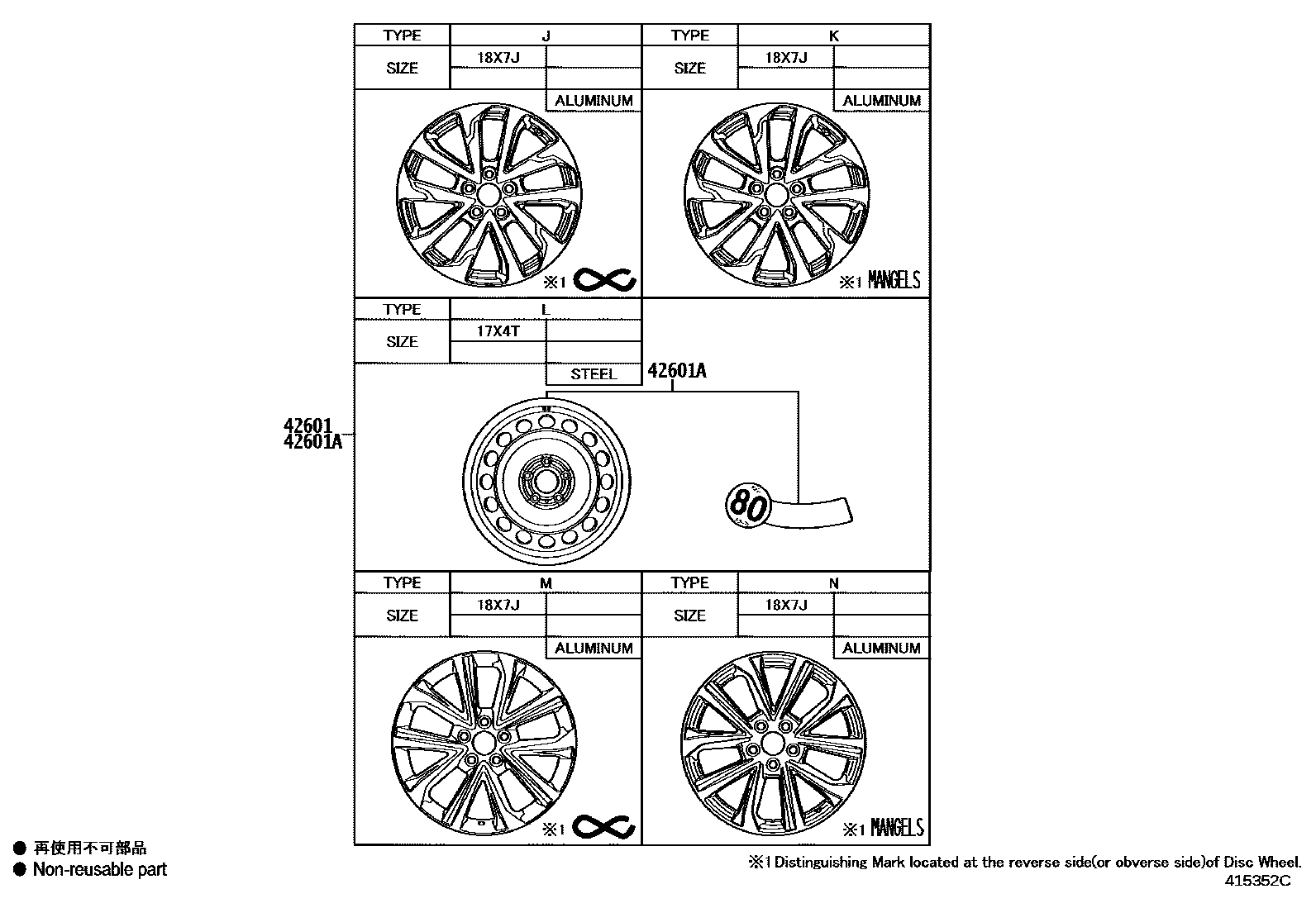

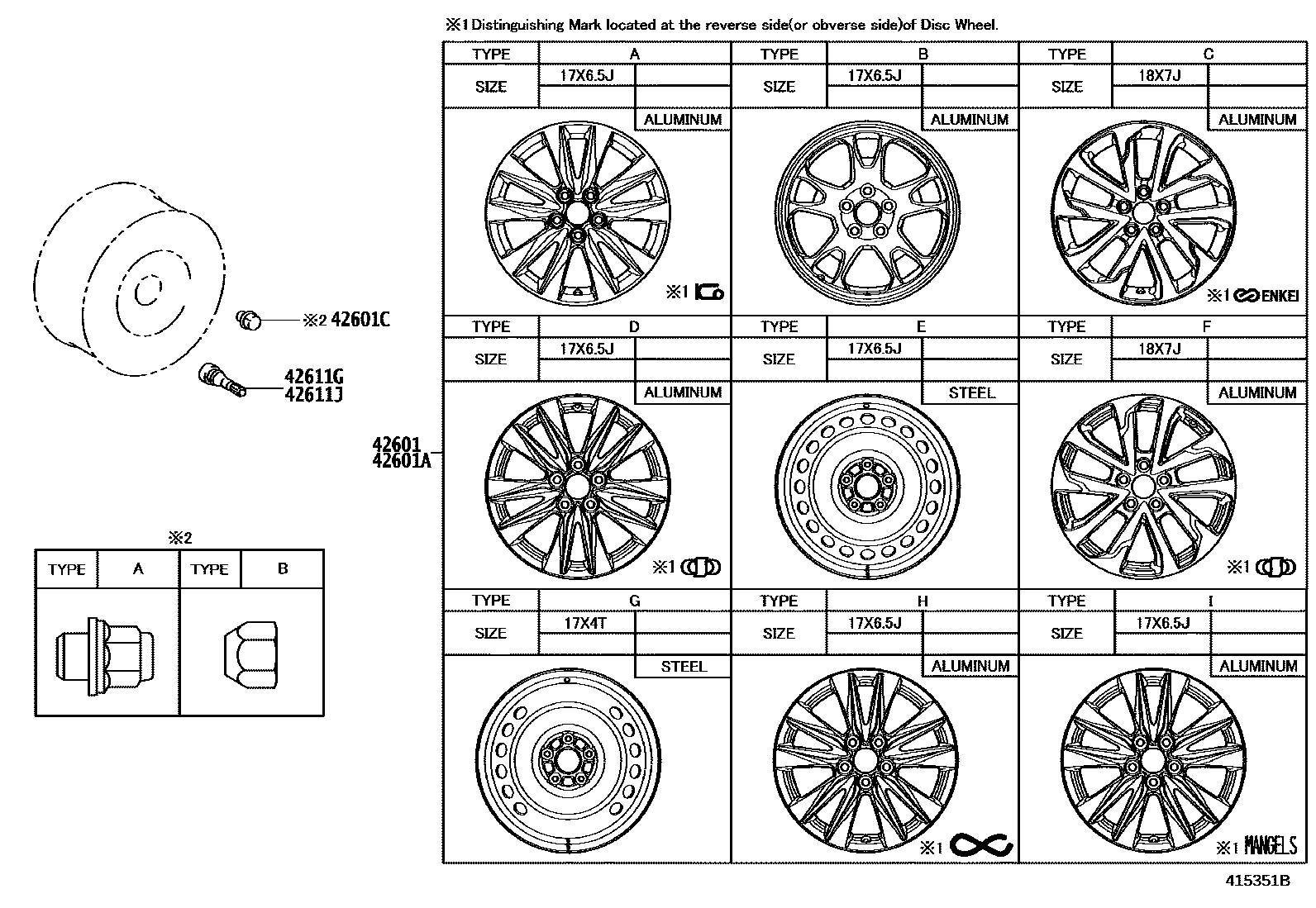

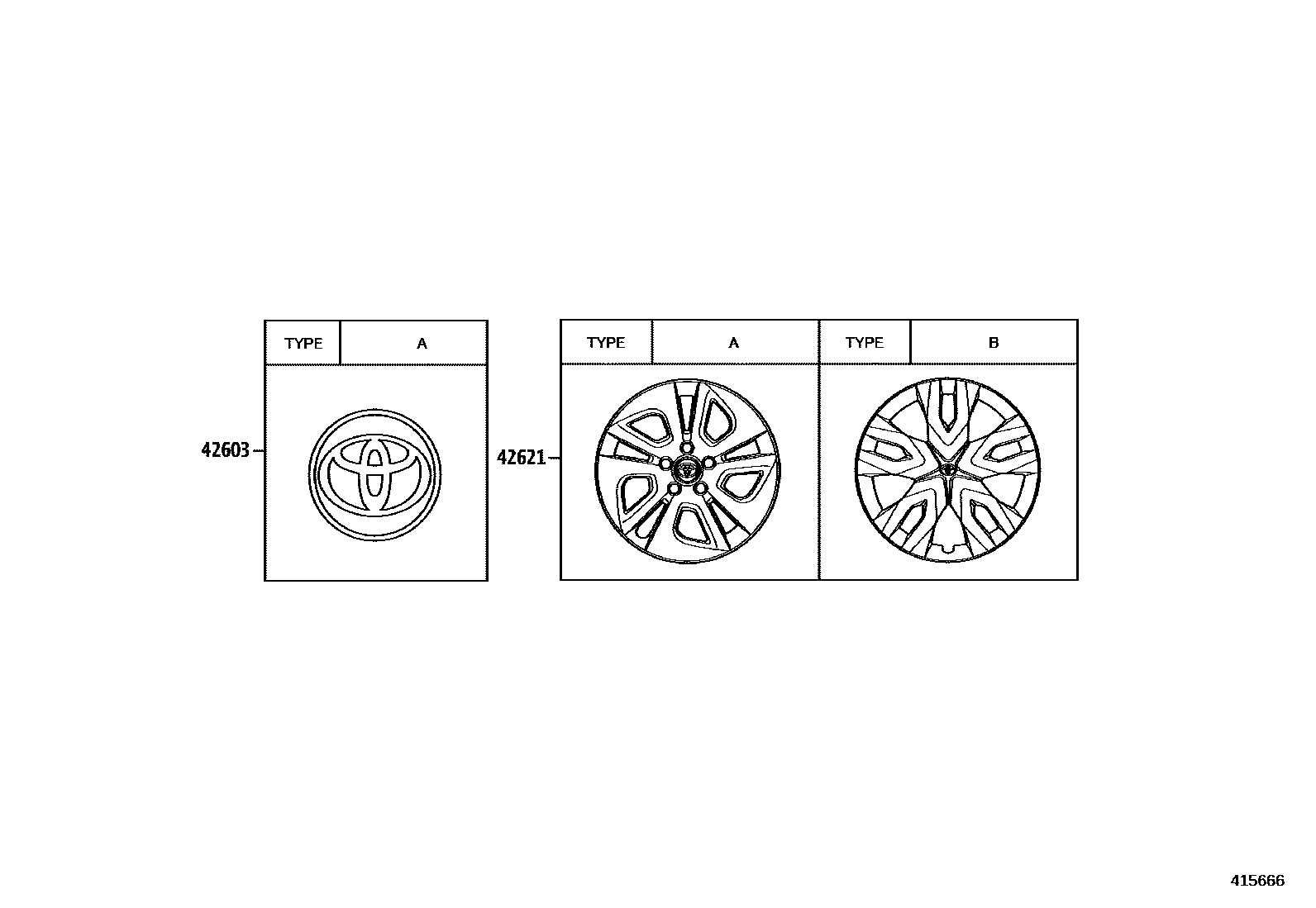

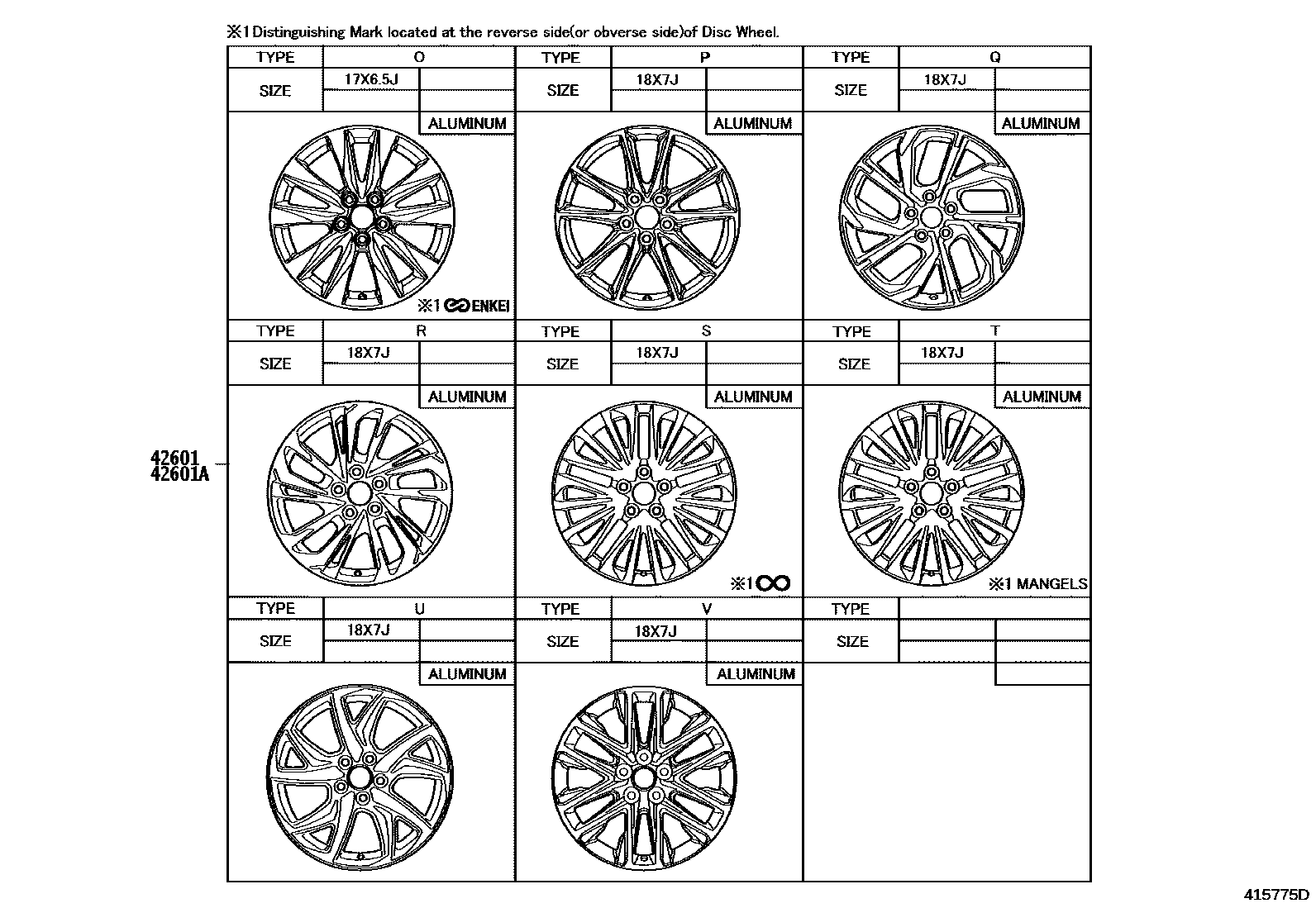

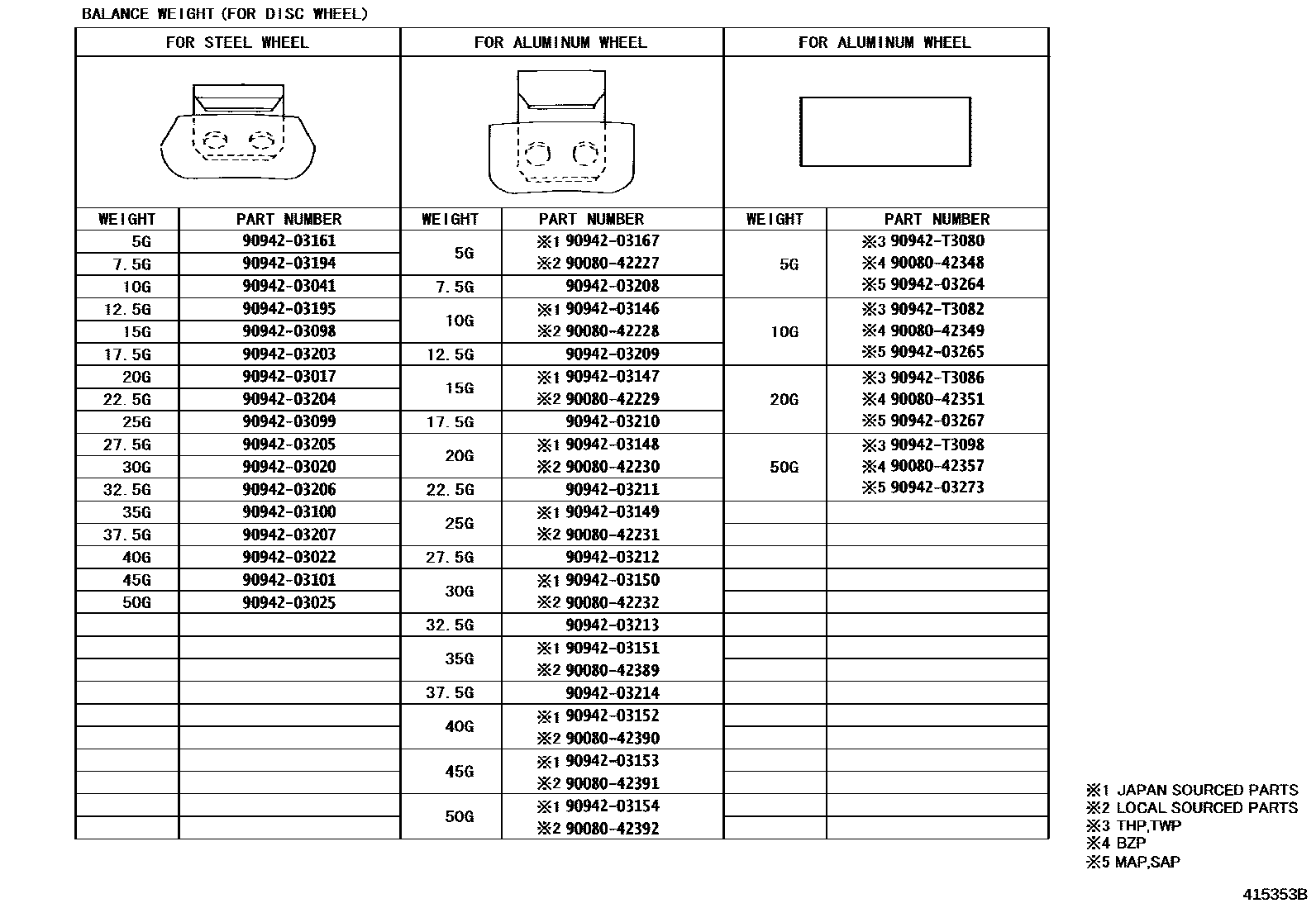

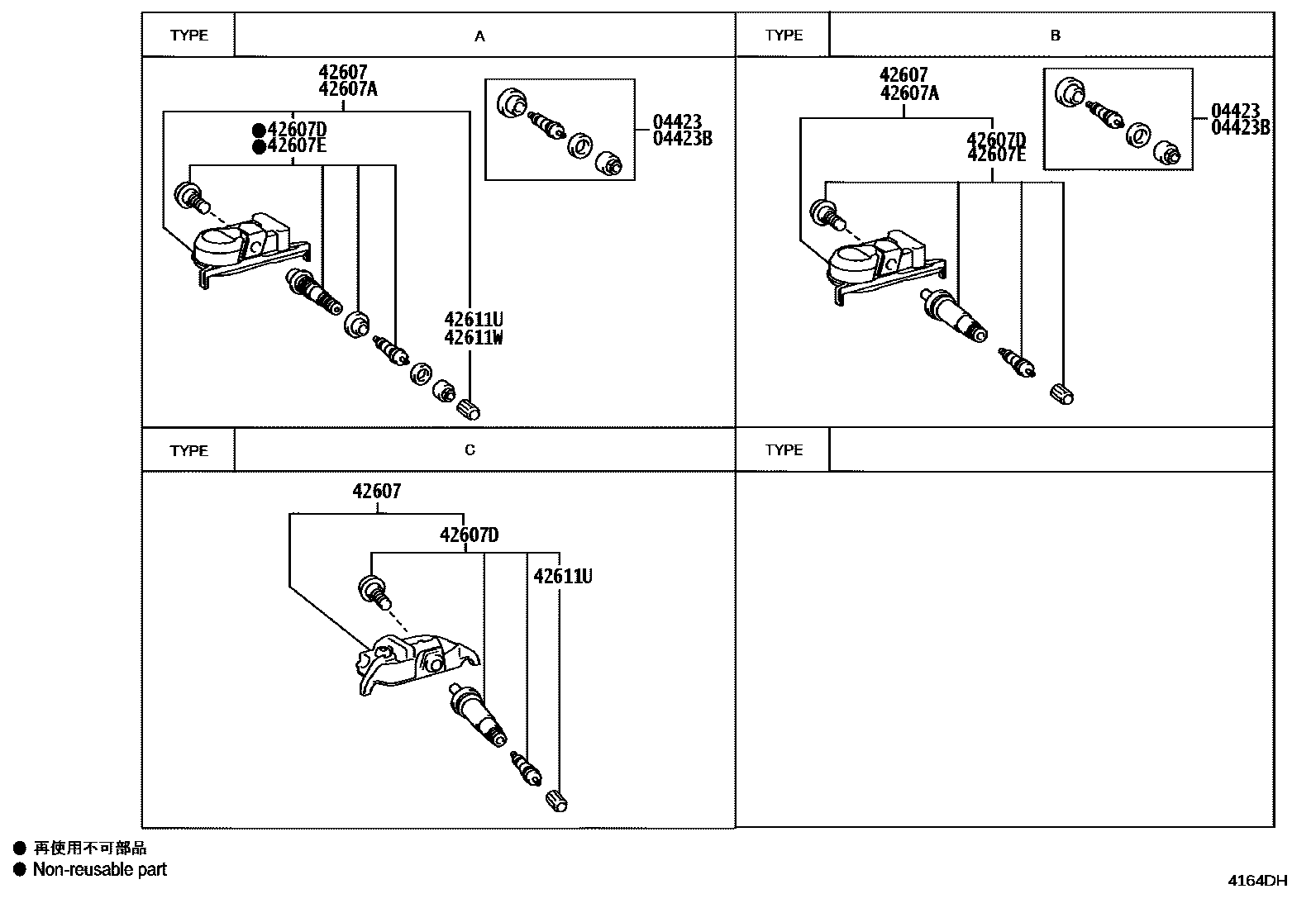

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 6 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33060 |
| 42601 | spoke wheel | 42611-0A110 · 42611-0A130 · 42611-0A140 · 42611-0A150 · 42611-0A160 · 42611-0A170 · 42611-0A180 · 42611-0A190 · 42611-0A200 · 42611-0A300 · 42611-0A340 · 42611-0A350 · 42611-0A370 · 42611-0A380 · 42611-0A400 · 42611-0A430 · 42611-0A530 · 42611-10440 · 42611-YYA90 · 42611-YYB00 · 42611-YYB70 · 42611-YYC40 · 42611-YYC60 · 42611-YYD00 · 42611-YYE90 · 42611-YYF00 |
| 42601A | Spoke wheel (for spare tire) | 42611-0A110 · 42611-0A130 · 42611-0A300 · 42611-0A340 · 42611-10440 · 4261B-0A030 · 4261B-16010 · 4261B-42010 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-0K290 · 42603-42130 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12010 · 42607-12020 · 42607-12040 · 42607-42050 · 42607-60020 · 42607-60030 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-12010 · 42607-12020 · 42607-12040 · 42607-42050 |
| 42607D | tire pressure monitoring valve | 90942-05043 · 90942-05044 · 90942-05047 |
| 42607E | Tire pressure monitoring valve (for septa) | 90942-05043 · 90942-05044 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90080-94180 · 90942-05009 · 90942-C5004 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90080-94180 · 90942-05009 · 90942-C5004 |
| 42611U | tire valve cover | 90942-05009 · 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05009 · 90942-05039 |
| 42621 | wheel cover | 42602-0A030 · 42602-10180 |
