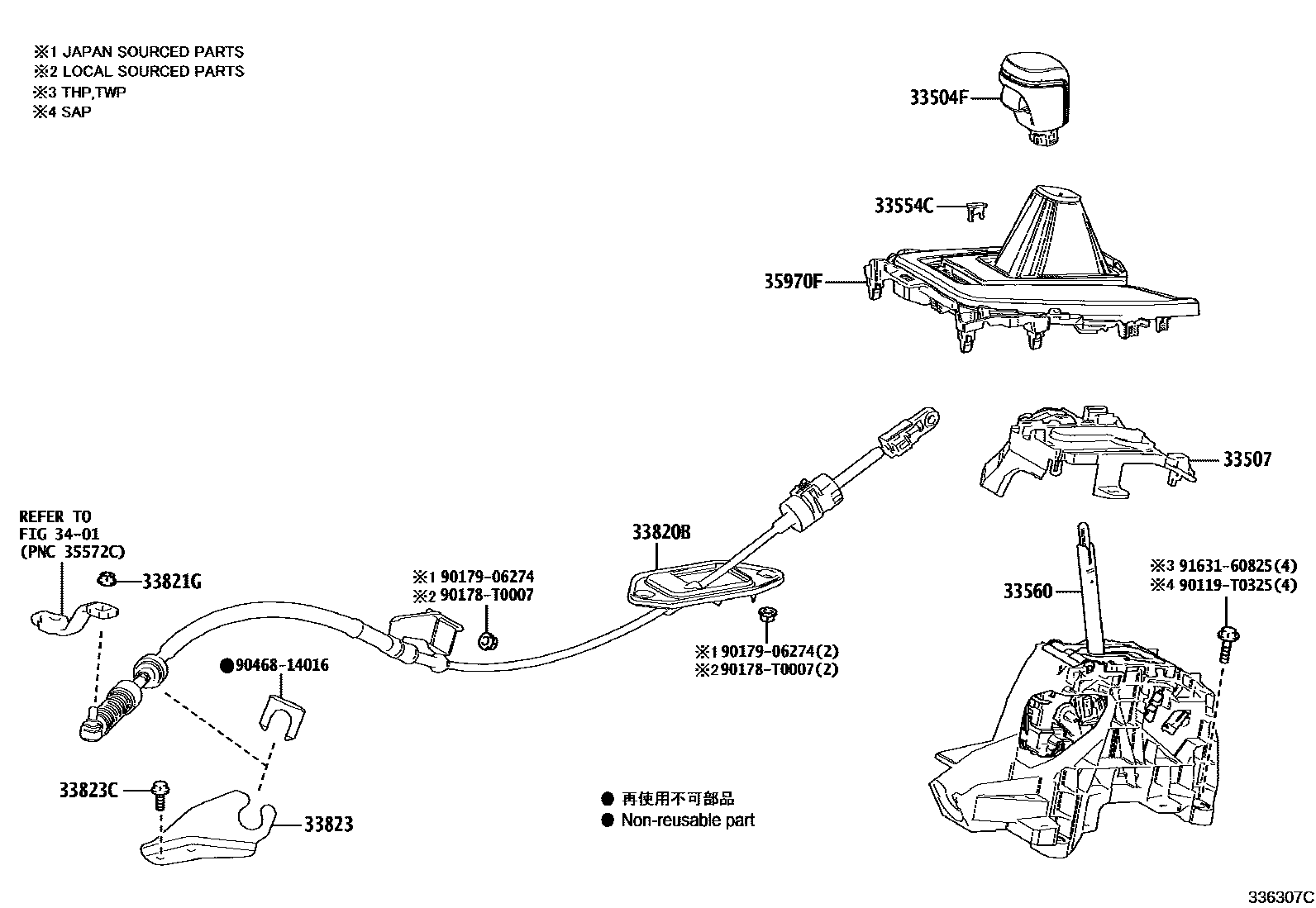

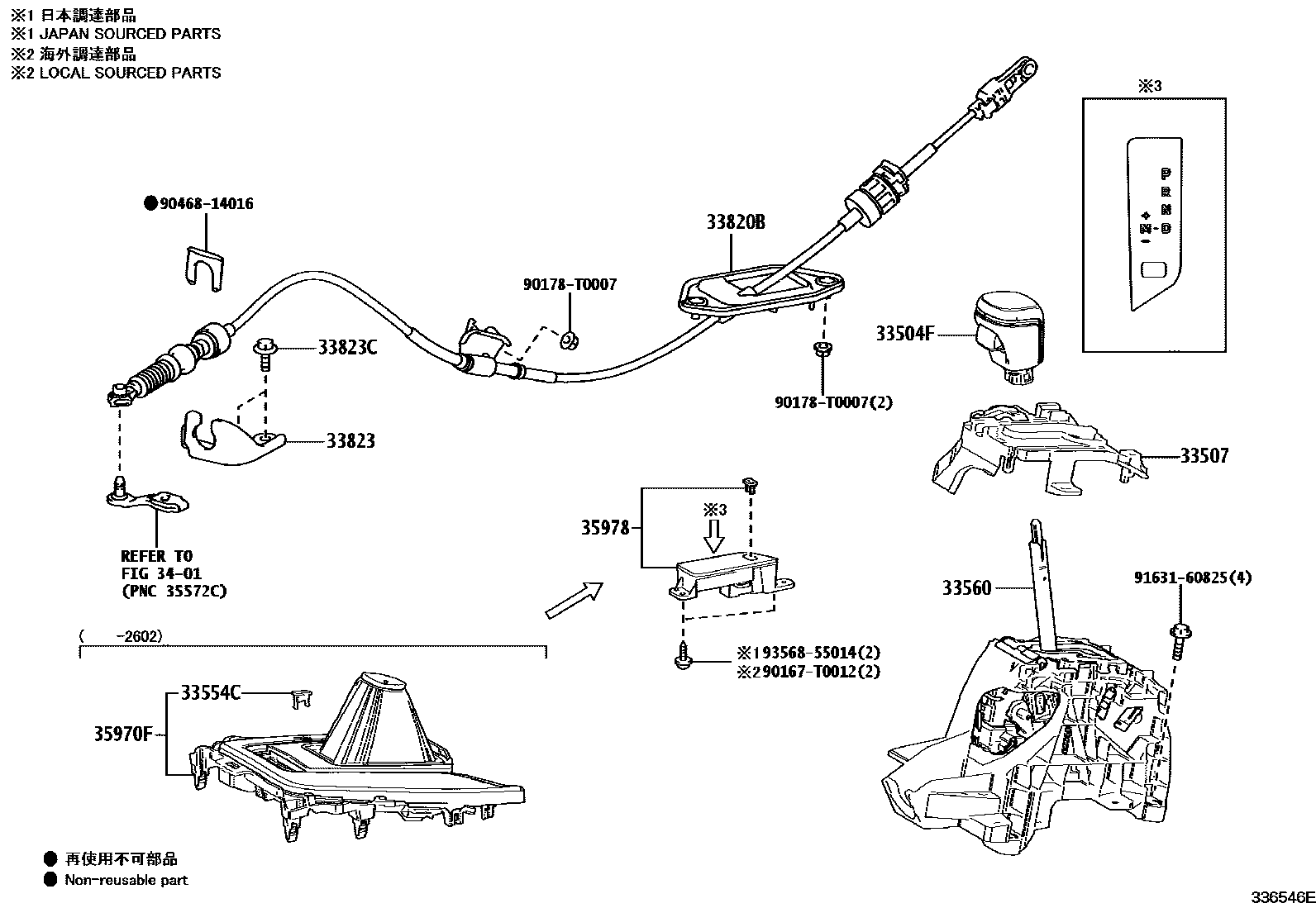

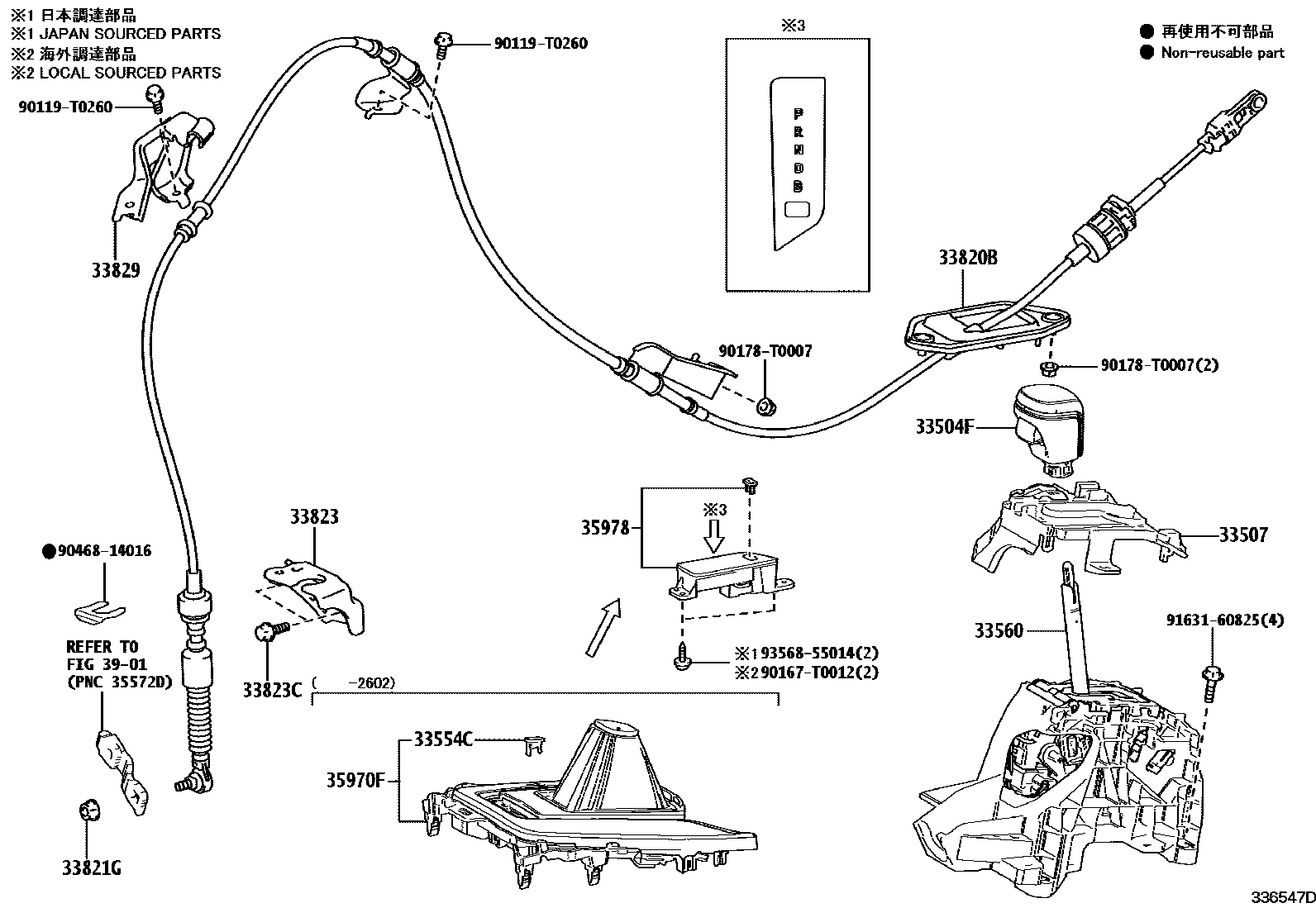

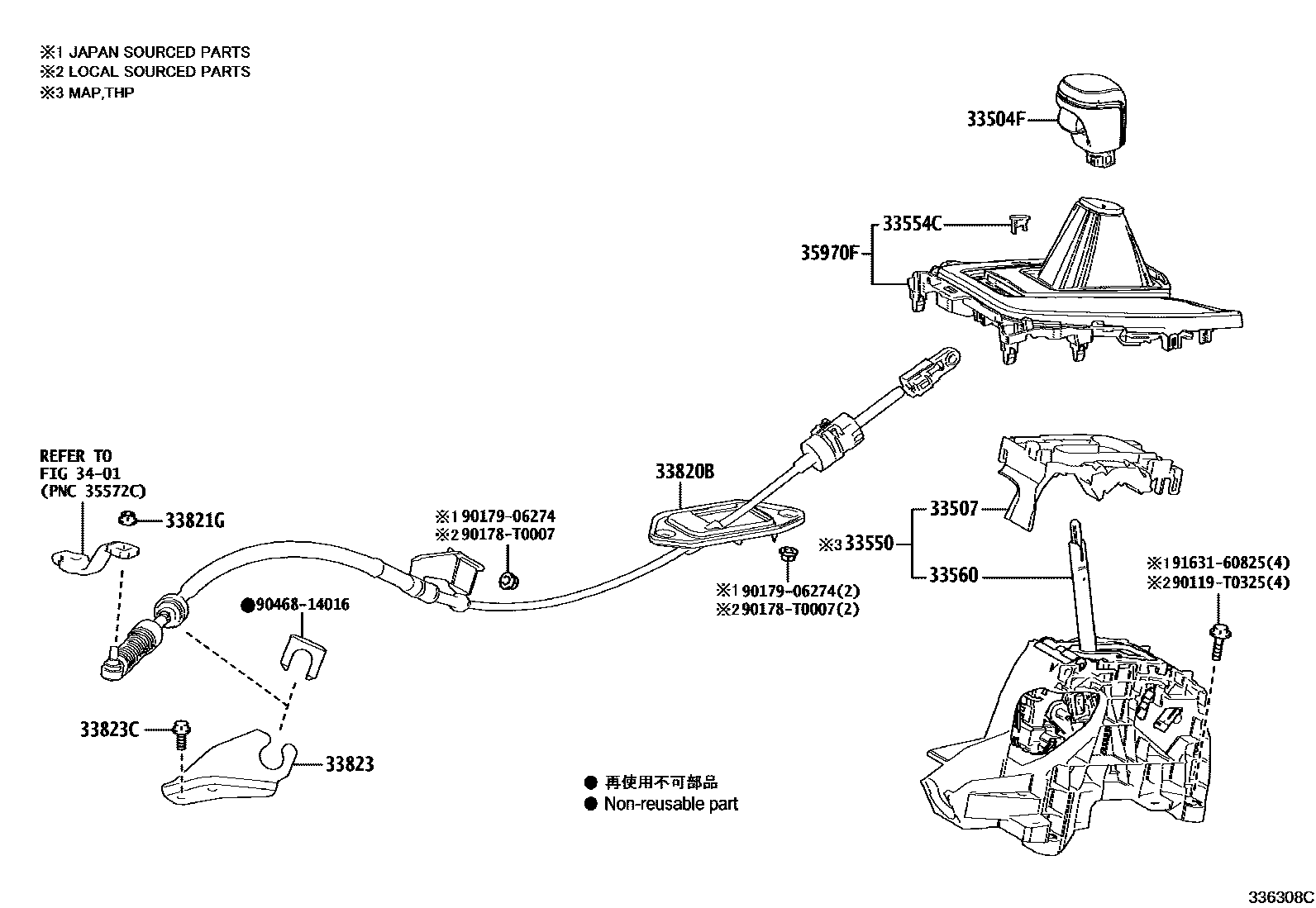

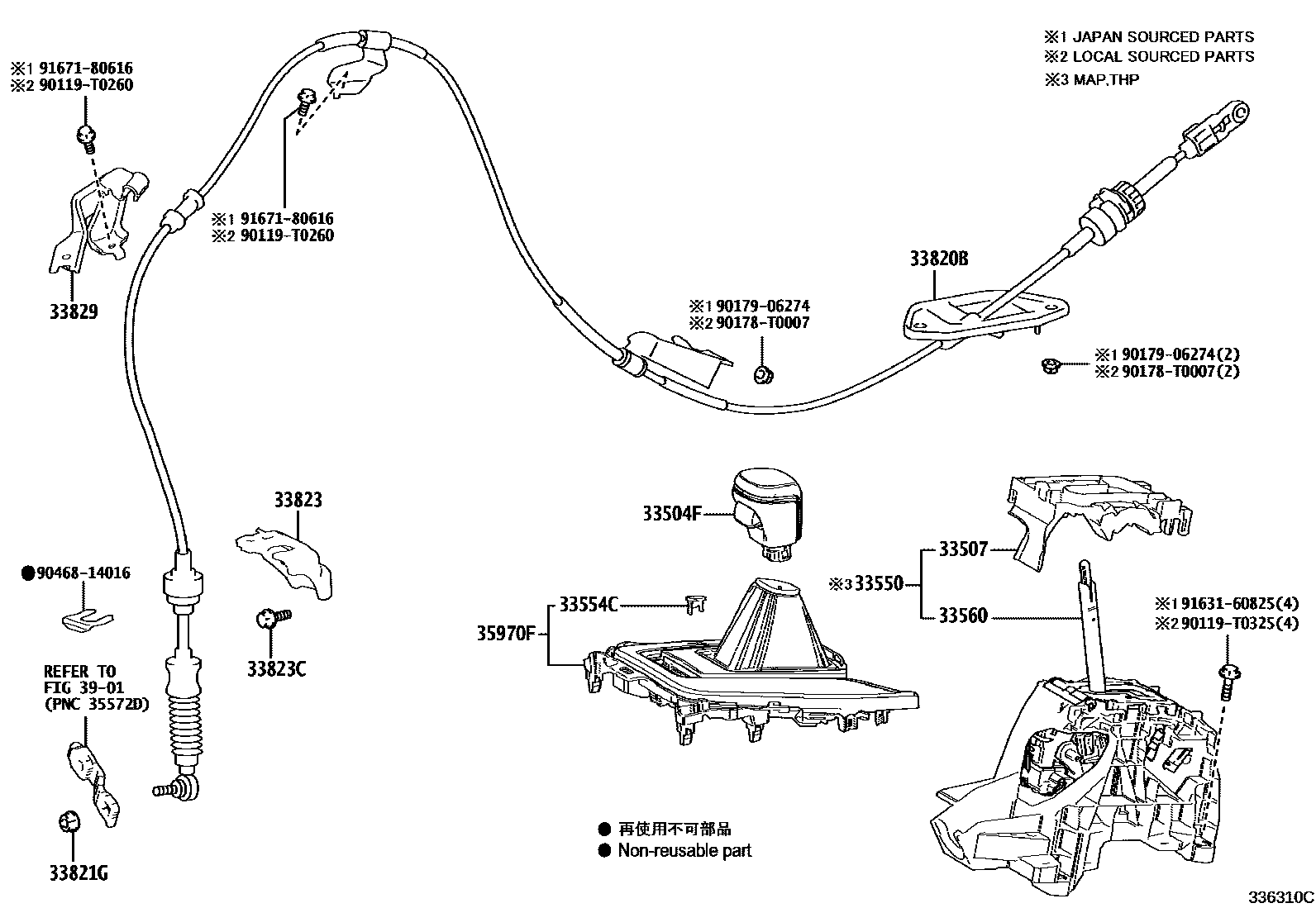

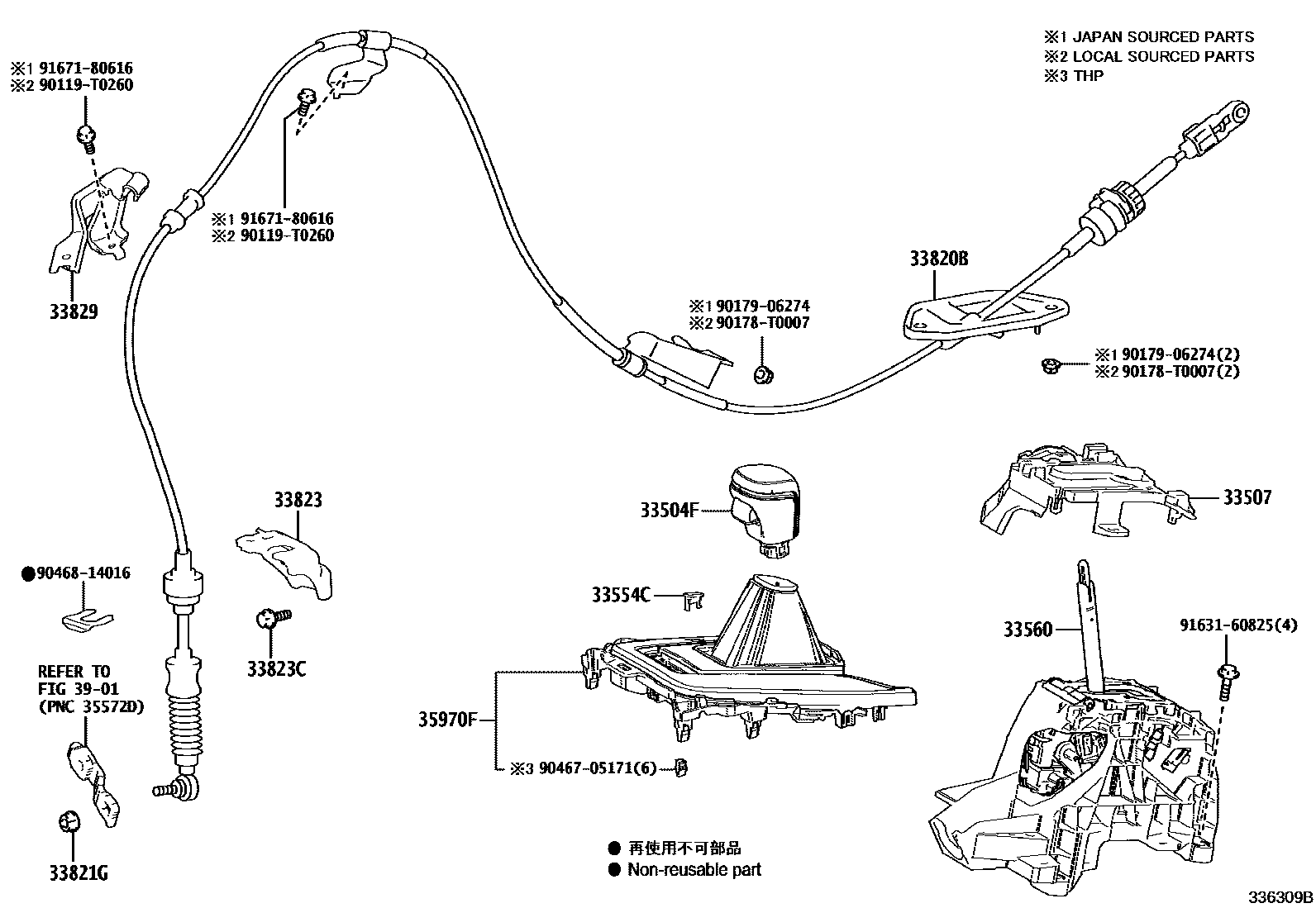

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 6 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33507 | Shift lever housing bracket sub-assembly | 33507-02040 · 33507-02050 · 33507-02060 · 33507-12030 |
| 33550 | Transmission floor shift assembly | 33550-02780 · 33550-02800 |
| 33554C | Shift lock release button cover | 33502-02170 · 33554-02160 · 33554-02170 · 33554-02260 |
| 33560 | Shift lock control unit assembly | 33560-02540 · 33560-02550 · 33560-02570 · 33560-02580 · 33560-02590 · 33560-02600 · 33560-12650 · 33560-12670 · 33560-F4070 · 33560-F4080 · 33560-F4090 |
| 33820B | Transmission control cable assembly | 33820-0A050 · 33820-0A060 · 33820-0A080 · 33820-0A090 · 33820-0A130 · 33820-0A140 · 33820-F4050 · 33820-F4060 |
| 33821G | Nut (for transmission control cable) | 90178-T0019 · 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-02360 · 33823-02370 · 33823-0A010 · 33823-10030 · 33823-12310 · 33823-F4020 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 90119-T0102 |
| 33829 | Transmission control cable bracket | 33829-02330 · 33829-10011 |
