Toyota COROLLA 燃油喷射系统 — Figure 2211

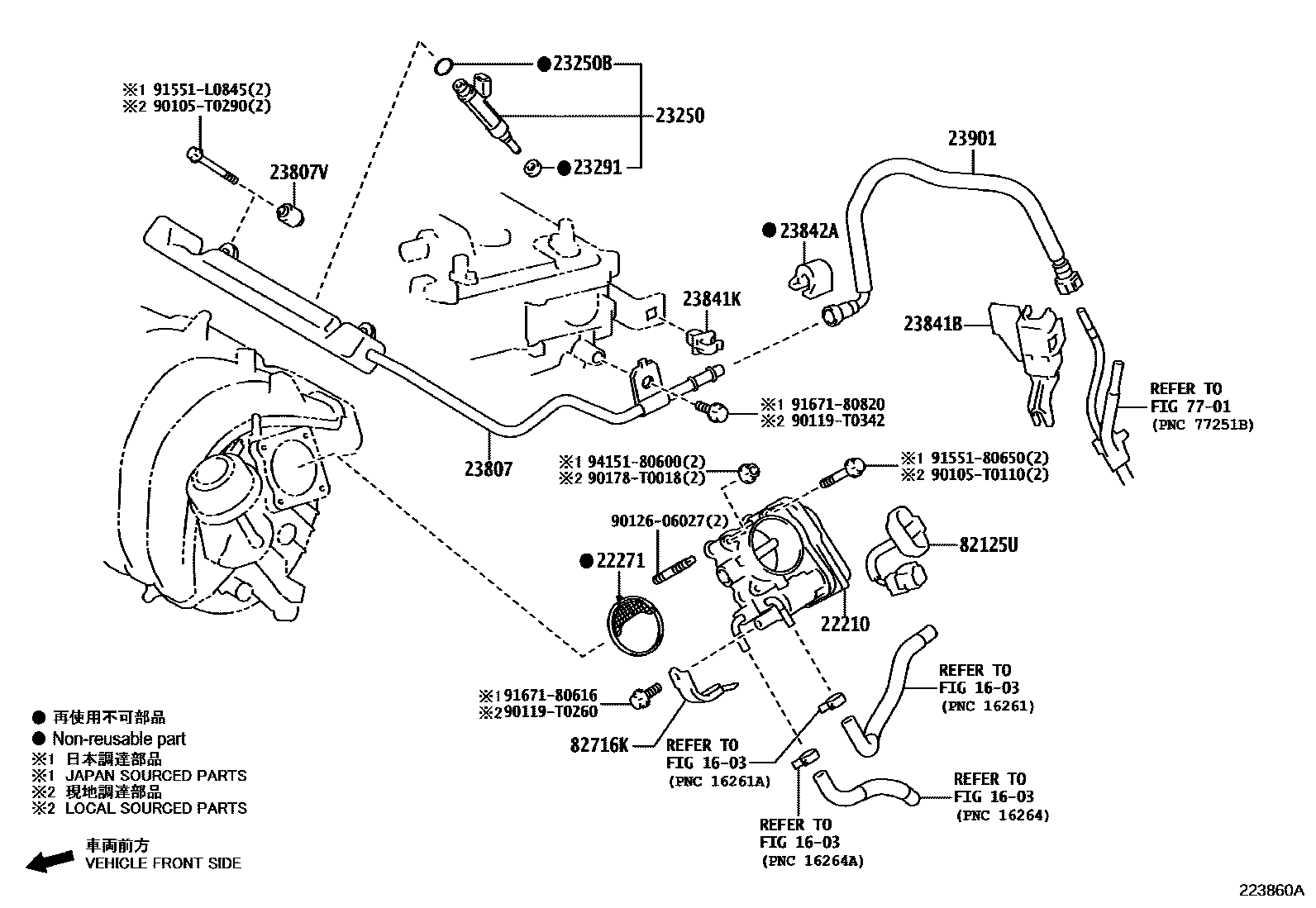

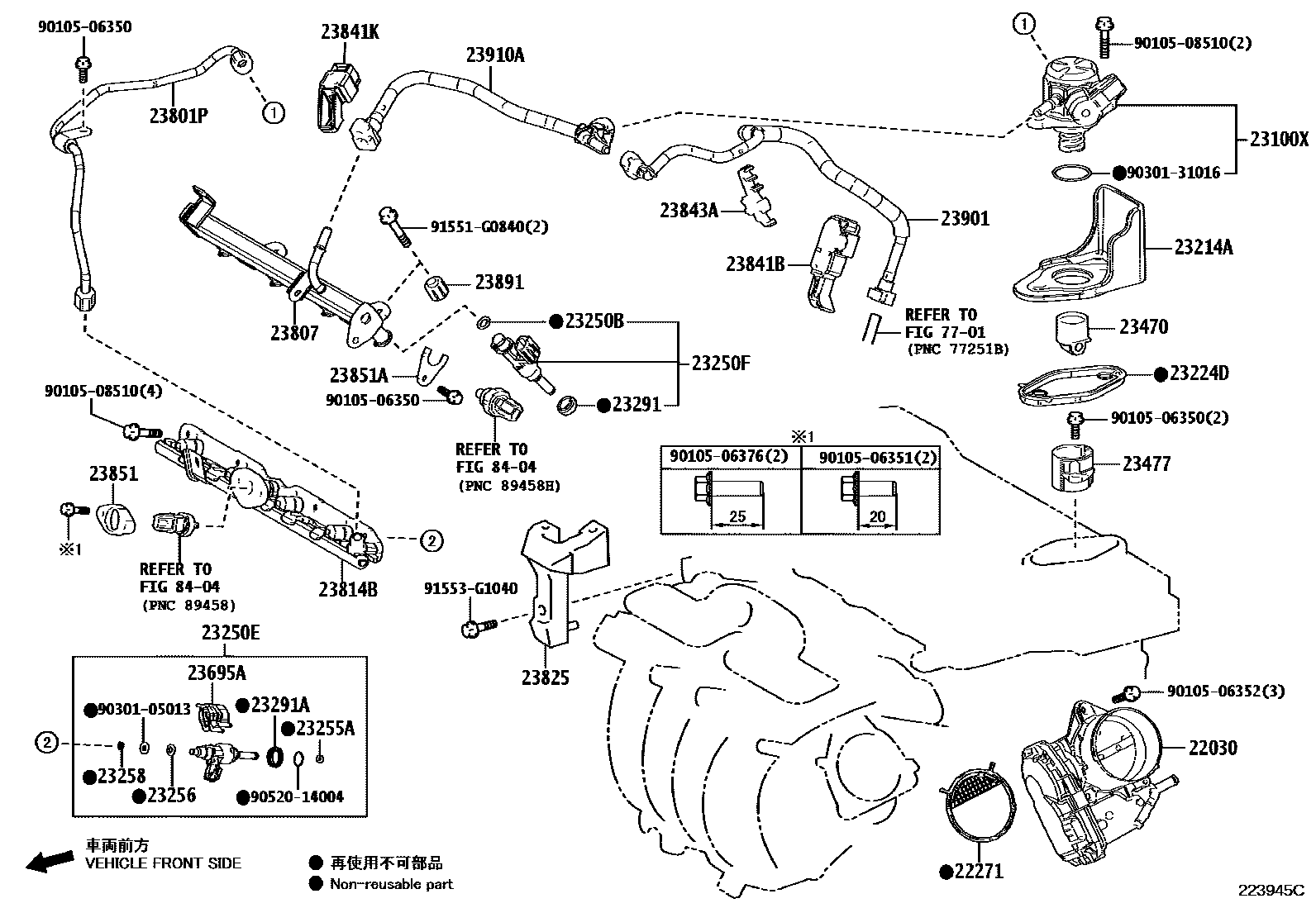

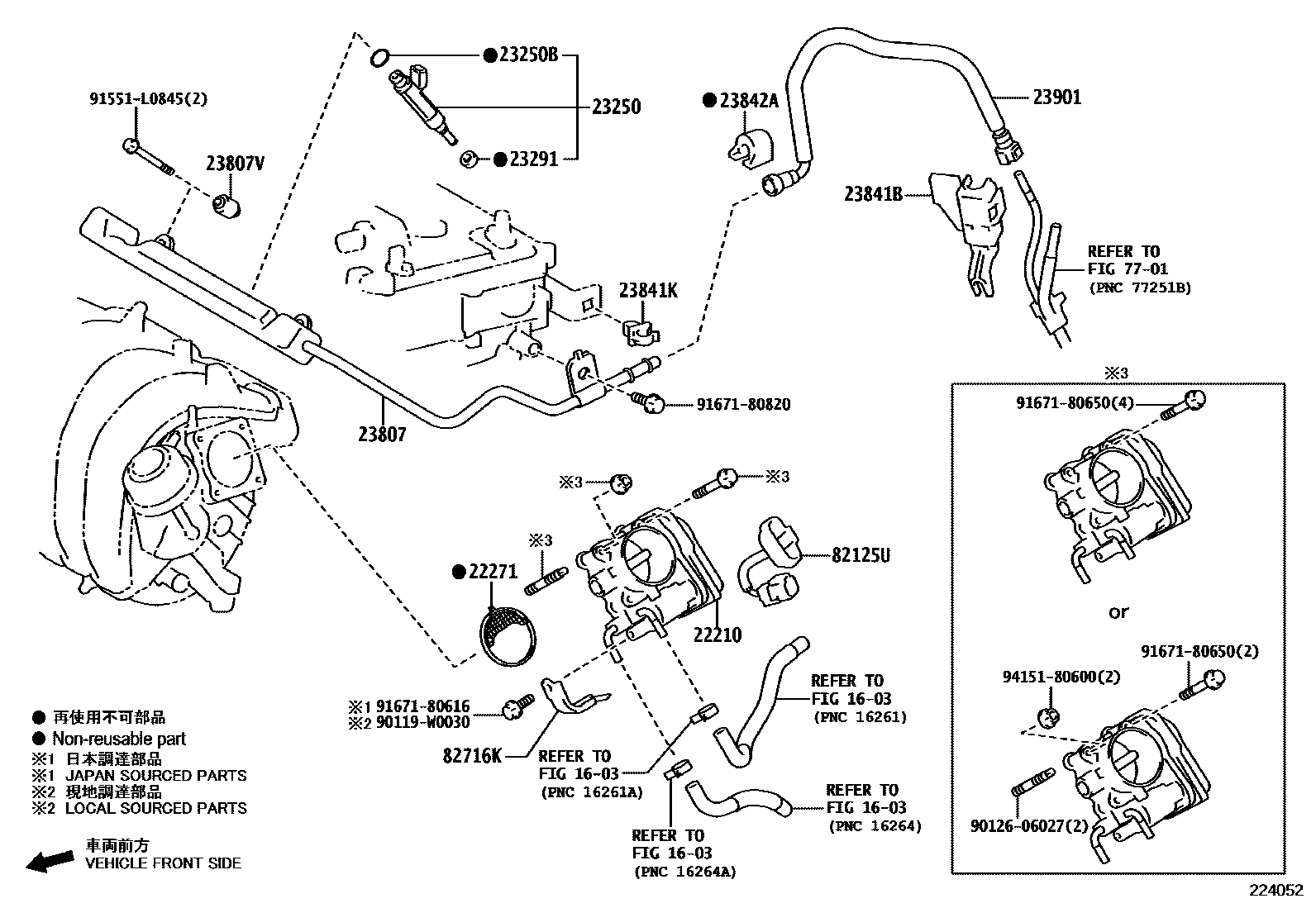

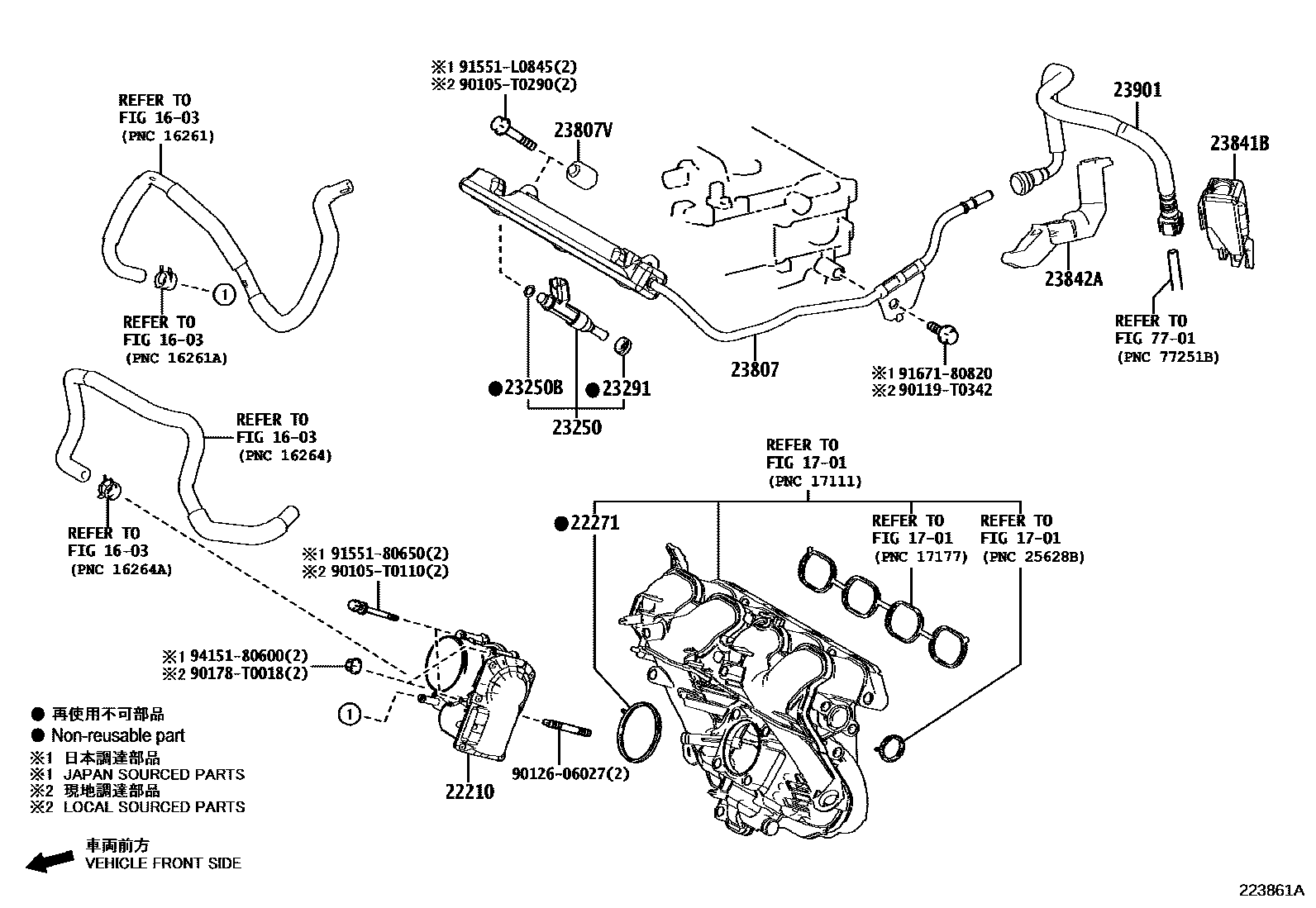

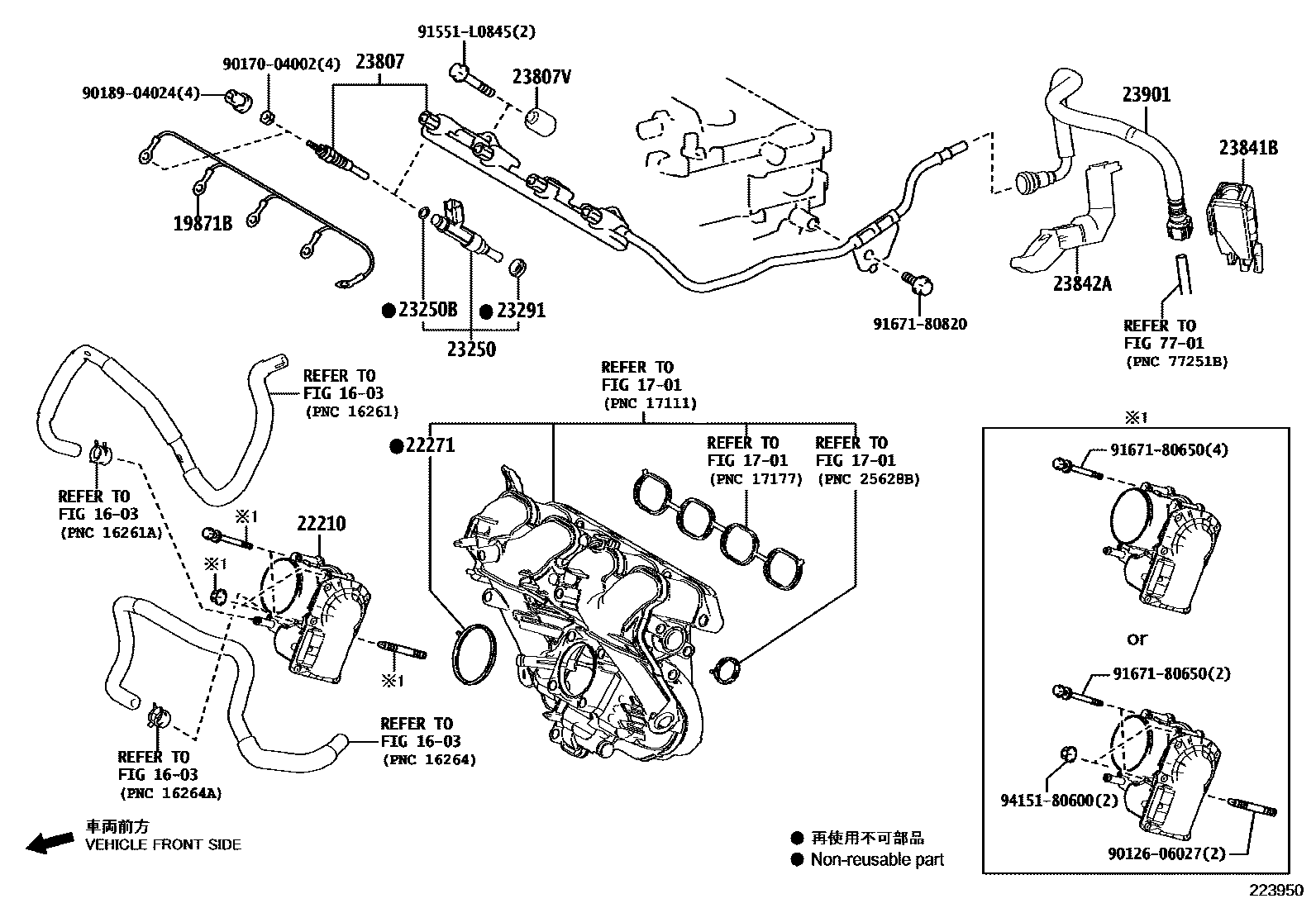

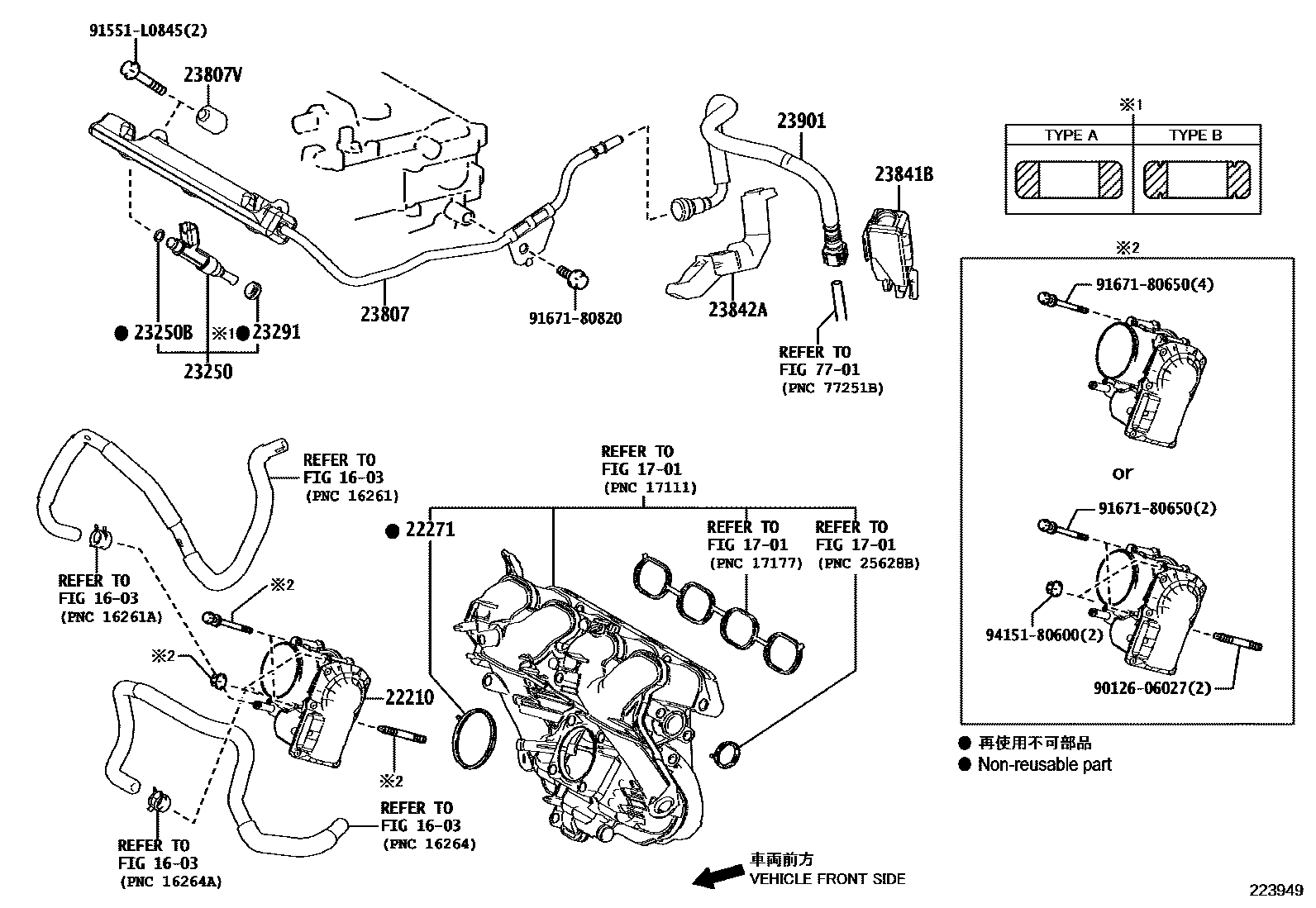

Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 6 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19871B | Glow plug connector No. 1 | 19871-37010 |
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-24010 |
| 22210 | Throttle body assembly | 22030-0T110 · 22030-0T160 · 22030-0T170 · 22030-37060 · 22030-37090 |
| 22271 | Throttle body gasket | 22271-0T060 · 22271-24010 · 22271-37020 · 22271-75031 |
| 23100X | Fuel pump assembly (engine room side) | 23101-24060 · 23101-24070 |
| 23214A | Fuel pump protection device | 23214-F2010 |
| 23224D | fuel pump septum gasket | 23224-25010 · 23224-25011 |
| 23250 | Fuel injector assembly | 23209-09130 · 23209-09200 · 23209-09370 · 23209-09410 · 23209-39145 · 23209-39146 · 23209-39295 · 23209-39345 · 23209-39365 |
| 23250B | O-ring (for fuel injector) | 90301-07037 · 90301-C0072 · 90301-T0051 |
| 23250F | Fuel injector assembly (for air intake injection) | 23209-29115 · 23209-29155 · 23209-29165 |
| 23255A | Injector seal | 23255-25010 |
| 23256 | No. 1 injector retaining ring | 23256-25010 |
| 23258 | No. 3 injector retaining ring | 23258-24010 · 23258-47010 |
| 23291 | Injector vibration isolation pad | 23291-0T010 · 23291-23010 · 23291-28020 |
| 23291A | Injector vibration isolation pad | 23291-31020 |
| 23470 | Fuel pump tappet assembly | 23470-25010 |
| 23477 | fuel pump tappet guide | 23477-25010 · 23477-F2020 |
| 23695A | Injector body clamp | 23695-24010 · 23695-25010 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-24070 · 23801-24080 |
| 23807 | Oil pipe sub-assembly | 23807-37020 · 23814-24020 · 23814-37051 · 23814-37100 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-37010 |
| 23814B | oil pipeline | 23814-24010 · 23814-24011 · 23814-24030 |
| 23825 | Oil pipeline anti-collision parts | 23825-24010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-0T042 · 23841-24040 · 23841-37081 |
| 23841K | Fuel pipe clamp | 23841-0T080 · 23841-0T130 · 23841-25040 · 23841-47020 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23841-37131 · 23842-22020 |
| 23843A | No. 3 fuel pipe clamp (for EFI) | 23847-24010 |
| 23851 | No. 1 fuel pressure sensor holder | 23851-25020 |
| 23851A | No. 2 fuel pressure sensor holder | 23851-25030 |
| 23891 | oil pipe septum | 23891-24010 |
| 23901 | Fuel pipe sub-assembly | 23901-0T280 · 23901-0T290 · 23901-0T340 · 23901-0T410 · 23901-37260 · 23901-37290 · 23901-F2050 · 23901-F2170 |
| 23910A | Fuel pipe sub-assembly | 23901-24071 |
| 82125U | Engine No. 5 wiring harness | 82125-12680 · 82125-F4010 |
| 82716K | Wire harness clamp bracket | 82715-02P80 · 82715-10400 |
