Toyota COROLLA 起动机 — Figure 1904

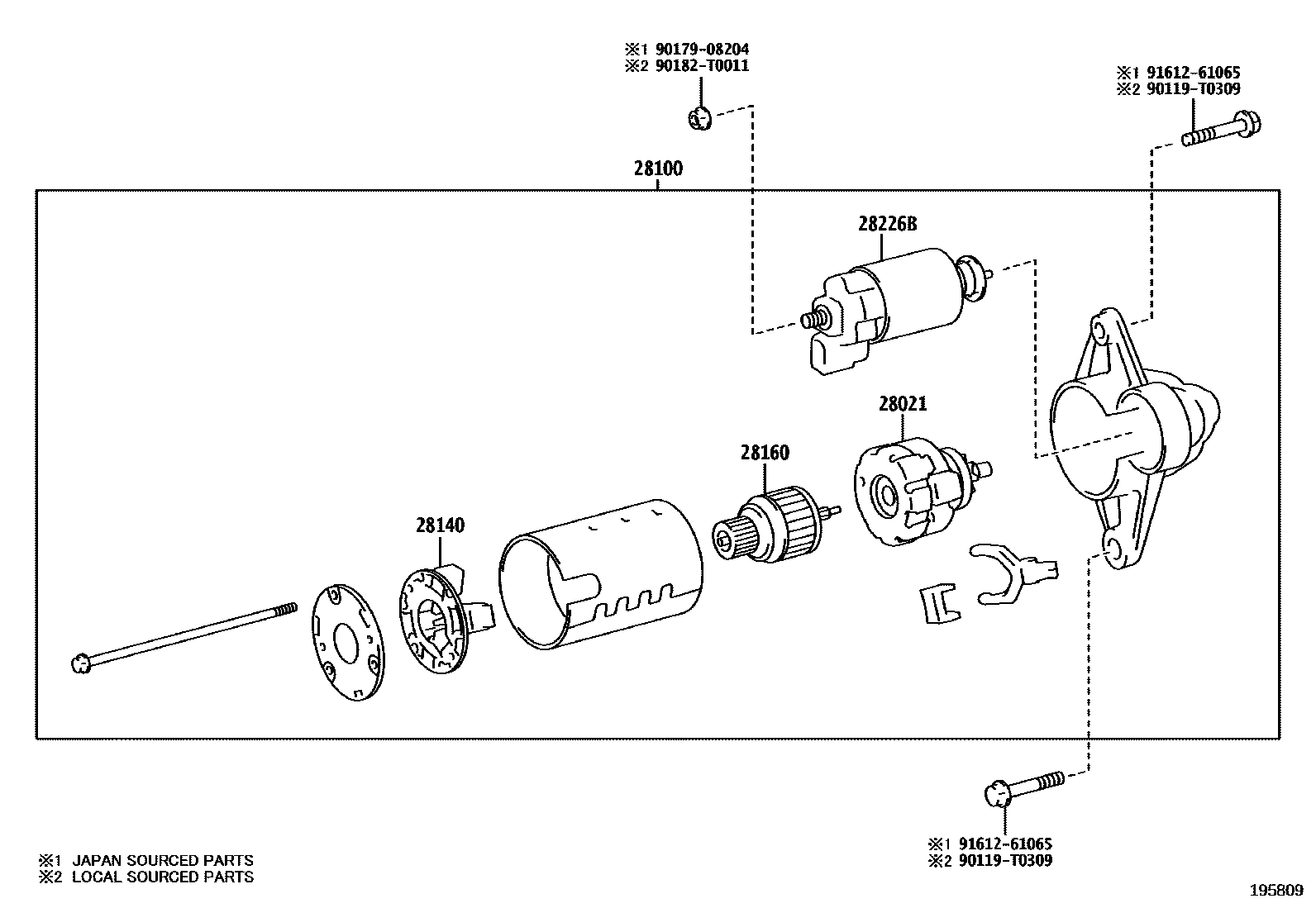

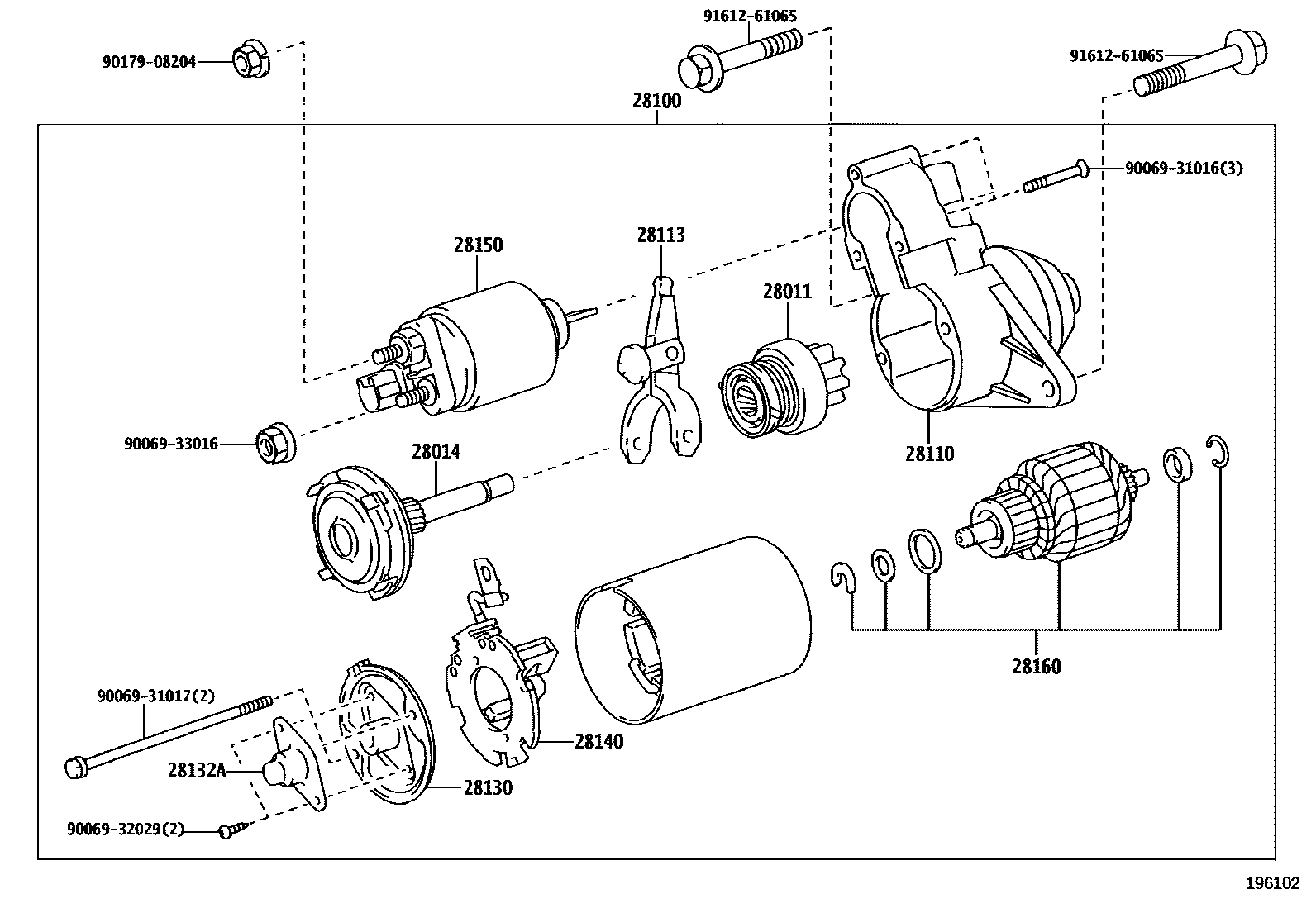

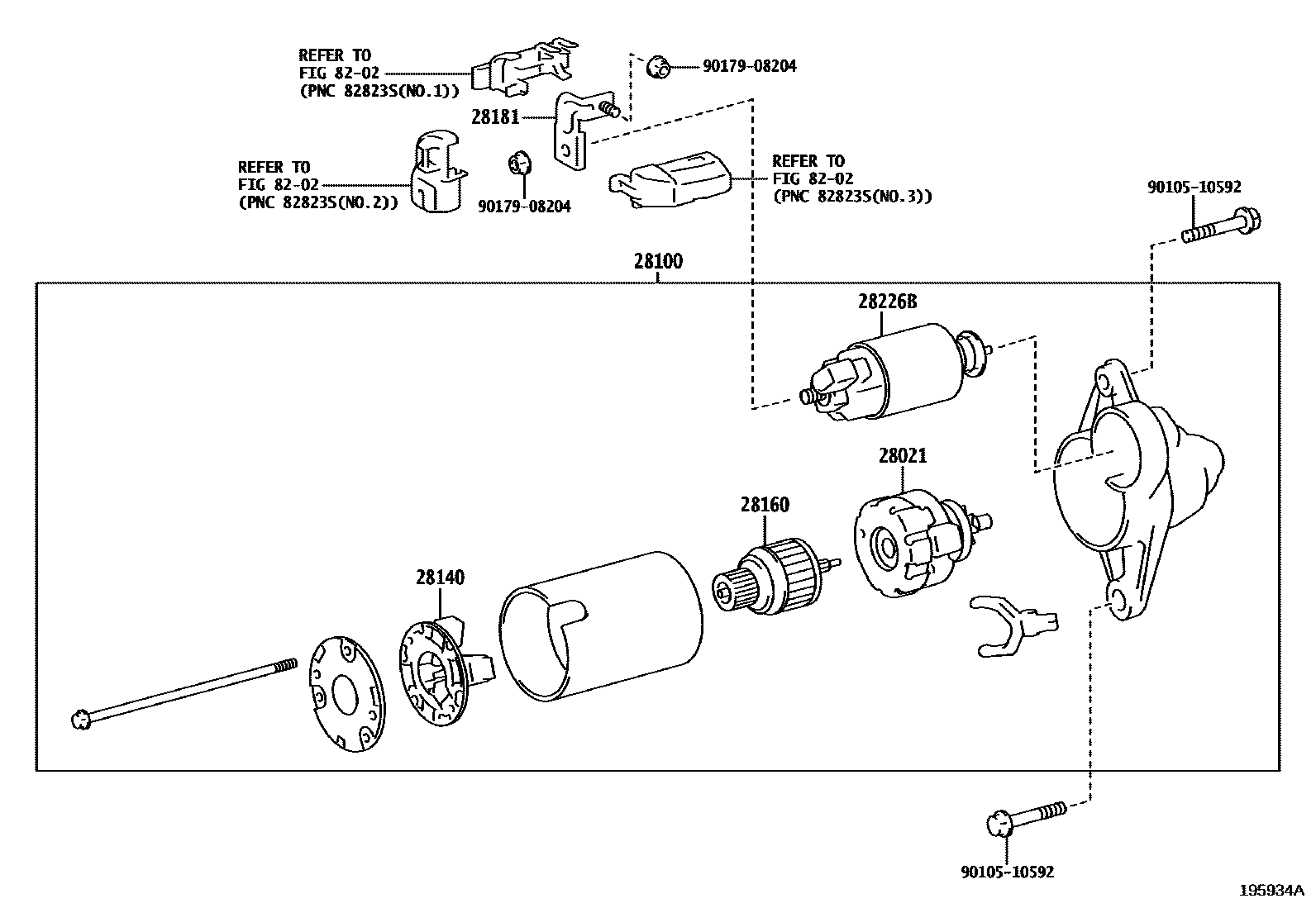

Toyota COROLLA EPC diagram 1904, 起动机, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-0D160 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-0D160 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-0Y300 · 28021-37130 · 28021-47170 · 28021-F2060 |
| 28100 | Starter assembly | 28100-0T010 · 28100-0T390 · 28100-0T440 · 28100-37150 · 28100-F2060 · 28100-F2160 |
| 28110 | Starter drive end housing assembly | 28110-0T010 |
| 28113 | starter pinion drive rod | 28113-0D160 |
| 28130 | Starter commutator end frame assembly | 28130-0D160 |
| 28132A | Starter commutator end frame cover | 28132-0D160 |
| 28140 | Starter brush holder assembly | 28140-0D160 · 28140-0Y210 · 28140-0Y300 · 28140-21070 |
| 28150 | Starter electromagnetic switch assembly | 28150-0D160 |
| 28160 | Starter armature assembly | 28160-0D160 · 28160-0Y210 · 28160-0Y220 · 28160-0Y300 · 28160-21070 |
| 28181 | starter terminal | 28181-24010 |
| 28226B | starter magnetic switch | 28226-0T390 · 28226-37130 · 28226-F2060 · 28226-F2160 |
