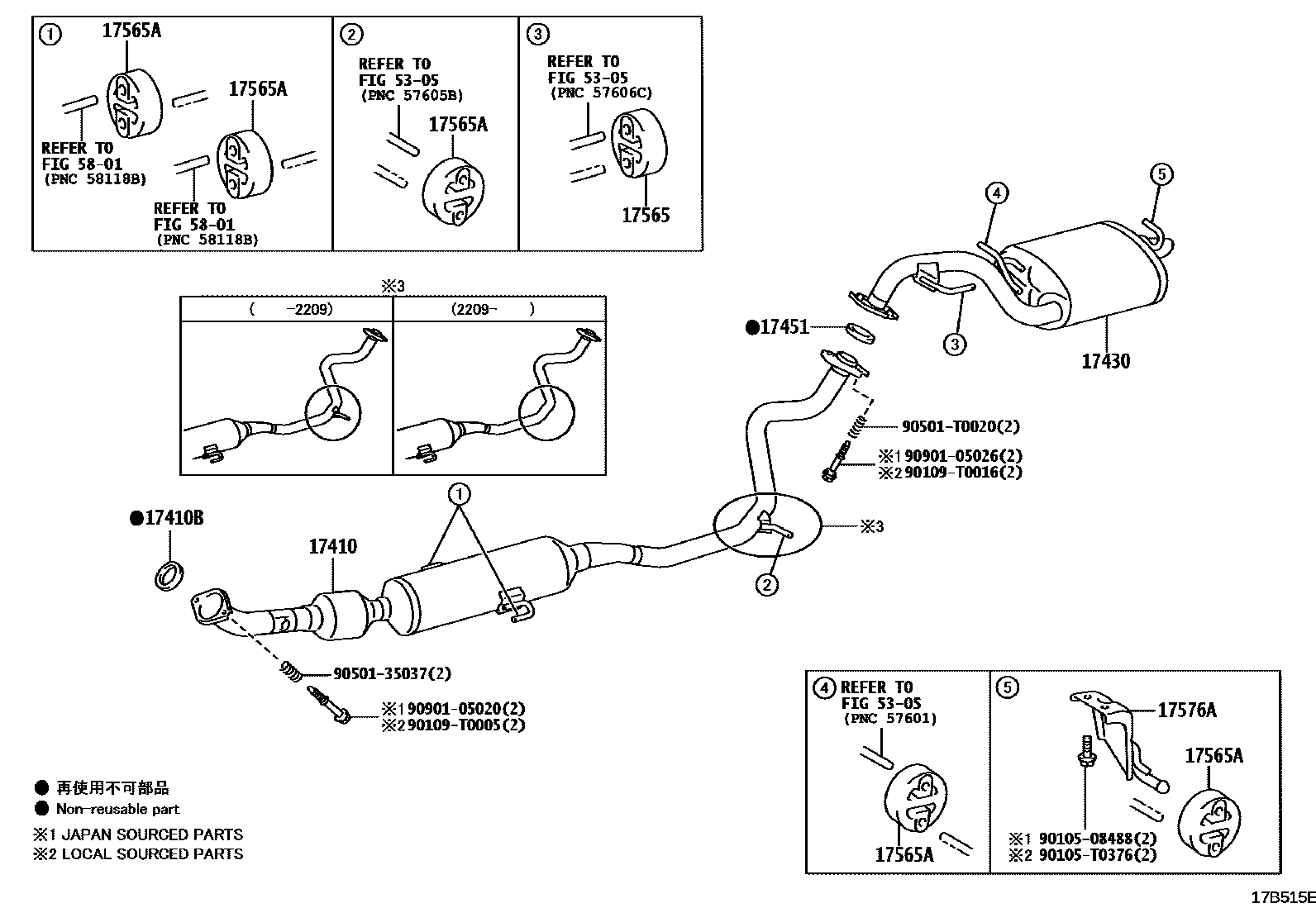

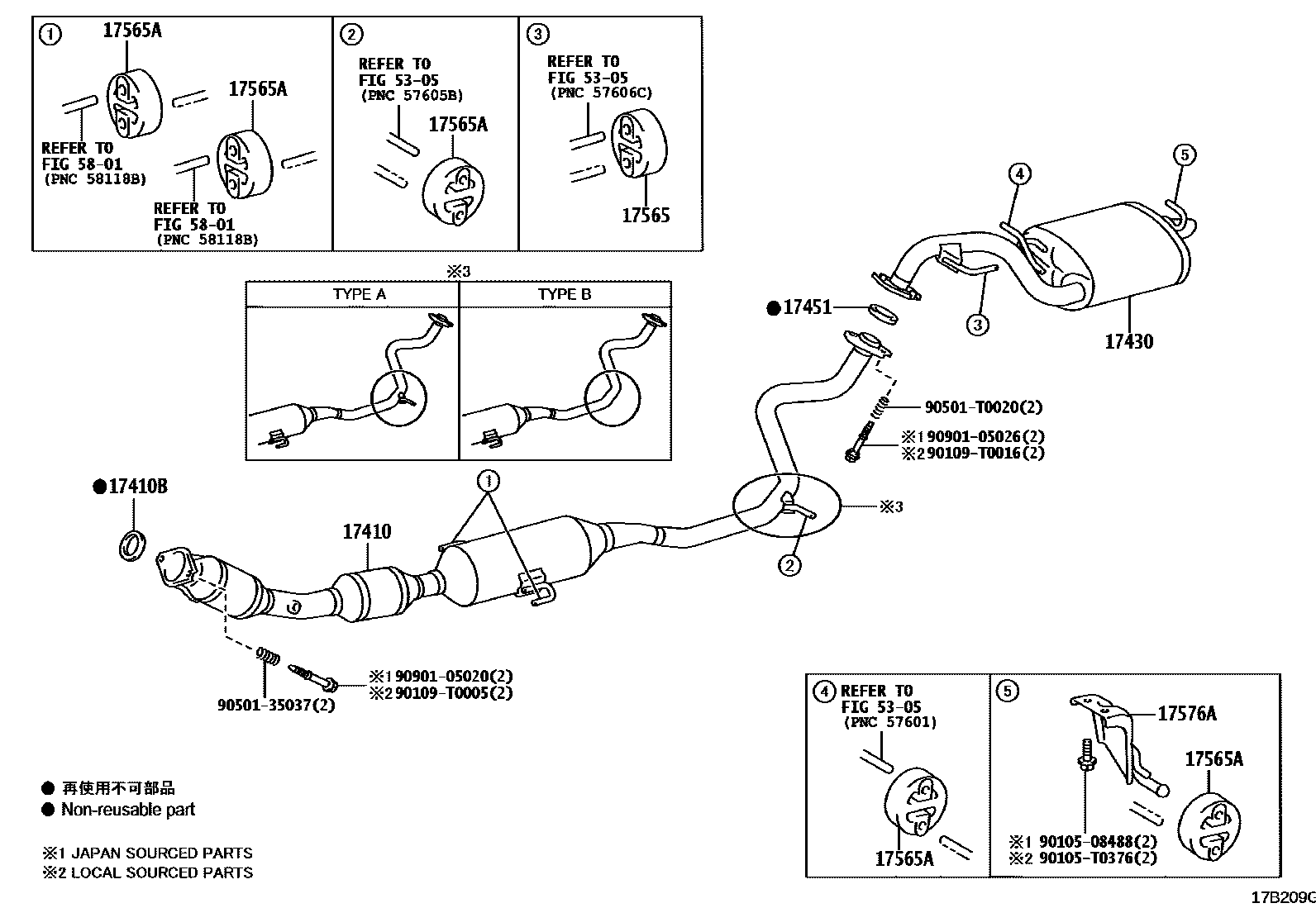

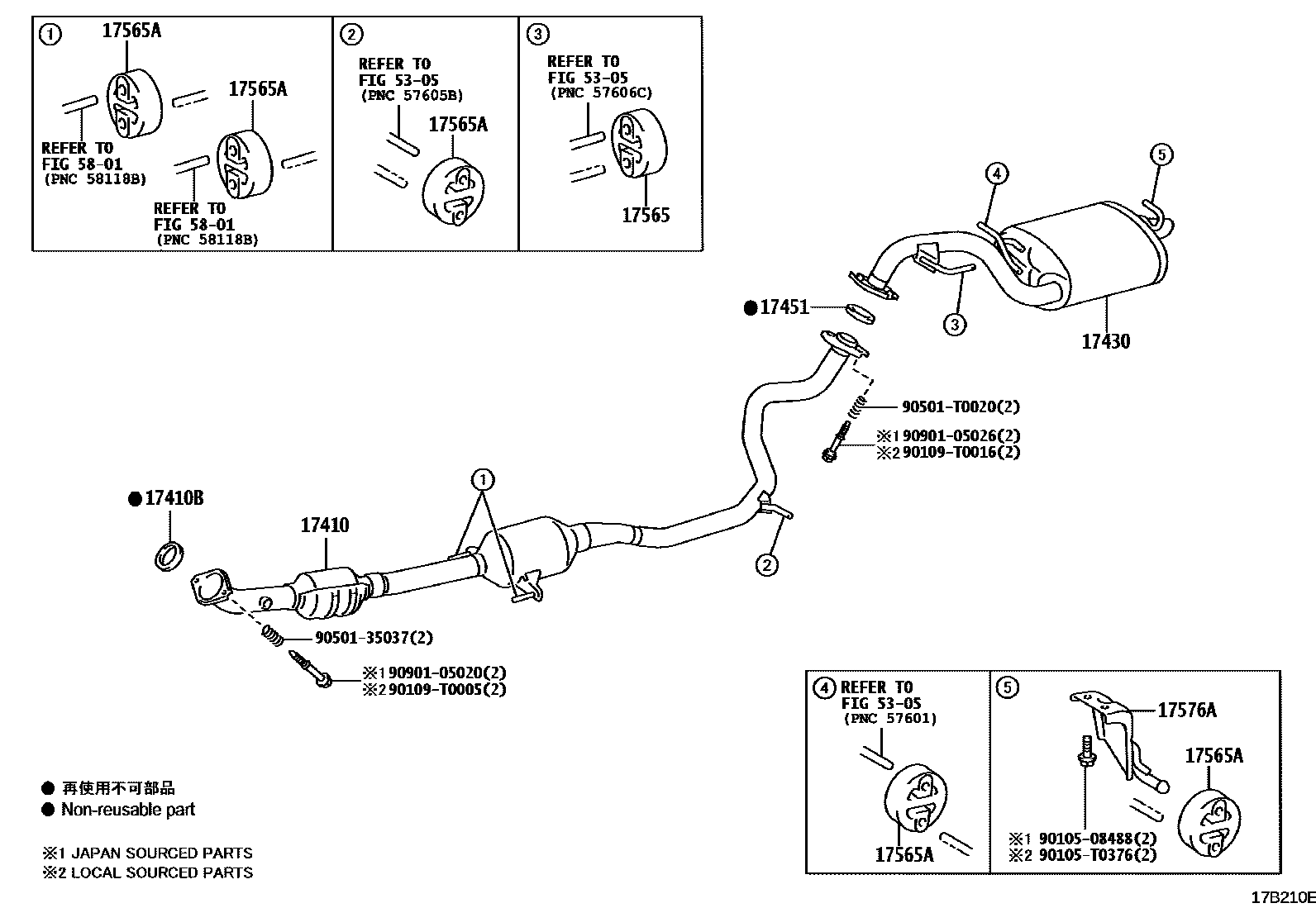

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0T630 · 17410-0T631 · 17410-0TD50 · 17410-0TD51 · 17410-0TF90 · 17410-0TF91 · 17410-0TG00 · 17410-0TG10 · 17410-0TG11 · 17410-0TG12 · 17410-0TG20 · 17410-0TG30 · 17410-0TG31 · 17410-0TG32 · 17410-0TG40 · 17410-0TG41 · 17410-0TG42 · 17410-0TG50 · 17410-0TG51 · 17410-0TG52 · 17410-0TG70 · 17410-0TG71 · 17410-0TG72 · 17410-0TG80 · 17410-0TG81 · 17410-0TG82 · 17410-0TJ60 · 17410-0TJ70 · 17410-0TJ71 · 17410-0TL90 · 17410-0TM10 · 17410-0TM20 · 17410-0TM30 · 17410-0TM40 · 17410-0TM50 · 17410-0TM60 · 17410-0TM70 · 17410-0TN00 · 17410-0TN10 · 17410-0TN20 · 17410-0TN90 · 17410-F2150 · 17410-F2151 · 17410-F2220 · 17410-F2221 · 17410-F2710 · 17410-F2720 |
| 17410B | Exhaust pipe gasket | 17451-24010 · 17451-28040 · 17451-28041 |
| 17430 | Exhaust tailpipe assembly | 17430-0T680 · 17430-0T690 · 17430-0T700 · 17430-0T710 · 17430-0T720 · 17430-0T740 · 17430-0T741 · 17430-0T760 · 17430-0T770 · 17430-0T780 · 17430-0T790 · 17430-0T850 · 17430-0T851 · 17430-F2110 · 17430-F2170 |
| 17451 | Exhaust pipe gasket | 17451-0M032 · 17451-23042 · 17451-23043 · 17451-24020 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0L090 · 17565-0P240 · 17565-28010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0D120 · 17565-0P110 · 17565-0T080 |
| 17576A | No. 6 exhaust pipe bracket | 17576-0T120 · 17576-0T130 · 17576-0T140 · 17576-0T160 |
