Toyota COROLLA Water Pump — Figure 1601

Toyota COROLLA EPC diagram 1601, Water Pump, with 4 images and 3 PNC and OE references.

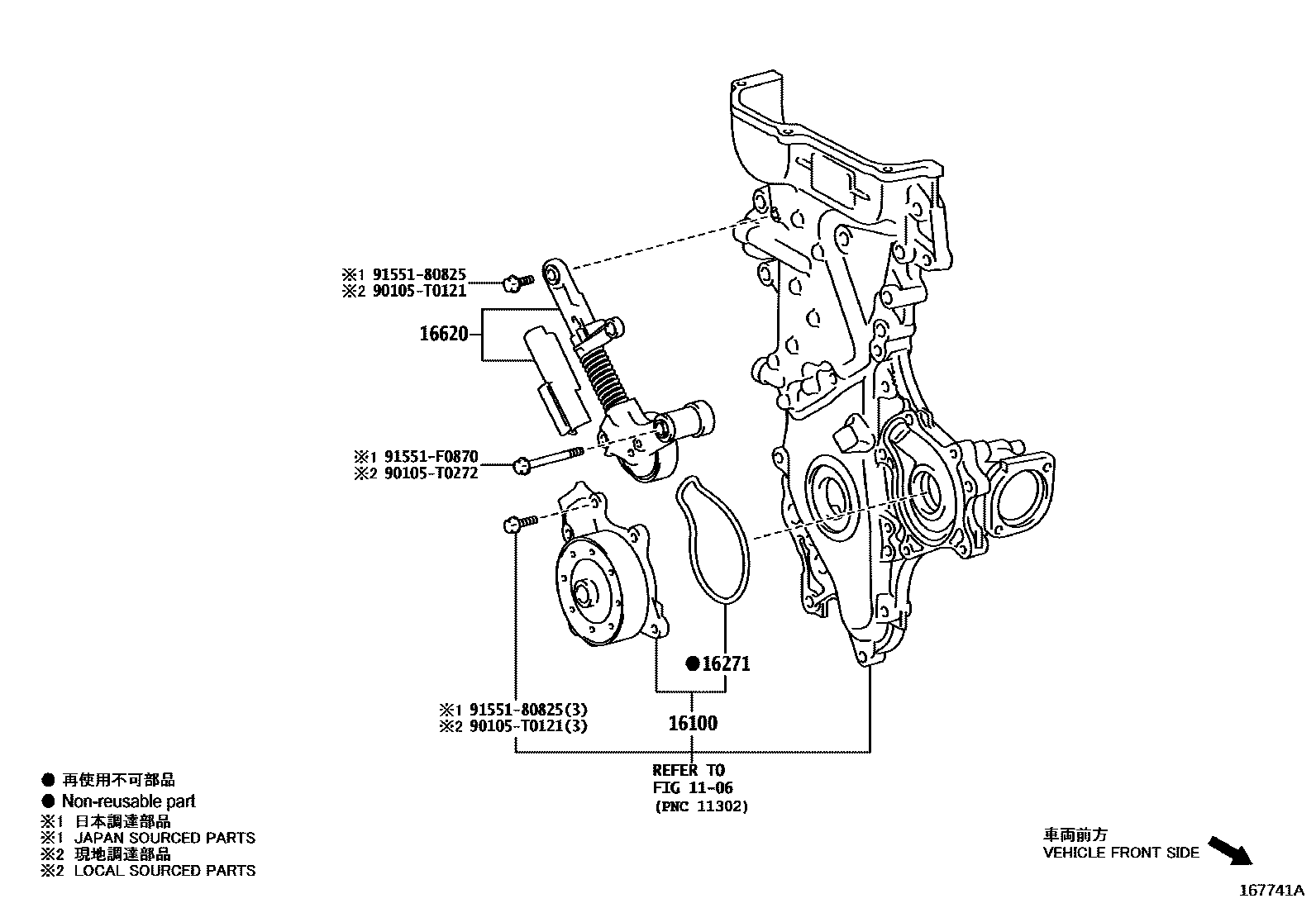

Toyota COROLLA Water Pump EPC diagram — 167741A — Water Pump — 167741A (202007 – 999999)

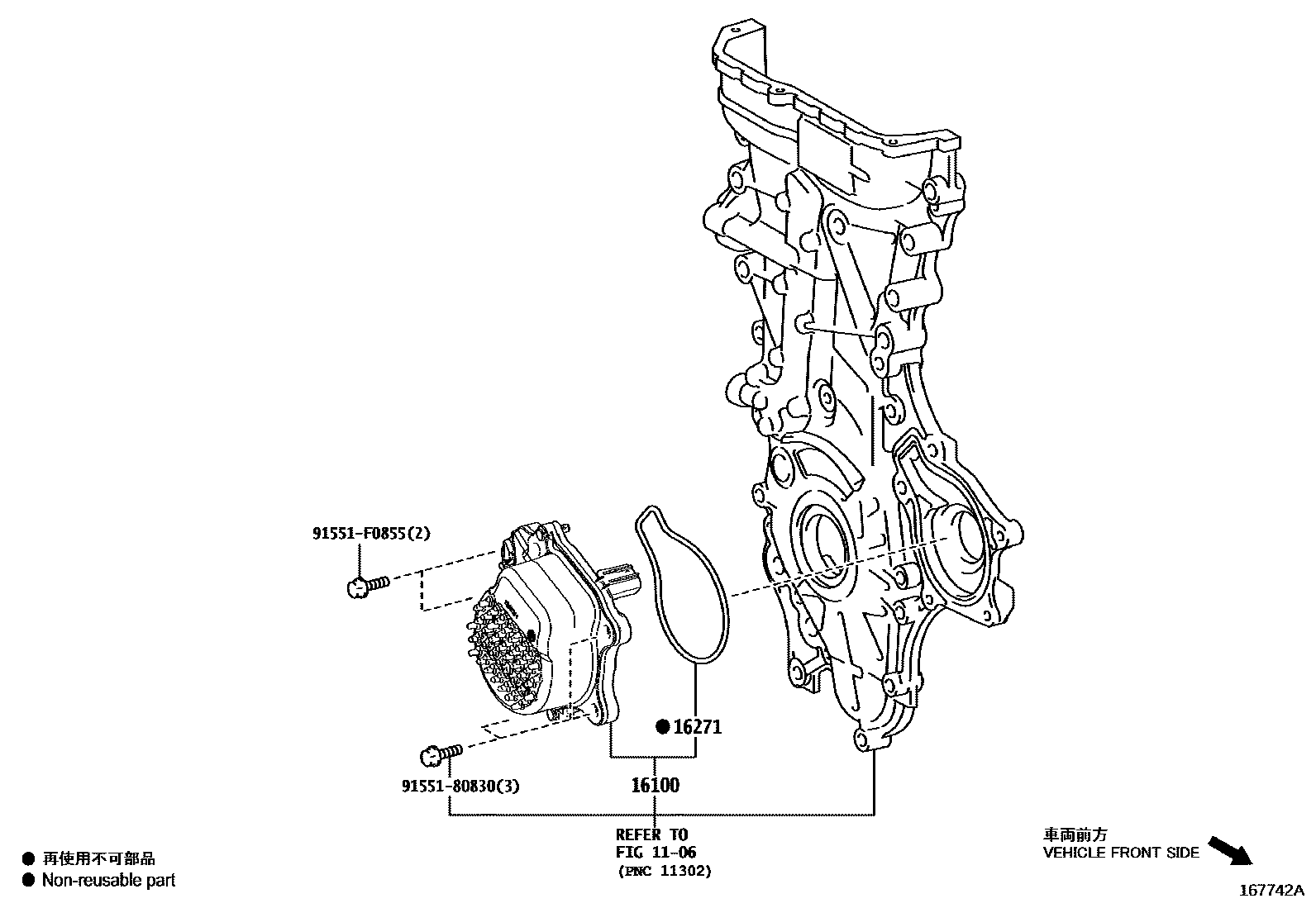

Toyota COROLLA Water Pump EPC diagram — 167742A — Water Pump — 167742A (202007 – 999999)

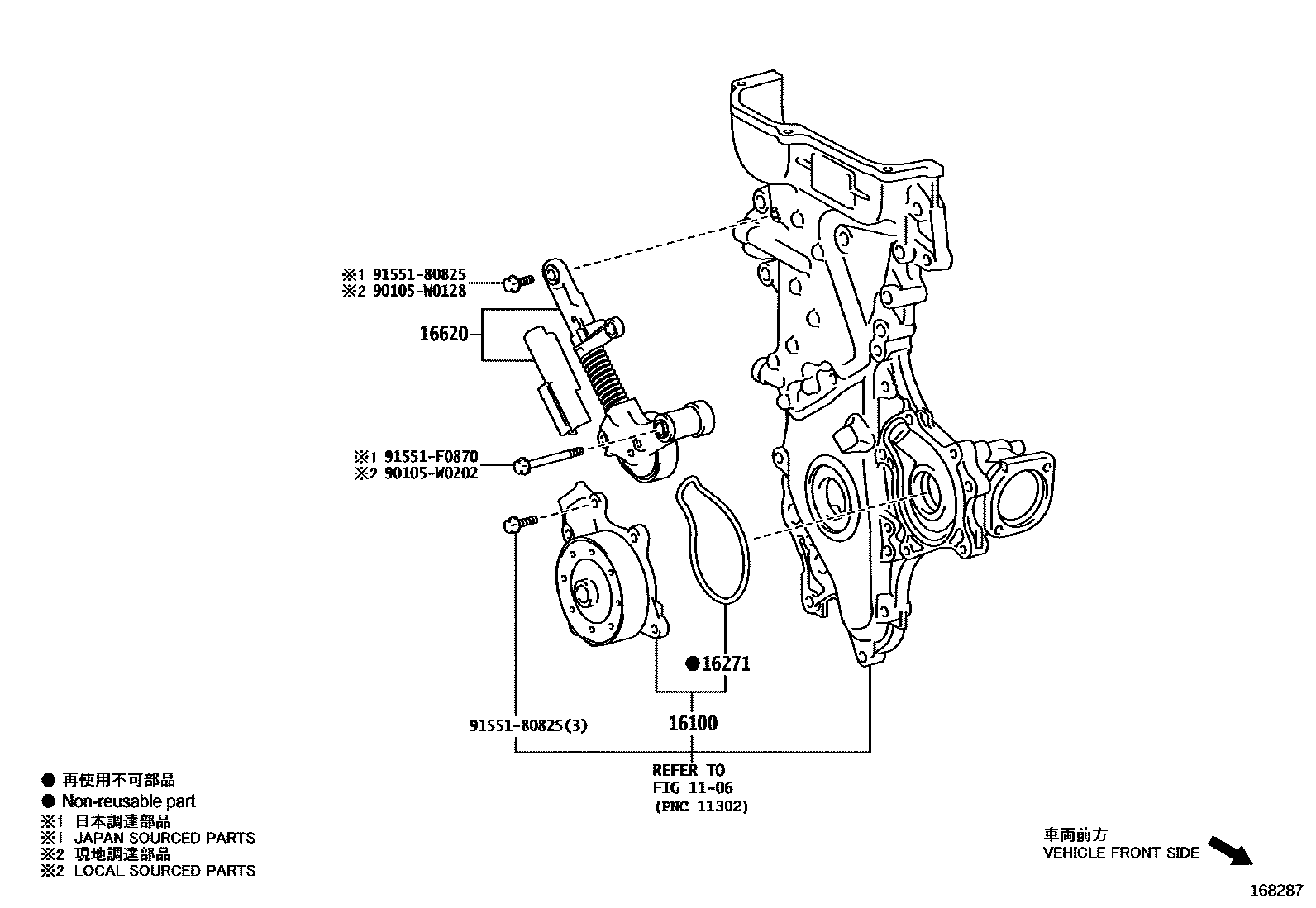

Toyota COROLLA Water Pump EPC diagram — 168287 — Water Pump — 168287 (202110 – 999999)

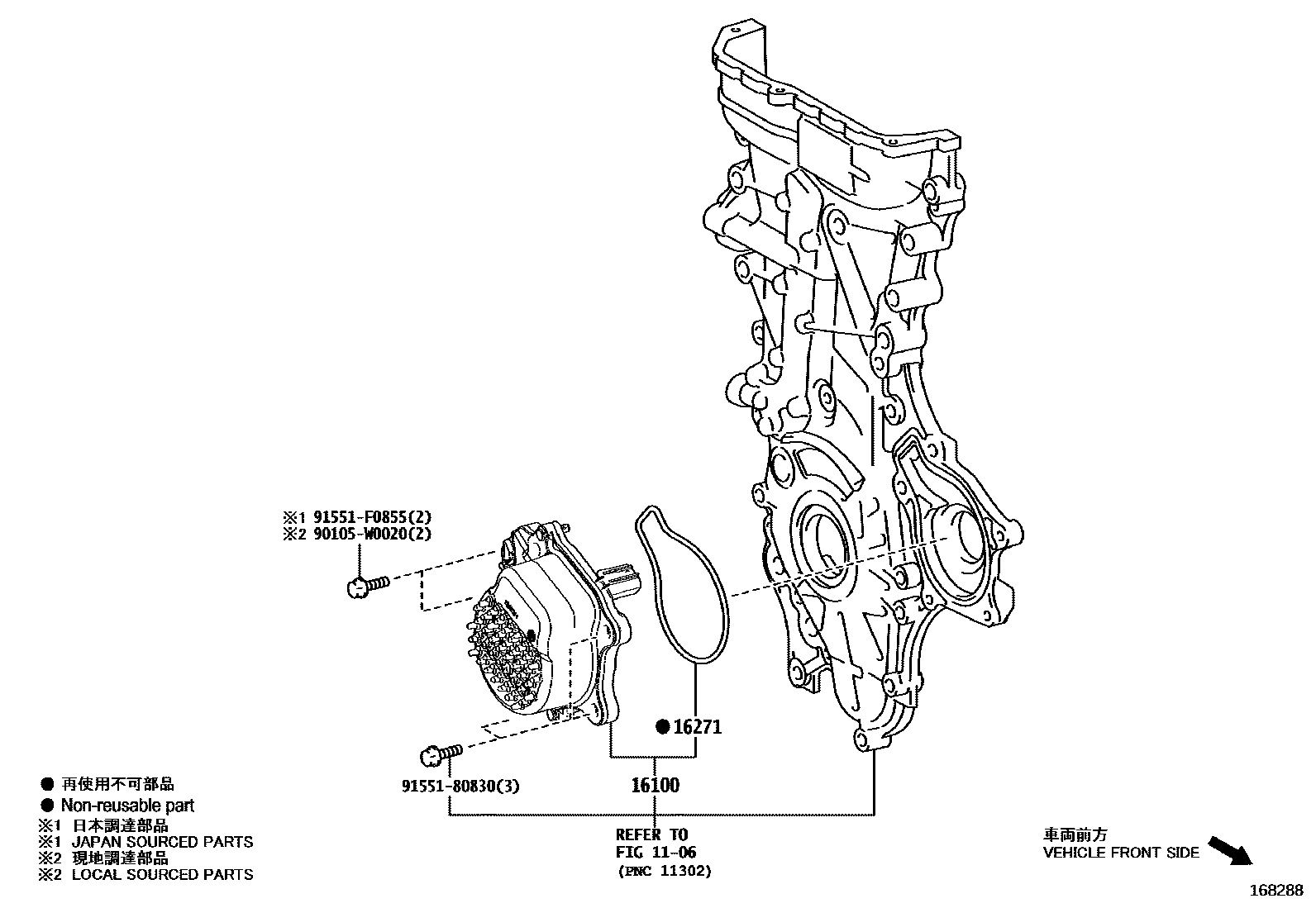

Toyota COROLLA Water Pump EPC diagram — 168288 — Water Pump — 168288 (202110 – 999999)

PNC and OE references

PNC	Part name	OE numbers
16100	Engine water pump assembly	16100-09670 · 16100-09740 · 16100-39565 · 161A0-39035
16271	water pump gasket	16271-37020 · 16271-37030
16620	Poly V-belt tensioner assembly	16620-37030 · 16620-37040
