Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 2 images and 6 PNC and OE references.

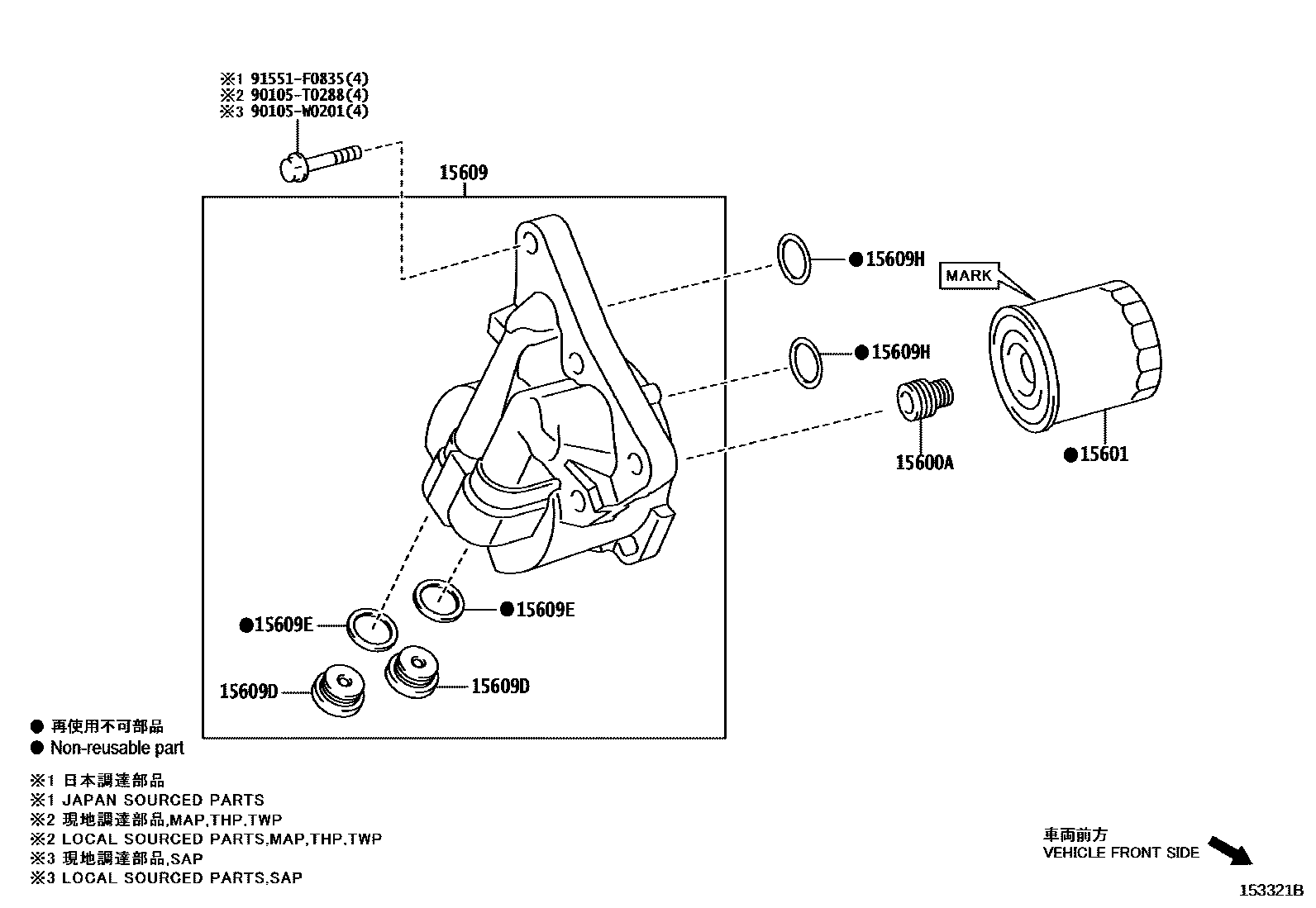

Toyota COROLLA Oil Filter EPC diagram — 153321B
Oil Filter — 153321B (202007 – 999999)

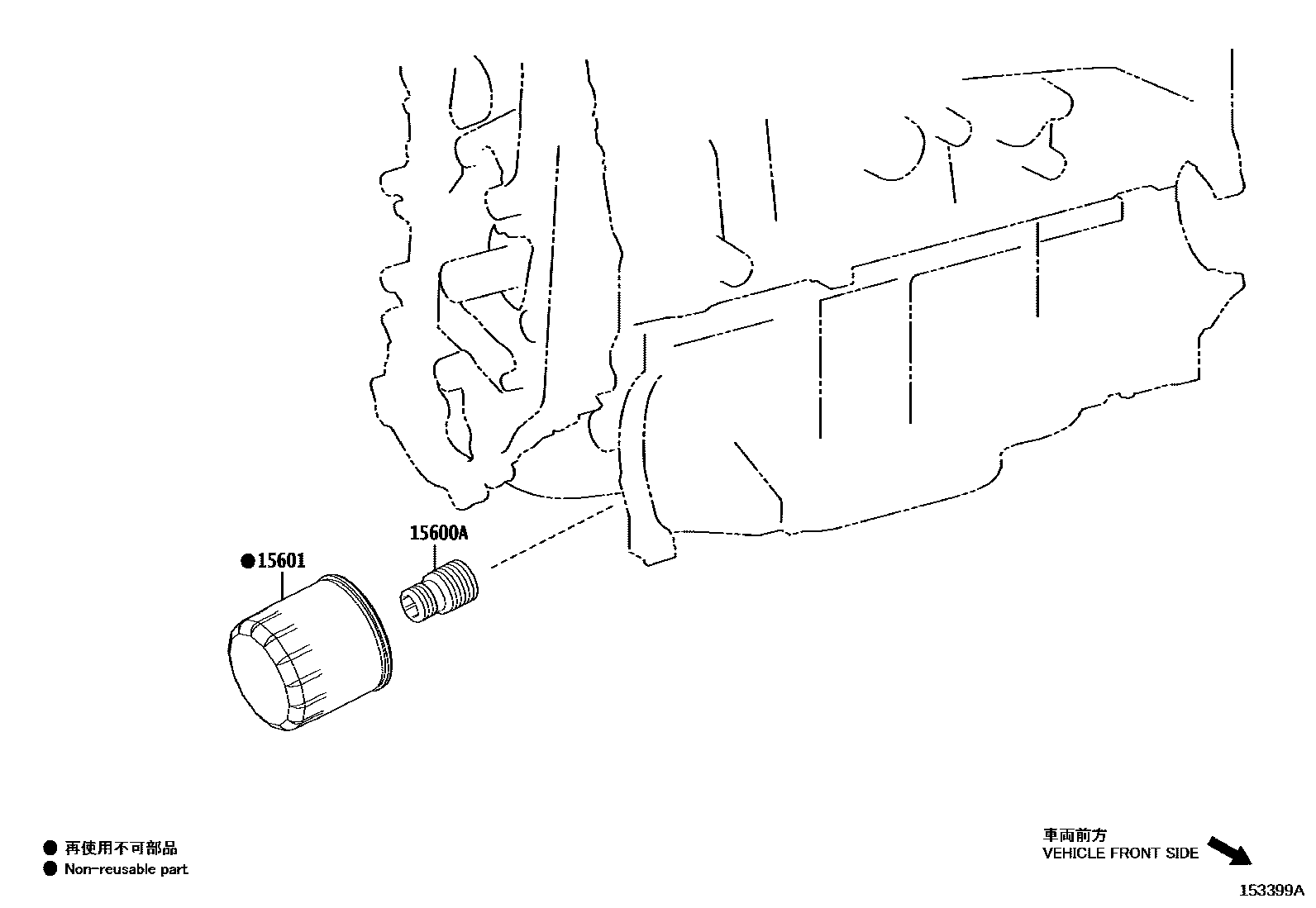

Toyota COROLLA Oil Filter EPC diagram — 153399A
Oil Filter — 153399A (202103 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-10009 · 90915-CA003 · 90915-CA004 · 90915-TA001
15609Oil filter bracket sub-assembly15609-0T080 · 15609-0T100 · 15609-37060
15609DStraight threaded plug with head (for oil filter bracket)90341-20002 · 90341-T0007
15609EHeaded straight thread plug liner90430-20004 · 90430-20018
15609HO-ring (for oil filter bracket)90301-T0041 · 96723-24020
