Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

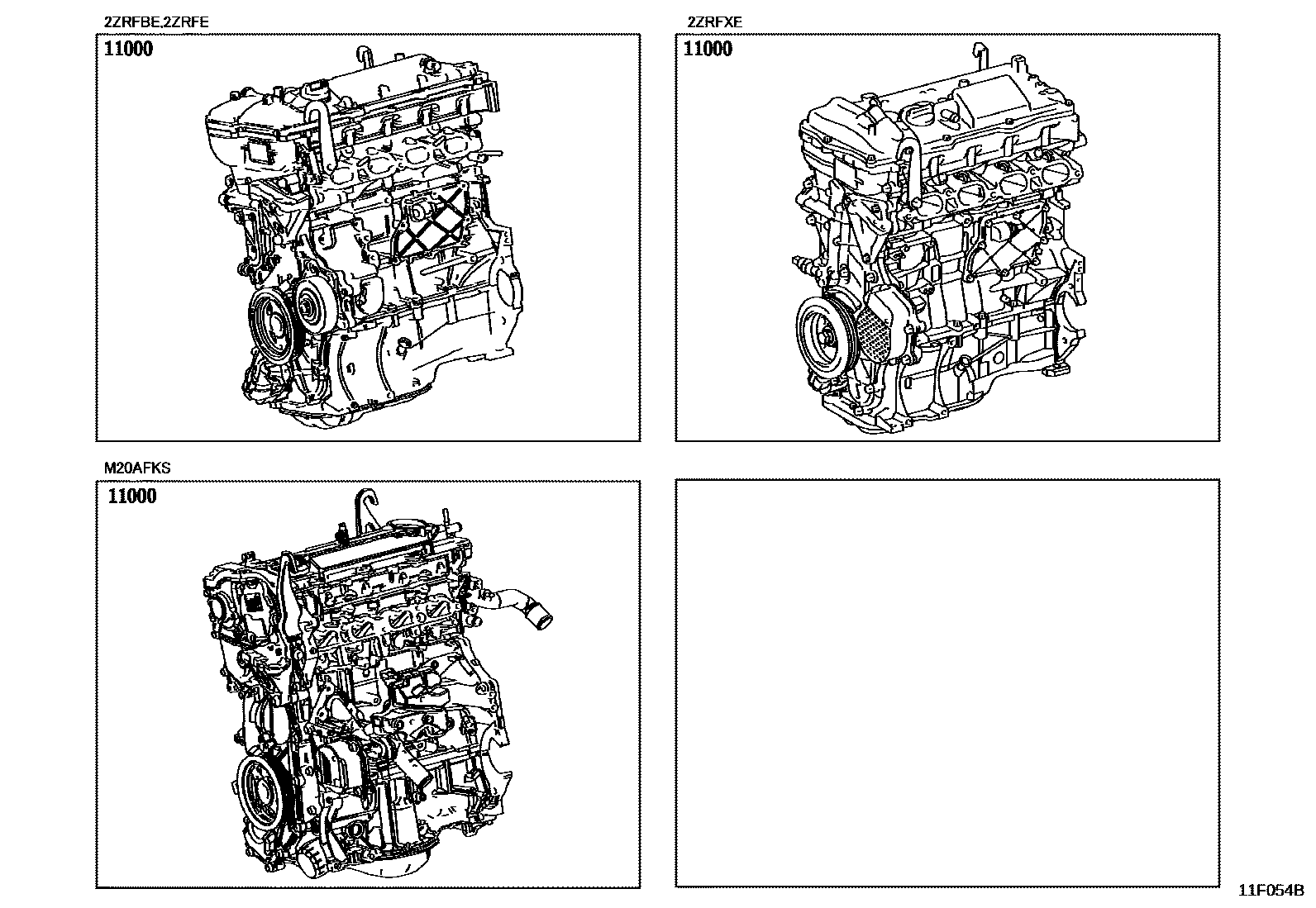

Toyota COROLLA Partial Engine Assembly EPC diagram — 11F054B
Partial Engine Assembly — 11F054B (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0T650 · 19000-0T660 · 19000-0T770 · 19000-0T790 · 19000-0T800 · 19000-0T830 · 19000-37800 · 19000-37A40 · 19000-37B00 · 19000-37B40 · 19000-F2040 · 19000-F2050 · 19000-F2330 · 19000-F2340 · 19000-F2390 · 19000-F2400
