Toyota COROLLA Standard Tools — Figure 0901

Toyota COROLLA EPC diagram 0901, Standard Tools, with 3 images and 9 PNC and OE references.

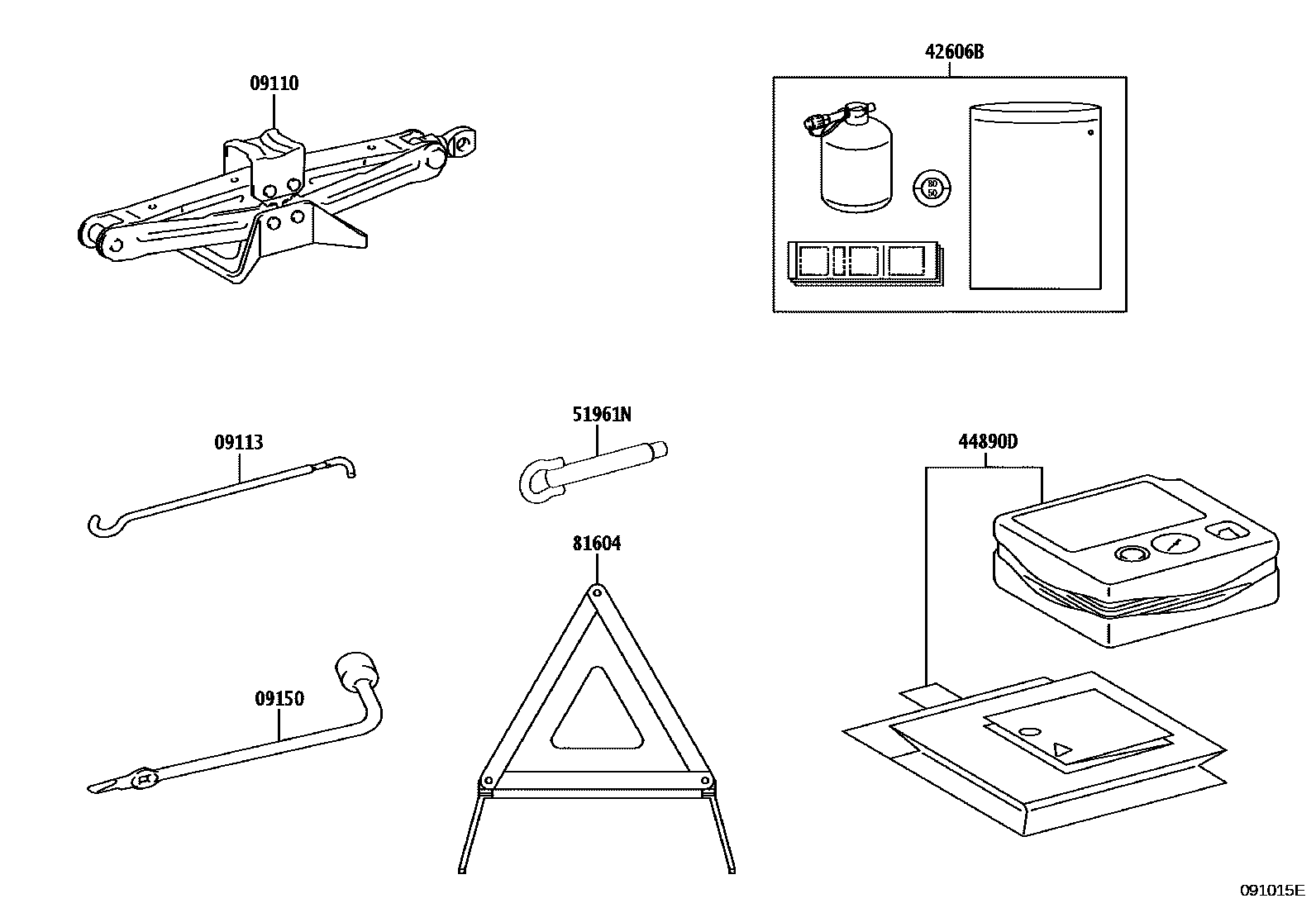

Toyota COROLLA Standard Tools EPC diagram — 091015E
Standard Tools — 091015E (202007 – 999999)

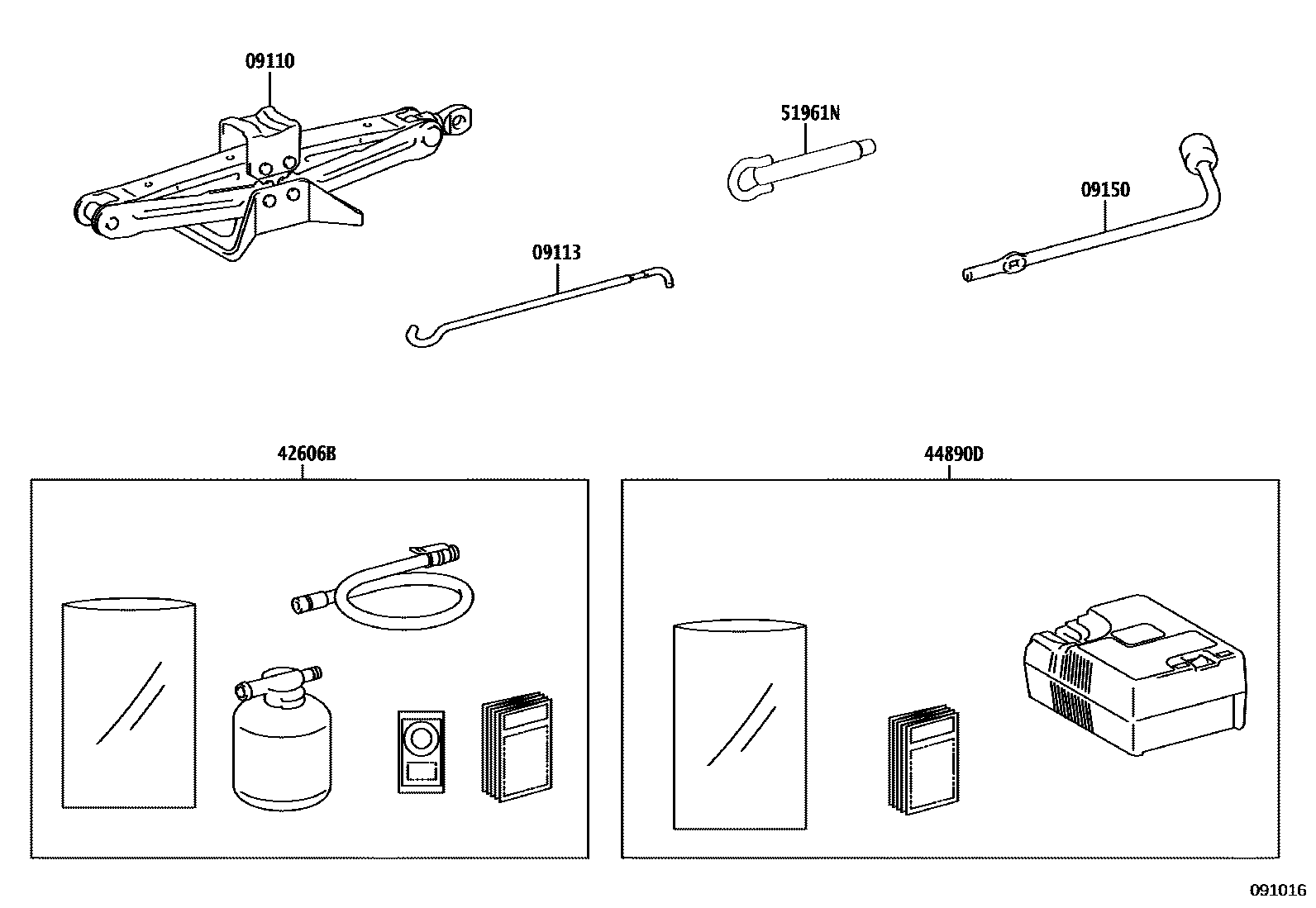

Toyota COROLLA Standard Tools EPC diagram — 091016
Standard Tools — 091016 (202010 – 999999)

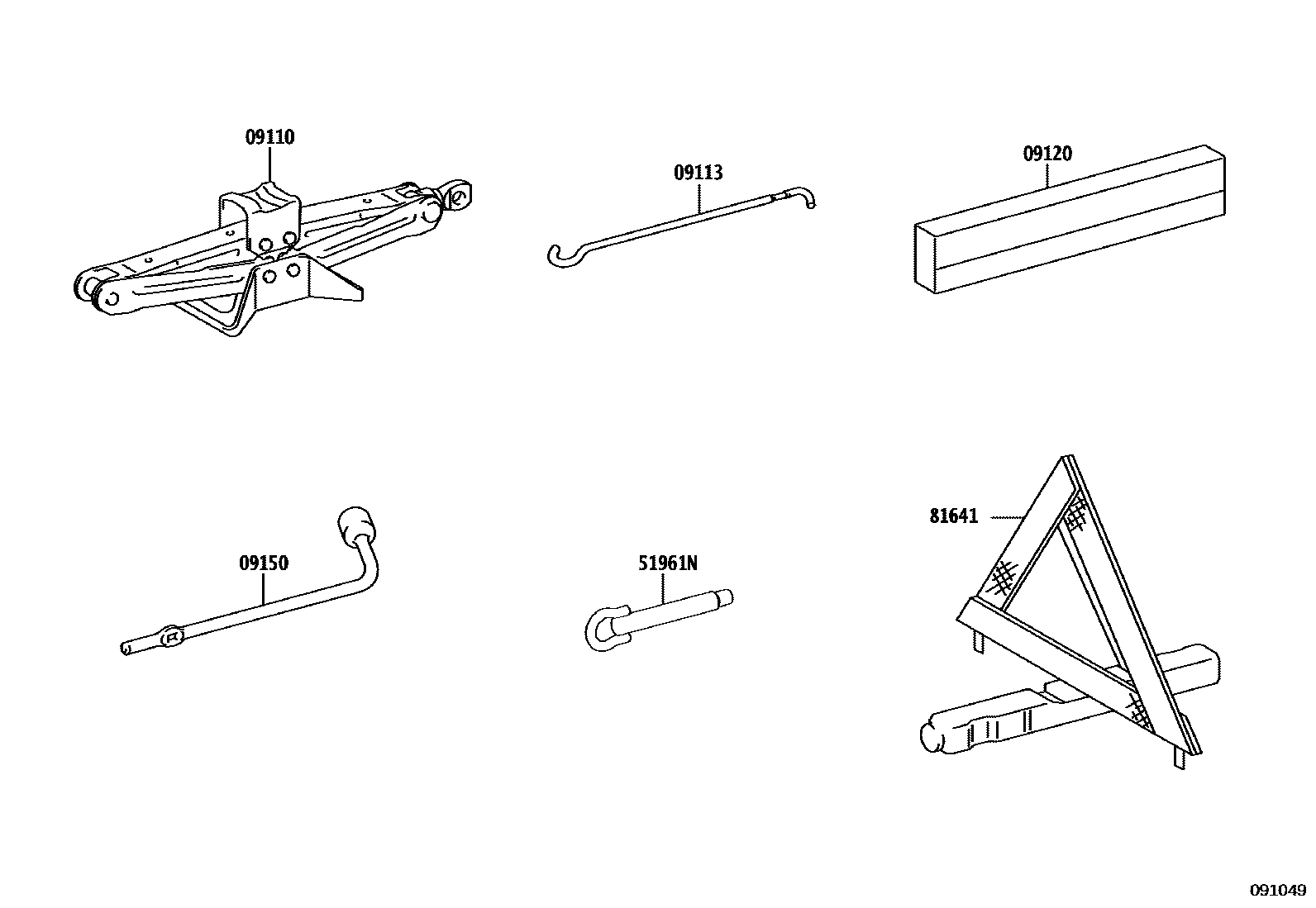

Toyota COROLLA Standard Tools EPC diagram — 091049
Standard Tools — 091049 (202103 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09111-02110 · 09111-02220 · 09111-12190 · 09111-47050 · 09111-47051 · 09111-F4010 · 09111-F4011
09113Jack Handle09113-02070 · 09113-02080 · 09113-02090 · 09113-0A040
09120Tool Bag09120-0D200
09150Wheel Nut Wrench Case09150-0A030 · 09150-0A040 · 09150-42010
42606BTubeless tire repair components42606-02030 · 42606-02040 · 42606-12040 · 42606-F4040 · 42606-F4041
44890DAir Compressor Assembly42680-F4020 · 42680-F4021 · 44890-02020 · 44890-02030 · 44890-12030
51961Ntransport hook51960-0A020 · 51960-0A030 · 51960-0A040 · 51960-0A070
81604Triangular reflector assembly81604-0A010
81641triangular reflector81641-0D050
