Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

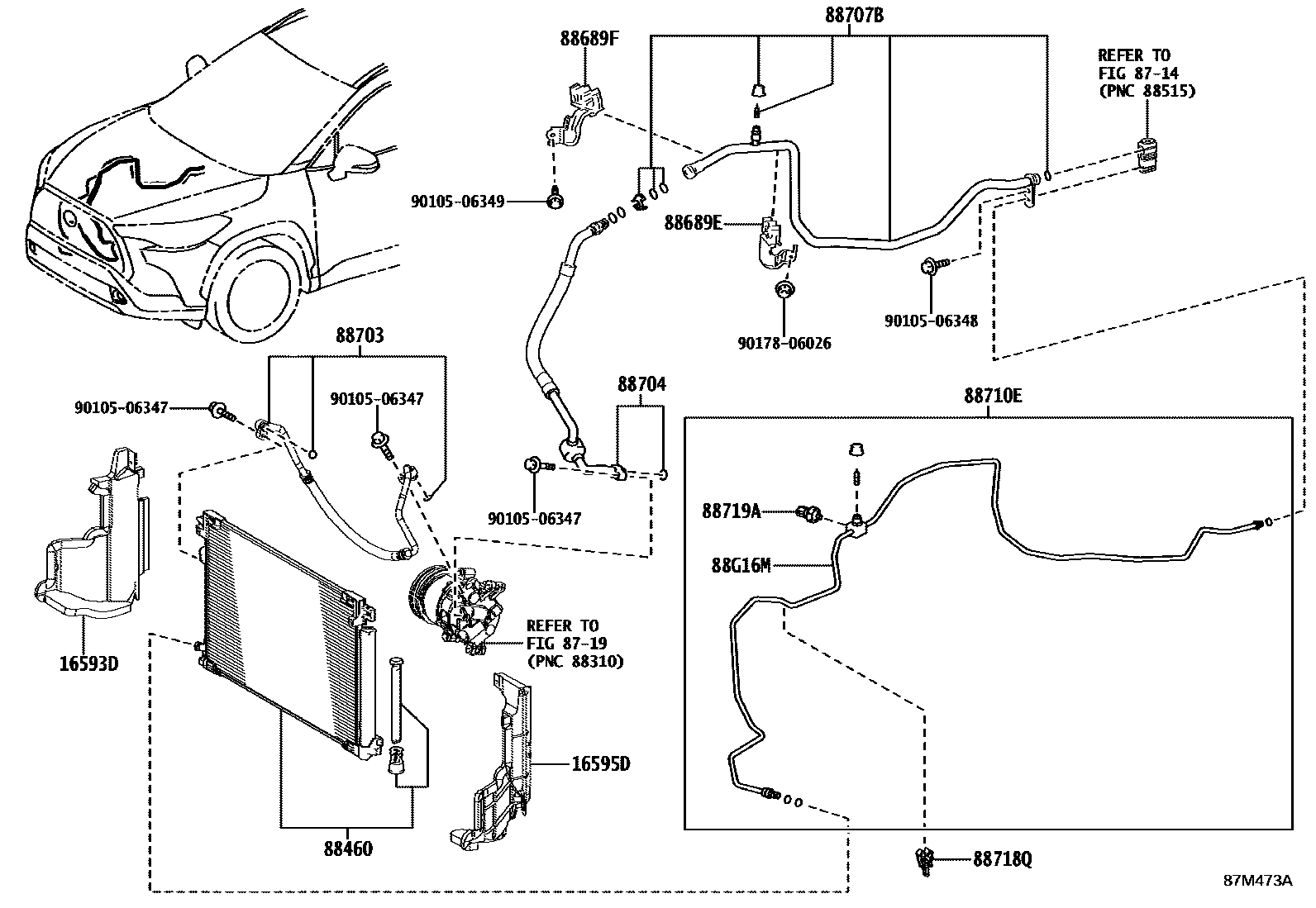

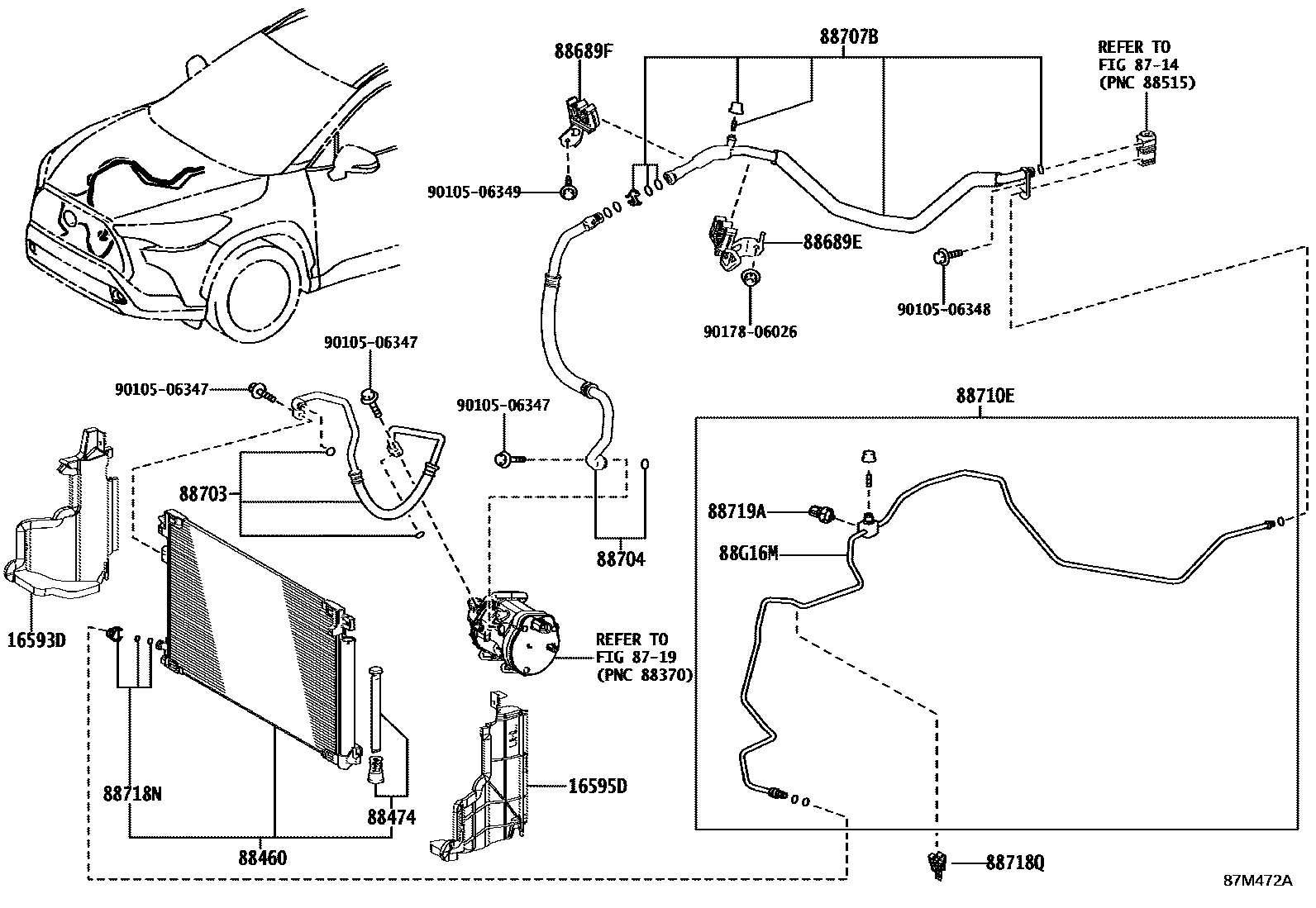

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16593D | No. 1 radiator right deflector | 16593-0T320 |
| 16595D | No. 1 radiator left deflector | 16595-0T410 · 16595-0T420 |
| 88460 | Air conditioning condenser assembly | 88460-0A100 · 88460-10320 |
| 88474 | cooler dryer | 88474-12020 |
| 88689E | Cooler Bracket No. 1 | 88688-0A150 · 88688-0A170 |
| 88689F | Cooler bracket No. 2 | 88688-0A160 · 88688-0A180 |
| 88703 | Discharge hose sub-assembly | 88703-0A170 · 88703-0A180 |
| 88704 | Oil suction hose sub-assembly | 88704-0A200 · 88704-0A210 |
| 88707B | Suction pipe B sub-assembly | 88707-0A100 · 88707-0A110 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0A210 · 88710-0A220 |
| 88718N | Pipe clamp | 88718-1E150 |
| 88718Q | Pipe clamp | 88718-0A170 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88G16M | Liquid tube No. 1 | 88716-0A600 · 88716-0A610 |
