Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

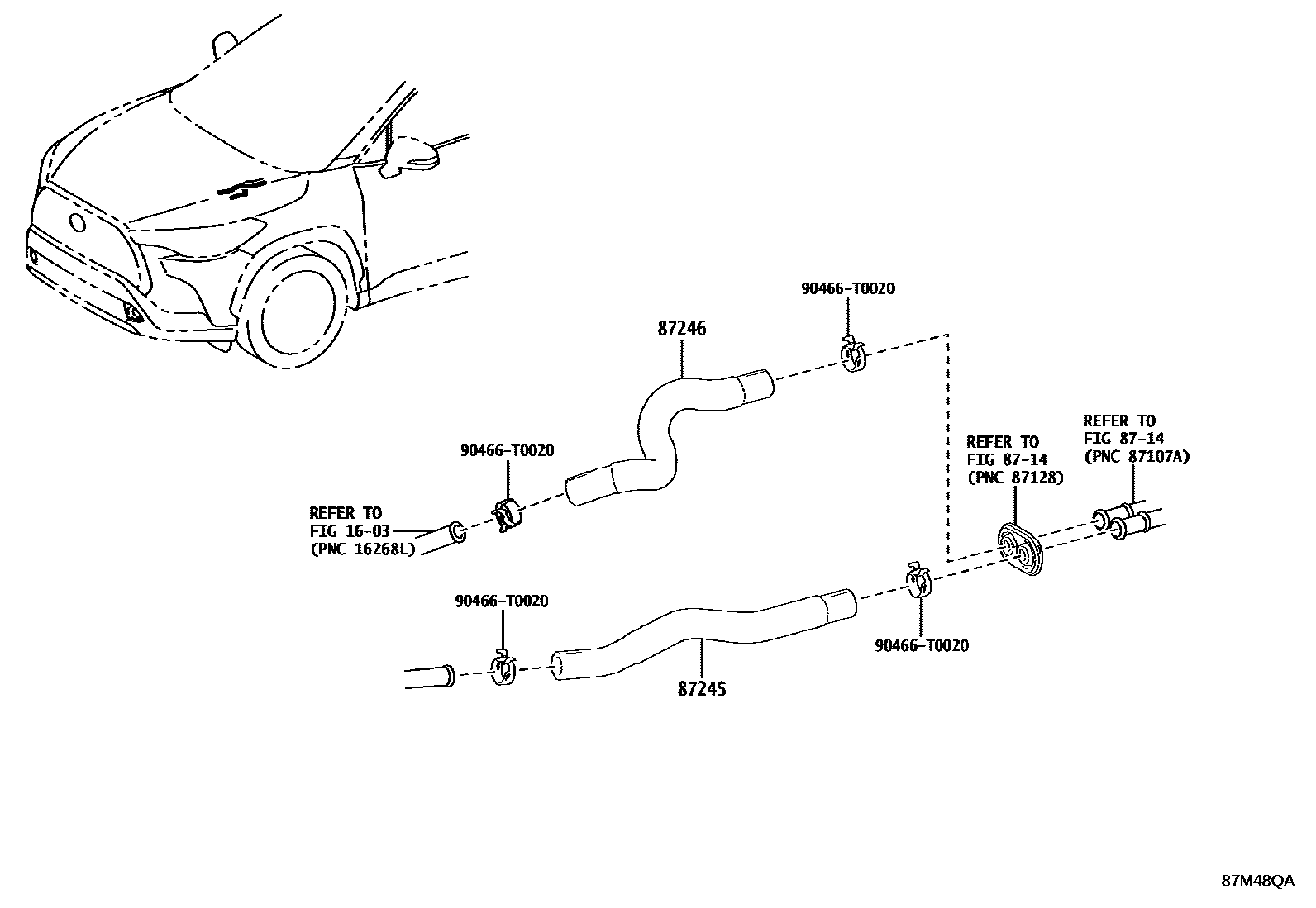

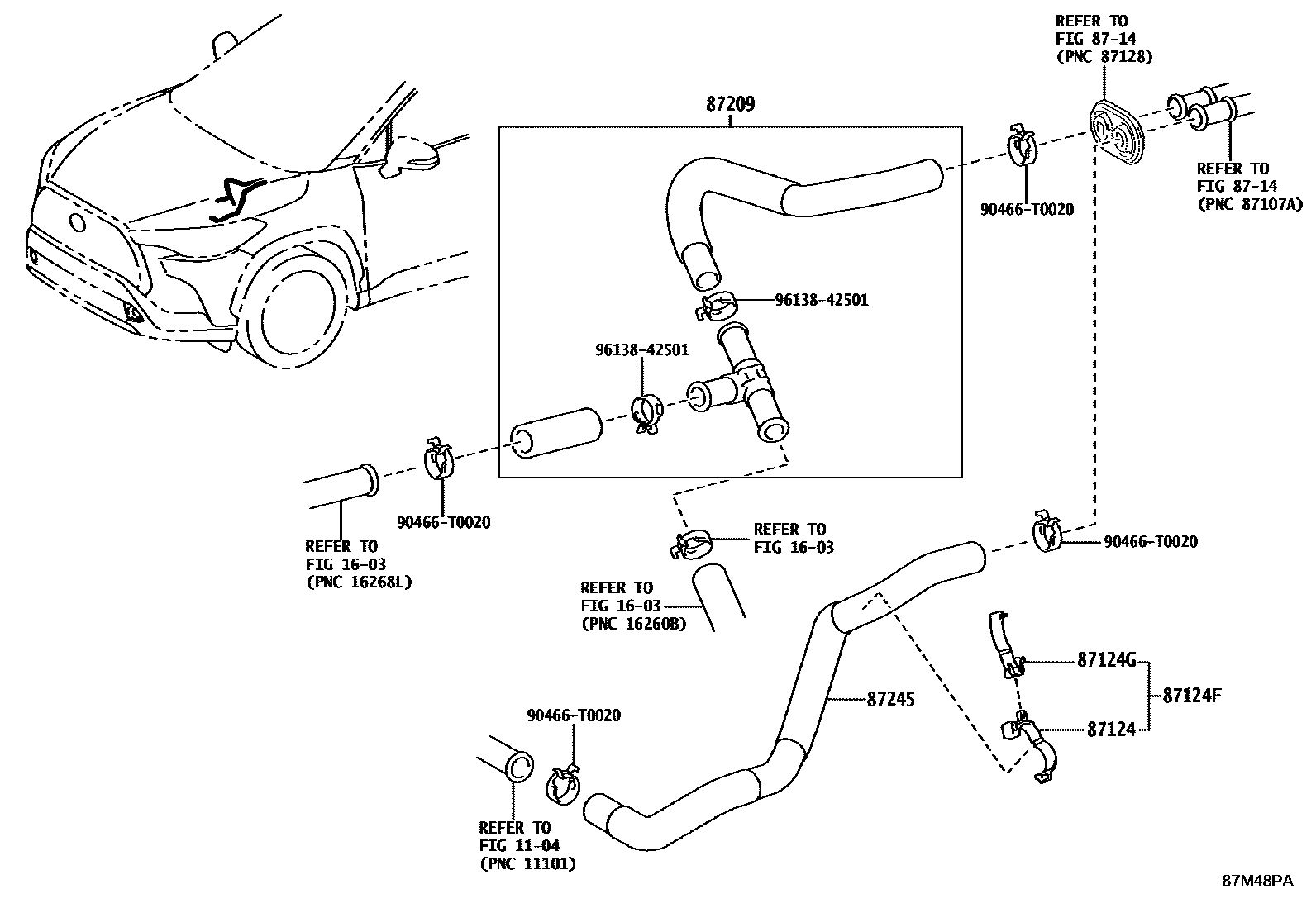

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124 | heater clip | 87124-11030 |
| 87124F | No. 1 heater hose clamp | 16581-70060 |
| 87124G | No. 2 heater hose clamp | 87124-50060 |
| 87209 | Water hose sub-assembly | 87209-0A120 |
| 87245 | Heater water inlet hose | 87245-0A100 · 87245-0A110 |
| 87246 | Heater outlet hose | 87245-0A090 |
