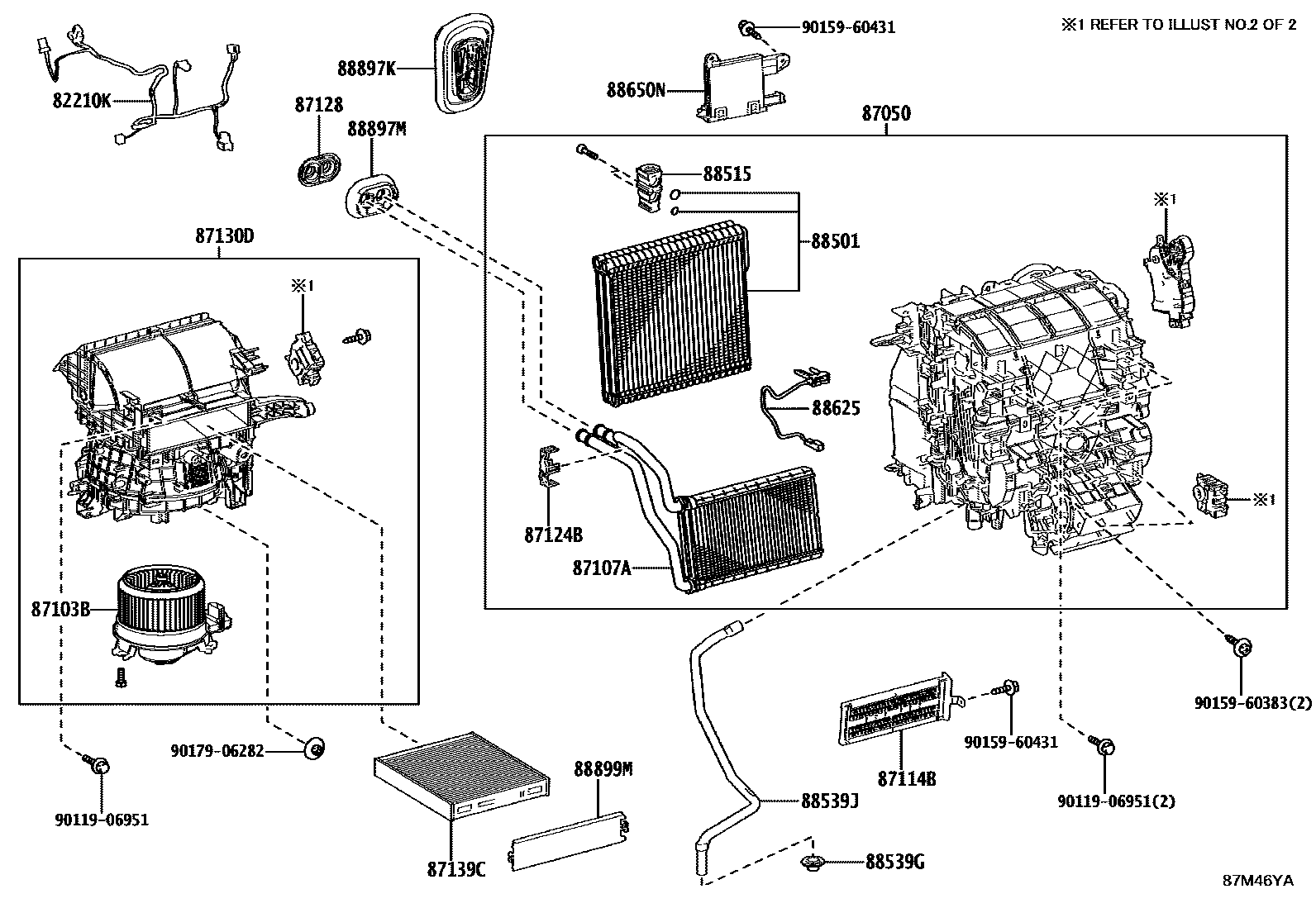

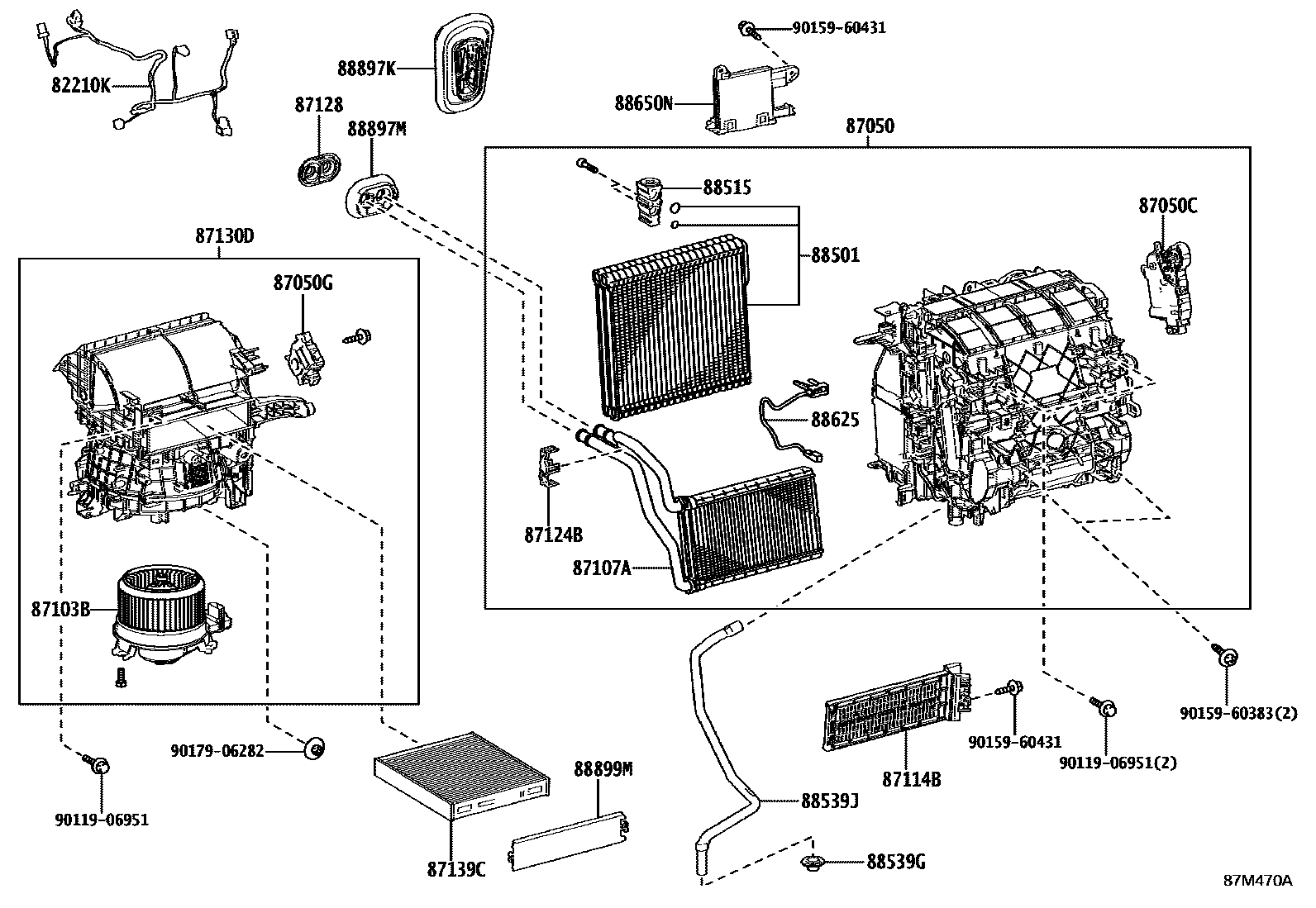

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-0A120 · 82212-0A130 |
| 87050 | Air conditioning radiator assembly | 87050-0A550 · 87050-0A560 |

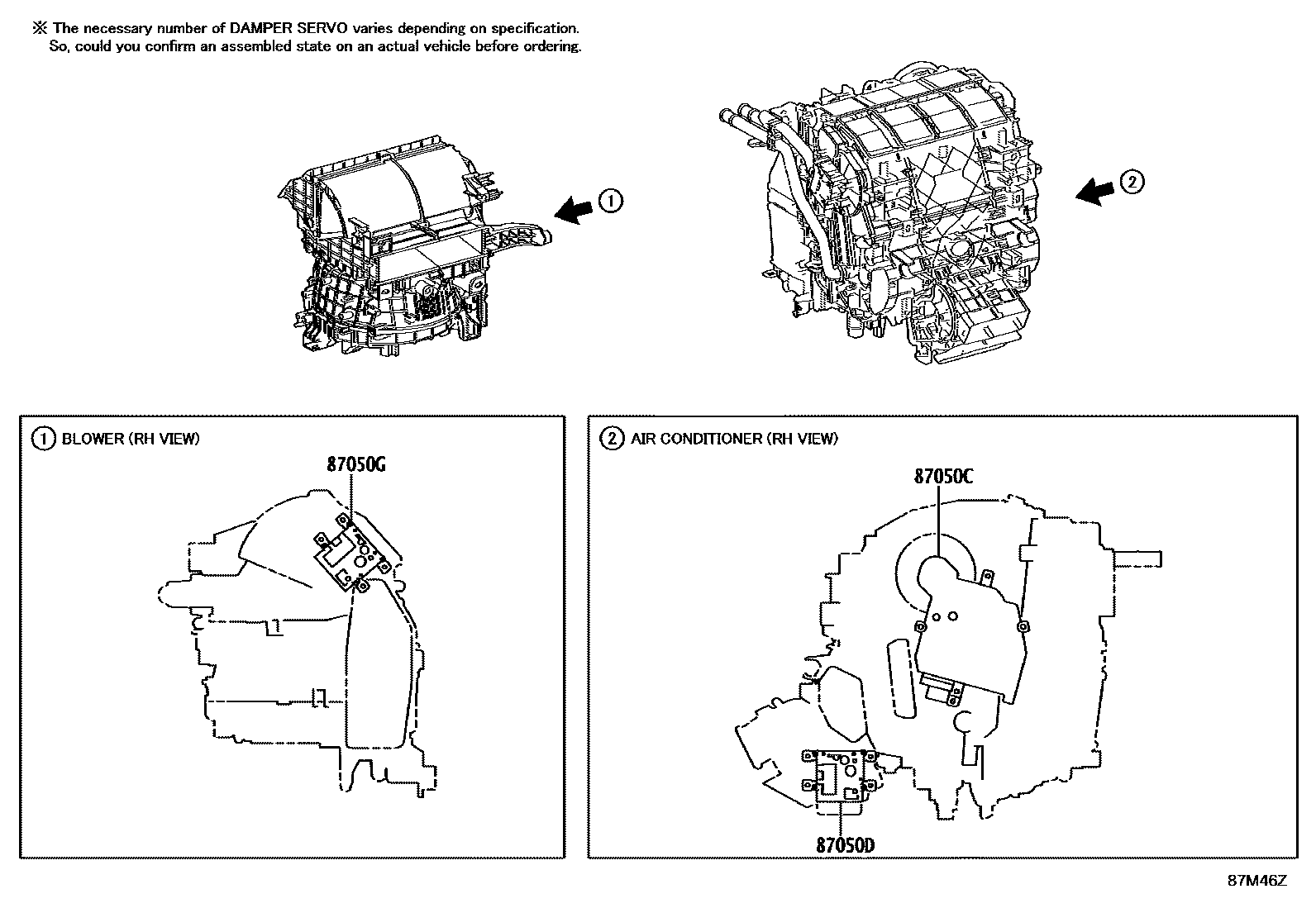

| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-0A180 · 87106-0A200 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-0A190 |
| 87050G | No. 5 air conditioner radiator damper servo mechanism sub-assembly | 87106-0A210 |
| 87103B | Blower motor sub-assembly with fan | 87103-0A130 |
| 87107A | Heater radiator device sub-assembly | 87107-0A040 |
| 87114B | heater cover | 87114-F4080 |
| 87124B | heater clip | 87124-0A010 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-0A090 |
| 87139C | air purification filter | 87139-0K060 · 87139-58010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0A150 |
| 88515 | Cooler expansion valve | 88515-0A070 |
| 88539G | Seal (for cooler unit drain hose) | 88888-02020 |
| 88539J | Cooler drain hose | 88539-0A090 |
| 88625 | Cooler No. 1 Thermistor | 88620-0A020 |
| 88650N | Air conditioning amplifier assembly | 88650-0A030 |
| 88897K | Seals (for cooler tubes) | 88899-0A110 |
| 88897M | Seals (for heater tubes) | 87128-0A050 |
| 88899M | cover (for air cleaner) | 88899-0A100 |
