Toyota COROLLA 后视镜 — Figure 8701

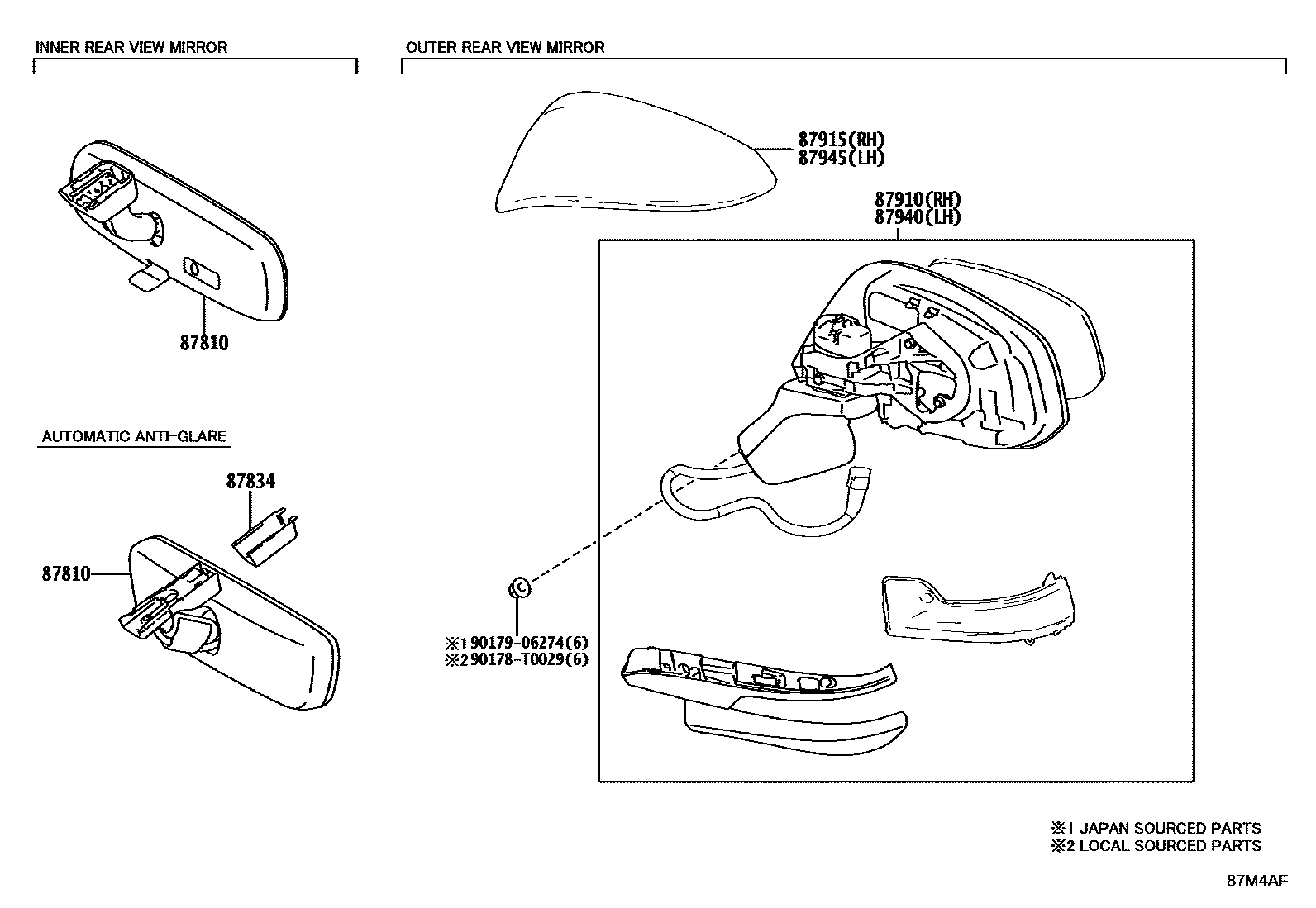

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-02260 · 87810-0WK10 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-24010 |
| 87910 | Right exterior rearview mirror assembly | 87910-0A300 · 87910-0A310 |
| 87915 | Right exterior rearview mirror cover | 87915-0A910 |
| 87940 | Left exterior rearview mirror assembly | 87940-0A290 · 87940-0A300 |
| 87945 | Left exterior rearview mirror cap | 87945-0A910 |
