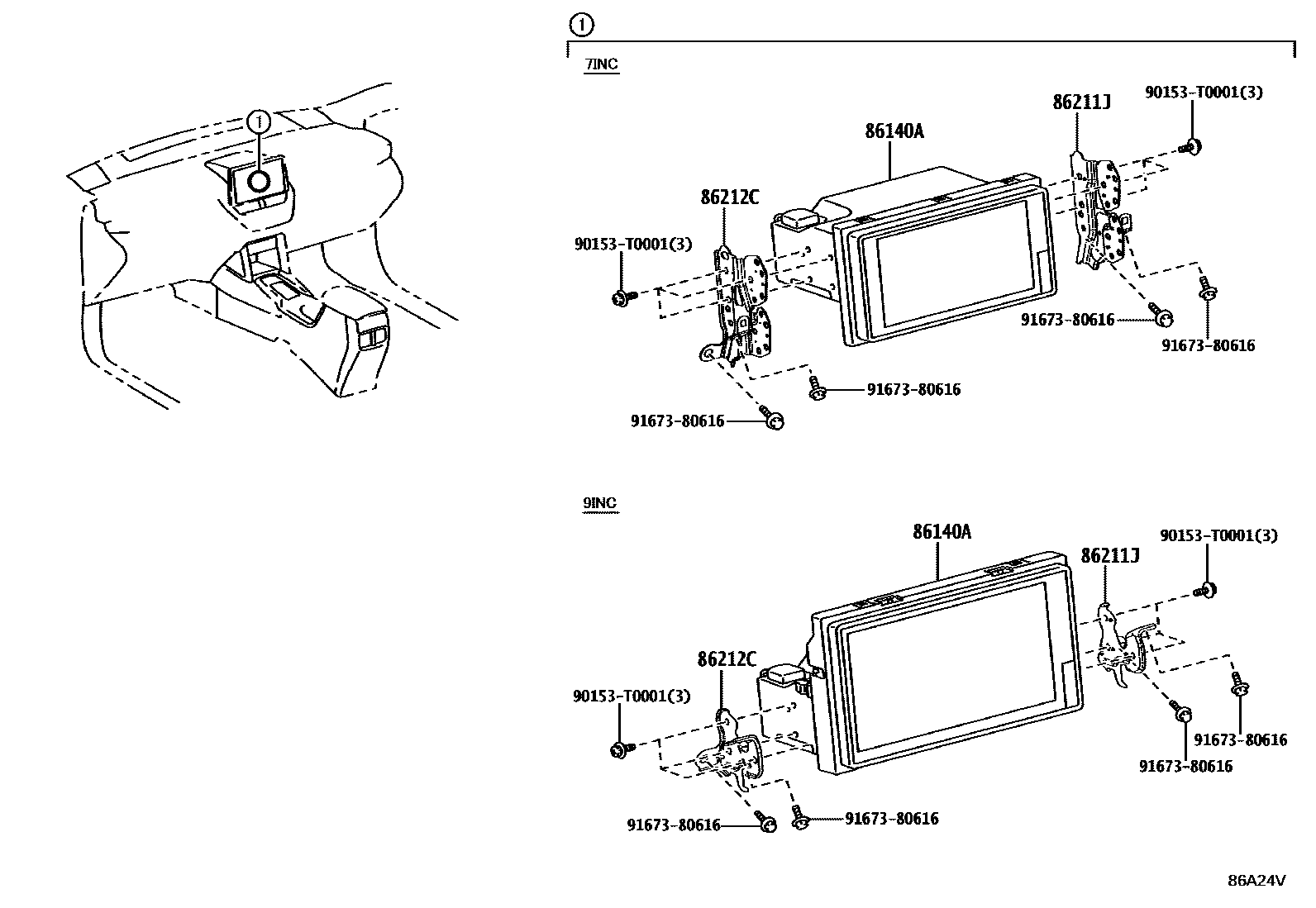

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-YY240 · 86140-YY250 |
| 86211J | No. 1 radio bracket | 86211-02570 · 86211-02580 |
| 86212C | No. 2 radio bracket | 86212-02570 · 86212-02580 |
