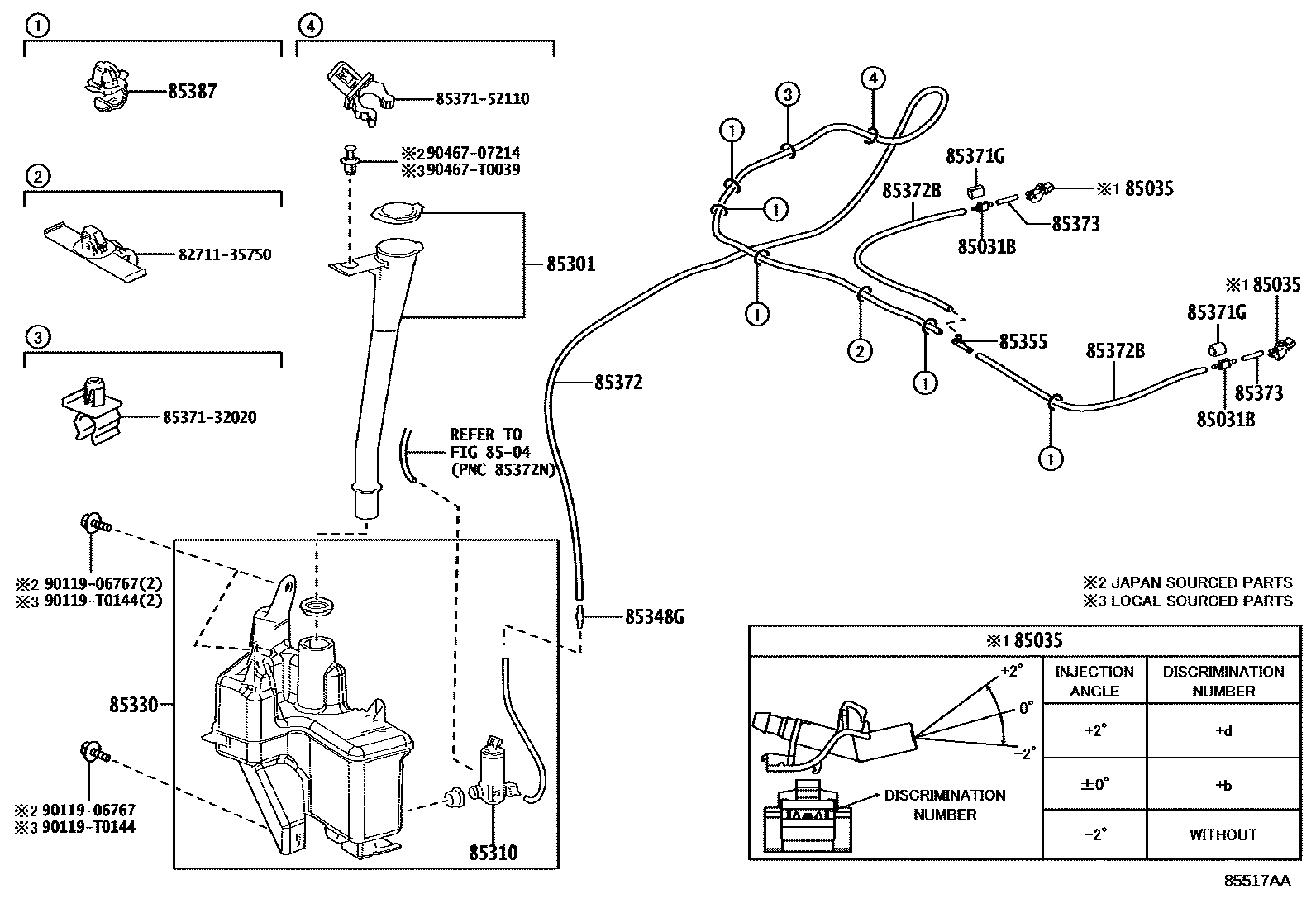

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85321-26020 |
| 85035 | Cleaner nozzle sub-assembly | 85381-30220 · 85381-30230 · 85381-30240 |
| 85301 | Cleaner water inlet sub-assembly | 85301-0A090 |
| 85310 | Windshield washer motor and pump assembly | 85330-0A030 |
| 85330 | Windshield washer fluid tank assembly | 85310-0A150 |
| 85348G | Windshield washer hose connector No. 2 | 85375-02330 |
| 85355 | Windshield washer hose valve | 85348-14390 |
| 85371G | Front washer protection device | 85389-26080 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33393 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33360 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33019 |
| 85387 | Clip No. 1 (for windshield washer) | 85371-12040 |
