Toyota COROLLA HEV 逆变器 — Figure 8431
Toyota COROLLA EPC diagram 8431, HEV 逆变器, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

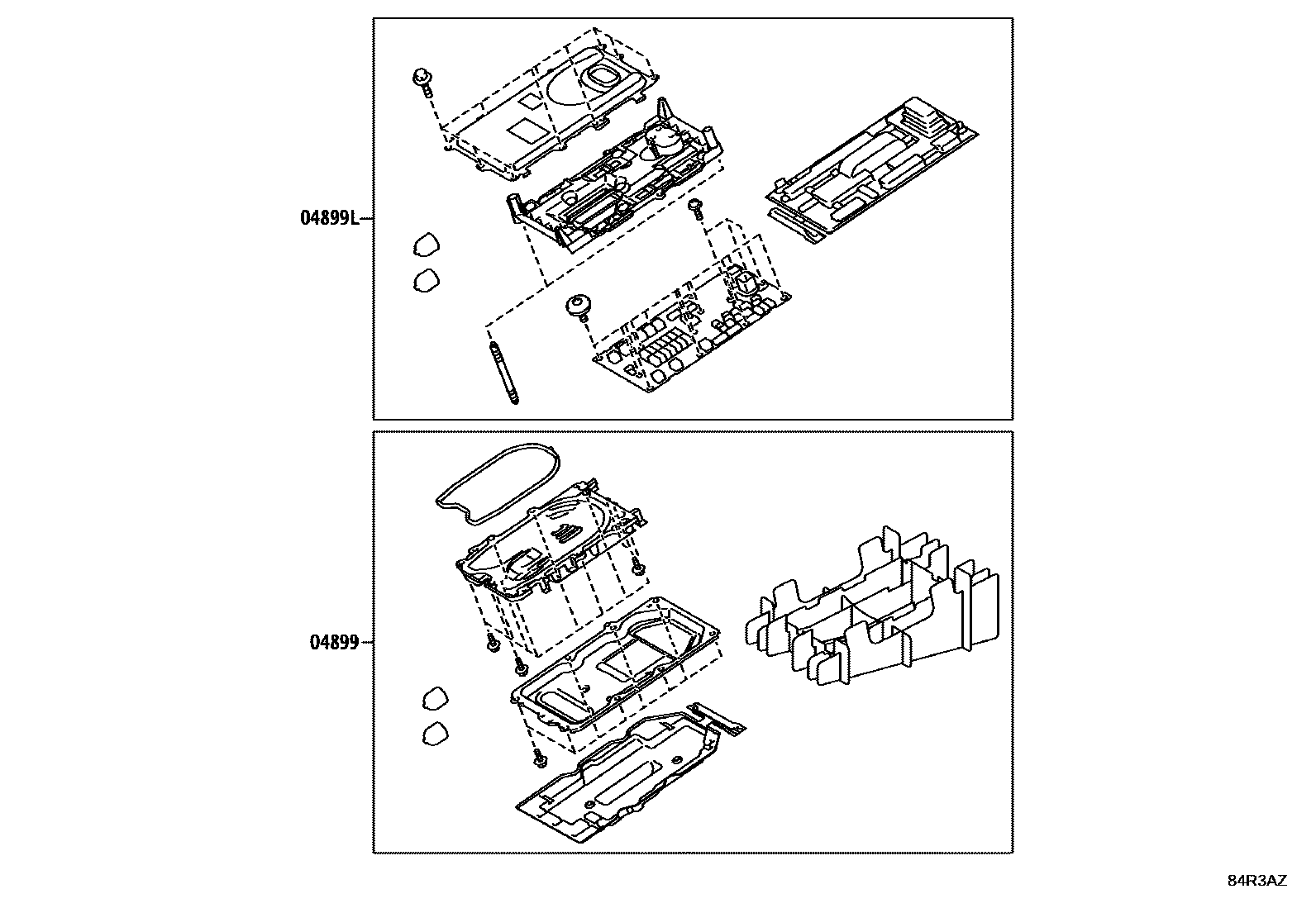

| 04899 | HV converter components | 04899-47110 |
| 04899L | Motor generator control ECU component | 04899-47172 |

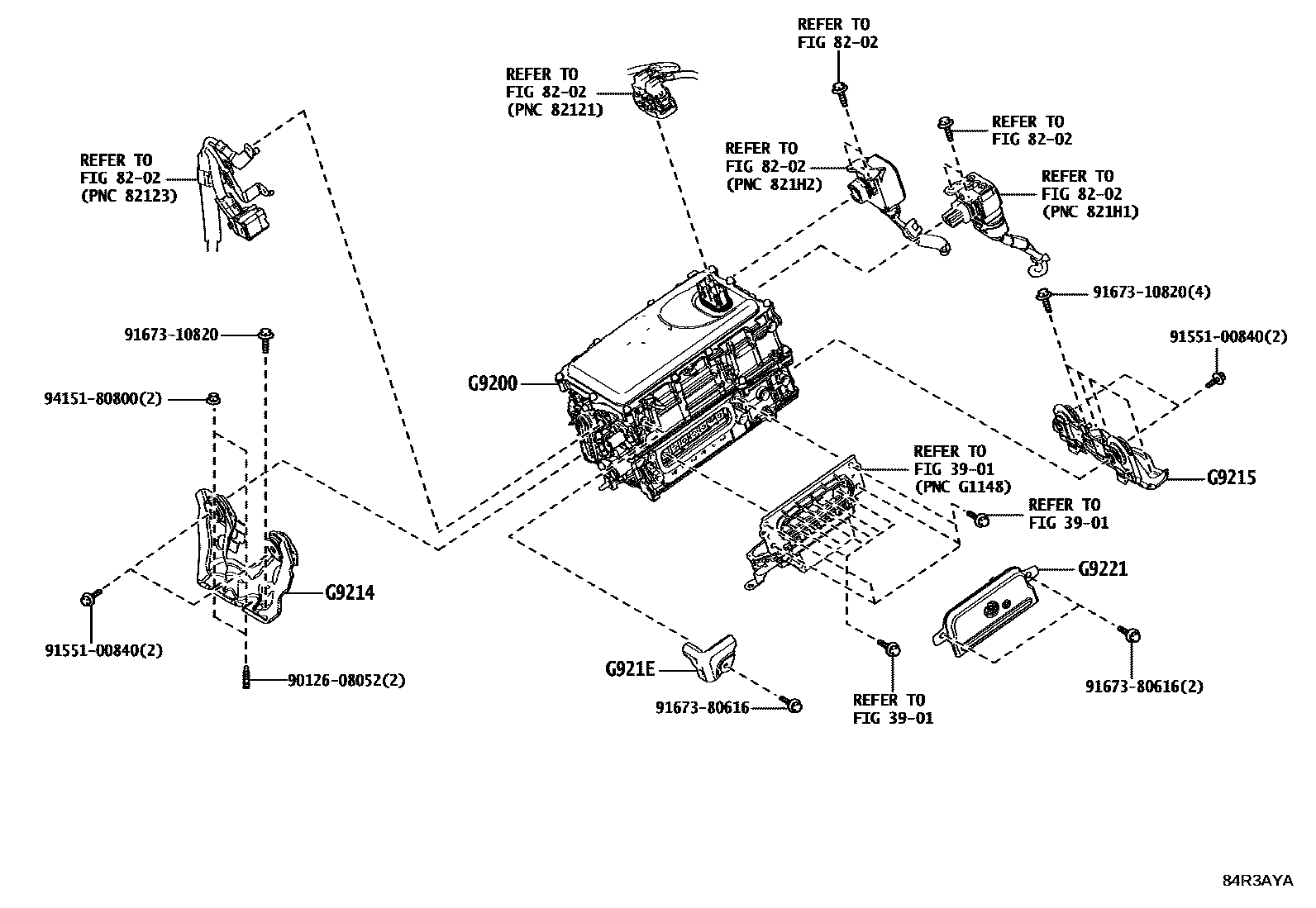

| G9200 | Inverter assembly with converter | G92A0-47101 |
| G9214 | No. 1 inverter bracket | G9214-47070 |
| G9215 | No. 2 inverter bracket | G9215-47050 |
| G921E | Inverter protection device | G921E-47010 |
| G9221 | Inverter cover | G9022-47050 |
