Toyota COROLLA 遥控门锁 — Figure 8420

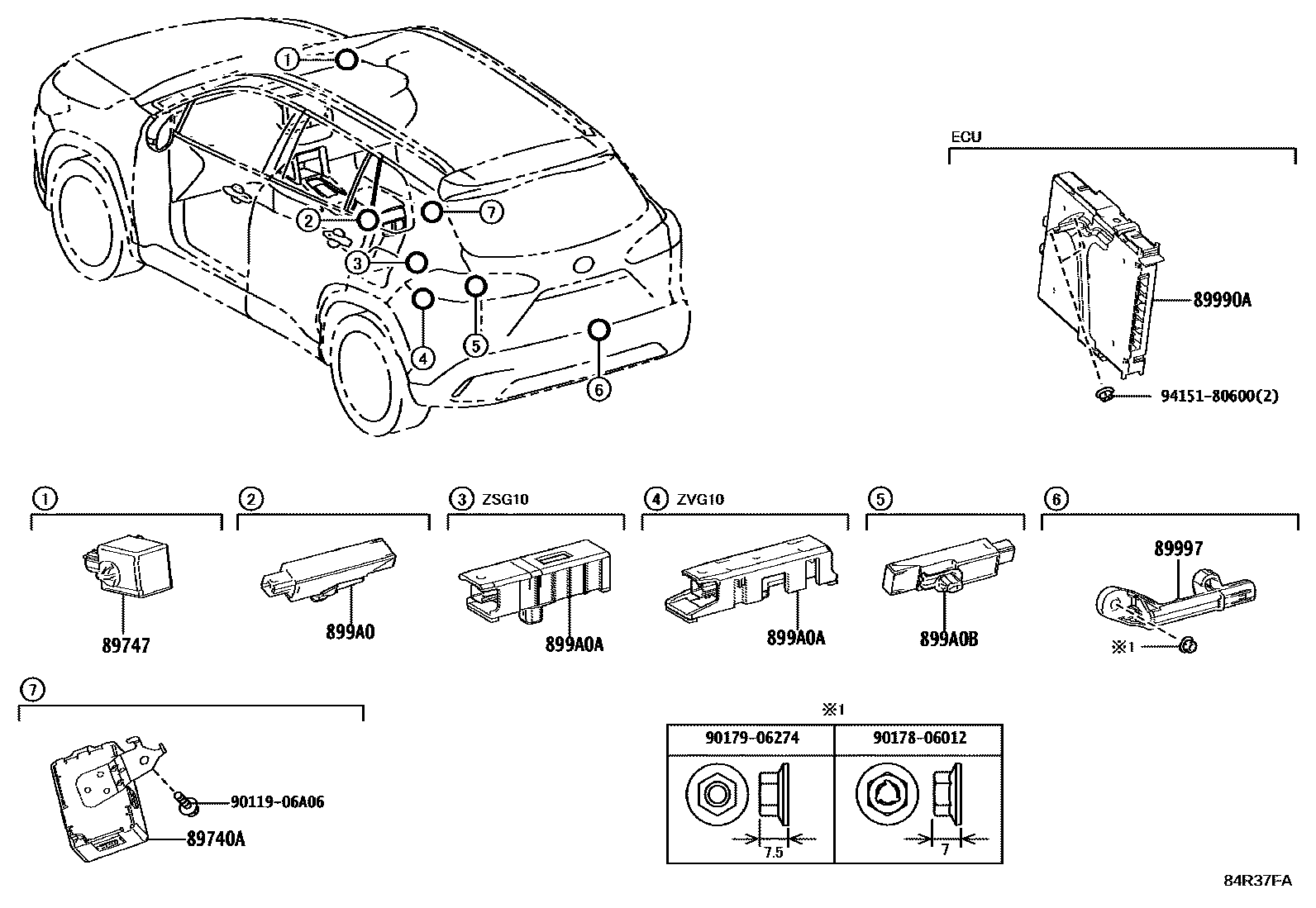

Toyota COROLLA EPC diagram 8420, 遥控门锁, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | Smart door control receiver assembly | 89740-0A010 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-16030 · 899H0-16040 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-02260 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-02270 · 899A0-02290 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-0A010 |
