Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 5 PNC and OE references.

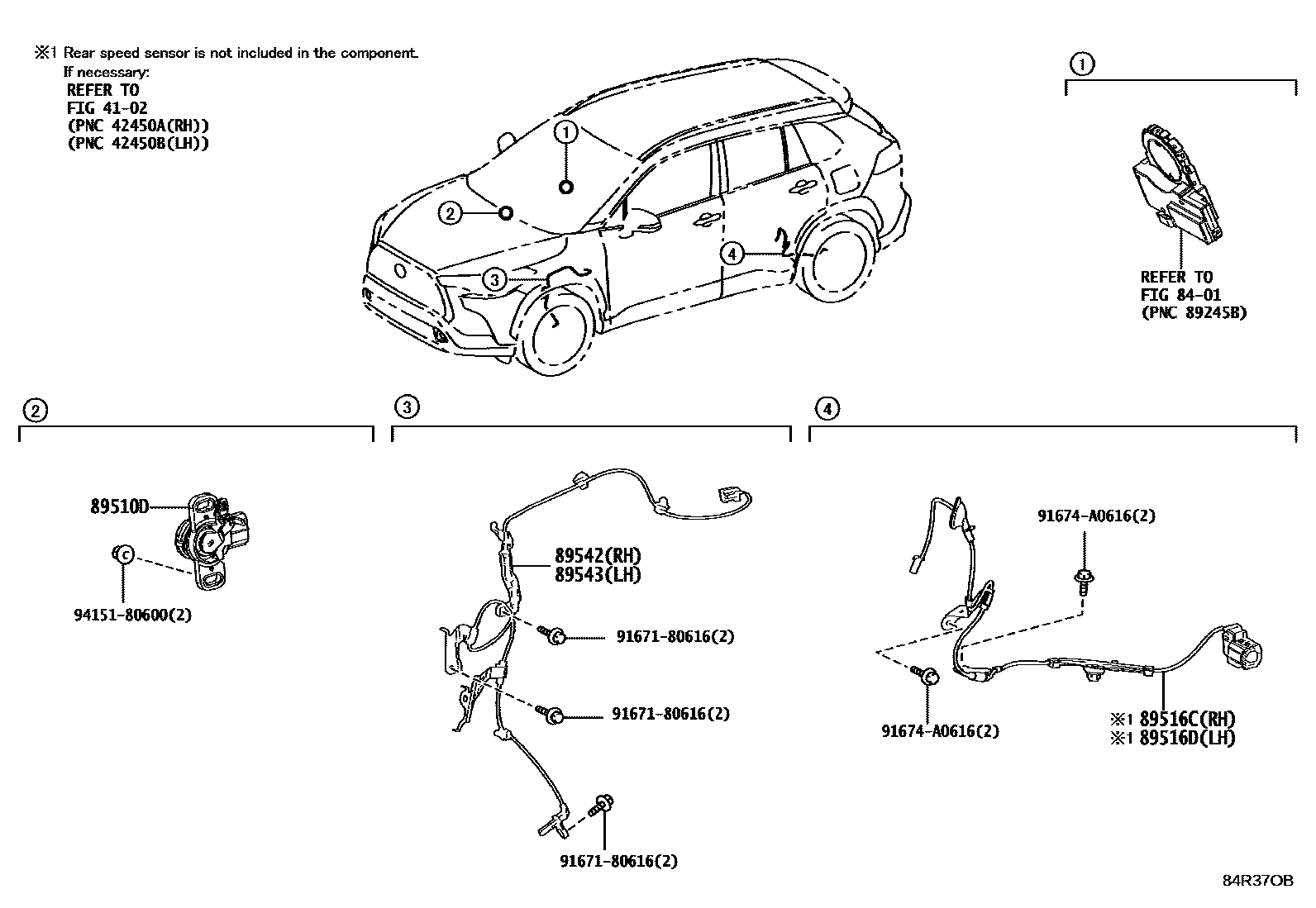

Toyota COROLLA ABS 和 VSC EPC diagram — 84R37OB
ABS 和 VSC — 84R37OB (202312 – 999999)

PNC and OE references

PNCPart nameOE numbers
89510DBrake pedal stroke sensor assembly89510-47030
89516CRight anti-skid control sensor harness89516-0A010
89516DLeft anti-skid control sensor wiring harness89516-0A020
89542Right front wheel speed sensor89542-F4040
89543Left front wheel speed sensor89543-F4040
