Toyota COROLLA 电子燃油喷射系统 — Figure 8404

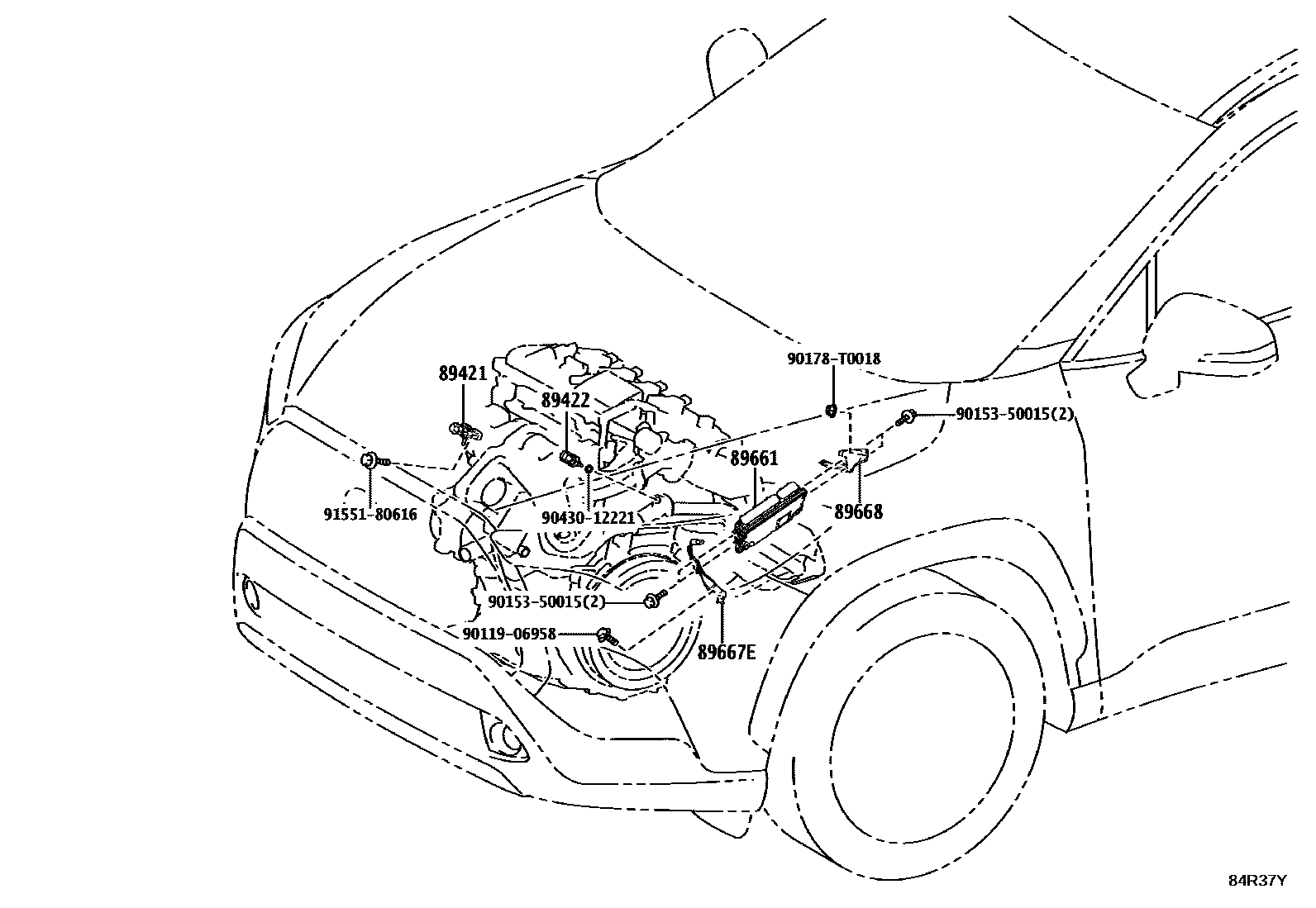

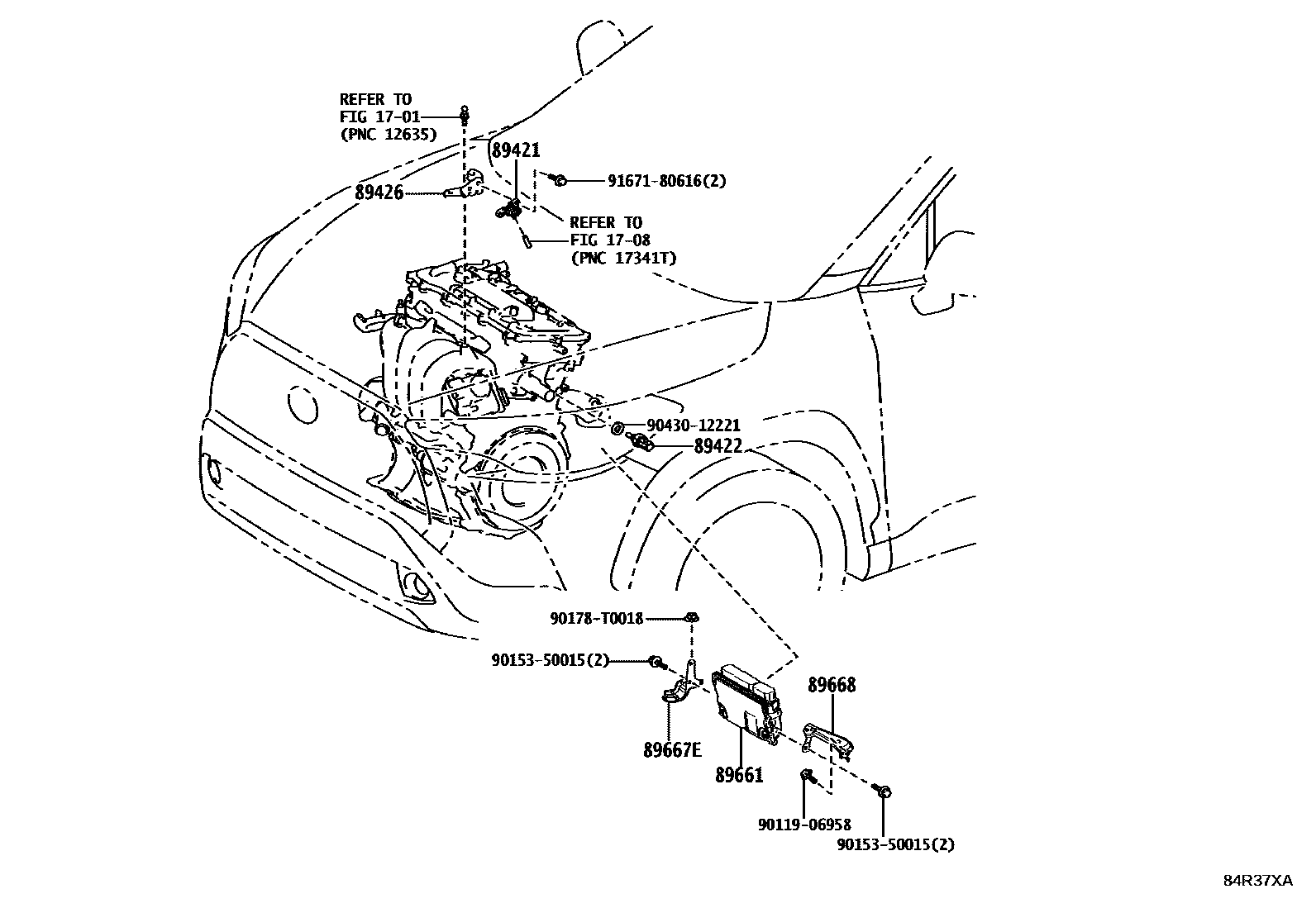

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-26030 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89426 | Vacuum sensor holder | 89426-12270 |
| 89661 | Engine control ECU | 89661-0A121 · 89661-0A420 |
| 89667E | No. 1 engine control ECU bracket | 89667-02580 · 89667-F4040 |
| 89668 | No. 2 engine control ECU bracket | 89668-02550 · 89668-F4050 |
