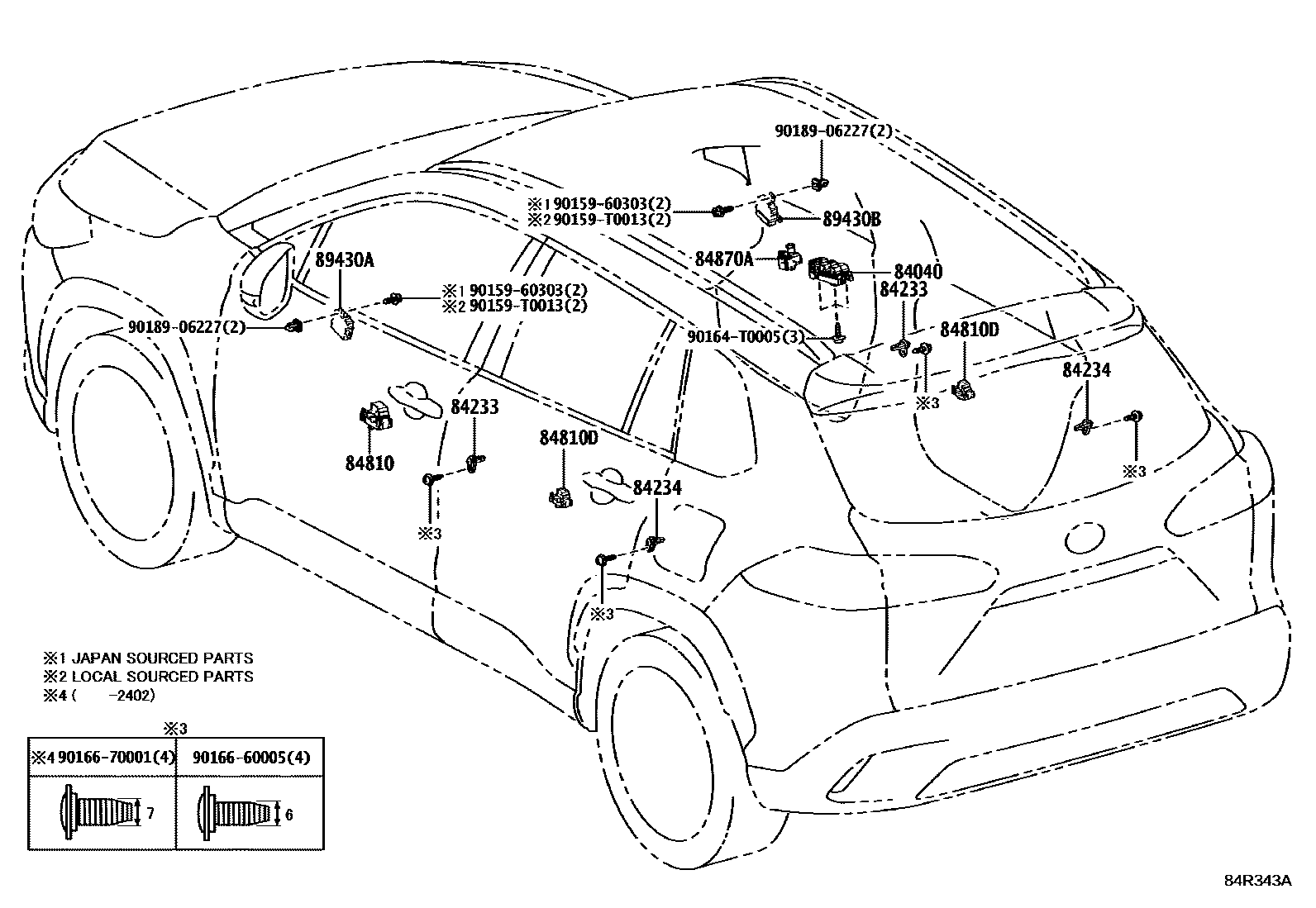

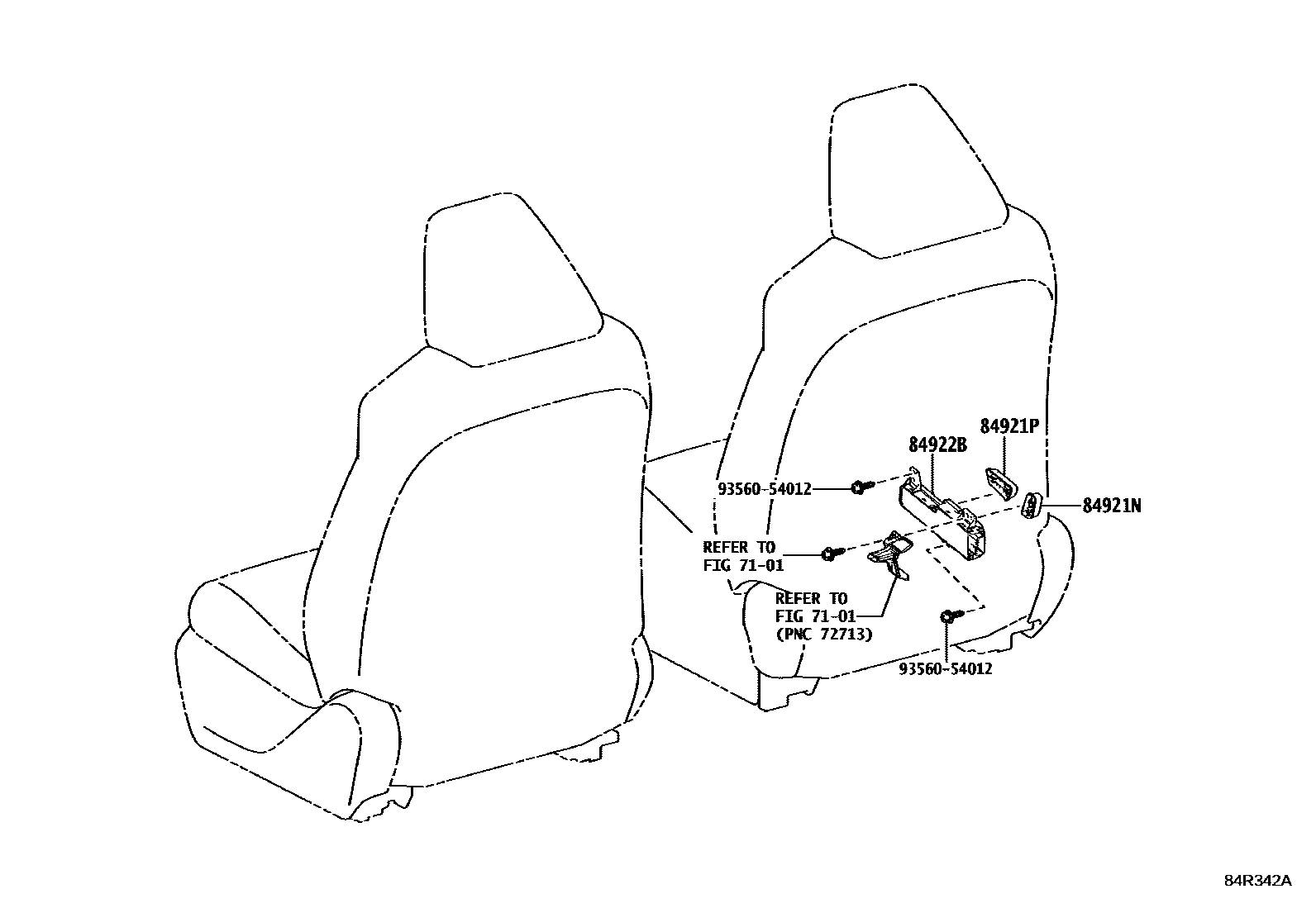

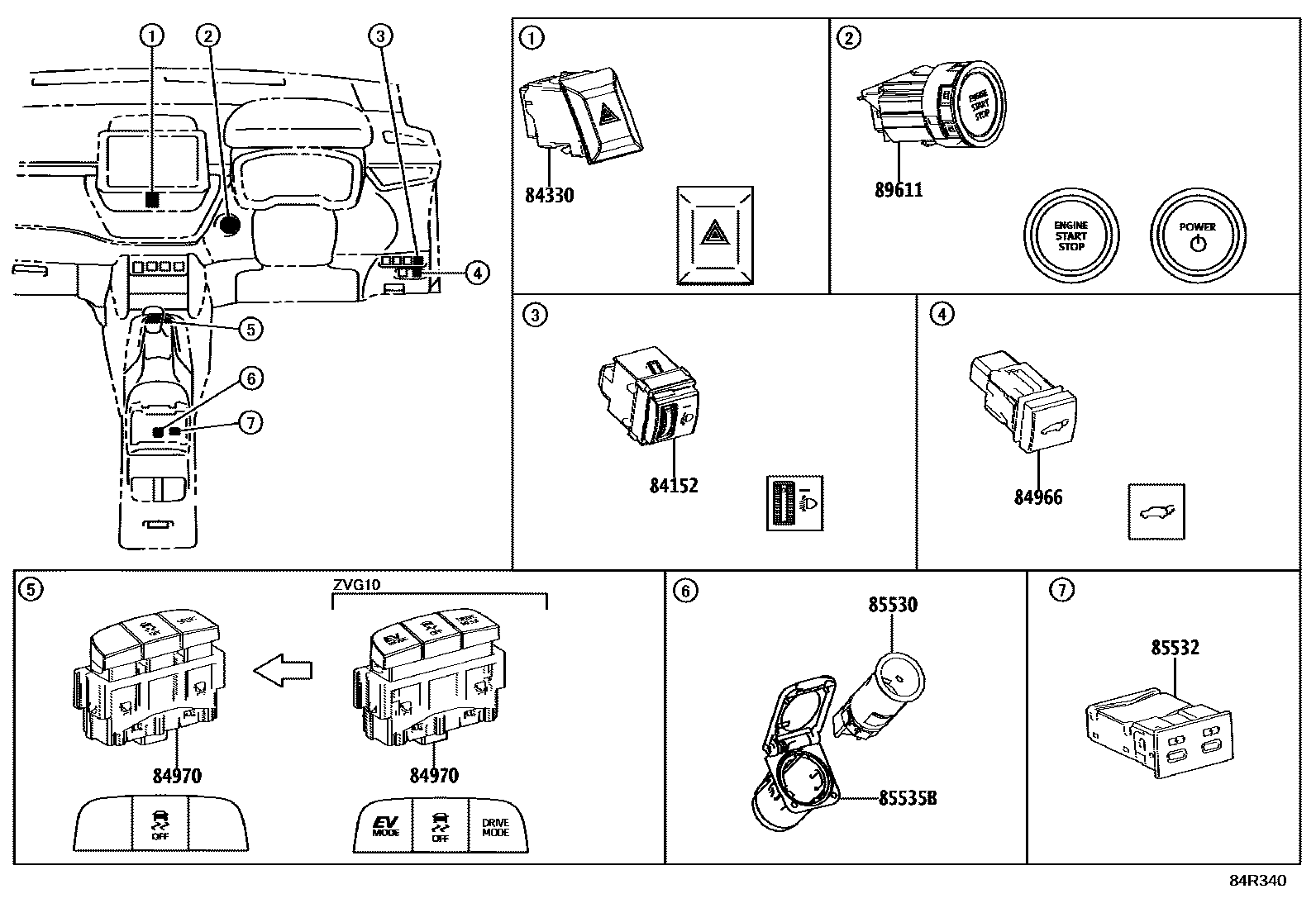

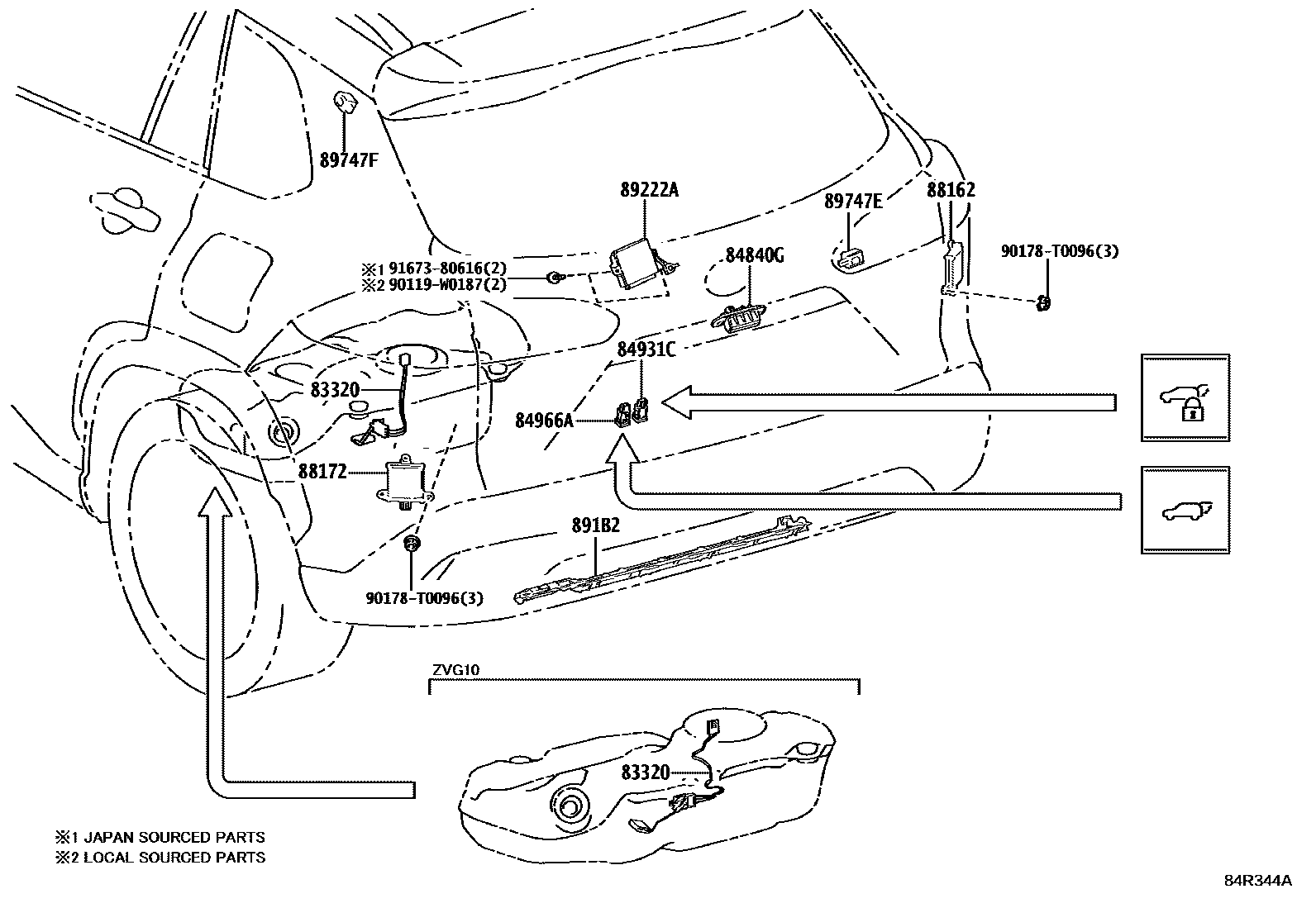

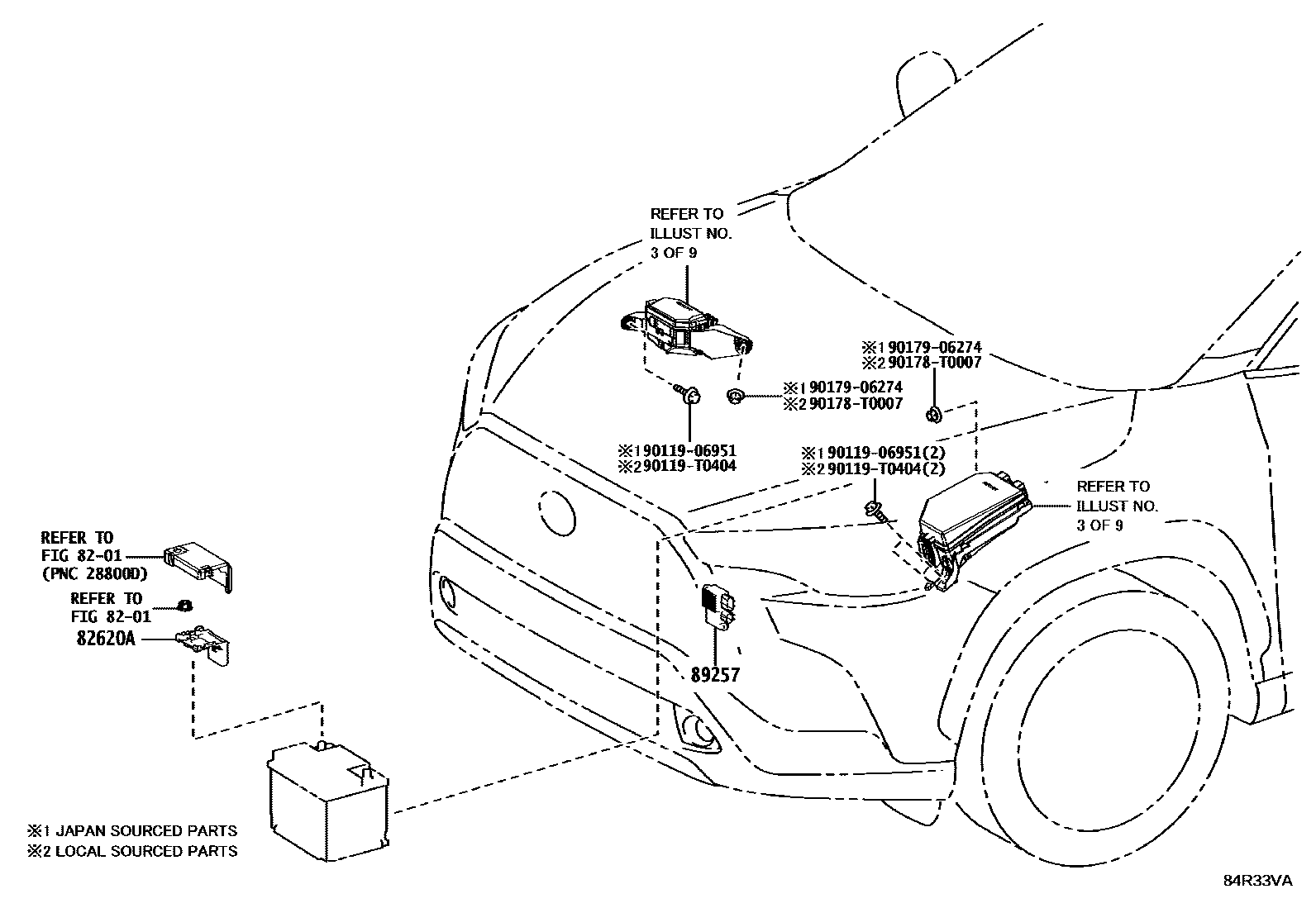

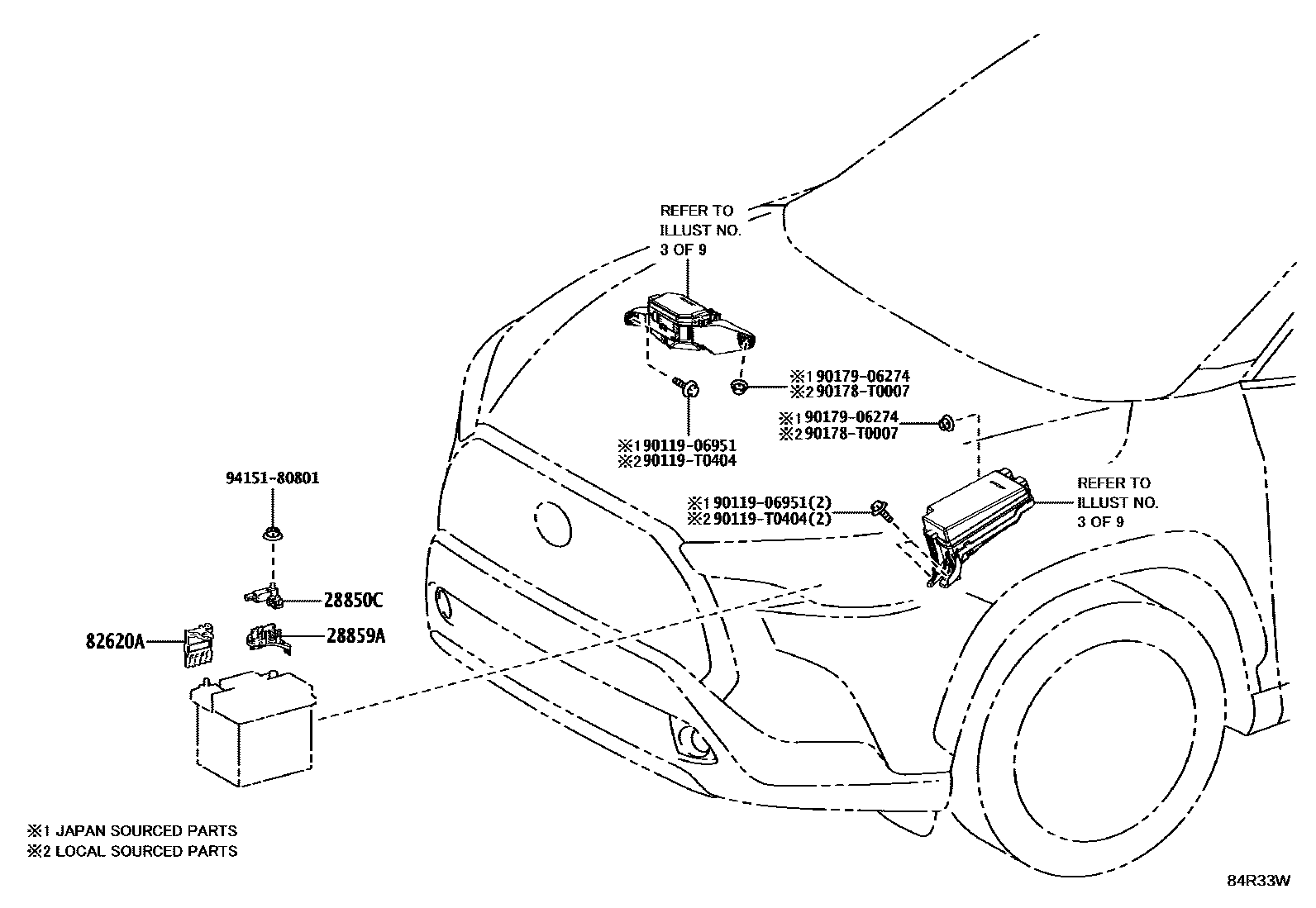

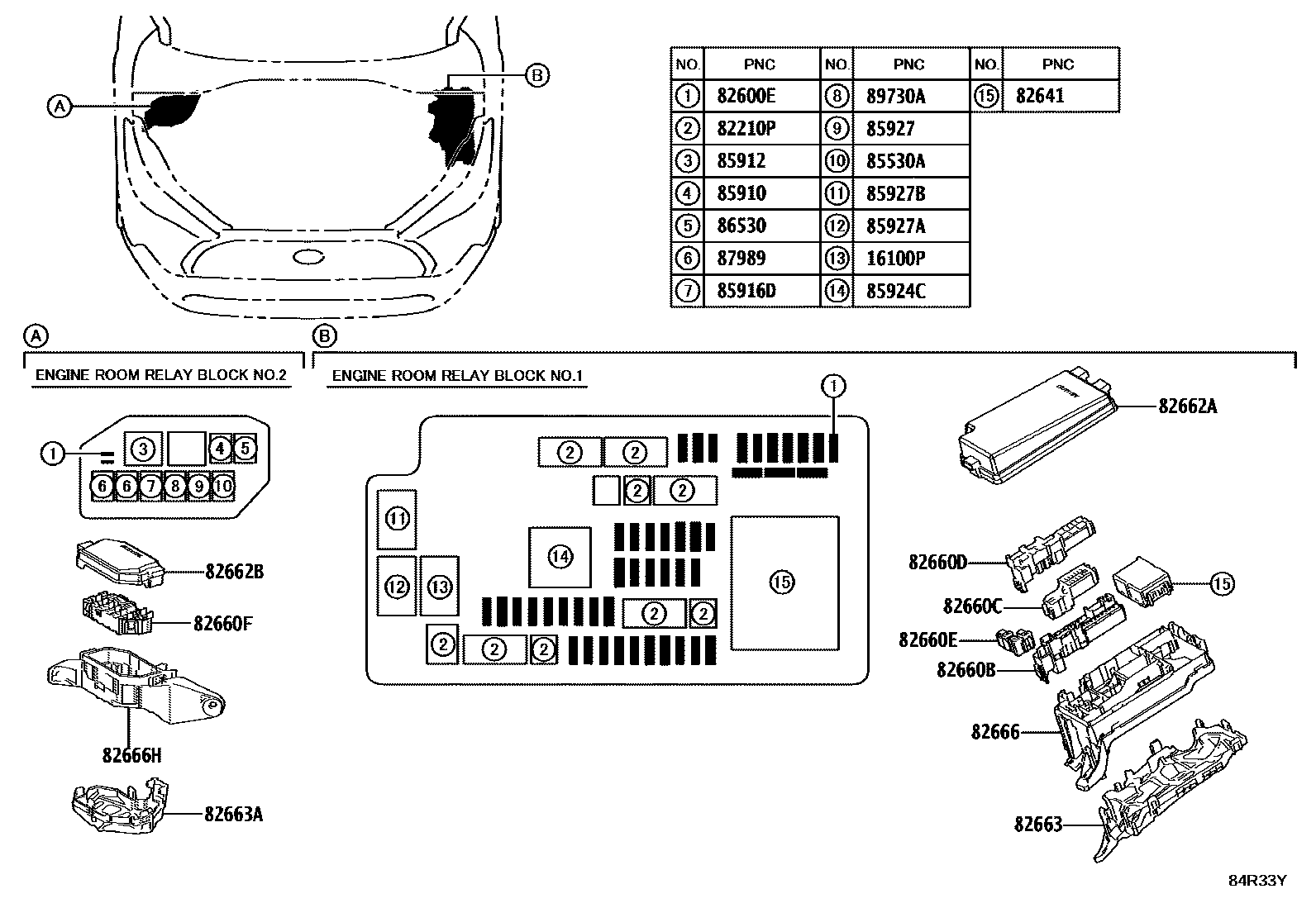

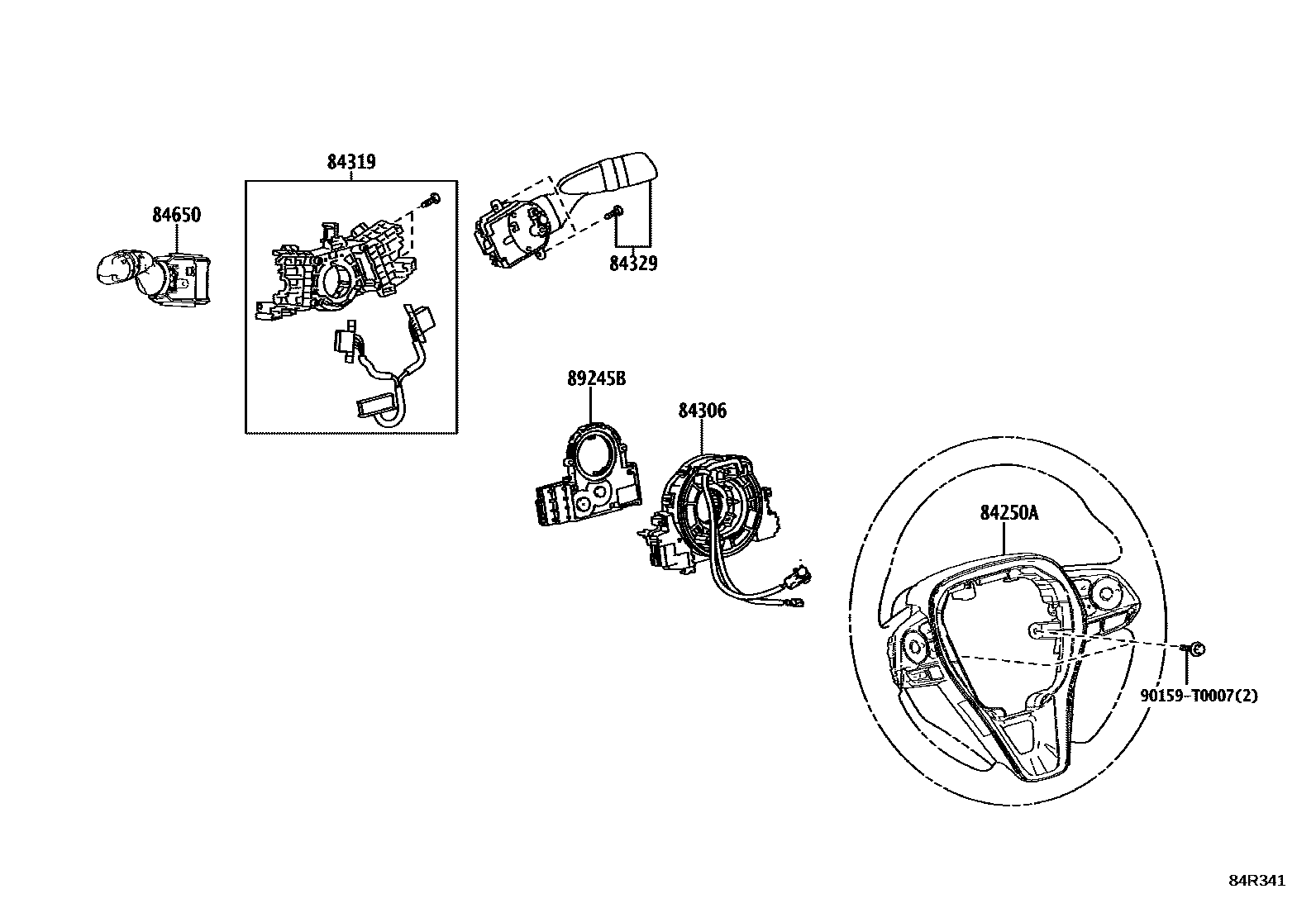

Toyota COROLLA 开关和继电器和ECU — Figure 8401

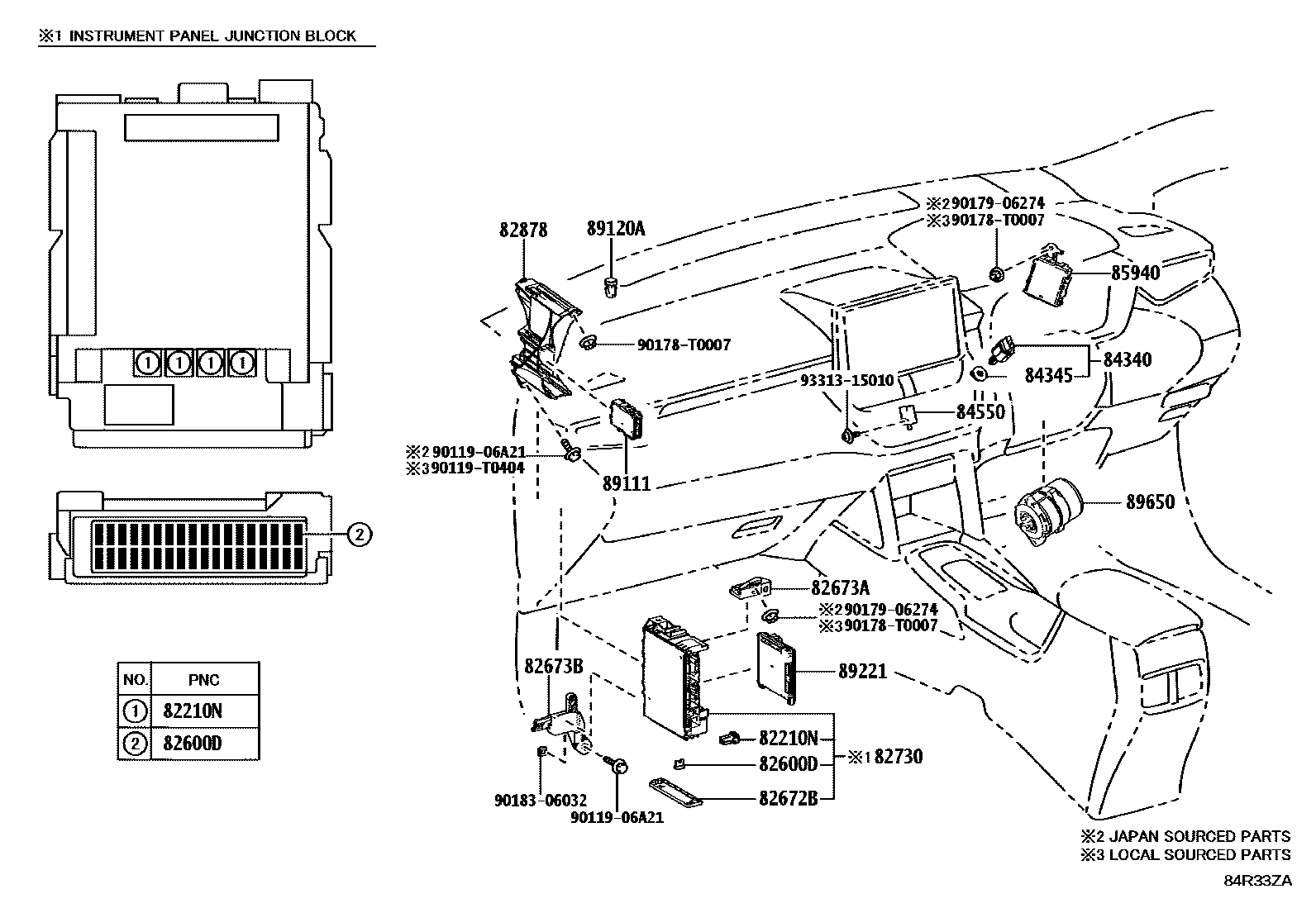

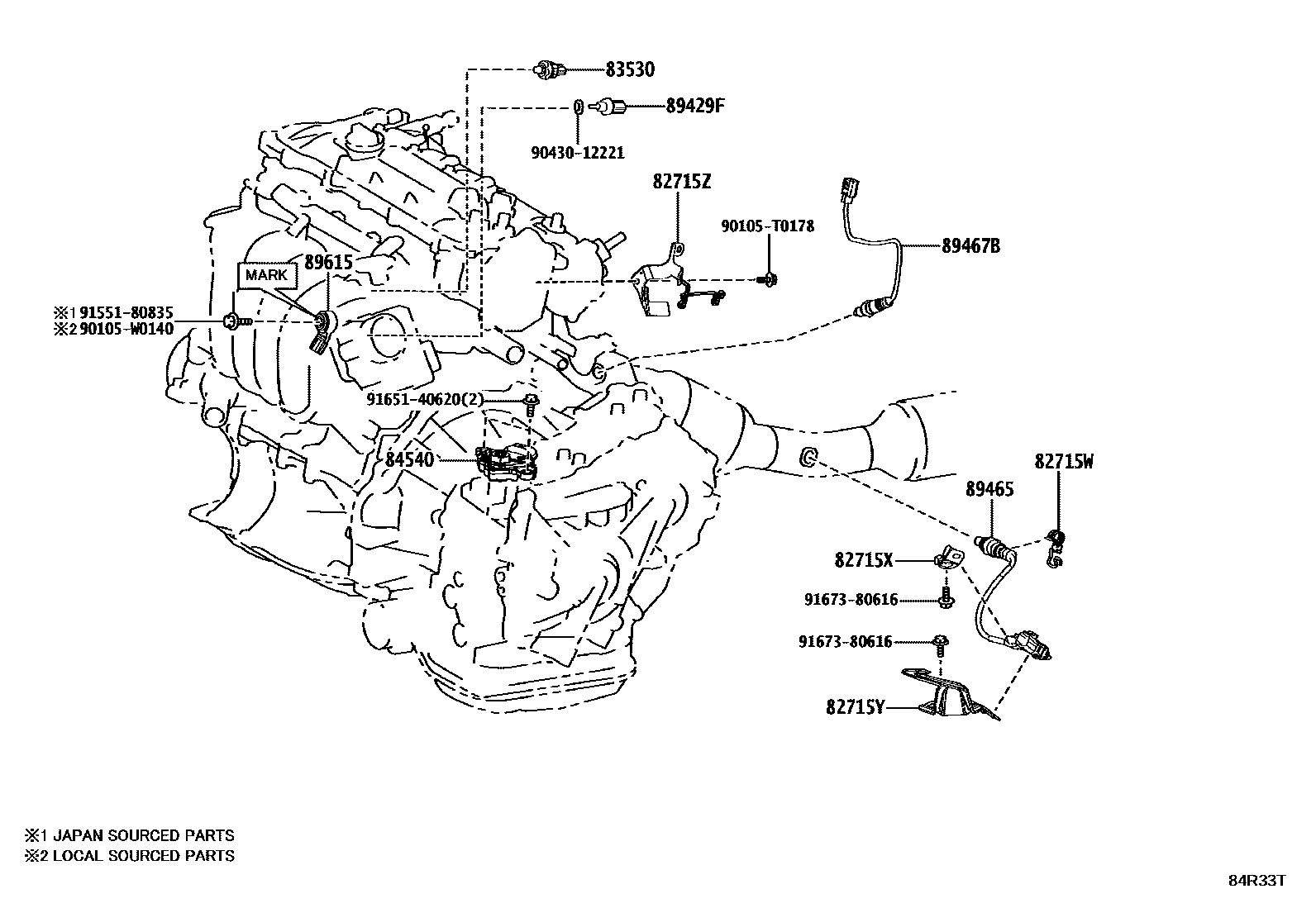

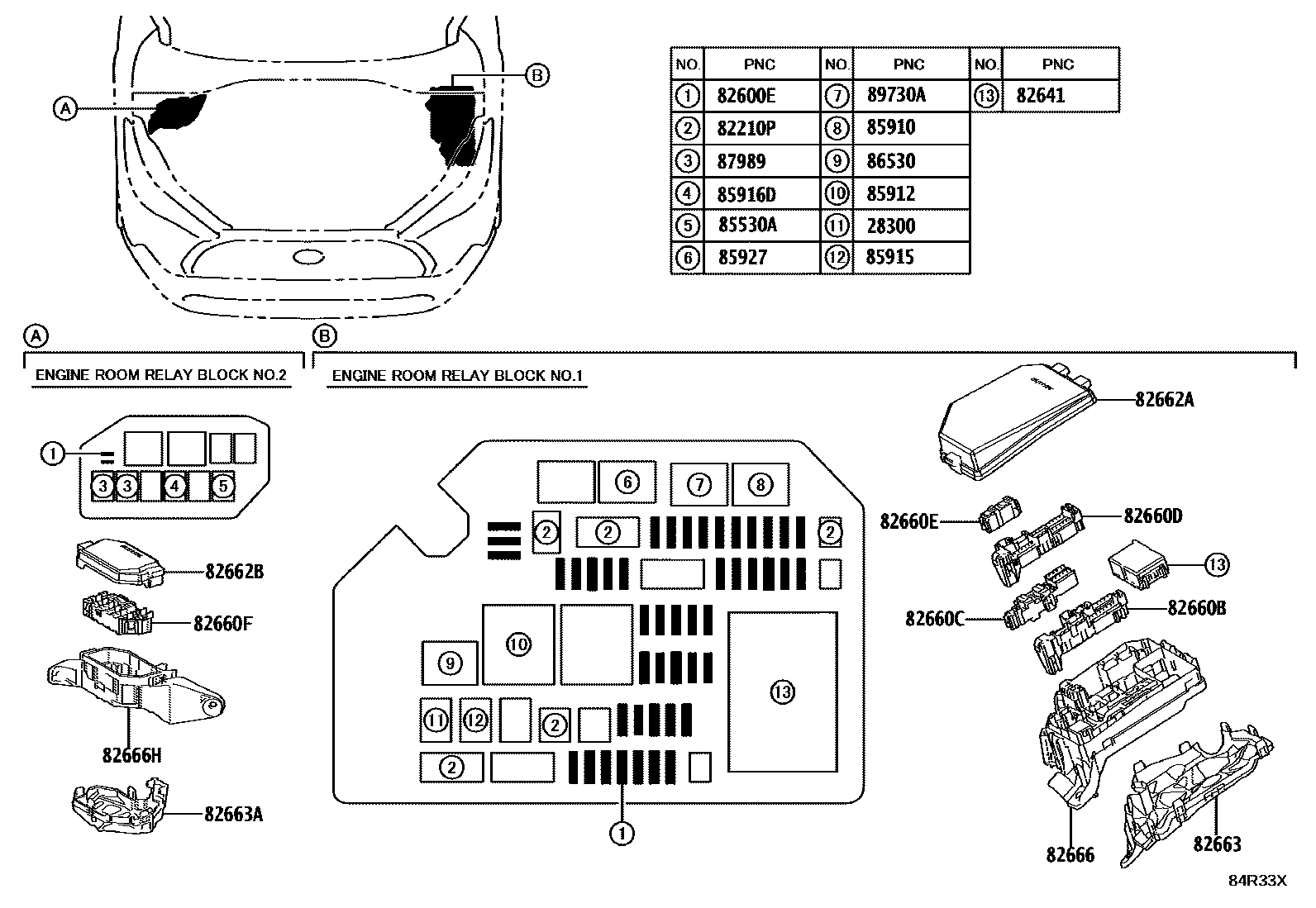

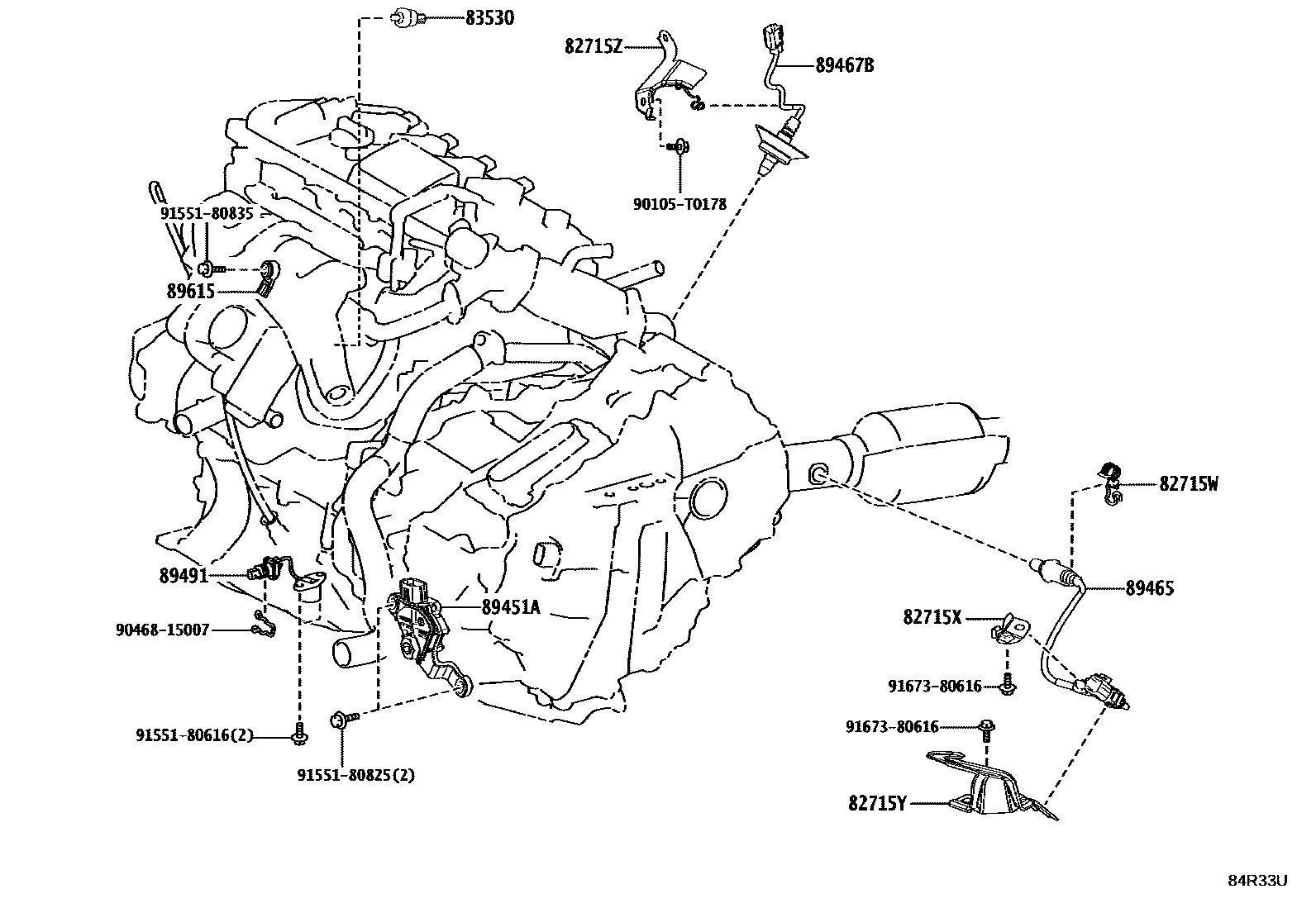

Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 12 images and 92 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-02027 · 90987-T2001 |
| 28300 | Starter relay assembly | 28300-0L011 |
| 28850C | Battery status sensor assembly | 28850-25010 |
| 28859A | Battery current sensor mount | 28859-37040 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08295 · 90982-08296 · 90982-08300 · 90982-08305 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82620A | Fuse box assembly | 82620-12310 · 82620-47090 |
| 82641 | Integrated relay No. 1 | 82641-47050 |
| 82660B | Relay assembly | 82660-12390 · 82660-12420 |
| 82660C | Relay assembly | 82660-12400 · 82660-47090 |
| 82660D | Relay assembly | 82660-12360 · 82660-47070 |
| 82660E | Relay assembly | 82660-12430 · 82660-12470 |
| 82660F | Relay assembly | 82660-12410 |
| 82662A | No. 1 relay box upper cover | 82662-0A020 · 82662-0A030 |
| 82662B | No. 2 relay box upper cover | 82662-0A050 · 82662-0A060 |
| 82663 | Relay box lower cover | 82663-12160 · 82663-47070 |
| 82663A | No. 2 relay box lower cover | 82663-47090 |
| 82666 | Connector holder | 82666-12650 · 82666-12660 |
| 82666H | Connector holder No. 2 | 82666-47620 |
| 82672B | Junction box cover | 82672-0A010 |
| 82673A | Junction box bracket | 82673-F4090 |
| 82673B | Junction box bracket | 82673-F4100 |
| 82715W | Wire harness clamp bracket | 82715-44510 |
| 82715X | No. 2 wire harness clip bracket | 82715-F4300 |
| 82715Y | No. 3 wire harness clip bracket | 82715-F4290 |
| 82715Z | Wire harness clamp bracket | 82715-10310 · 82715-10410 |
| 82730 | Instrument panel junction box assembly | 82730-0A060 |
| 82878 | Left ECU integrated box | 82878-F4020 |
| 83320 | Fuel gauge sensor assembly | 83320-16310 · 83320-16320 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-12060 |
| 84040 | Multi-channel network main switch assembly | 84040-0A020 |
| 84152 | Headlight beam height adjustment switch | 84152-02150 |
| 84233 | Door control light switch assembly (for front door) | 84231-02070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02070 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-02L00 · 84250-02L10 |
| 84306 | Spiral cable sub-assembly | 84308-06070 |
| 84319 | Steering wheel switch housing | 84319-06050 |
| 84329 | turn signal switch | 84329-02160 · 84329-0A070 |
| 84330 | Hazard warning signal switch assembly | 84332-02410 |
| 84340 | brake light switch assembly | 84340-09540 |
| 84345 | Brake light switch base adjuster | 84345-0K010 |
| 84540 | Neutral start switch assembly | 84540-52070 |
| 84550 | Parking brake switch assembly | 84550-30080 |
| 84650 | Windshield wiper switch assembly | 84652-0A060 · 84652-0A070 |
| 84810 | Electric window lift switch assembly | 84810-02200 |
| 84810D | Rear electric window lift switch assembly | 84810-02200 |
| 84840G | Back door opener switch assembly | 84840-47040 · 84840-58010 |
| 84870A | Exterior rearview mirror switch assembly | 84872-02750 · 84872-02760 |
| 84922B | Front right electric seat switch | 84922-33170 |
| 84931C | Back door control switch | 84930-0A010 |
| 84966 | Automatic back door control switch | 84966-0A010 |
| 84966A | No. 1 automatic back door control switch | 84966-0A010 |
| 84970 | Combination switch assembly | 84970-02450 · 84970-02520 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530A | power outlet relay | 90987-T2001 |
| 85532 | USB charging socket | 85532-60040 |
| 85535B | No. 1 power outlet cover | 85535-02190 |
| 85910 | Circuit breaking relay assembly | 90987-02027 · 90987-T2001 |
| 85912 | defogger relay | 90987-04010 |
| 85915 | main relay | 90987-02027 · 90987-T2001 |
| 85916D | fog light relay | 90987-02027 · 90987-T2001 |
| 85924C | IGCT relay | 90080-87030 · 90987-02025 · 90987-T2002 |
| 85927 | cooling fan relay | 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-12230 |
| 86530 | Speaker relay assembly | 90987-T2001 |
| 87989 | Rearview mirror control relay | 90080-87009 · 90987-04004 |
| 88162 | Blind spot monitor right sensor | 88162-0A010 |
| 88172 | Blind spot monitor left sensor | 88162-0A010 |
| 89111 | Network gateway ECU | 89111-02070 · 89111-02080 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 891B2 | starter door control sensor | 891B2-0A021 |
| 89221 | Multi-channel network body ECU | 89220-0A021 |
| 89222A | Multi-channel network door ECU | 89222-16050 |
| 89245B | steering sensor | 8924B-02110 |
| 89257 | Cooling fan ECU | 89257-K0010 |
| 89429F | temperature sensor | 89429-12010 |
| 89430A | Left exterior rearview mirror control ECU assembly | 89430-16030 |
| 89430B | Right exterior mirror control ECU assembly | 89430-16040 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89465 | oxygen sensor | 89465-10080 |
| 89467B | air fuel ratio sensor | 89467-12260 · 89467-47030 |
| 89491 | Engine oil level sensor | 89491-28091 |
| 89611 | One-button start switch | 89611-02230 · 89611-02270 |
| 89615 | knock control sensor | 89615-02020 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-16580 |
| 89730A | Relay (for safety warnings) | 90987-T2001 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
