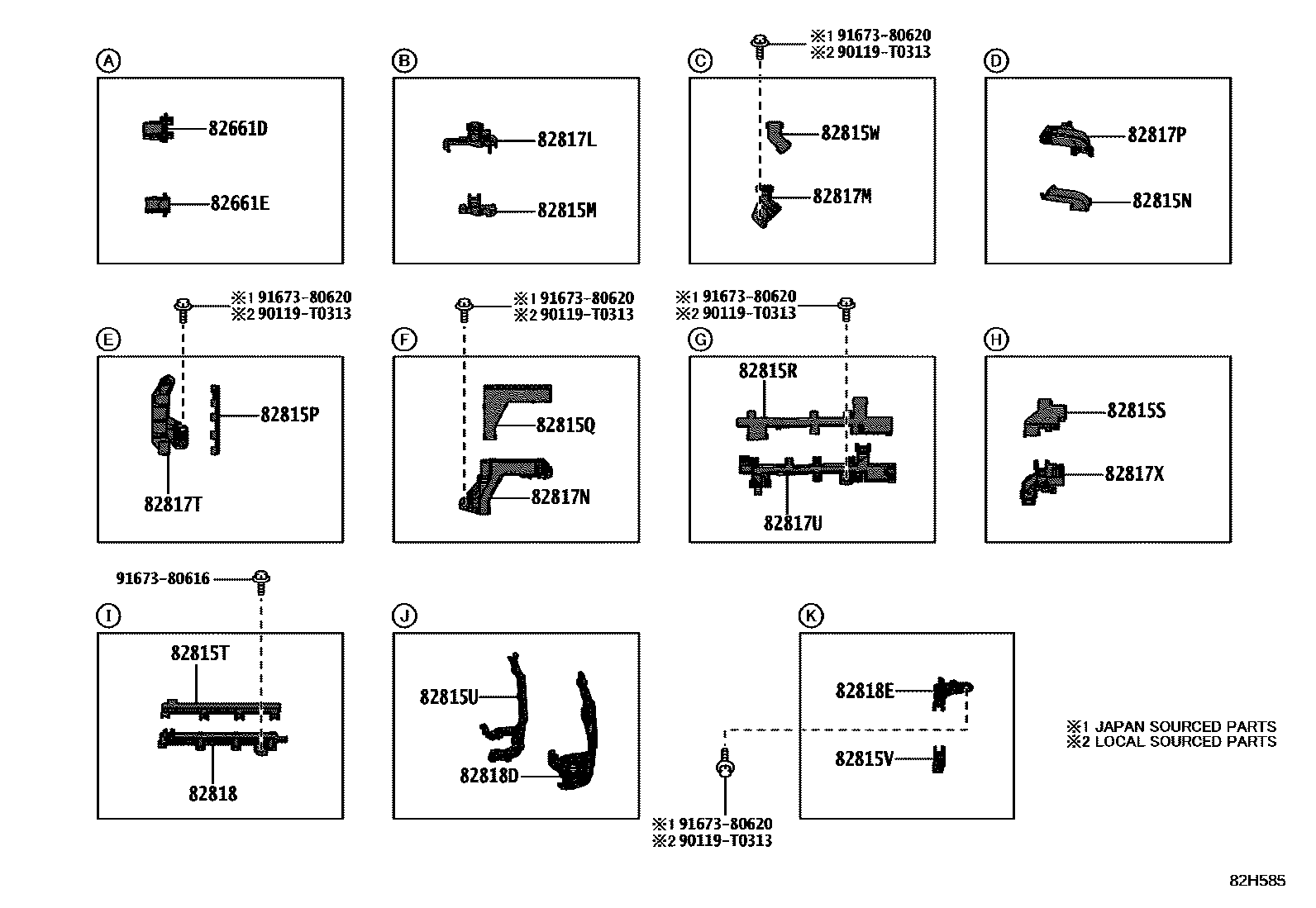

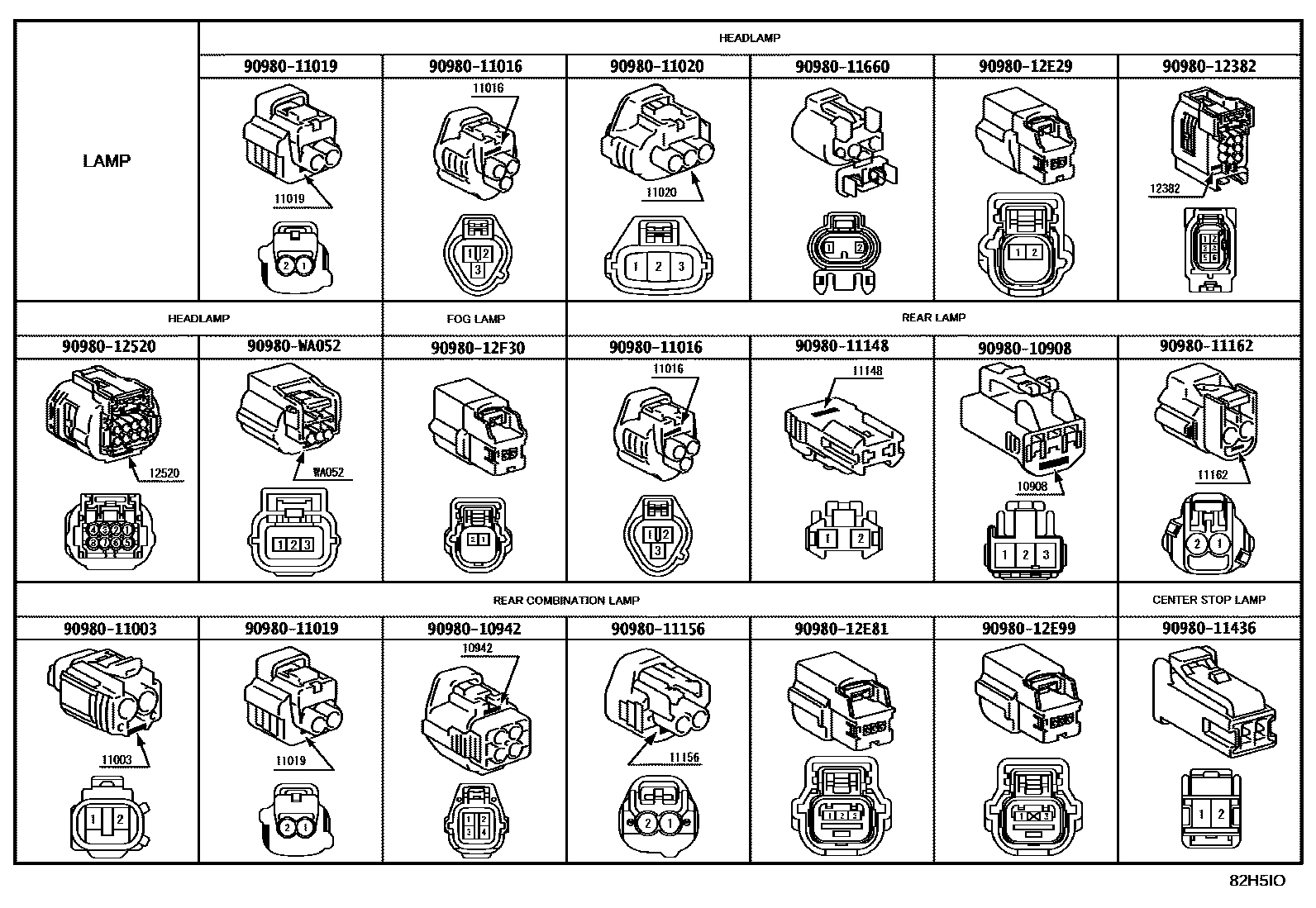

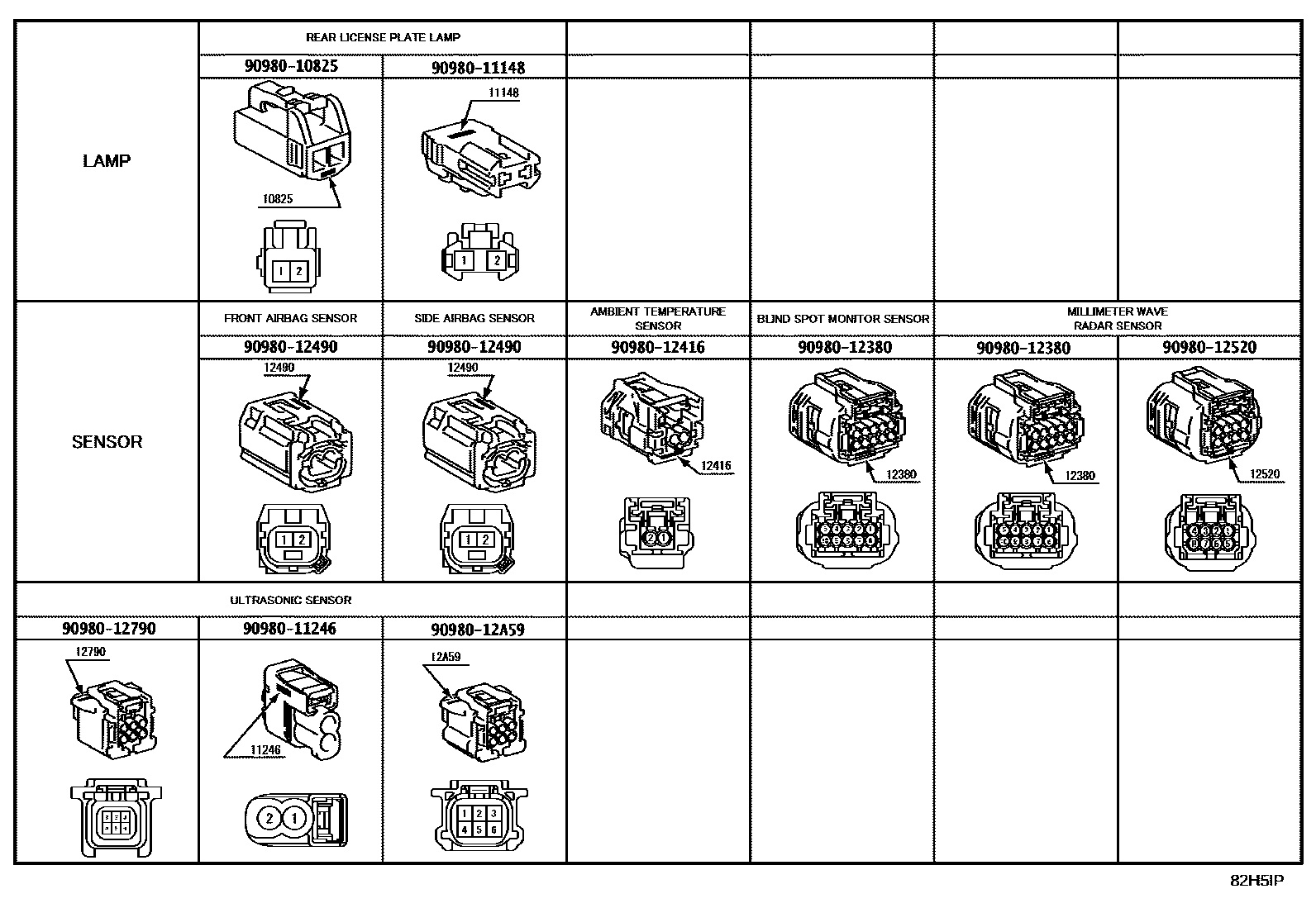

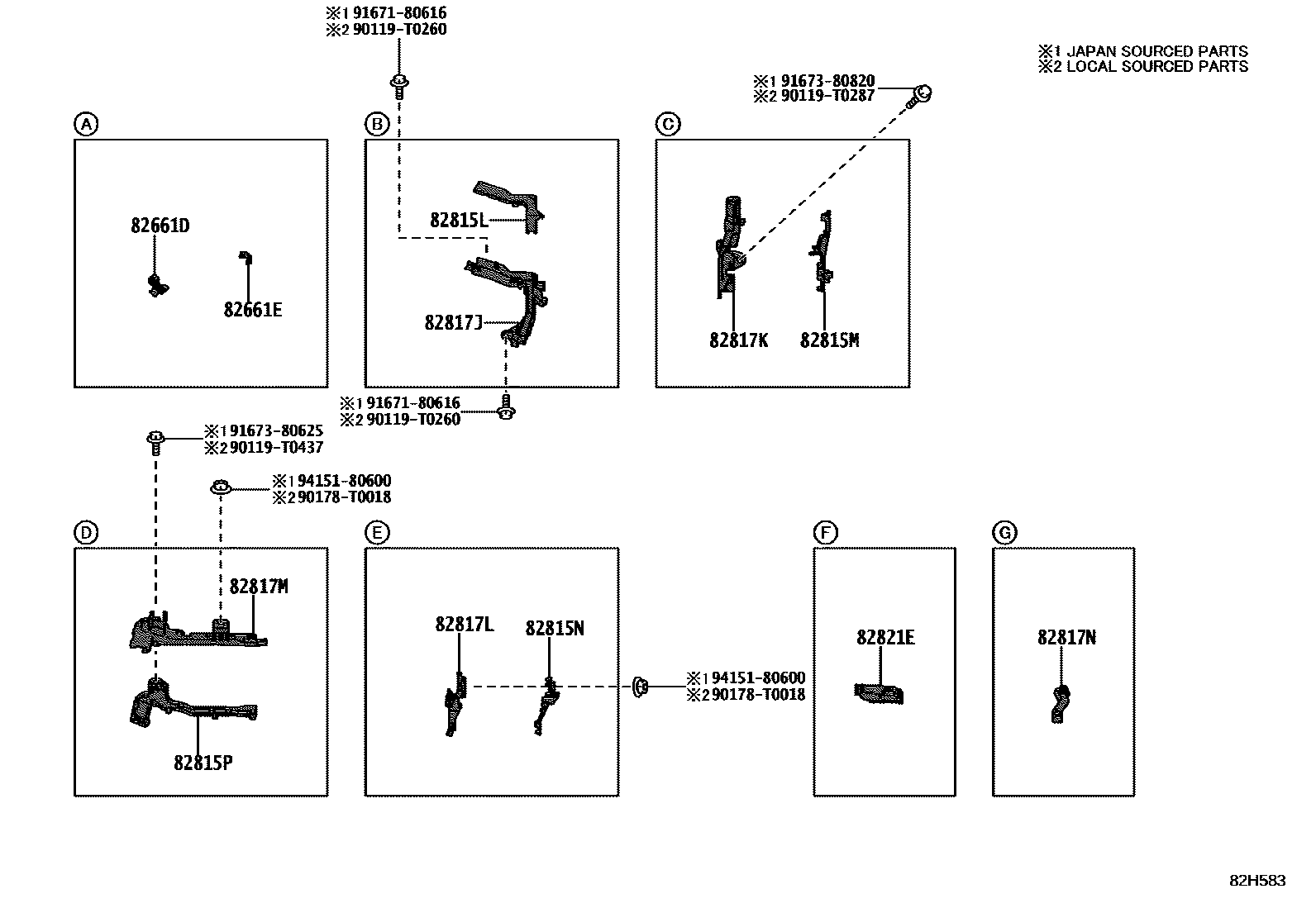

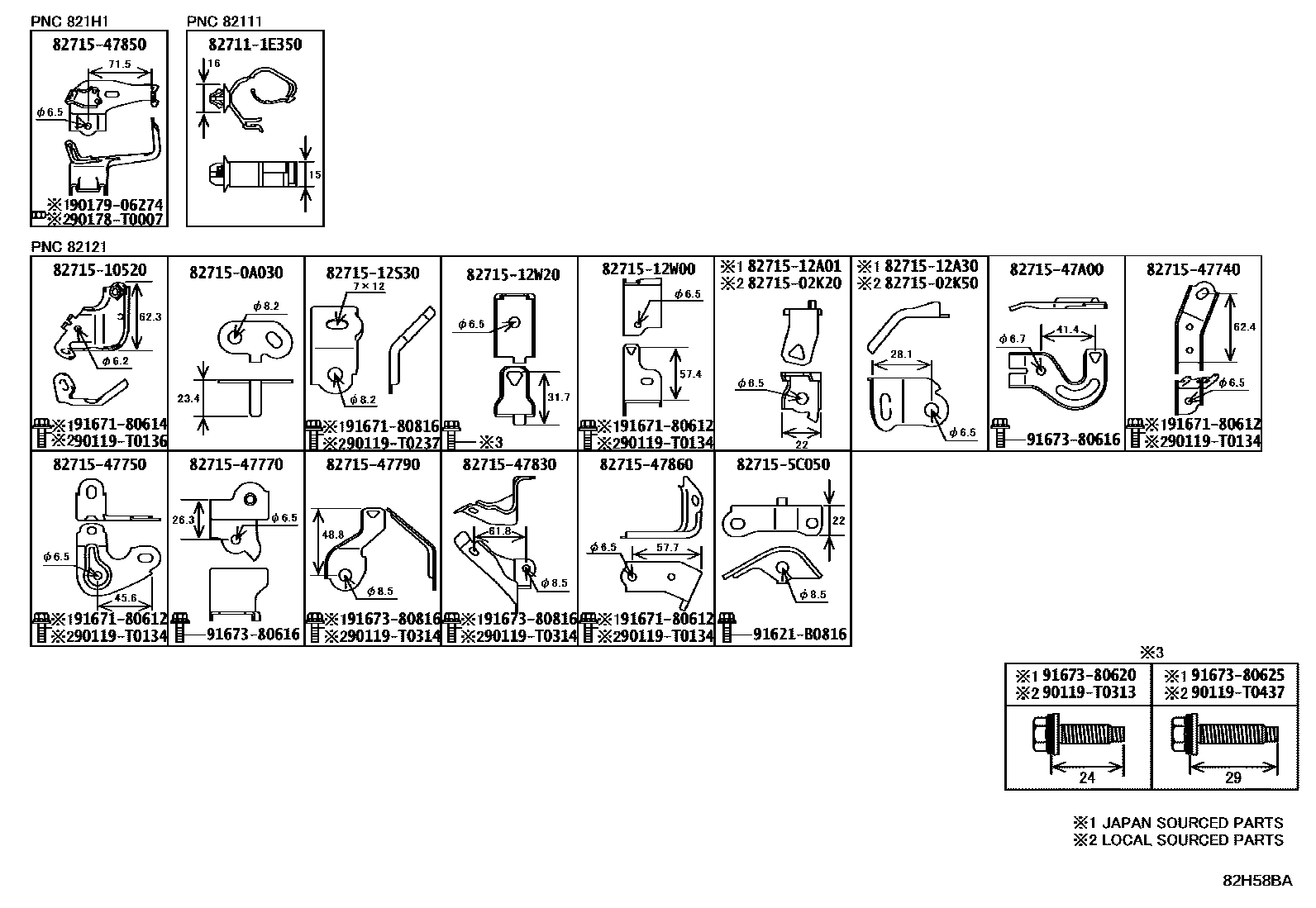

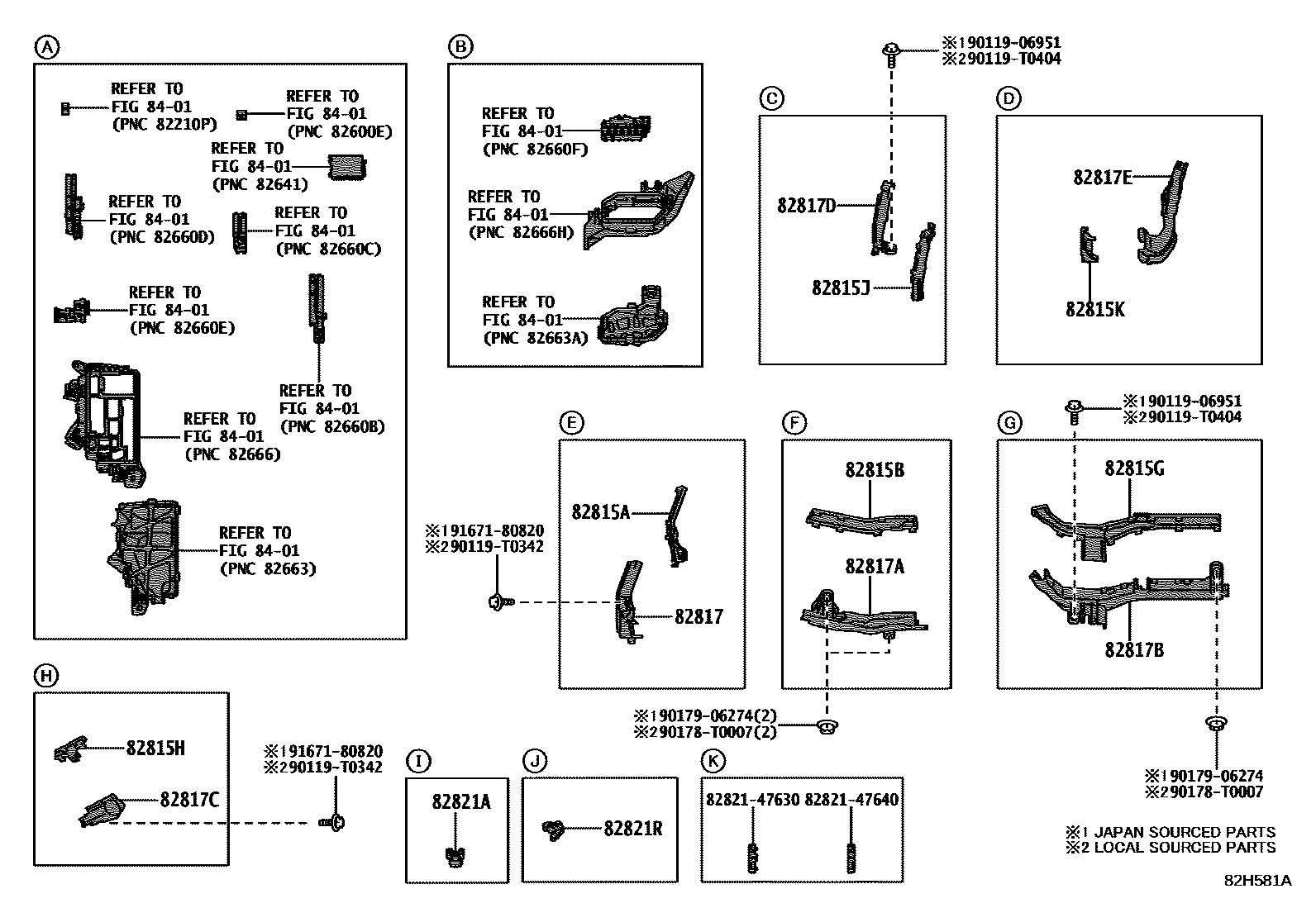

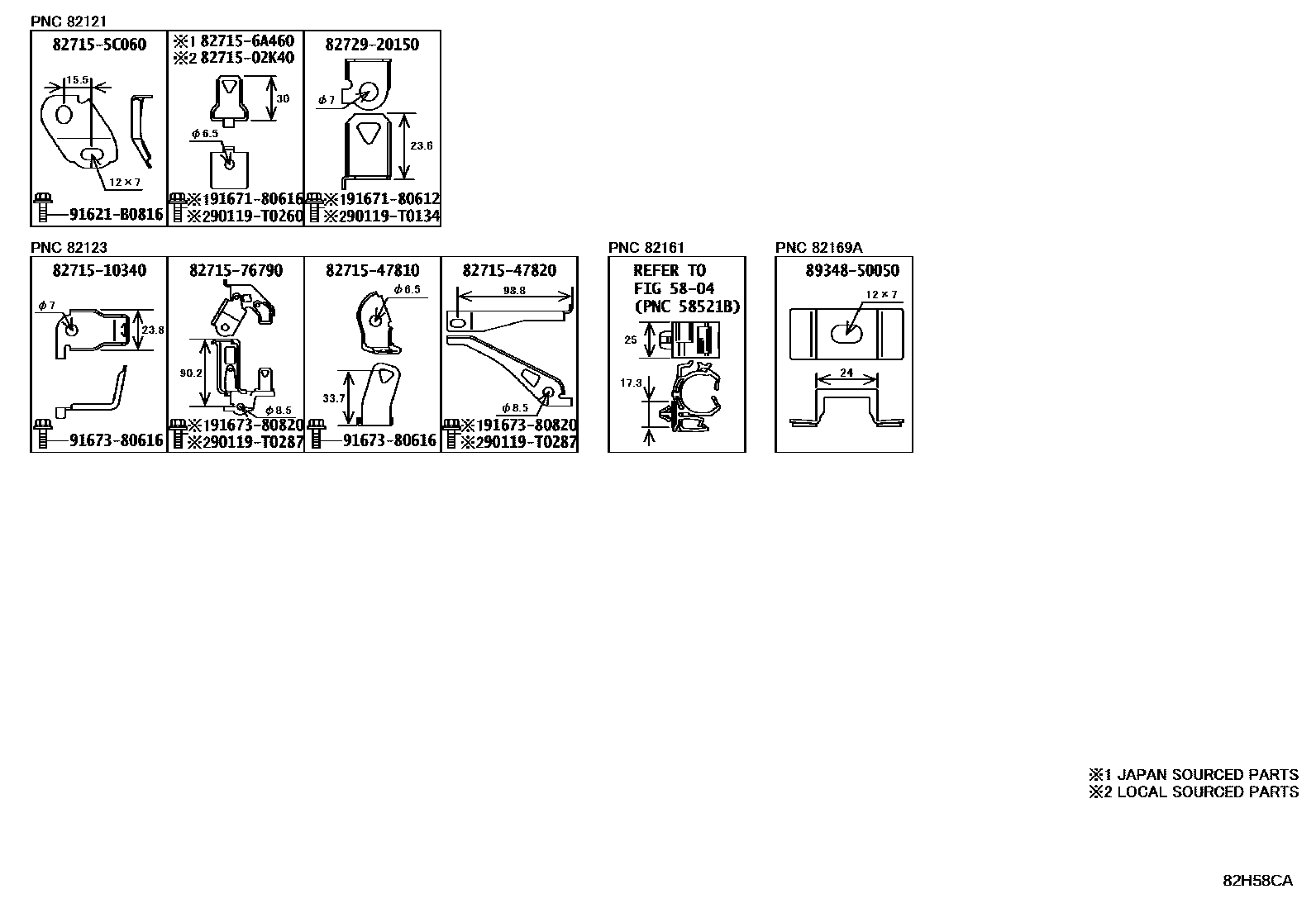

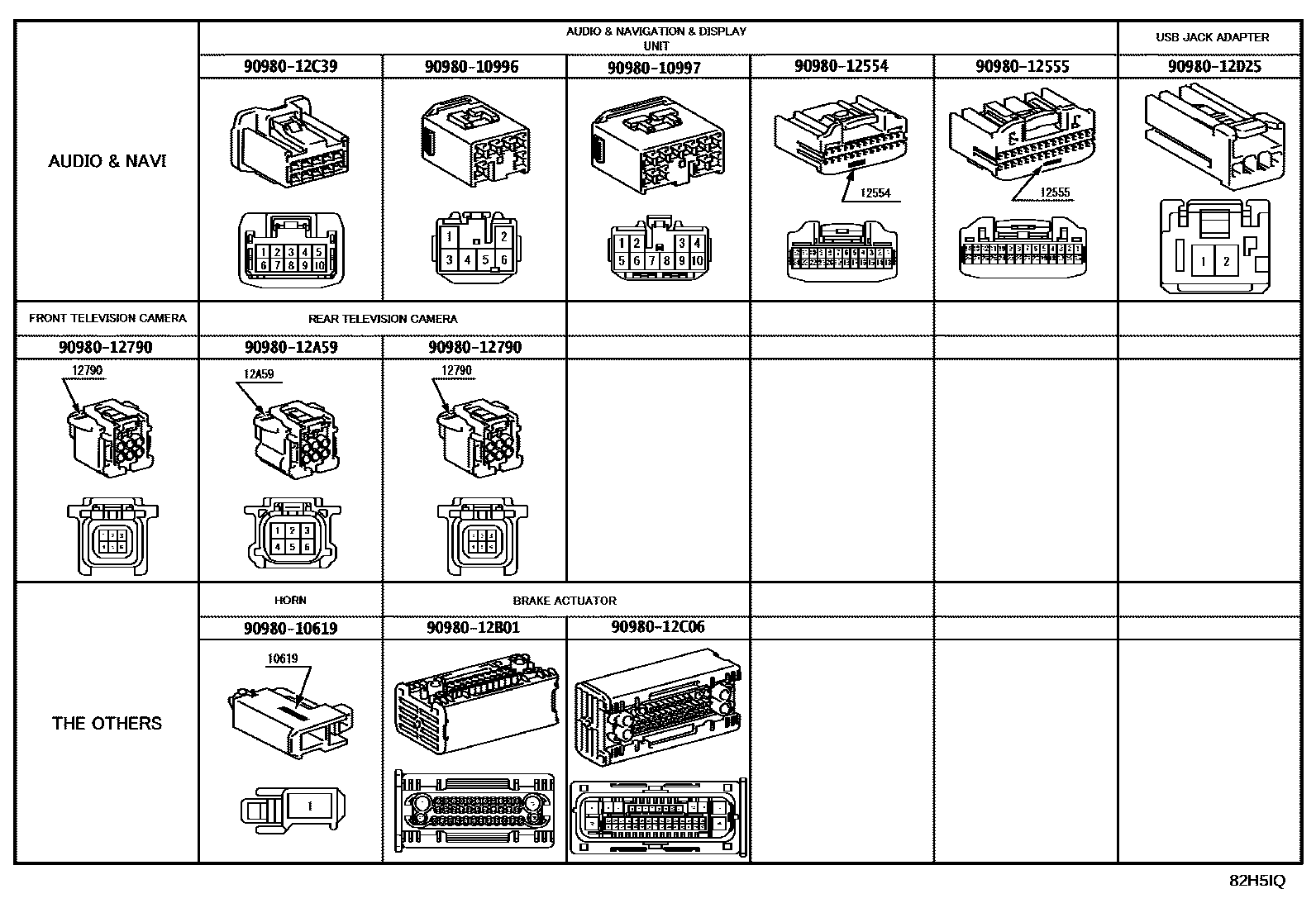

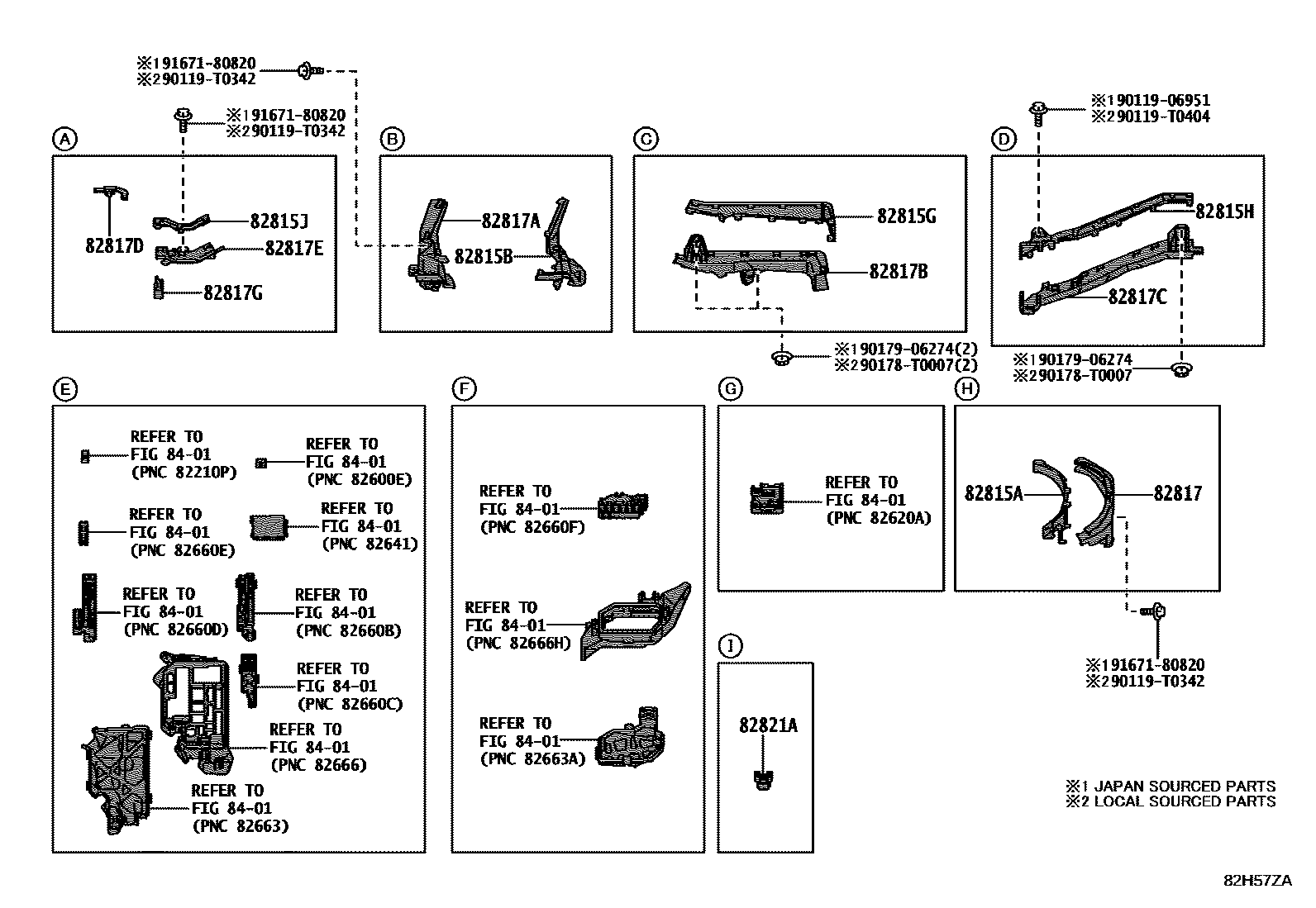

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 18 images and 88 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

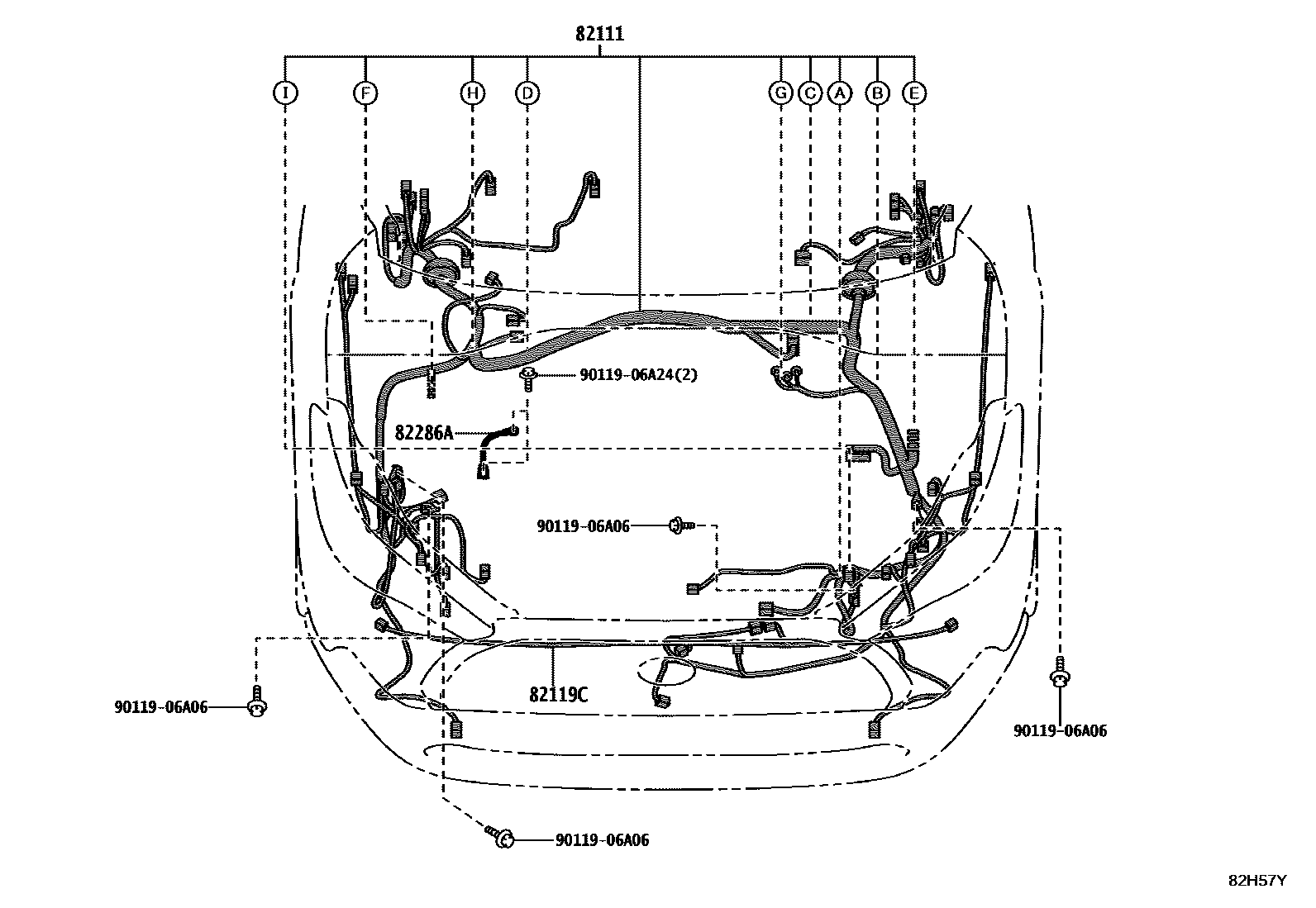

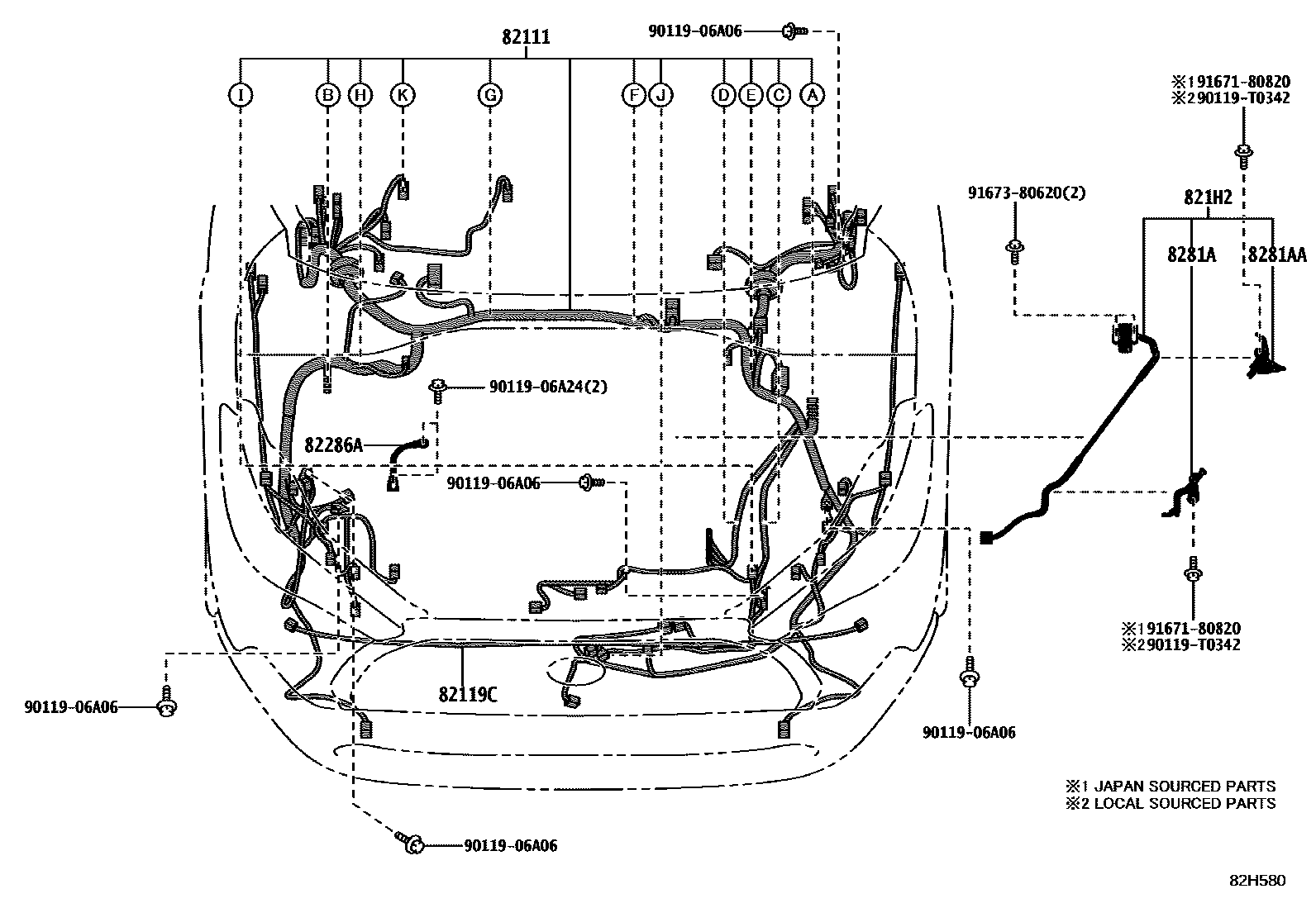

| 82111 | Engine room main wiring harness | 82111-0AL70 · 82111-0AL80 · 82111-0AL90 |
| 82119C | Engine room wiring harness No. 5 | 82119-0A190 |

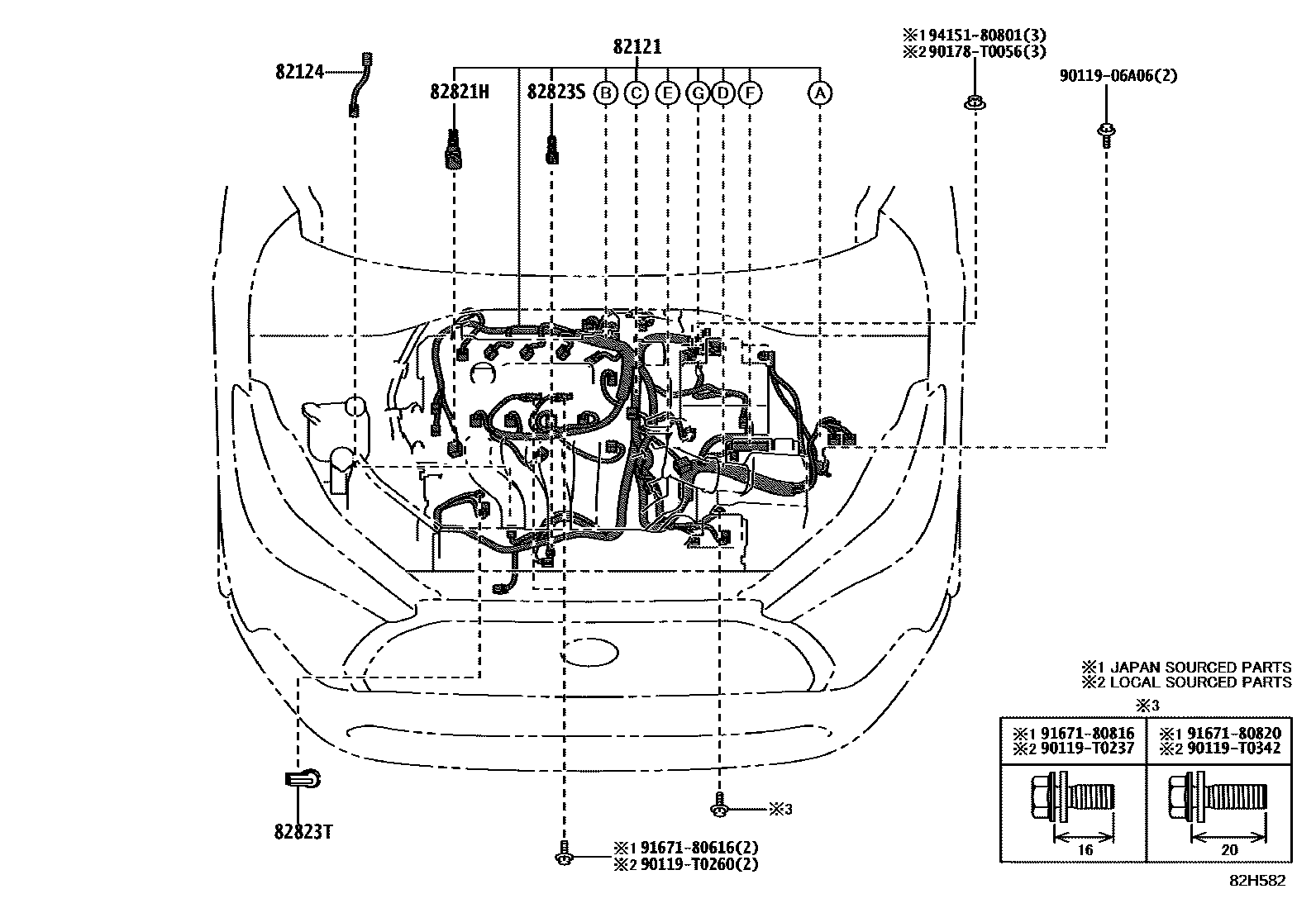

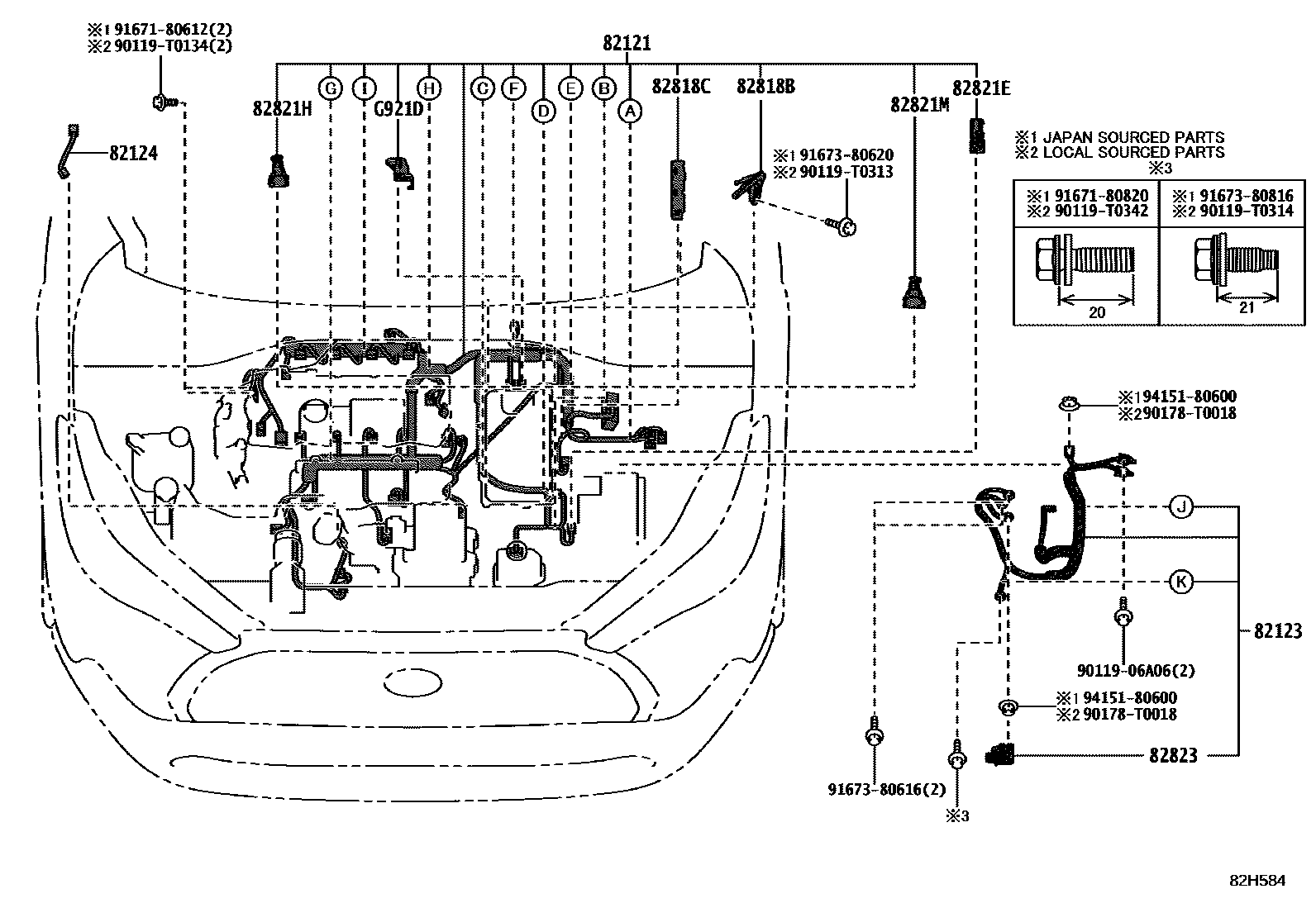

| 82121 | Engine wiring harness | 82121-0A420 · 82121-0A430 |
| 82123 | Engine No. 3 wiring harness | 82123-0A110 |
| 82124 | Engine No. 4 wiring harness | 82124-02140 · 82124-12160 |

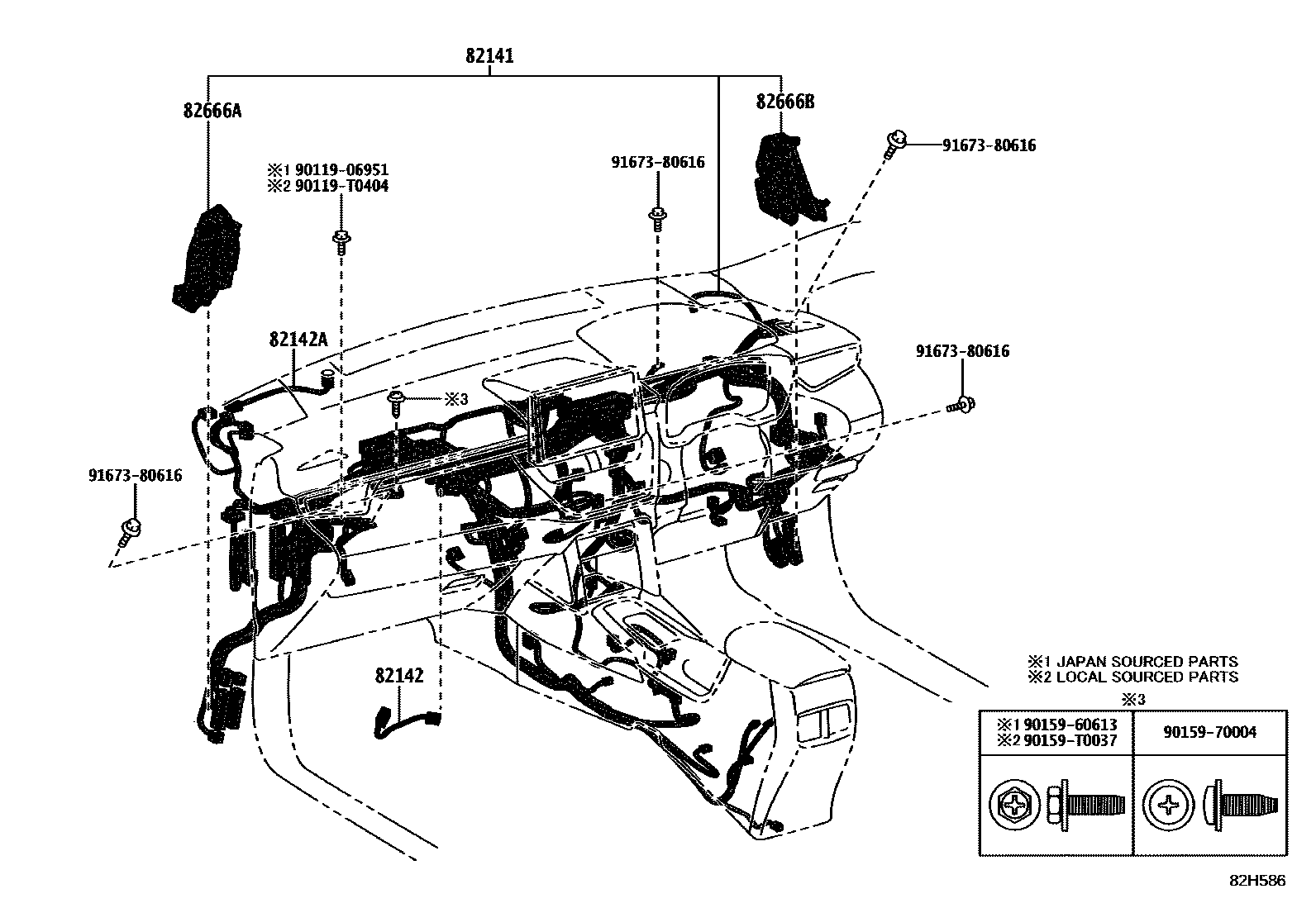

| 82141 | Dashboard wiring harness | 82141-0AL10 · 82141-0AN00 · 82141-0AN10 |
| 82142 | Instrument panel wiring harness No. 2 | 82140-0A040 |
| 82142A | Instrument panel wiring harness No. 2 | 82142-0A120 |

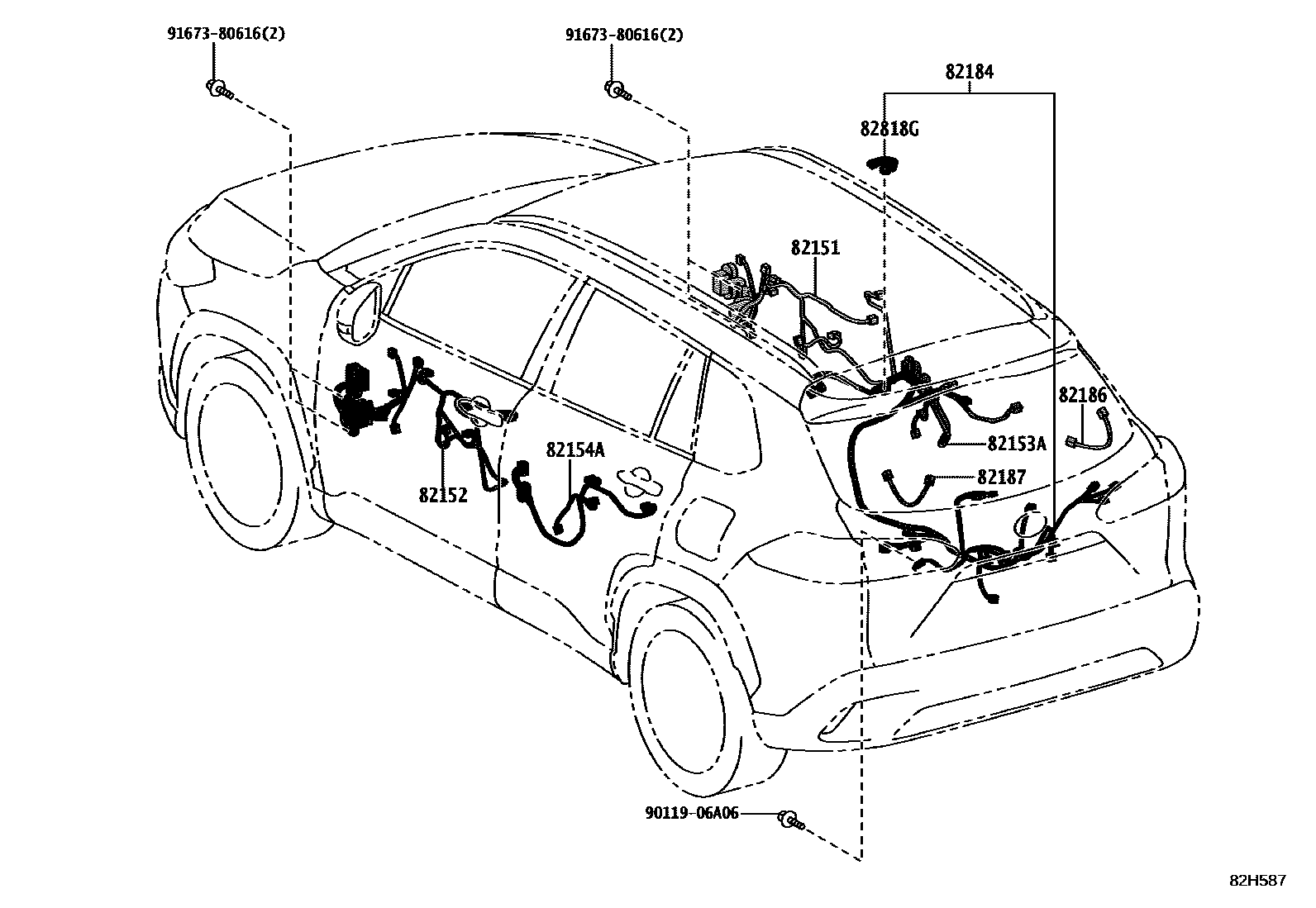

| 82151 | Right front door wiring harness | 82151-0A850 · 82151-0A860 · 82151-0A870 |
| 82152 | Left front door wiring harness | 82152-0A840 · 82152-0A850 · 82152-0A860 |
| 82153A | Right rear door wiring harness | 82153-0A190 |
| 82154A | Left rear door wiring harness | 82154-0A160 |

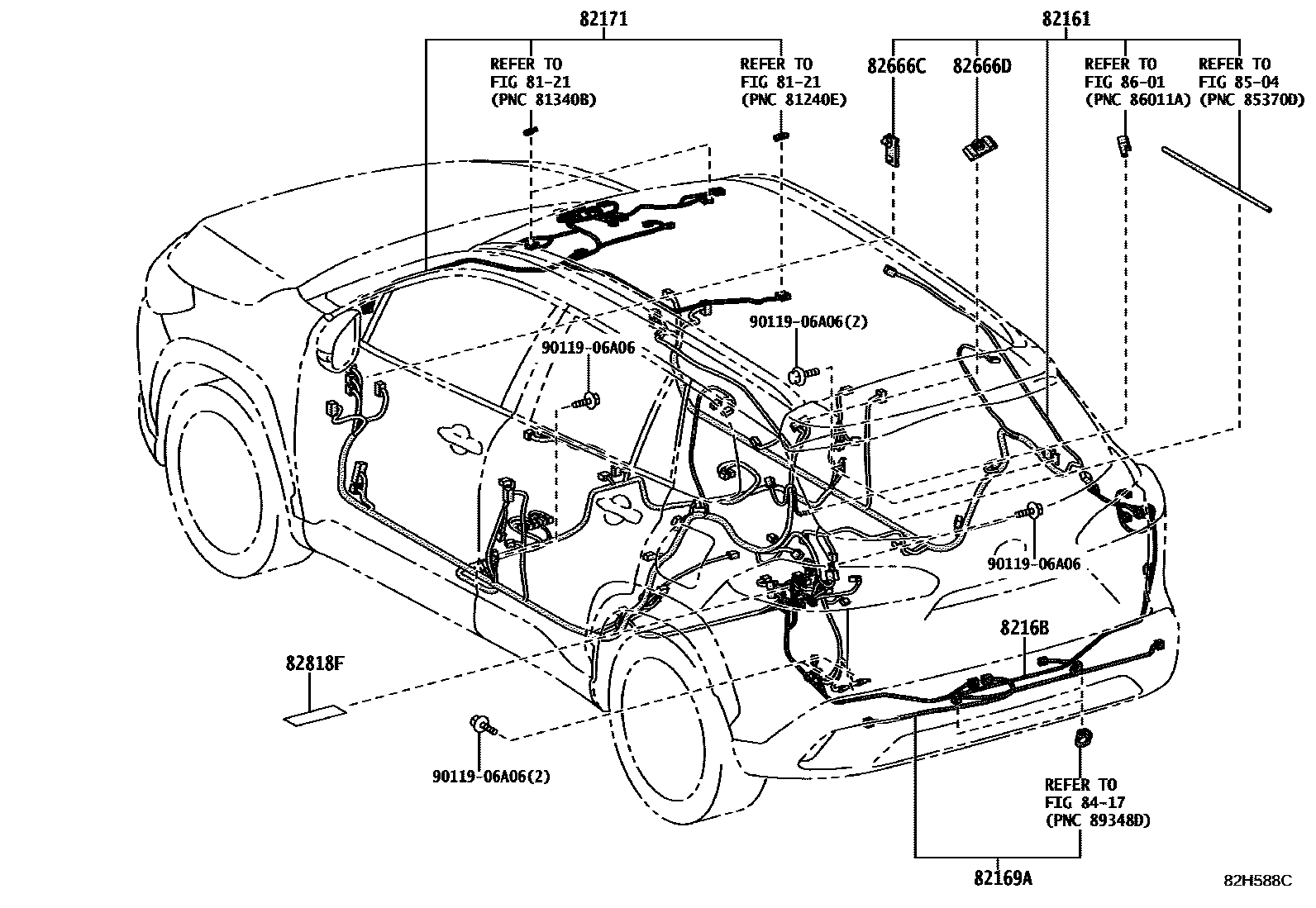

| 82161 | floor wiring harness | 82161-0AQ20 · 82161-0AQ30 · 82161-0AQ40 · 82161-0AQ50 |
| 82169A | No. 6 floor wiring harness | 82169-0A260 · 82169-0A270 · 82169-0A280 |
| 8216B | No. 8 floor wiring harness | 8216B-0A720 · 8216B-0A730 · 8216B-0A740 |
| 82171 | Roof No. 1 wiring harness | 82171-0A430 · 82171-0A440 · 82171-0A450 · 82171-0A460 |
| 82184 | Rear door No. 1 wiring harness | 82184-0A250 · 82184-0A270 · 82184-0AB50 |
| 82186 | Rear window wiring harness No. 1 | 82186-0A010 |
| 82187 | Rear window wiring harness No. 2 | 82187-0A030 |

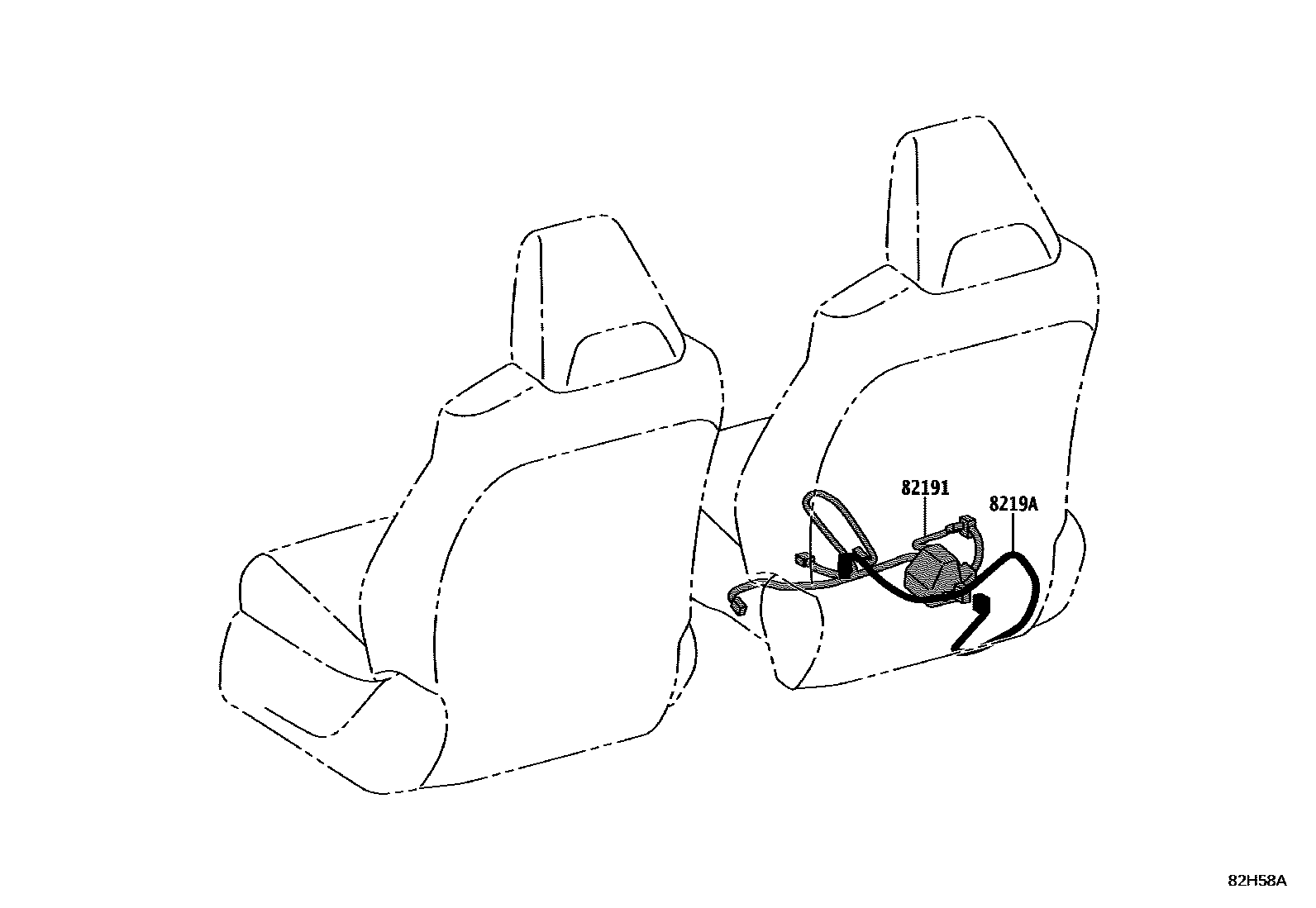

| 82191 | Front right seat wiring harness | 82191-0A010 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-0A010 |

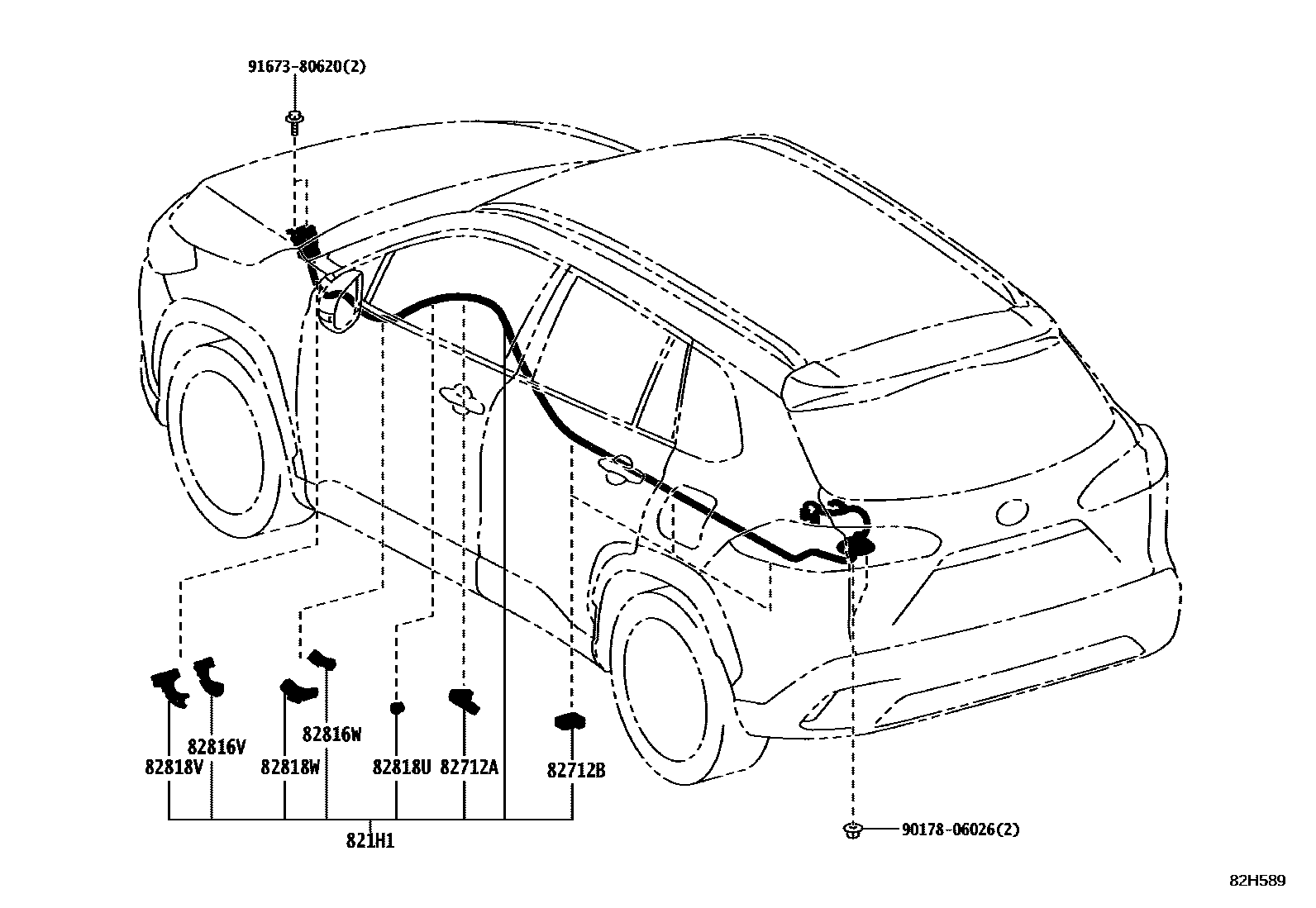

| 821H1 | Underfloor wiring harness | 821H1-16020 |
| 821H2 | HV air conditioner wiring harness | 821H2-47010 |
| 82286A | Line 2 | 82286-0A070 |
| 82661D | No. 1 relay box side cover | 82661-12340 · 82661-47020 |
| 82661E | No. 2 relay box side cover | 82661-12350 · 82661-47030 |
| 82666A | Connector holder No. 2 | 82666-12670 |
| 82666B | No. 3 connector holder | 82666-12680 |
| 82666C | No. 4 connector holder | 82666-22070 |
| 82666D | No. 5 connector holder | 82666-60220 |
| 82712A | Wire harness bracket | 82712-47410 |
| 82712B | Wire harness bracket | 82712-47530 |
| 82815A | Wiring harness protector cover | 82815-12J00 · 82815-47C90 |
| 82815B | Wiring harness protector cover | 82815-12L70 · 82815-47D00 |
| 82815G | No. 5 wire harness protector cover | 82815-12L80 · 82815-47D30 |
| 82815H | No. 6 wire harness protector cover | 82815-12L90 · 82815-47D40 |
| 82815J | No. 7 wire harness protector cover | 82815-12L40 · 82815-47880 |
| 82815K | No. 8 wire harness protector cover | 82815-47C20 |
| 82815L | No. 9 wire harness protector cover | 82815-02K00 |
| 82815M | No. 10 wire harness protector cover | 82815-02K10 · 82815-12M00 |
| 82815N | No. 11 wire harness protector cover | 82815-02K20 · 82815-47D80 |
| 82815P | No. 12 wire harness protector cover | 82815-02M00 · 82815-47E00 |
| 82815Q | No. 13 wire harness protector cover | 82815-47E10 |
| 82815R | No. 14 wire harness protector cover | 82815-47E20 |
| 82815S | No. 15 wire harness protector cover | 82815-47E30 |
| 82815T | No. 16 wire harness protector cover | 82815-47E40 |
| 82815U | No. 17 wire harness protector cover | 82815-47E50 |
| 82815V | No. 1 wire harness protector cover | 82815-F4070 |
| 82815W | No. 2 wire harness protector cover | 82815-12M10 |
| 82816V | No. 18 wire harness protector cover | 82815-47F20 |
| 82816W | No. 19 wire harness protector cover | 82815-F4350 |
| 82817 | No. 1 wire harness protection device | 82817-12W50 · 82817-47N60 |
| 82817A | No. 2 wire harness protection device | 82817-12Z60 · 82817-47N70 |
| 82817B | No. 3 wire harness protection device | 82817-12Z70 · 82817-47P00 |
| 82817C | No. 4 wire harness protection device | 82817-12Z80 · 82817-47P10 |
| 82817D | No. 5 wire harness protection device | 82817-12Z10 · 82817-47N30 |
| 82817E | No. 6 wire harness protection device | 82817-12Z20 · 82817-47N40 |
| 82817G | No. 8 wire harness protection device | 82817-12Z50 |
| 82817J | No. 9 wire harness protection device | 82817-02U30 |
| 82817K | No. 10 wire harness protection device | 82817-02U40 |
| 82817L | No. 11 wire harness protection device | 82817-02U50 · 82817-1A880 |
| 82817M | No. 12 wire harness protection device | 82817-02W50 · 82817-1A890 |
| 82817N | No. 13 wire harness protection device | 82817-47L20 · 82817-F4710 |
| 82817P | No. 14 wire harness protection device | 82817-47P50 |
| 82817T | No. 15 wire harness protection device | 82817-47P70 |
| 82817U | No. 16 wire harness protection device | 82817-47P90 |
| 82817X | No. 17 wire harness protection device | 82817-47Q00 |
| 82818 | No. 2 wire harness protection device | 82817-47Q10 |
| 82818B | No. 3 wire harness protection device | 82817-47S30 |
| 82818C | No. 4 wire harness protection device | 82817-47S40 |
| 82818D | No. 5 wire harness protection device | 82817-47Q20 |
| 82818E | No. 6 wire harness protection device | 82817-F4080 |
| 82818F | No. 7 wire harness protection device | 82817-52A60 |
| 82818G | No. 8 wire harness protection device | 82817-10350 |
| 82818U | No. 17 wire harness protection device | 82817-47Q50 |
| 82818V | No. 18 wire harness protection device | 82817-47S20 |
| 82818W | No. 19 wire harness protection device | 82817-F4490 |
| 8281A | No. 1 wire harness protection device | 82817-47Q30 |
| 8281AA | No. 2 wire harness protection device | 82817-47Q40 |
| 82821A | Connector cover | 82821-30650 |
| 82821E | Connector cover | 82821-33310 · 82821-47330 |
| 82821H | Connector cover | 82821-47420 · 82821-F4010 |
| 82821M | Connector cover | 82821-47430 |
| 82821R | Connector cover | 82821-78050 |
| 82823 | No. 1 terminal cover | 82823-47050 |
| 82823S | starter terminal cover | 82823-12120 |
| 82823T | Generator terminal cover | 82823-22050 |
| G921D | Inverter Connector Cover Protector | G921D-47020 |
