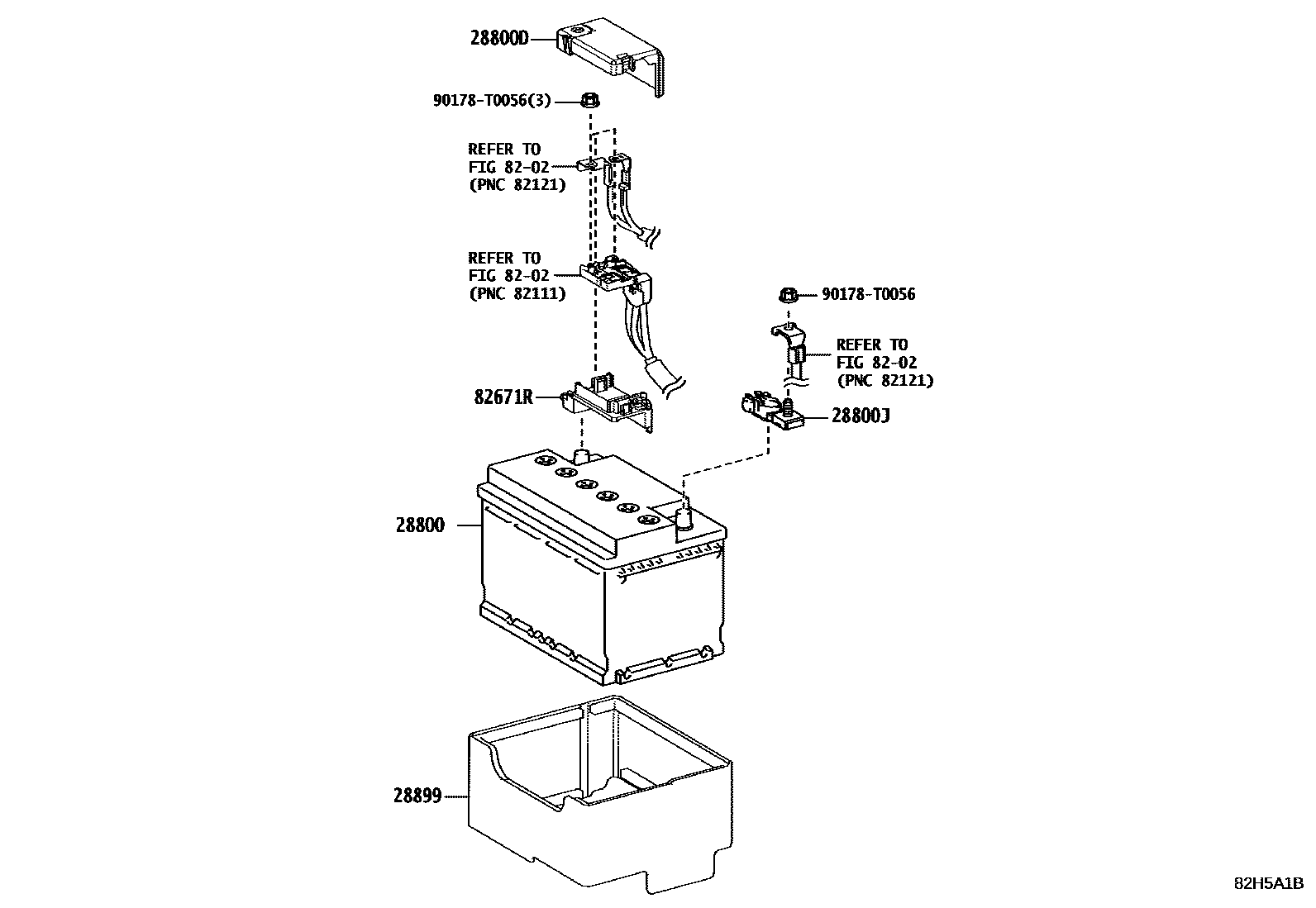

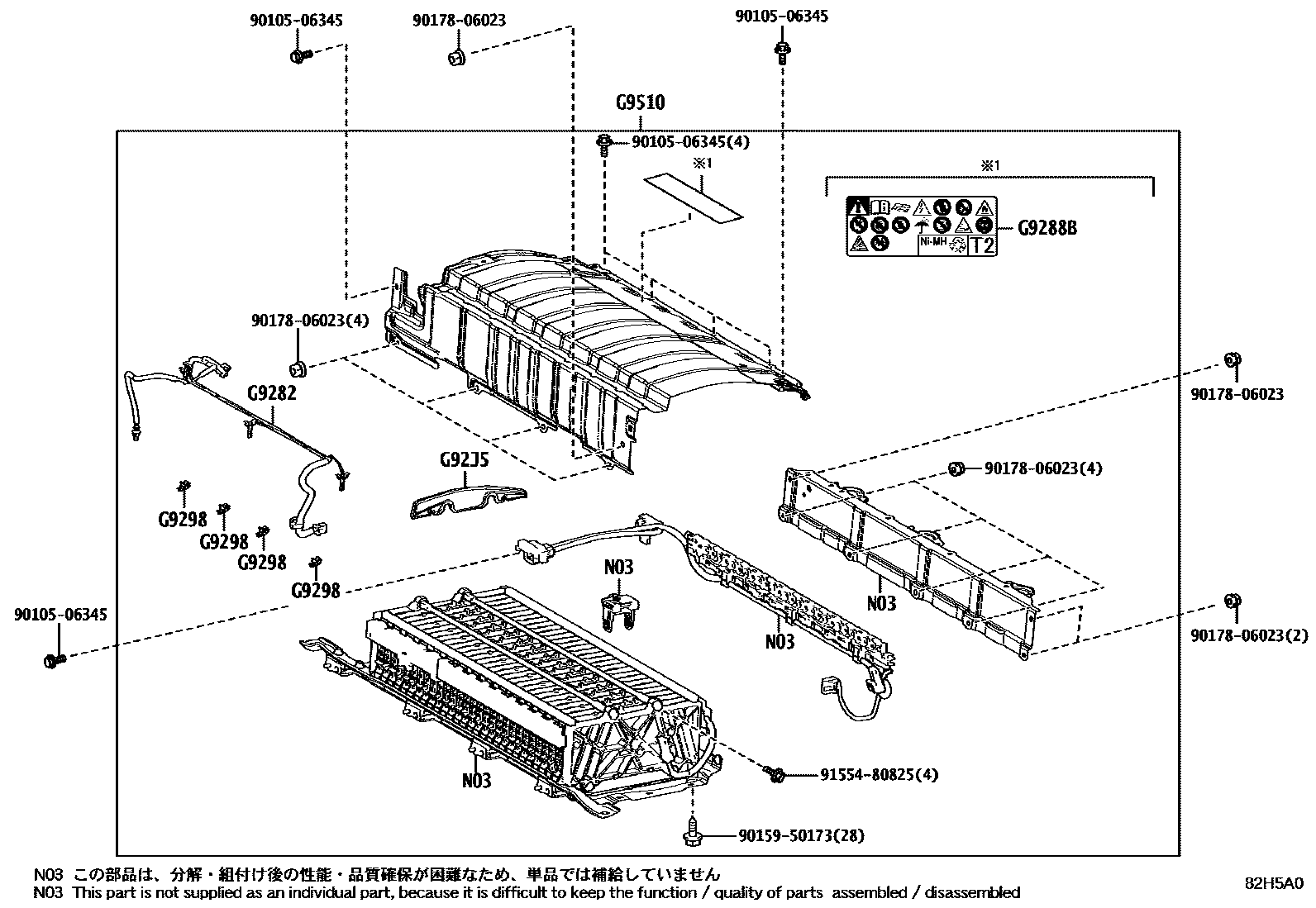

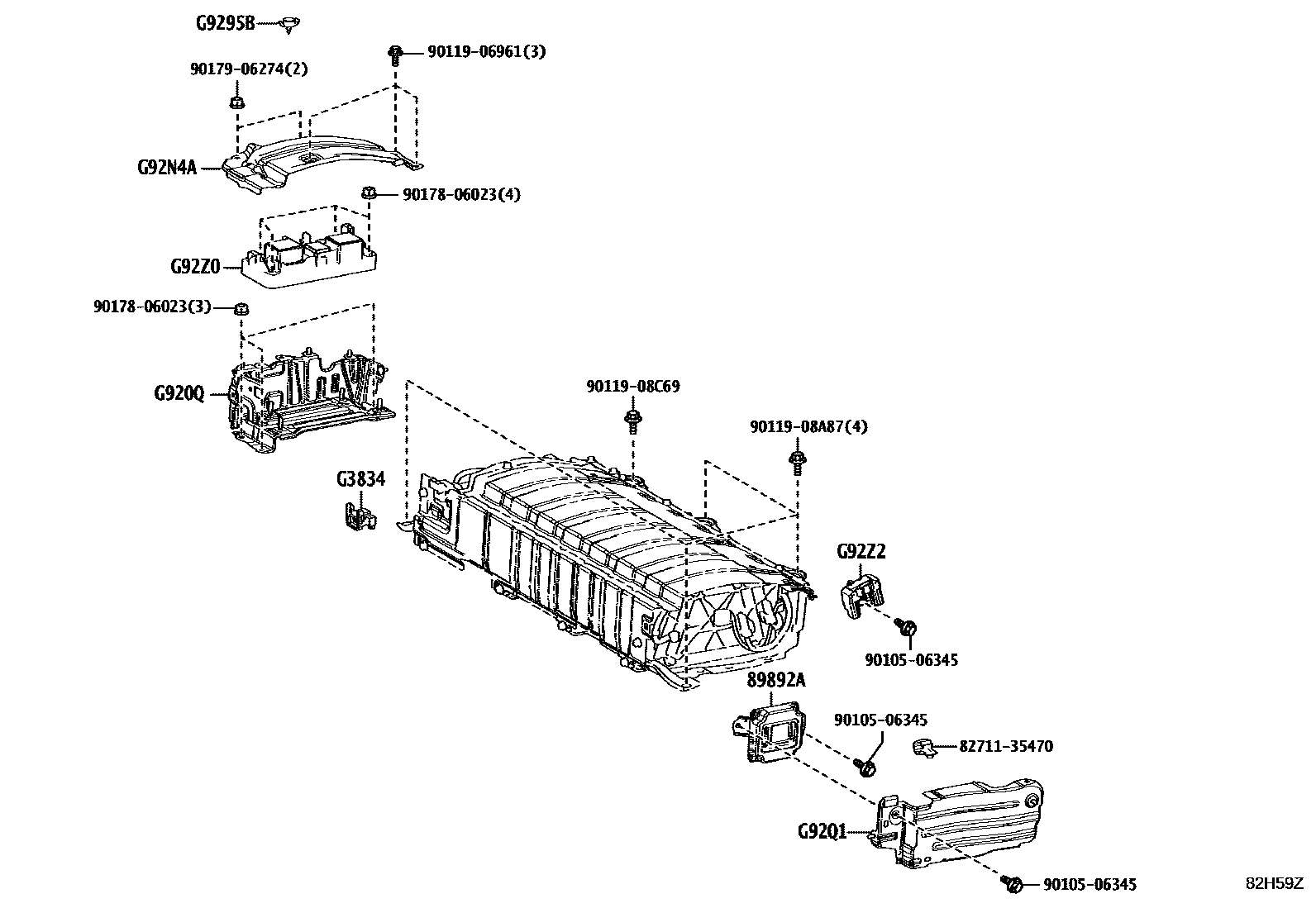

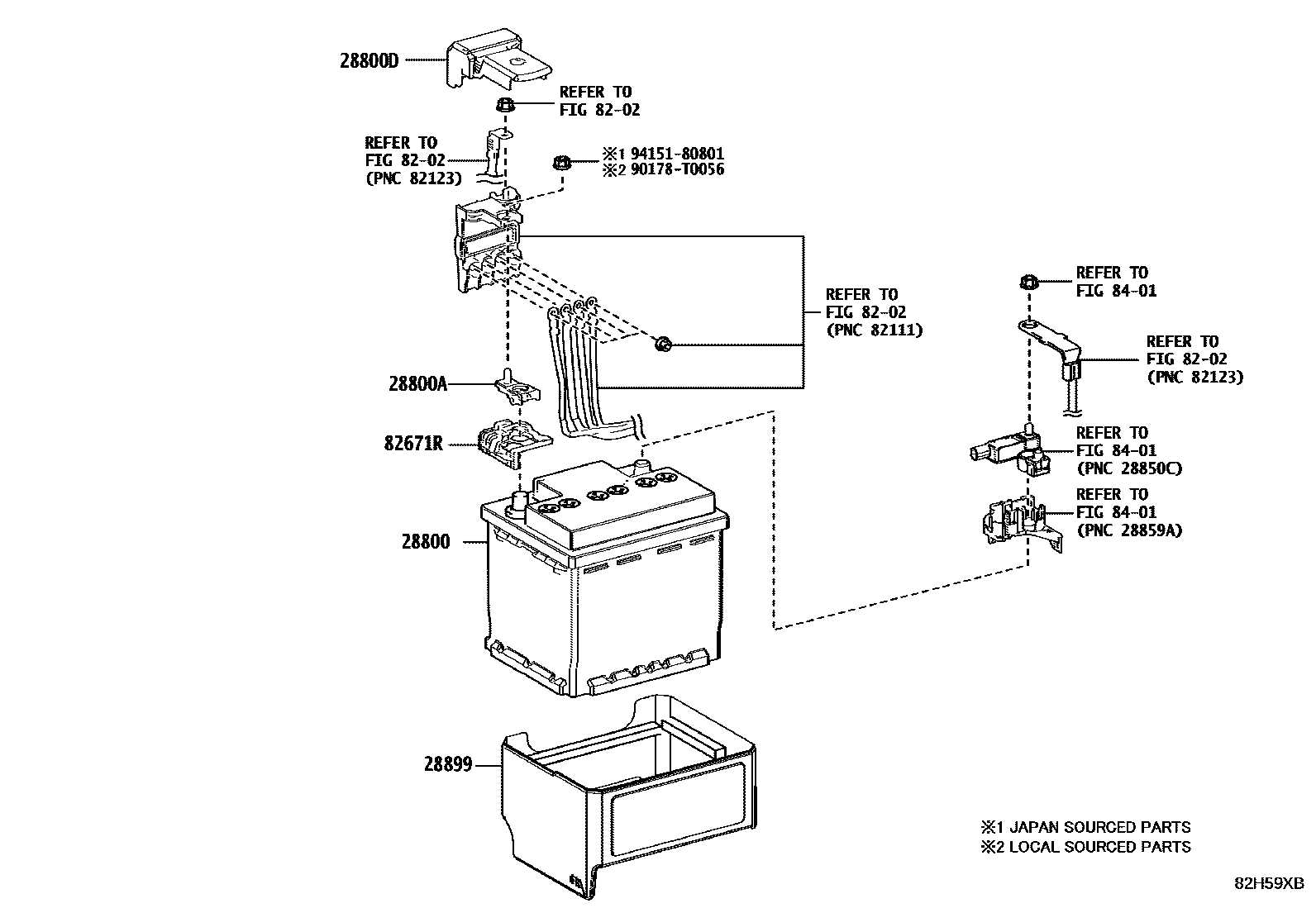

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0T270 |
| 28800A | battery positive terminal | 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82621-10010 · 82621-47020 |
| 28800J | battery negative terminal | 90982-06070 |
| 28899 | Battery insulation cover | 28899-0T120 · 28899-0T140 |
| 82671R | battery terminal block | 82651-10010 · 82671-47040 |
| 82685E | Maintenance plug warning nameplate | 82685-47111 |
| 89892A | battery voltage sensor | 89892-47050 |
| G3834 | Service plug handle | G3834-47050 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-47041 |
| G9230 | Battery cooling blower assembly | G9230-47080 |
| G9282 | HV battery thermistor | G9282-47050 |
| G9288B | battery warning label | G9288-48080 |
| G9295B | Battery cover lock | G9295-30020 |
| G9298 | HV battery clip | G928E-47010 |
| G92D1 | No. 1 HV battery air inlet | G92E1-47040 |
| G92D1A | No. 1 EV battery air inlet | G92D1-12030 |
| G92DH | No. 1 HV battery air intake filter | G92DH-12050 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-47050 |
| G92J5 | No. 1 HV battery seal | G92J5-47030 |
| G92N4A | No. 1 cover on the right side of the HV battery | G92N4-47060 |
| G92Q1 | HV battery No. 1 shielding plate | G92Q1-47050 |
| G92Z0 | HV battery junction box assembly | G92Z0-47100 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |
| G9510 | HV power supply battery assembly | G9510-47130 · G9510-47131 |
