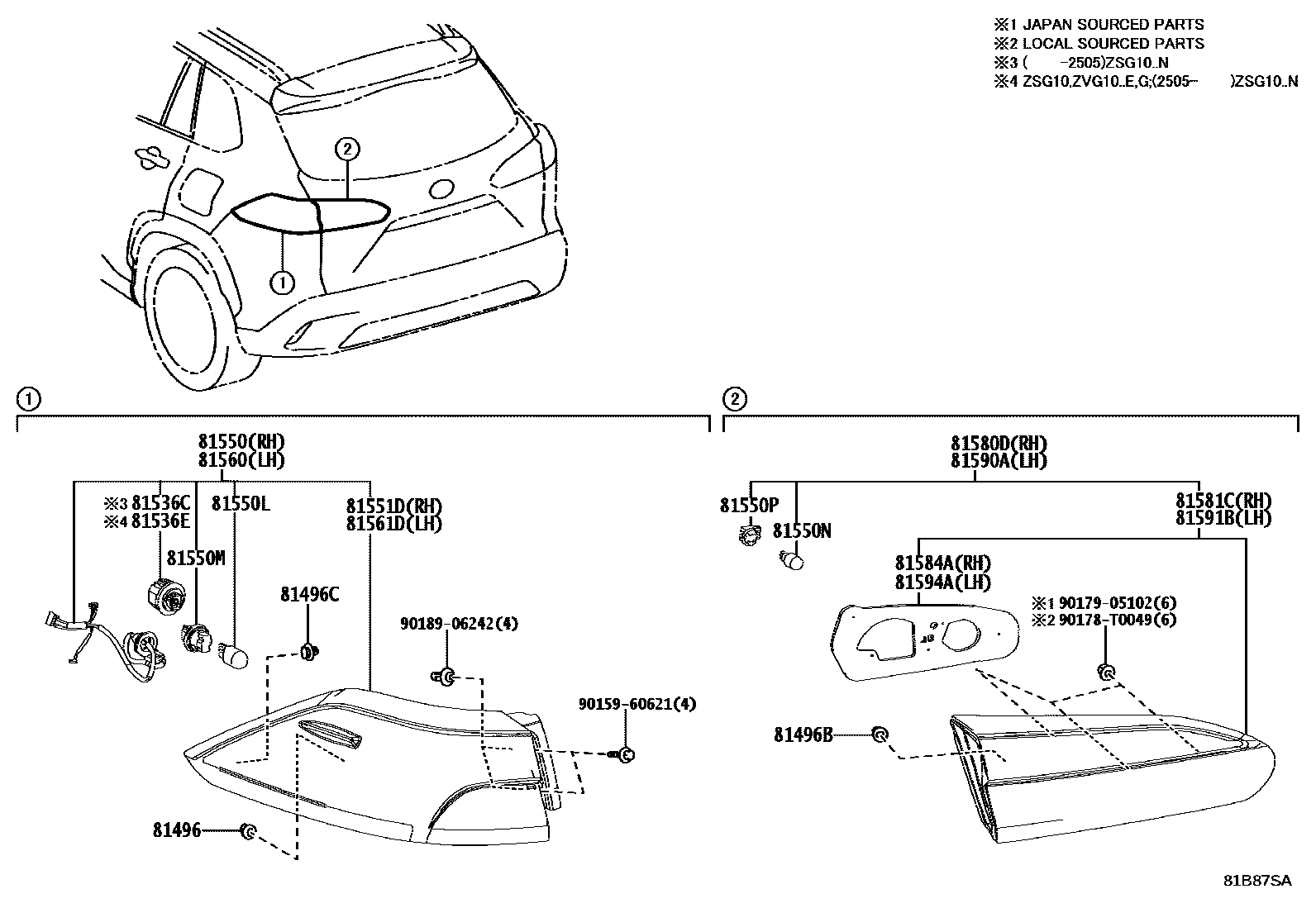

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-0D040 · 81496-52020 |
| 81496B | Rear light guide block | 81496-0D040 · 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81536C | LED tail lights and brake lights | 81536-15120 |
| 81536E | LED brake light | 81536-15120 |
| 81550 | Right rear combination light assembly | 81550-0A060 · 81550-0A070 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60028 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 90075-99005 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0A060 · 81551-0A070 |
| 81560 | Left rear combination light assembly | 81560-0A060 · 81560-0A070 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0A060 · 81561-0A070 |
| 81580D | Right rear light assembly | 81580-0A010 · 81580-0A030 |
| 81581C | Right rear light lampshade and lamp body | 81581-0A010 · 81581-0A030 |
| 81584A | Right rear light gasket | 81584-0A010 |
| 81590A | Left rear light assembly | 81590-0A010 · 81590-0A030 |
| 81591B | Left rear light shade and body | 81591-0A010 · 81591-0A030 |
| 81594A | Left rear light gasket | 81584-0A010 |
