Toyota COROLLA 燃油箱和燃油管 — Figure 7701

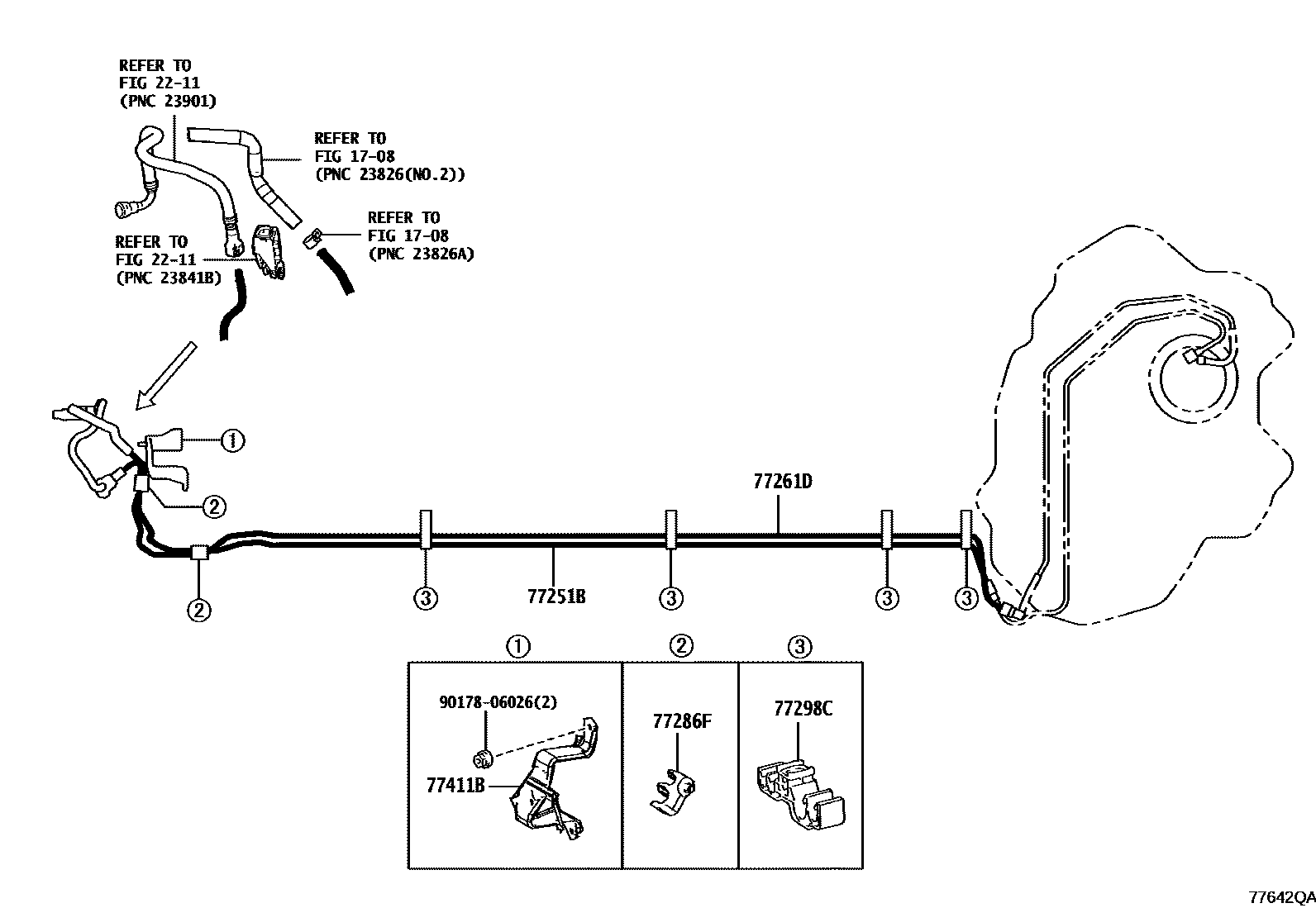

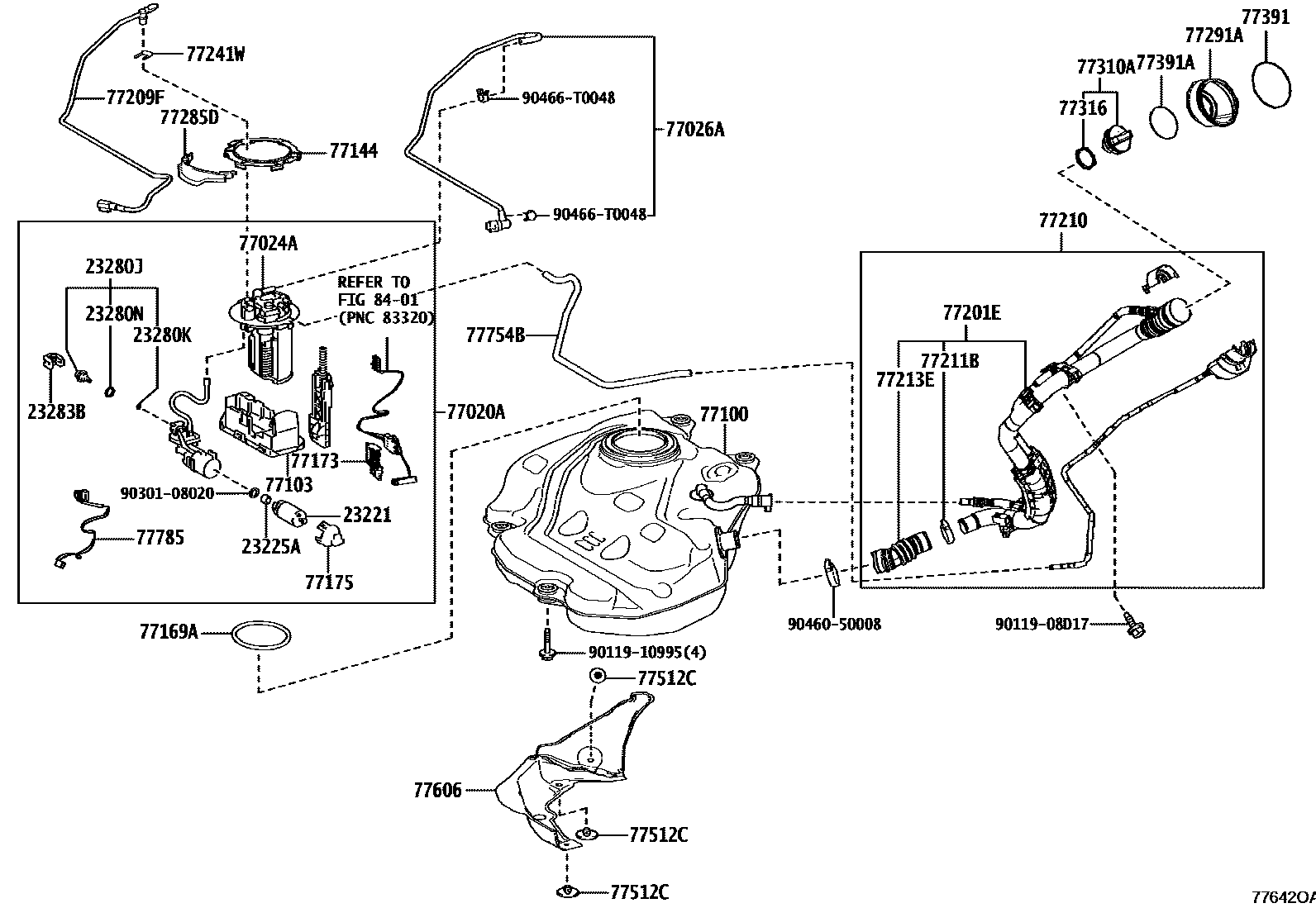

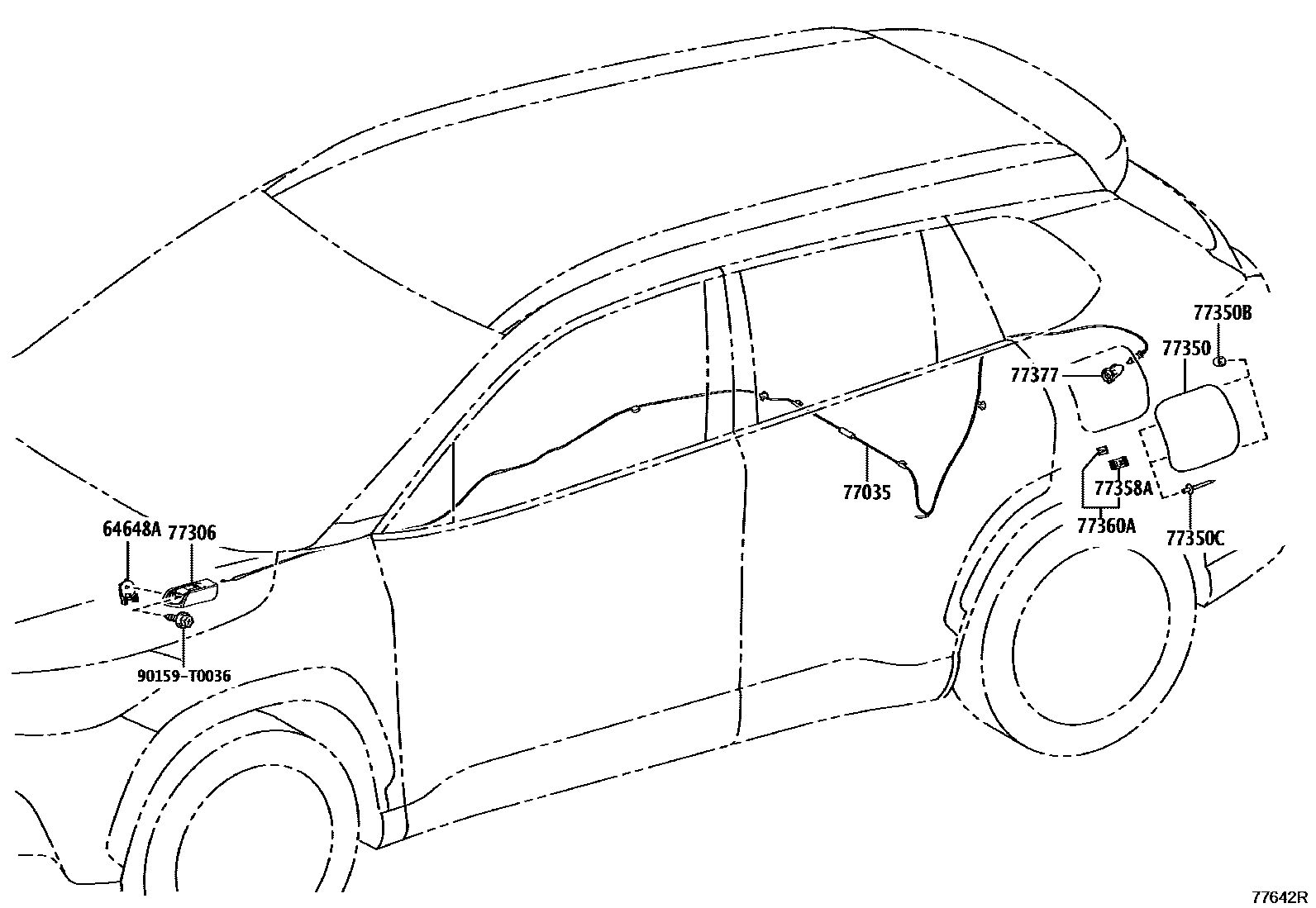

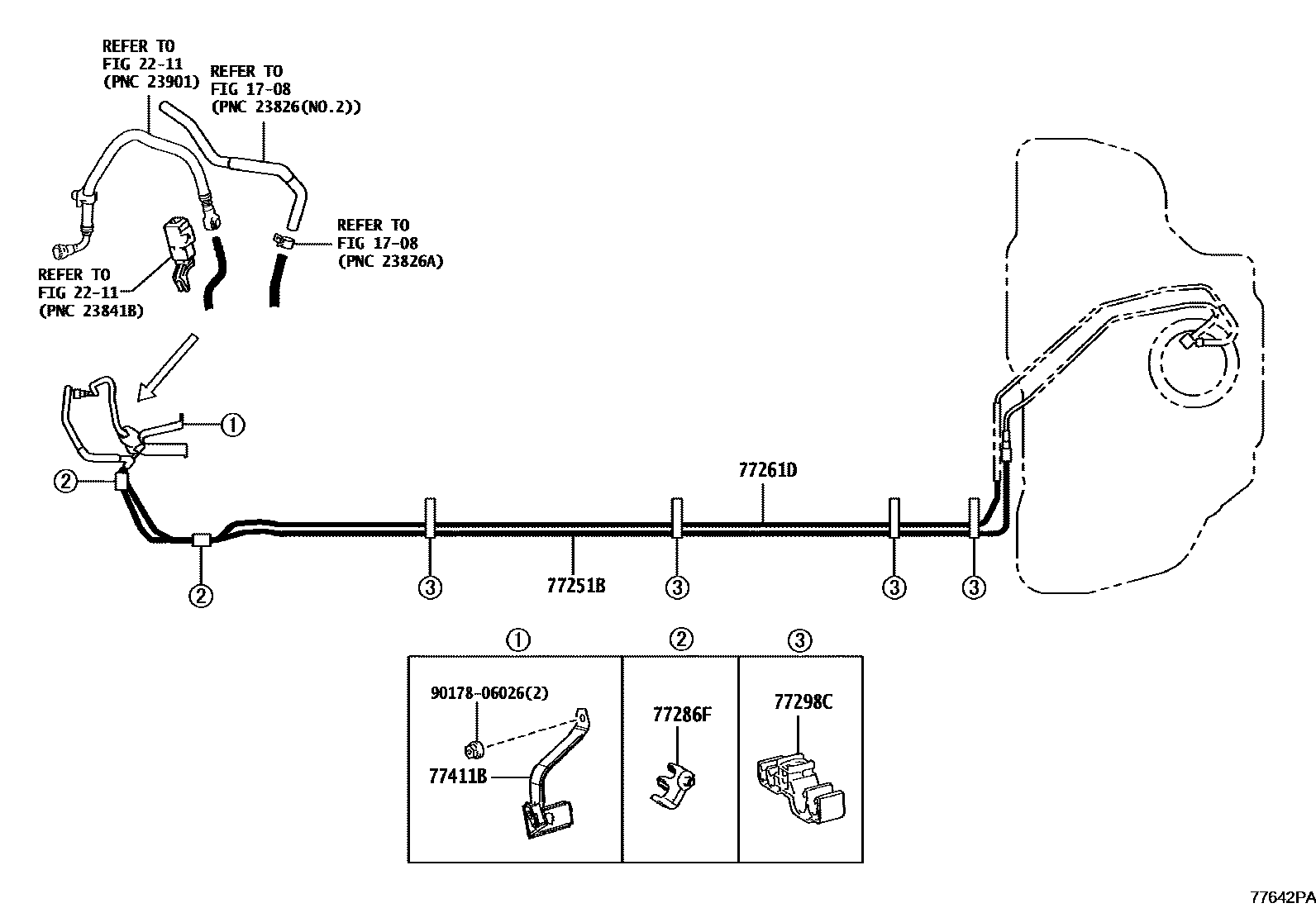

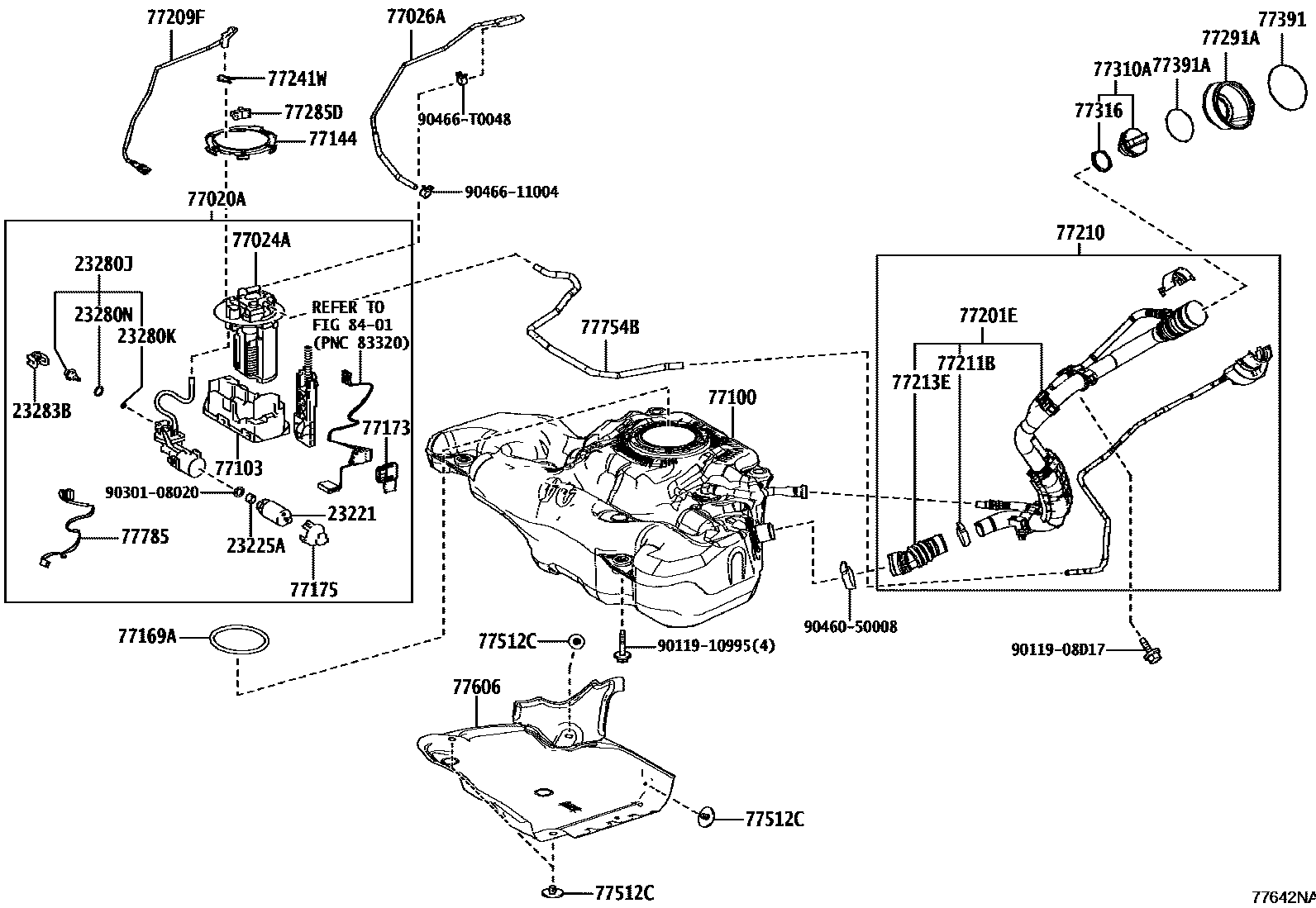

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 5 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23221-37040 · 23221-47031 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 |
| 23280N | No. 2 O-ring (for fuel pressure regulator) | 90301-15024 |
| 23283B | Fuel pressure regulator mount | 23283-37010 |
| 64648A | Trunk door lock opener seal | 64648-0D020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0A030 · 77020-0A040 |
| 77024A | Fuel absorber sub-assembly | 77024-16010 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-0A030 · 77026-0A040 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0A030 |
| 77100 | fuel tank assembly | 77001-0A030 · 77001-0A040 |
| 77103 | Auxiliary fuel tank sub-assembly | 77103-12150 |
| 77144 | Fuel pump instrument fixture | 77144-0K040 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0K030 |
| 77173 | Fuel gauge bracket | 77173-12010 · 77173-12020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-12040 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-0A030 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0A030 · 77209-0A040 |
| 77210 | Fuel tank filler pipe assembly | 77210-0A030 |
| 77211B | Clamp (for fuel filler tube) | 90460-46005 |
| 77213E | Fuel tank to filler pipe hose | 77213-0A030 |
| 77241W | Pipe joint clip | 77241-0K010 |
| 77251B | main fuel pipe | 77251-0A250 · 77251-0A260 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0A250 · 77261-0A260 |
| 77285D | No. 1 fuel pipe clamp | 77285-06570 · 77285-0A060 |
| 77286F | No. 2 fuel pipe clamp | 77286-48100 · 77286-78040 |
| 77291A | Fuel tank filler pipe cover | 77291-0A090 |
| 77298C | No. 4 fuel pipe clamp | 77298-10050 · 77298-10090 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0A010 |
| 77310A | Fuel tank cap assembly | 77300-0K010 |
| 77316 | fuel tank cap gasket | 77316-0K020 |
| 77350 | Fuel filler cap assembly | 77350-K1010 |
| 77350B | Cushion (for fuel filler cap) | 90541-06069 |
| 77350C | rivets | 90269-06017 |
| 77358A | Fuel filler cap stopper | 77358-30060 |
| 77360A | Fuel filler cap spring assembly | 77360-30080 · 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-02140 |
| 77391 | fuel inlet ring | 77391-0A010 |
| 77391A | fuel inlet ring | 77391-02020 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-F4050 · 77411-F4060 |
| 77512C | fuel tank bracket | 77512-35140 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-0A050 · 77606-0A080 |
| 77754B | Carbon canister outlet hose | 77754-0A030 · 77754-0A040 |
| 77785 | fuel pump wiring harness | 77785-12050 |
