Toyota COROLLA 侧防护条 — Figure 7503

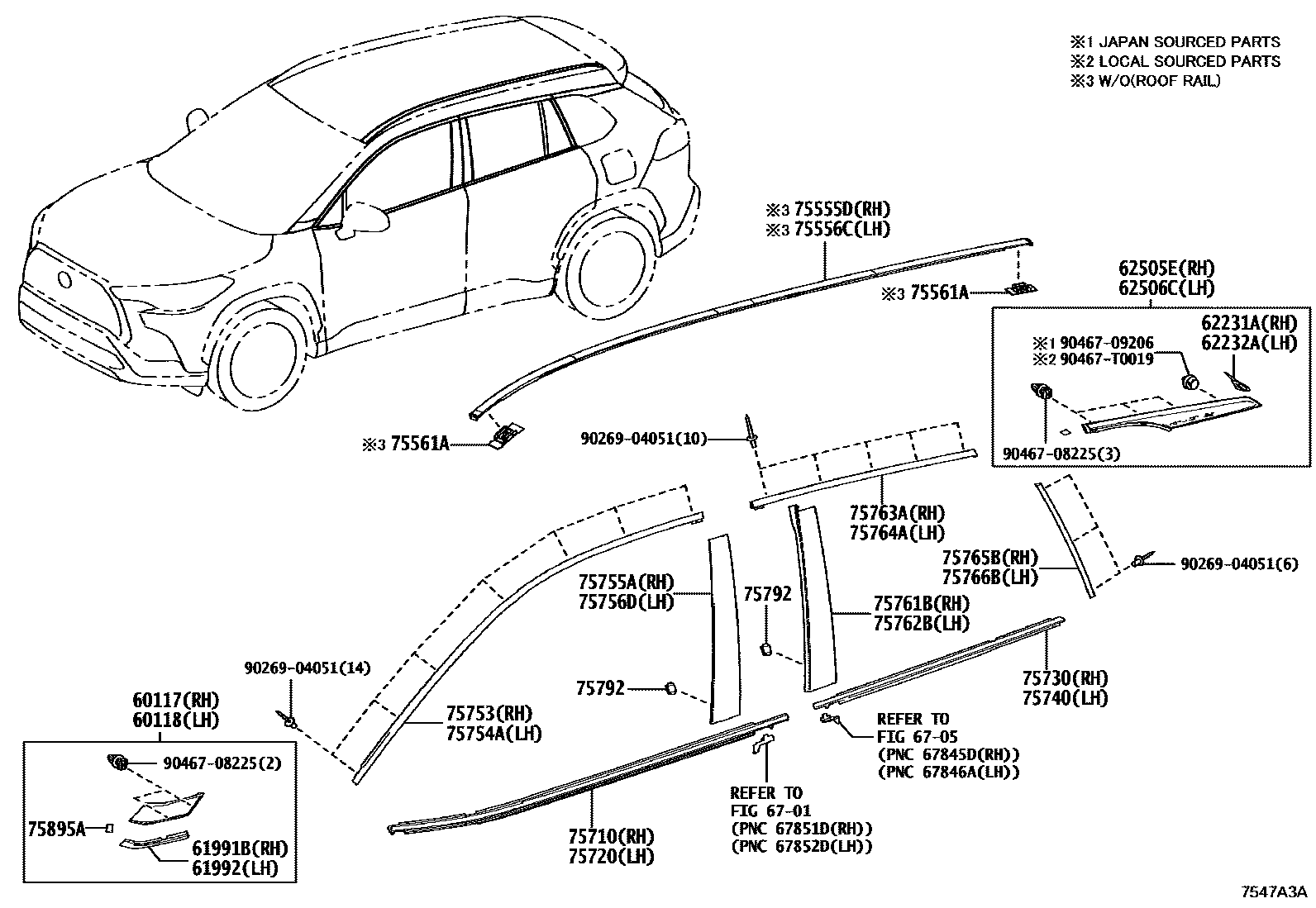

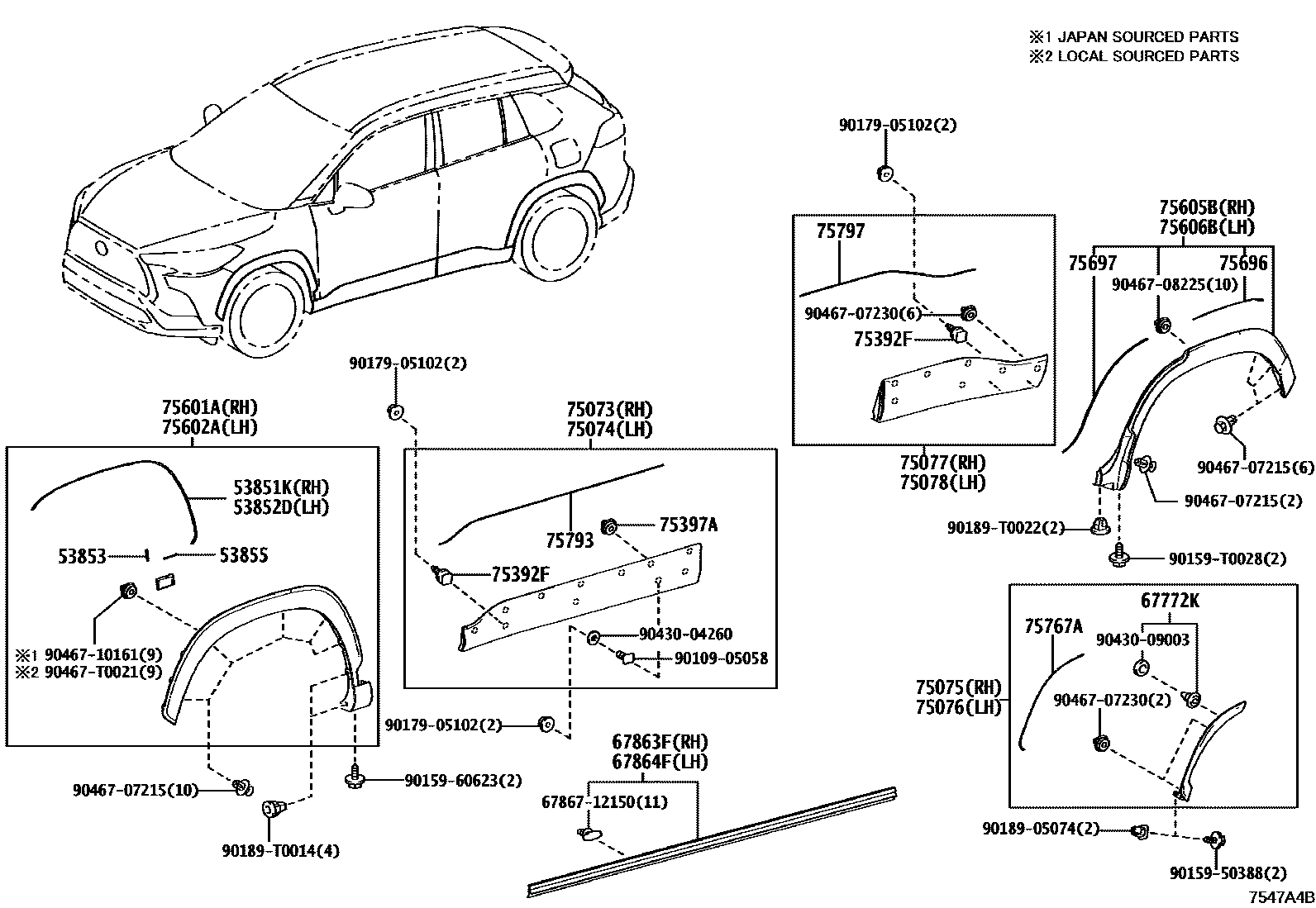

Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851K | Right front fender outer panel pad | 53851-0A060 |
| 53852D | Left front fender exterior panel pad | 53851-0A060 |
| 53853 | No. 3 front fender outer panel pad | 53853-0A060 |
| 53855 | No. 3 front fender outer panel pad | 53855-0A010 |
| 60117 | Right front pillar upper cover sub-assembly | 60117-0A090 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-0A090 |
| 61991B | Right front pillar cover protector | 61991-0A010 |
| 61992 | Left front pillar cover protector | 61992-0A010 |
| 62231A | Right corner window pillar gasket | 62523-0A010 · 62523-0A020 |
| 62232A | Left corner window pillar gasket | 62524-0A010 · 62524-0A020 |
| 62505E | Right corner window pillar cover sub-assembly | 62505-0A160 · 62505-0A170 |
| 62506C | Left corner window pillar cover sub-assembly | 62506-0A160 · 62506-0A170 |
| 67772K | Door trim panel fixing cover | 67772-47020 |
| 67863F | Right front door seal No. 2 | 67863-0A090 |
| 67864F | Left front door seal No. 2 | 67863-0A090 |
| 75073 | Right front door outer lower protective strip sub-assembly | 75073-0A090 |
| 75074 | Left front door outer lower protective strip sub-assembly | 75074-0A090 |
| 75075 | Right rear door outer protective strip sub-assembly | 75075-0A090 |
| 75076 | Left rear door outer protective strip sub-assembly | 75076-0A090 |
| 75077 | Right rear door outer lower protective strip sub-assembly | 75077-0A090 |
| 75078 | Left rear door outer lower protective strip sub-assembly | 75078-0A090 |
| 75392F | External protective strip fixings | 75392-33020 |
| 75397A | No. 3 outer protective strip clip | 90467-07230 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-0A020 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-0A020 |
| 75561A | Roof drain channel side decorative strip clip | 75561-0A050 |
| 75601A | Right front fender protection strip sub-assembly | 75601-0A090 |
| 75602A | Left front fender protection strip sub-assembly | 75602-0A090 |
| 75605B | Right side enclosure outer protective strip sub-assembly | 75605-0A090 |
| 75606B | Left side enclosure outer protective strip sub-assembly | 75606-0A090 |
| 75696 | No. 1 body outer protective strip lining | 75696-0A010 |
| 75697 | No. 2 body outer protective strip lining | 75697-0A010 |
| 75710 | Right front door waistline protection strip assembly | 75710-0A030 |
| 75720 | Left front door waistline protection strip assembly | 75720-0A030 |
| 75730 | Right rear door waistline protection strip assembly | 75730-0A030 |
| 75740 | Left rear door waistline protection strip assembly | 75740-0A030 |
| 75753 | Protective strip on right front door window frame | 75753-0A010 · 75753-0A020 |
| 75754A | Protective strip on left front door window frame | 75754-0A010 · 75754-0A020 |
| 75755A | Front door window frame protection strip (right center pillar) | 75755-0A010 |
| 75756D | Front door window frame protection strip (left center pillar) | 75756-0A010 |
| 75761B | Rear door window frame protection strip (right center pillar) | 75761-0A010 |
| 75762B | Rear door window frame protection strip (left center pillar) | 75762-0A010 |
| 75763A | Protective strip on right rear door window frame | 75763-0A010 · 75763-0A020 |
| 75764A | Protective strip on left rear door window frame | 75764-0A010 · 75764-0A020 |
| 75765B | Rear door window frame protection strip (right rear pillar) | 75765-0A010 |
| 75766B | Rear door window frame protection strip (left rear pillar) | 75766-0A010 |
| 75767A | No. 1 rear door protective strip lining | 75767-0A010 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75793 | Front door outer upper protective strip lining | 75793-0A010 |
| 75797 | Rear door outer upper protective strip lining | 75797-0A010 |
| 75895A | No. 1 protective strip tape | 75895-0A010 |
