Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

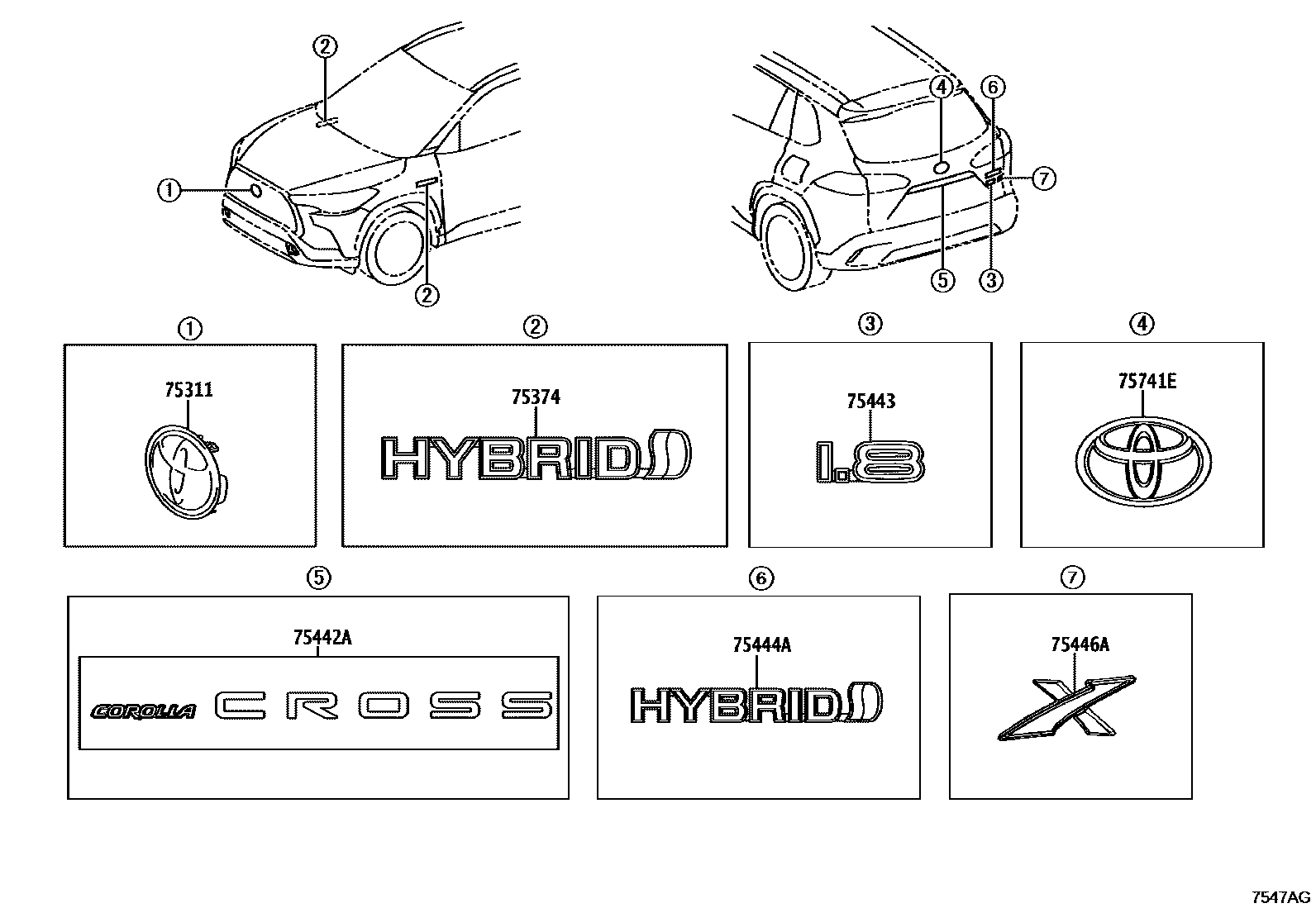

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75301-0A020 · 75301-0A030 |
| 75374 | side panel sign | 75374-0A120 · 75374-0A130 |
| 75442A | No. 2 nameplate on back door | 75442-0A070 |
| 75443 | No. 3 nameplate on back door | 75443-0A080 |
| 75444A | No. 4 nameplate on back door | 75441-0A080 |
| 75446A | No. 6 nameplate on back door | 75444-0A120 |
| 75741E | logo | 75403-0A010 · 75431-02090 |
