Toyota COROLLA 扶手和遮阳板 — Figure 7401

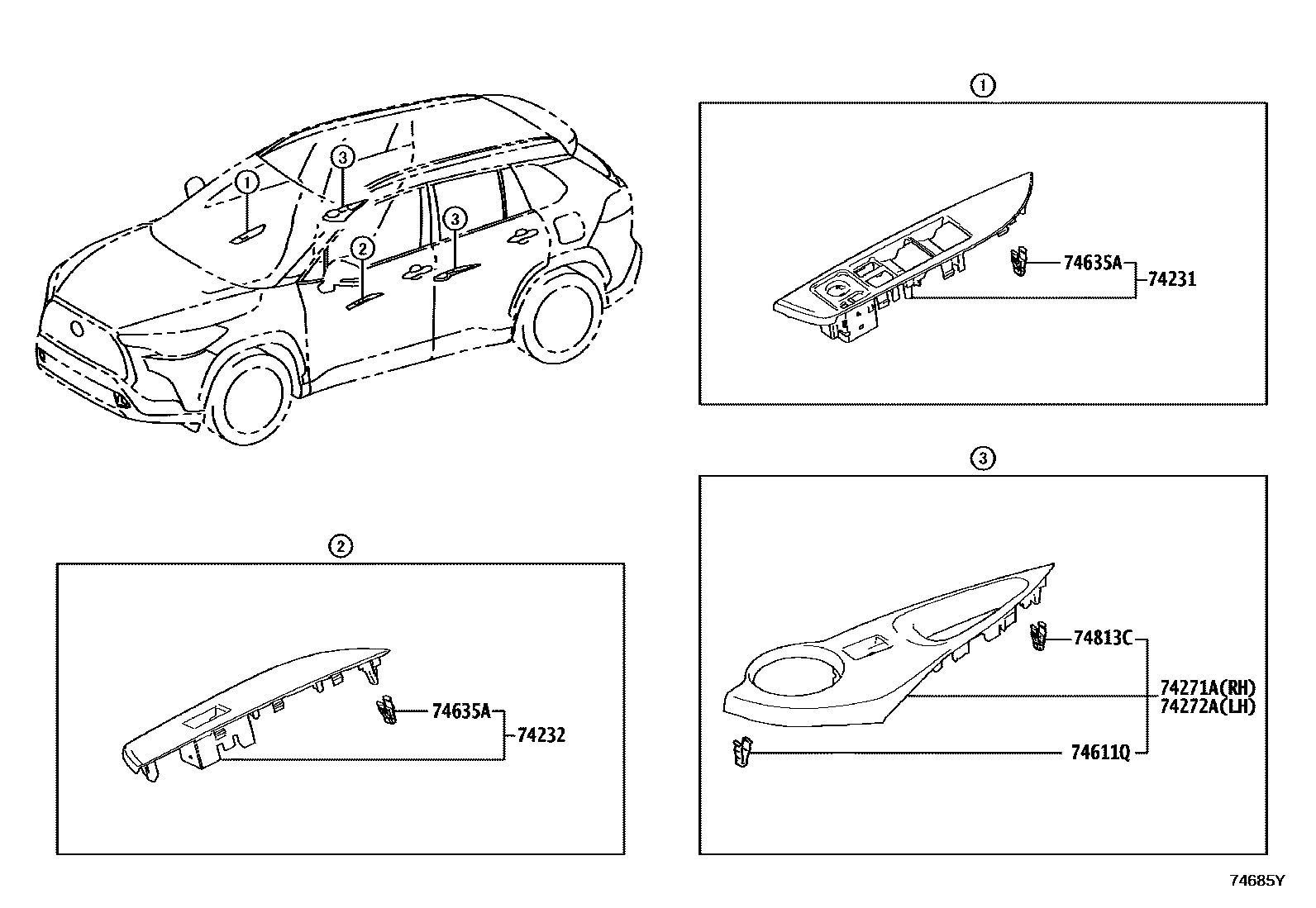

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-0A060 |
| 74232 | Left front armrest upper panel | 74232-0A050 |
| 74271A | Right rear door armrest upper panel | 74271-0A070 |
| 74272A | Left rear door armrest upper panel | 74272-0A070 |
| 74611Q | clip | 90467-12080 |
| 74614C | Auxiliary handle locking plate | 74614-06010 |
| 74635A | clip | 90467-10203 |
| 74813C | clip | 90467-T0033 |
