Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

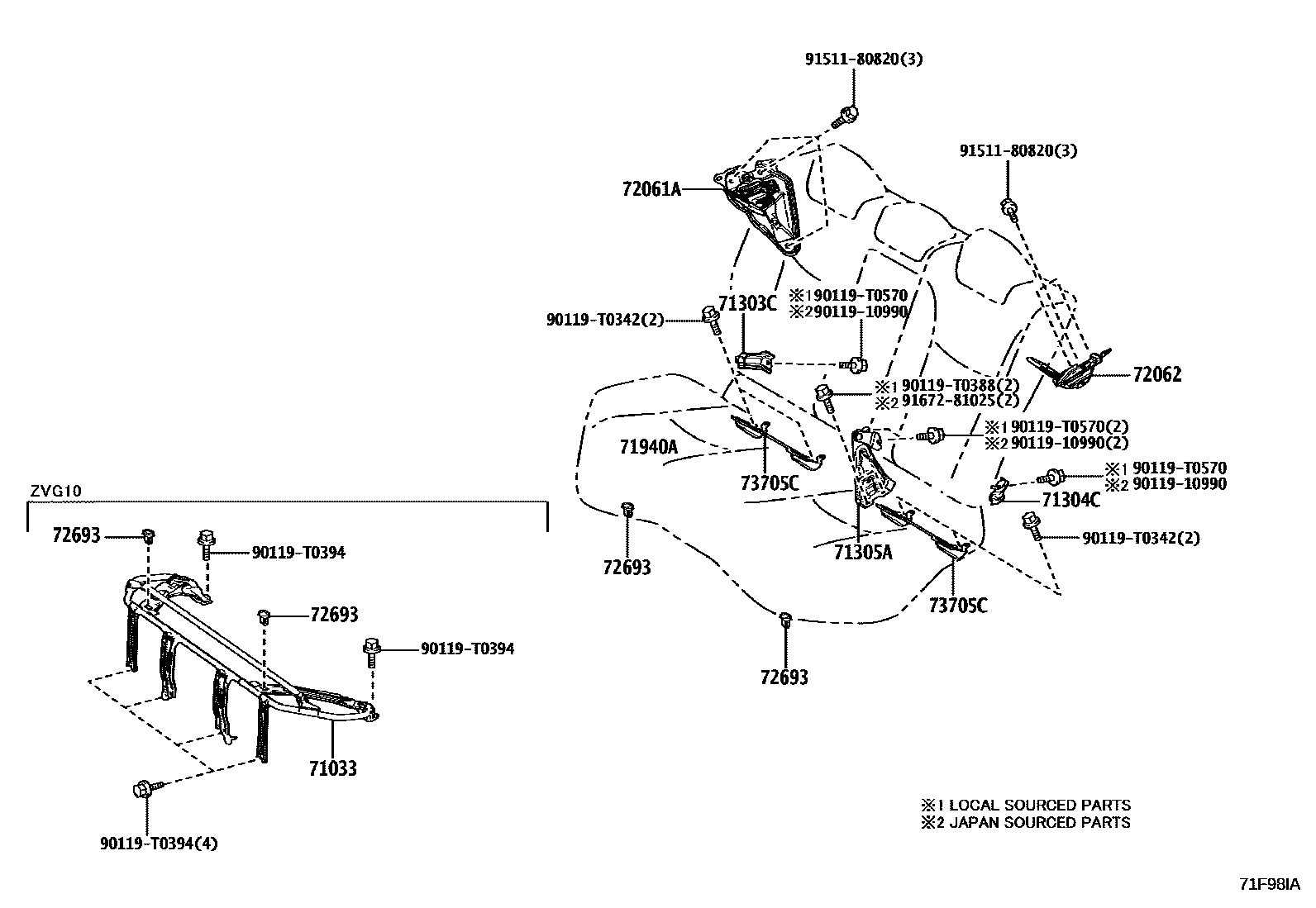

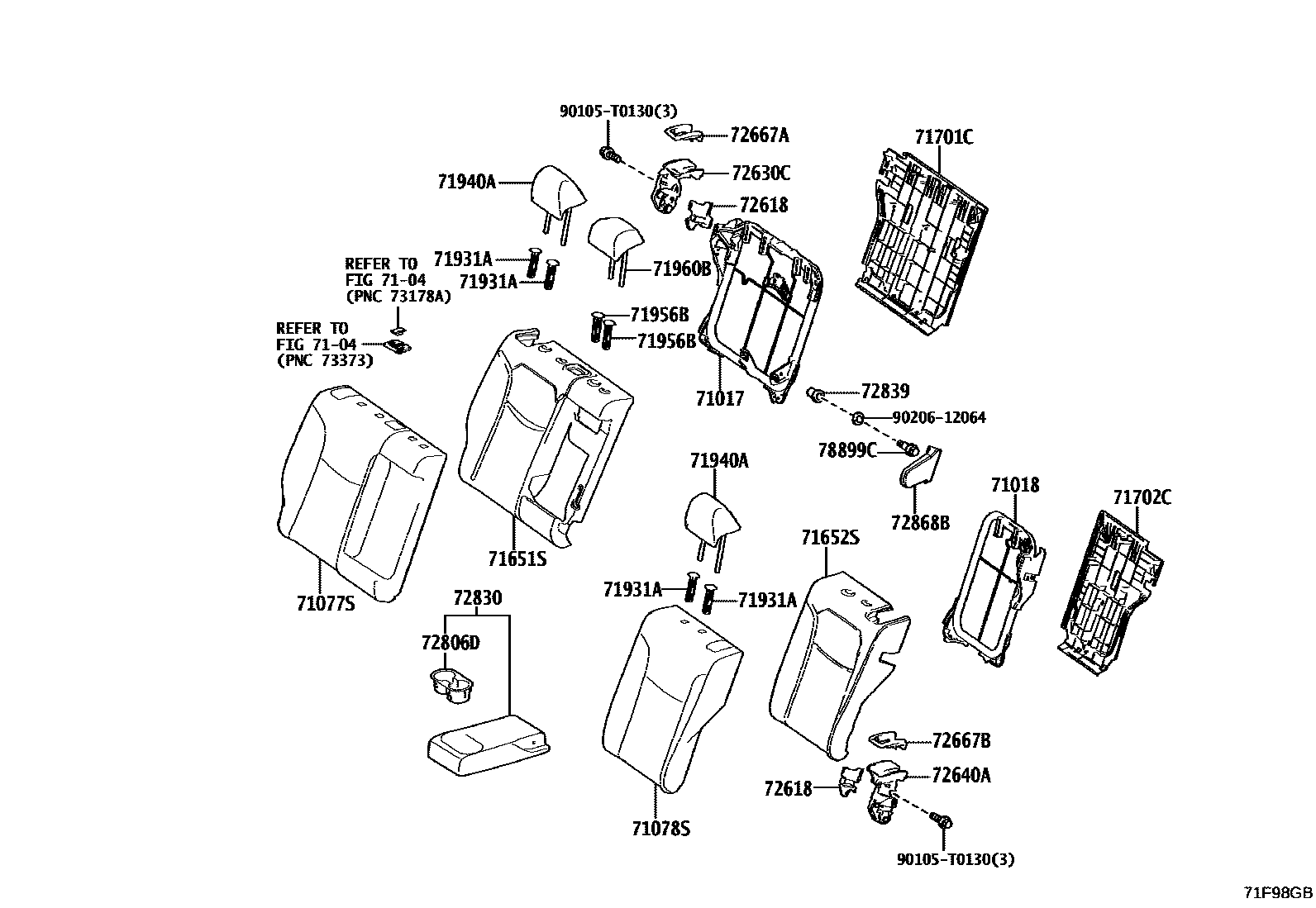

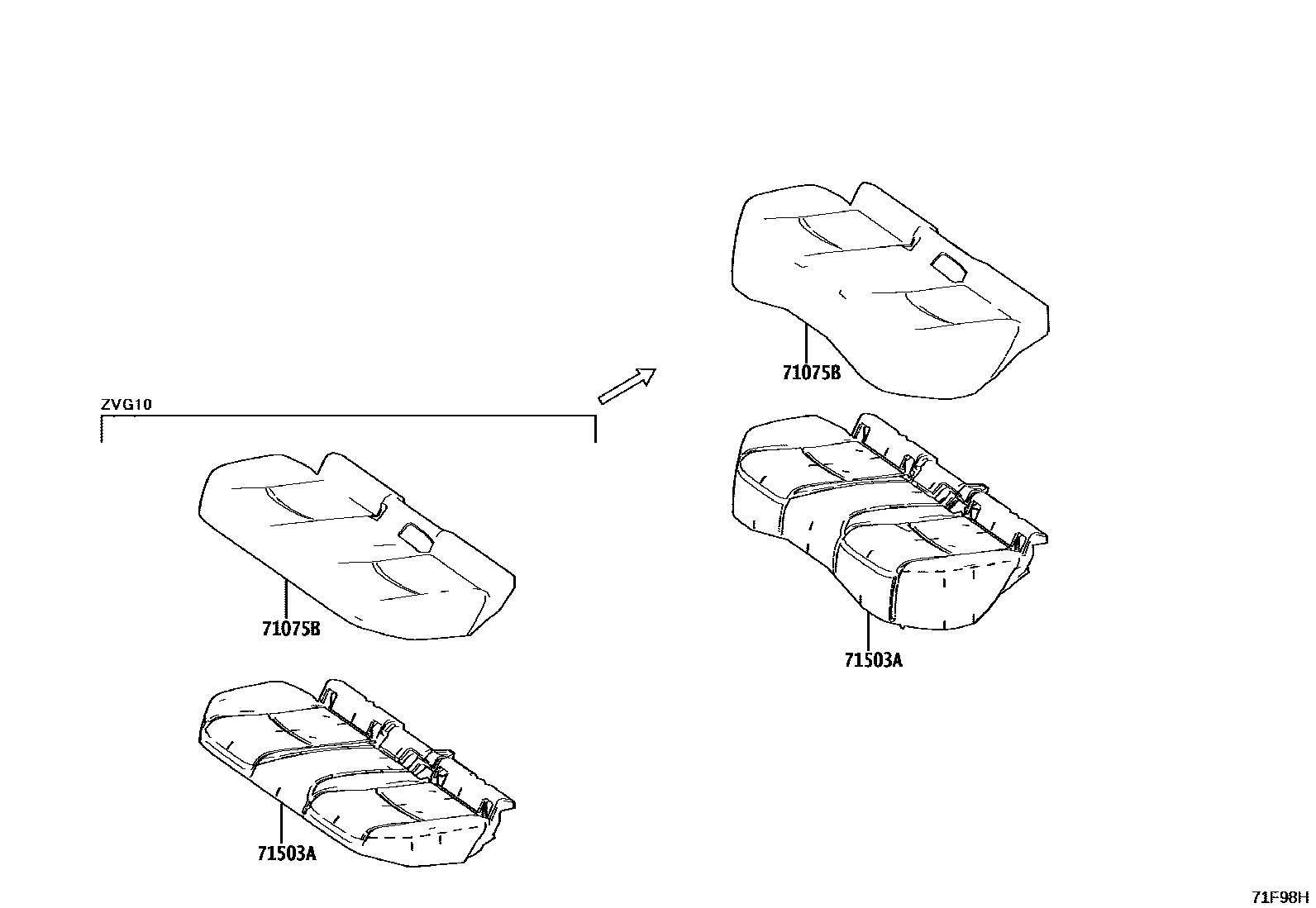

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-0A070 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0A090 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-02030 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-10060 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-10100 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-0A010 |
| 71503A | Rear seat cushion sub-assembly | 71503-0A200 · 71503-0A210 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0A050 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0A100 |
| 71701C | Rear right seat back panel sub-assembly | 71701-0A080 |
| 71702C | Rear left seat back panel sub-assembly | 71702-0A080 |
| 72061A | Rear right seat back lock base sub-assembly | 72061-0A010 |
| 72062 | Rear left seat back lock base sub-assembly | 72062-0A010 |
| 72618 | Rear seat back lock protective cover | 72618-0A010 · 72618-0A040 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72839 | Rear seat armrest hinge gasket | 72839-22010 |
| 73705C | Child restraint seat anchor bracket sub-assembly | 73705-0A070 |
| 78899C | Rear auxiliary seat bolt | 78899-60070 |
