Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

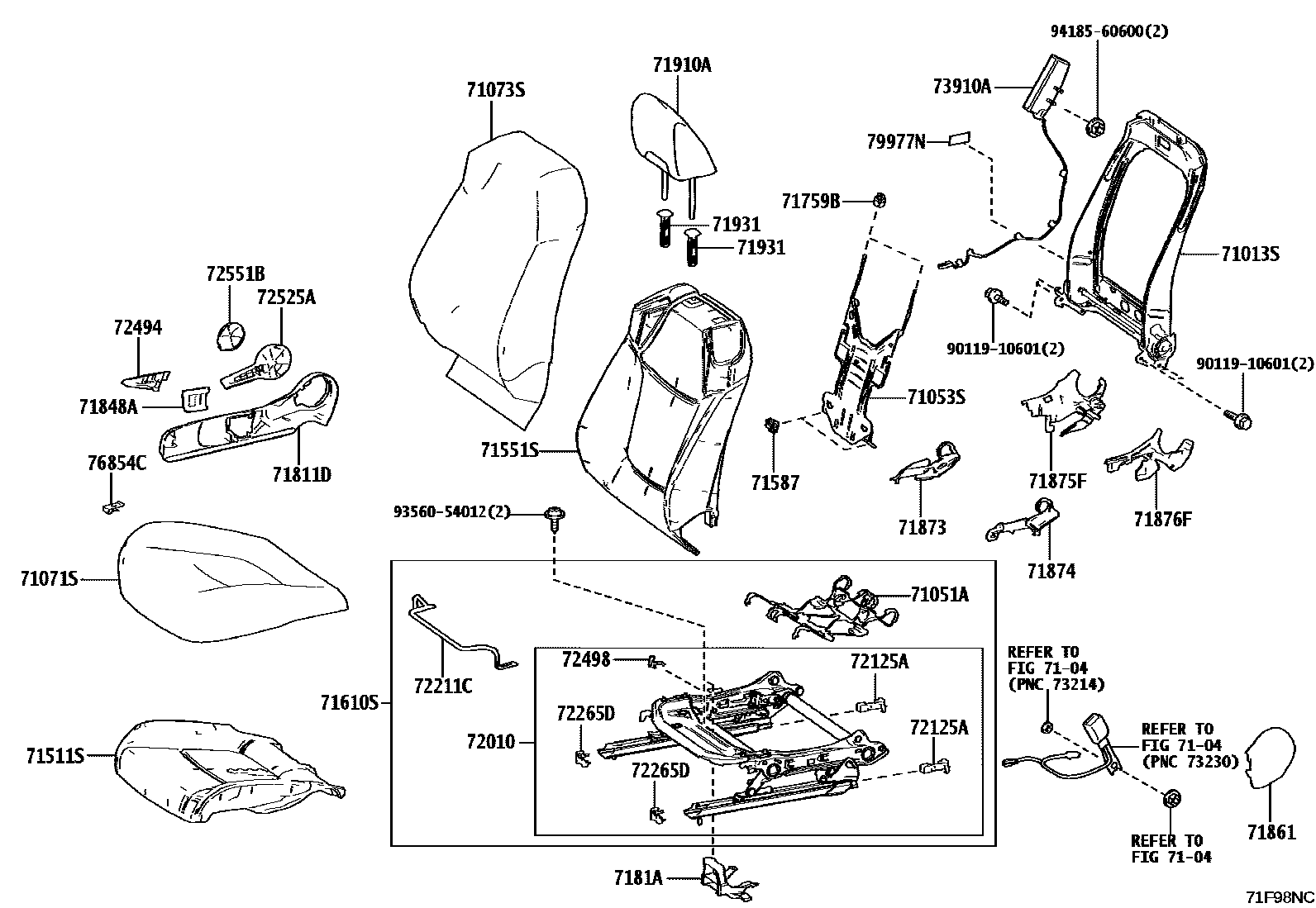

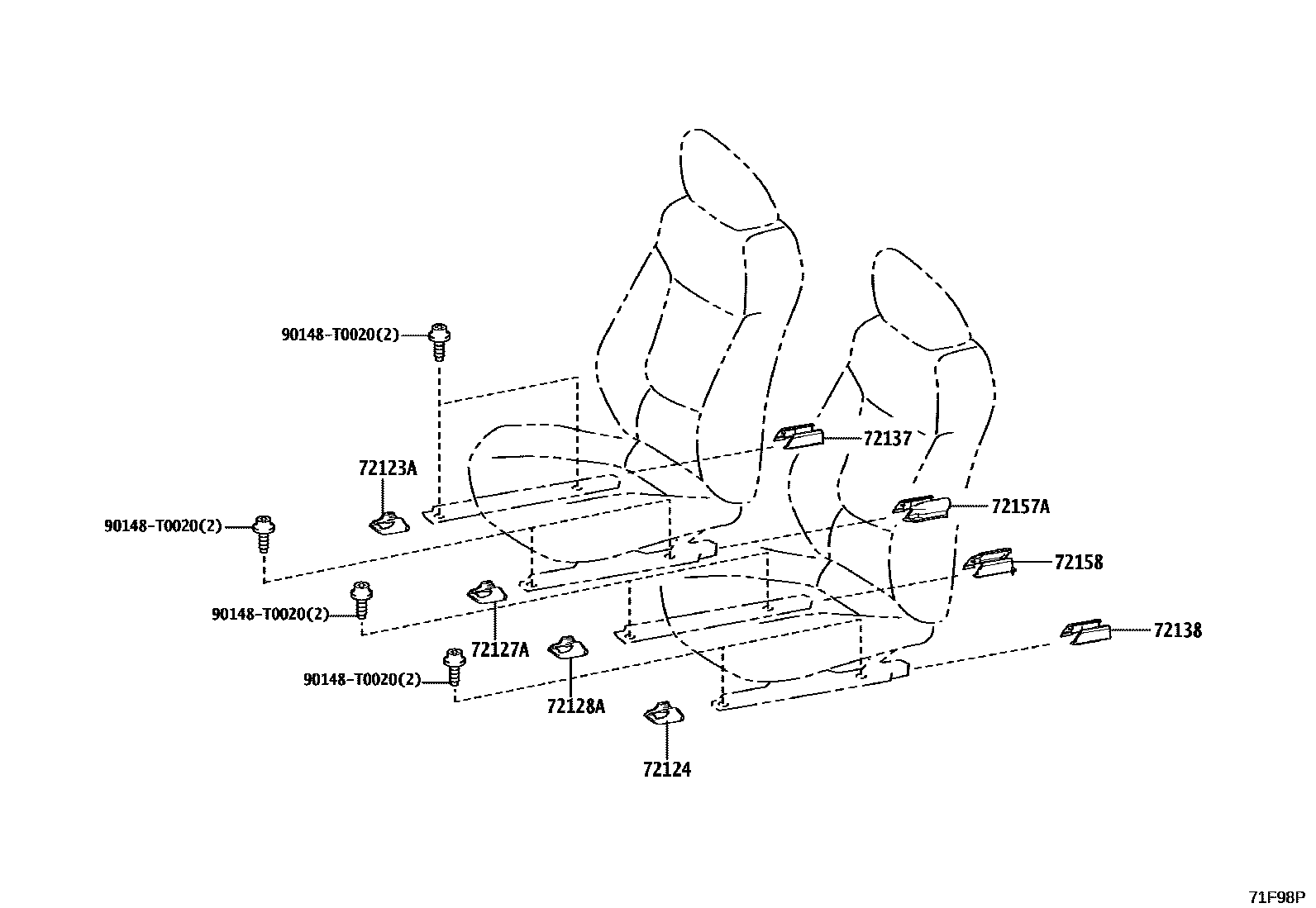

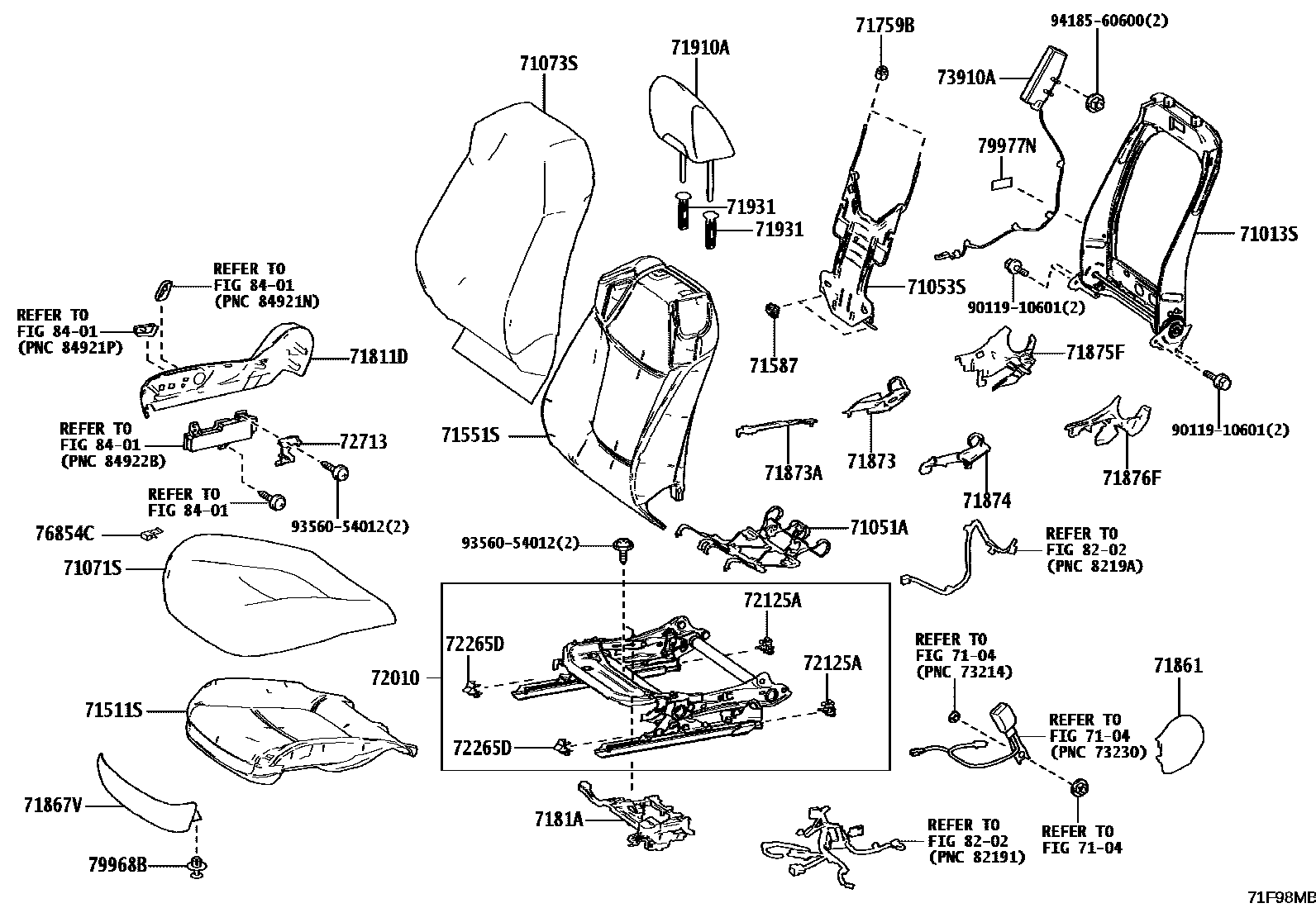

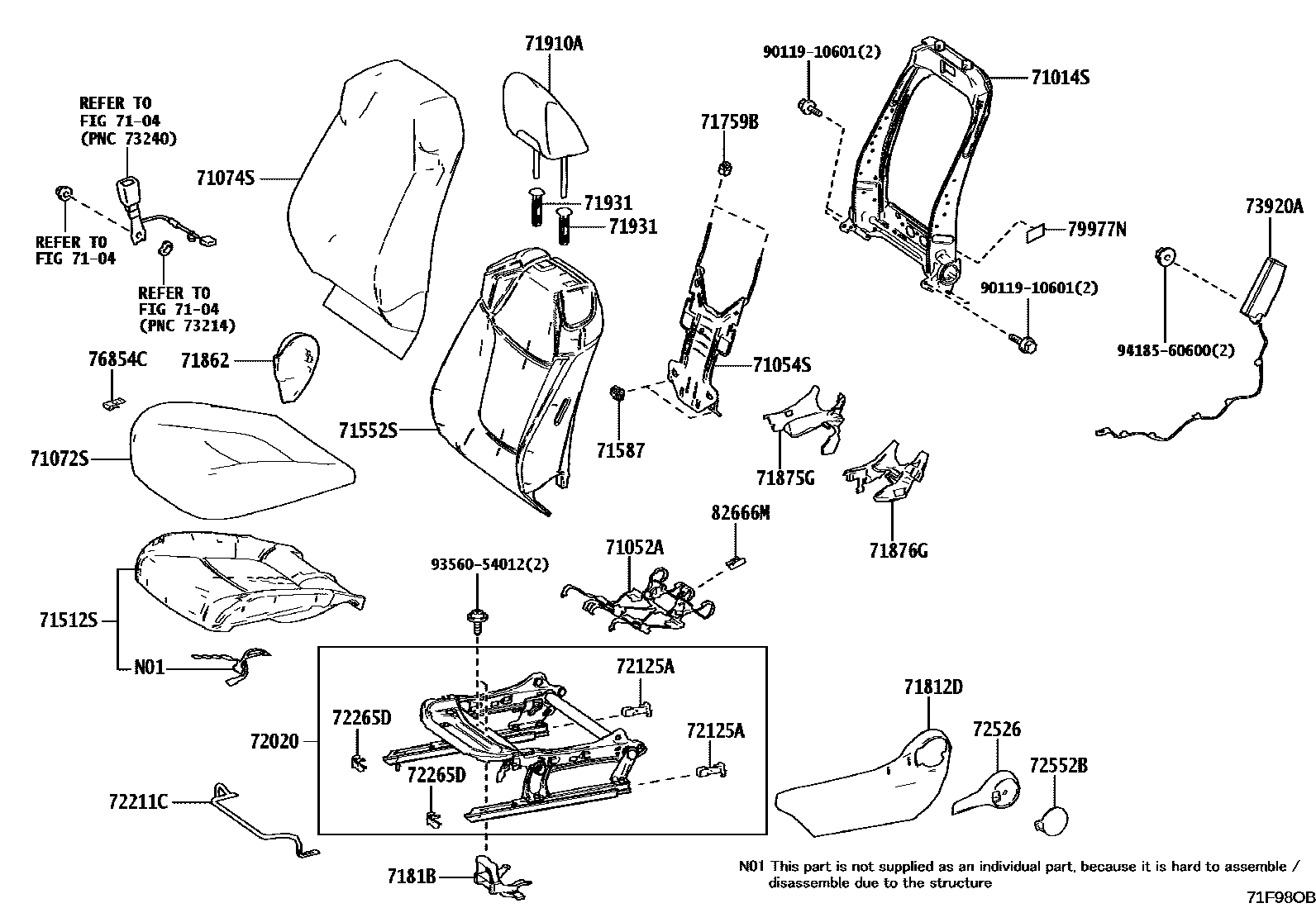

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-0A110 · 71013-0A120 |
| 71014S | Front left seat back frame sub-assembly | 71014-0A120 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-06120 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-06120 |
| 71053S | Front right seat back spring sub-assembly | 71053-06160 |
| 71054S | Front left seat back spring sub-assembly | 71053-06160 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-0A170 · 71511-0A180 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-0A040 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0A180 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0A170 |
| 71587 | Front seat back edge protective cover | 71587-F4030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-0A070 |
| 71759B | Front seat back hook | 71759-0K060 |
| 7181A | Front right seat cushion harness holder | 7181A-06030 · 7181A-0A030 |
| 7181B | Front left seat cushion harness holder | 7181B-0A040 |
| 71873 | Front right seat cushion lower guard panel | 71873-06430 |
| 71873A | Front seat cushion lower guard | 71873-06550 |
| 71874 | Front left seat cushion lower guard | 71873-06620 |
| 72010 | Front right seat adjuster assembly | 72010-0A070 · 72010-0A080 |
| 72020 | Front left seat adjuster assembly | 72020-0A100 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-06130 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-06130 |
| 72125A | Rear seat upper slide rail cover | 72125-06090 · 72125-06100 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-06130 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-06130 |
| 72137 | Right seat outer slide rail cover | 72137-06150 |
| 72138 | Left seat outer slide rail cover | 72137-06150 |
| 72157A | Right seat inner slide rail bracket cover | 72157-10090 |
| 72158 | Left seat inner slide rail bracket cover | 72158-10040 |
| 72211C | Seat slide adjustment handle | 72211-06150 |
| 72265D | Seat rail upper rail cover | 72265-06040 · 72265-06060 |
| 72498 | Height adjuster bracket cover | 72498-06020 |
| 72713 | Right seat adjuster protective clip bracket | 72713-06020 |
| 73910A | Front right seat airbag assembly | 73910-16010 |
| 73920A | Front left seat airbag assembly | 73920-16010 |
| 76854C | Front seat cushion cover wire fixings | 76854-44010 |
| 79968B | clip | 90467-07215 |
| 79977N | Seat back felt pad | 79977-0A010 |
| 82666M | Connector holder | 82666-47630 |
