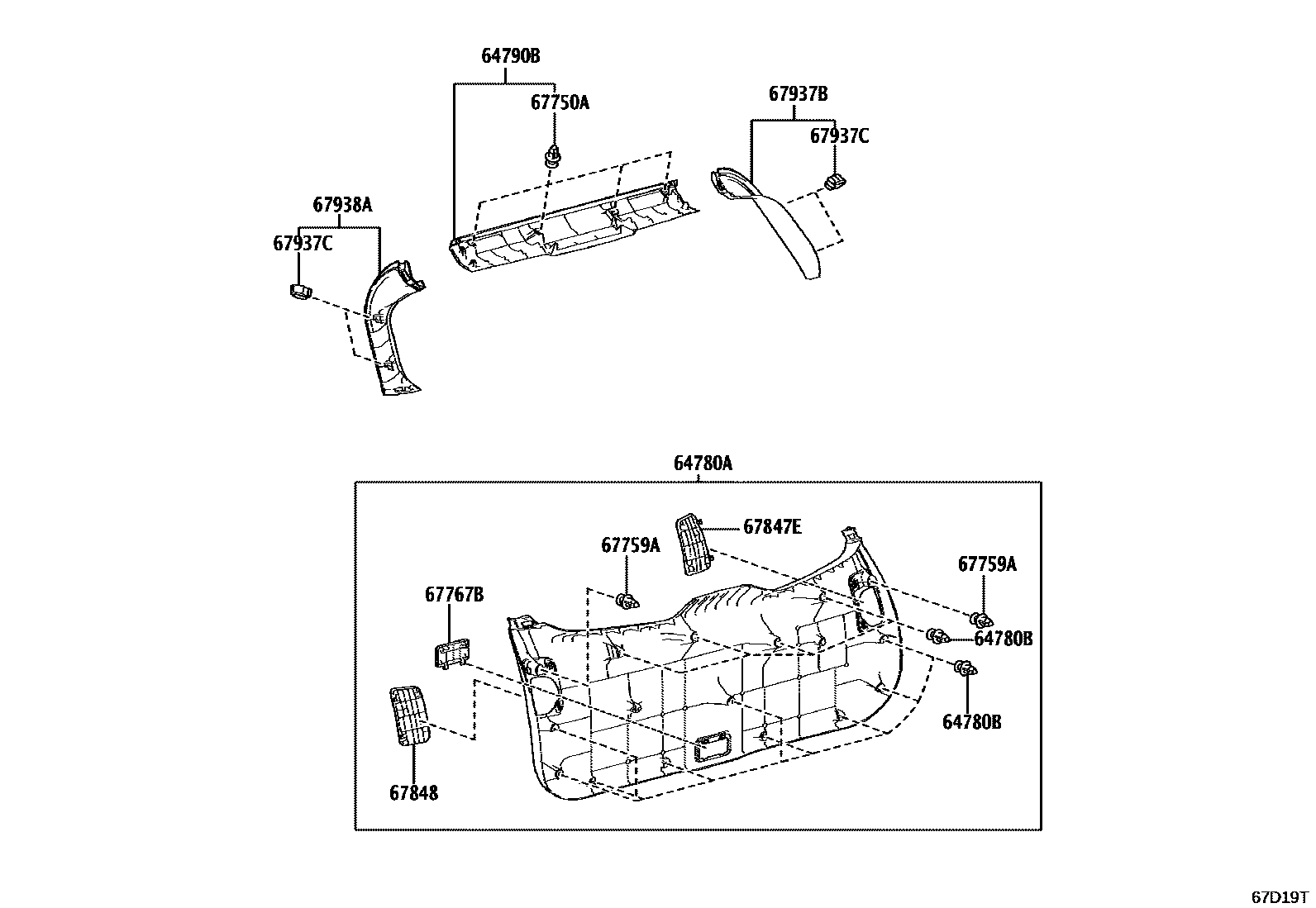

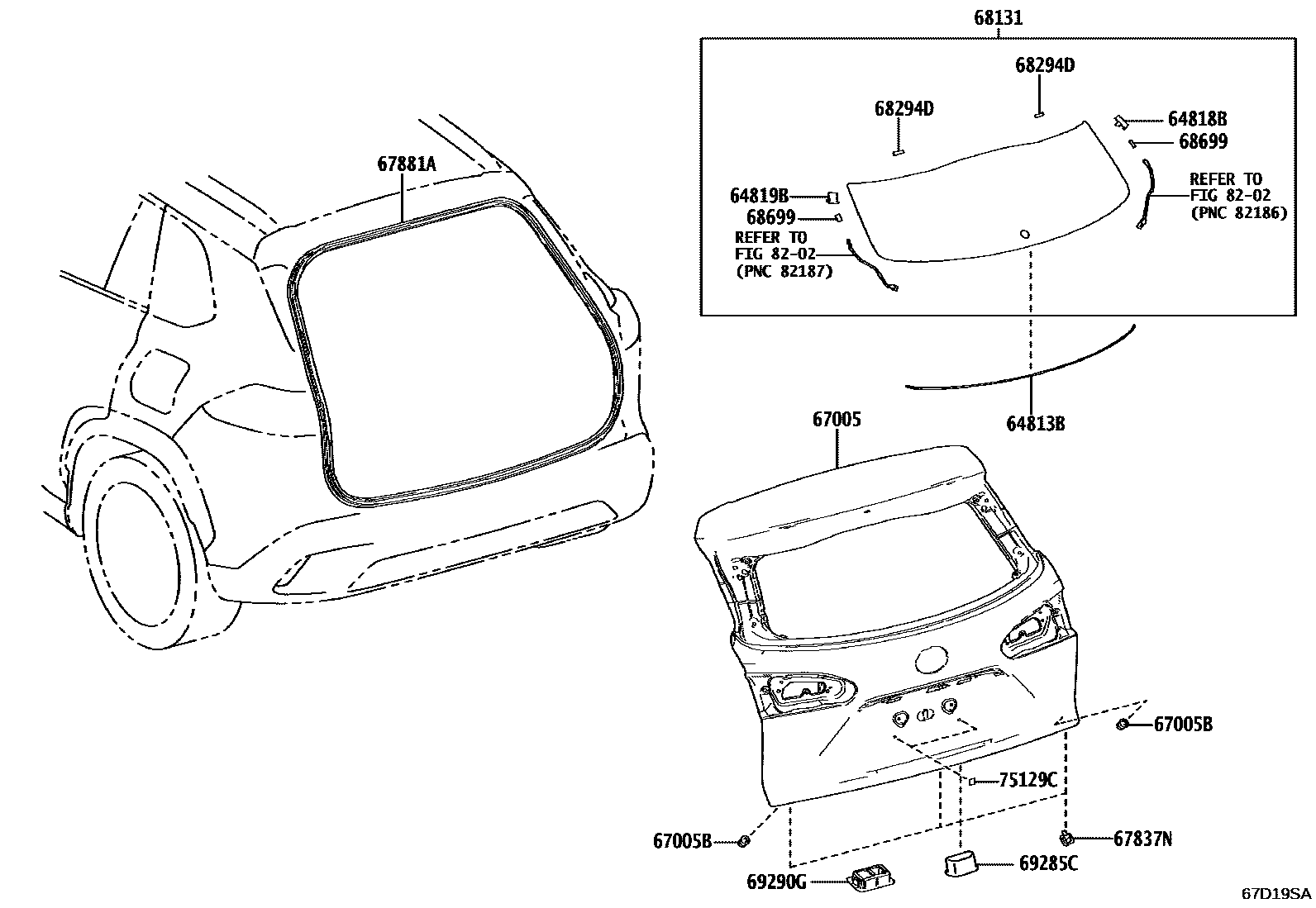

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64780B | Clip (for rear door trim panel) | 90467-T0021 |
| 64813B | Back window glass adhesive seal | 64814-0A010 |
| 64818B | No. 1 back door glass spacer | 64818-0A010 |
| 64819B | No. 2 back window glass spacer | 64819-0A010 |
| 67005 | Rear door panel sub-assembly | 67005-0A350 · 67005-0A360 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67750A | Clip (for rear door trim panel) | 90467-T0021 |
| 67759A | Clip (for rear door trim panel) | 90467-10167 |
| 67837N | Back door dust seal retainer | 67837-0A040 |
| 67881A | Back door seal | 67881-0A140 · 67881-0A150 |
| 67937C | Clip (for rear door side decorative strip) | 90467-09241 |
| 68131 | back door glass | 68105-0A010 |
| 68294D | Back door glass adhesive No. 2 sealing strip | 68294-26030 |
| 68699 | Back door window frame spacer | 68699-0A010 |
| 69285C | handle | 69285-0D040 |
| 69290G | Sliding door inner handle base assembly | 69290-0A010 |
| 75129C | rear license plate cushion | 75129-21010 |
