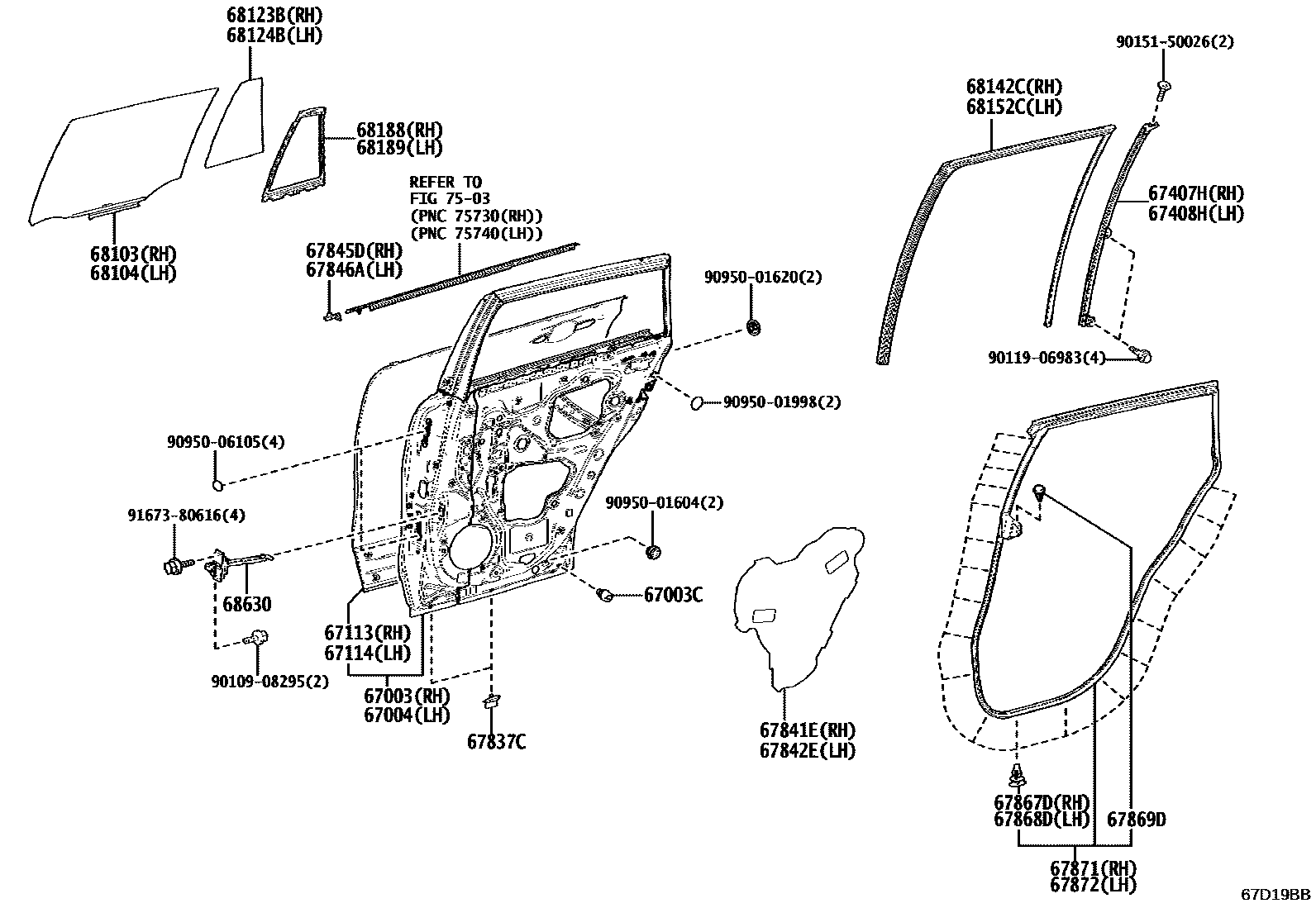

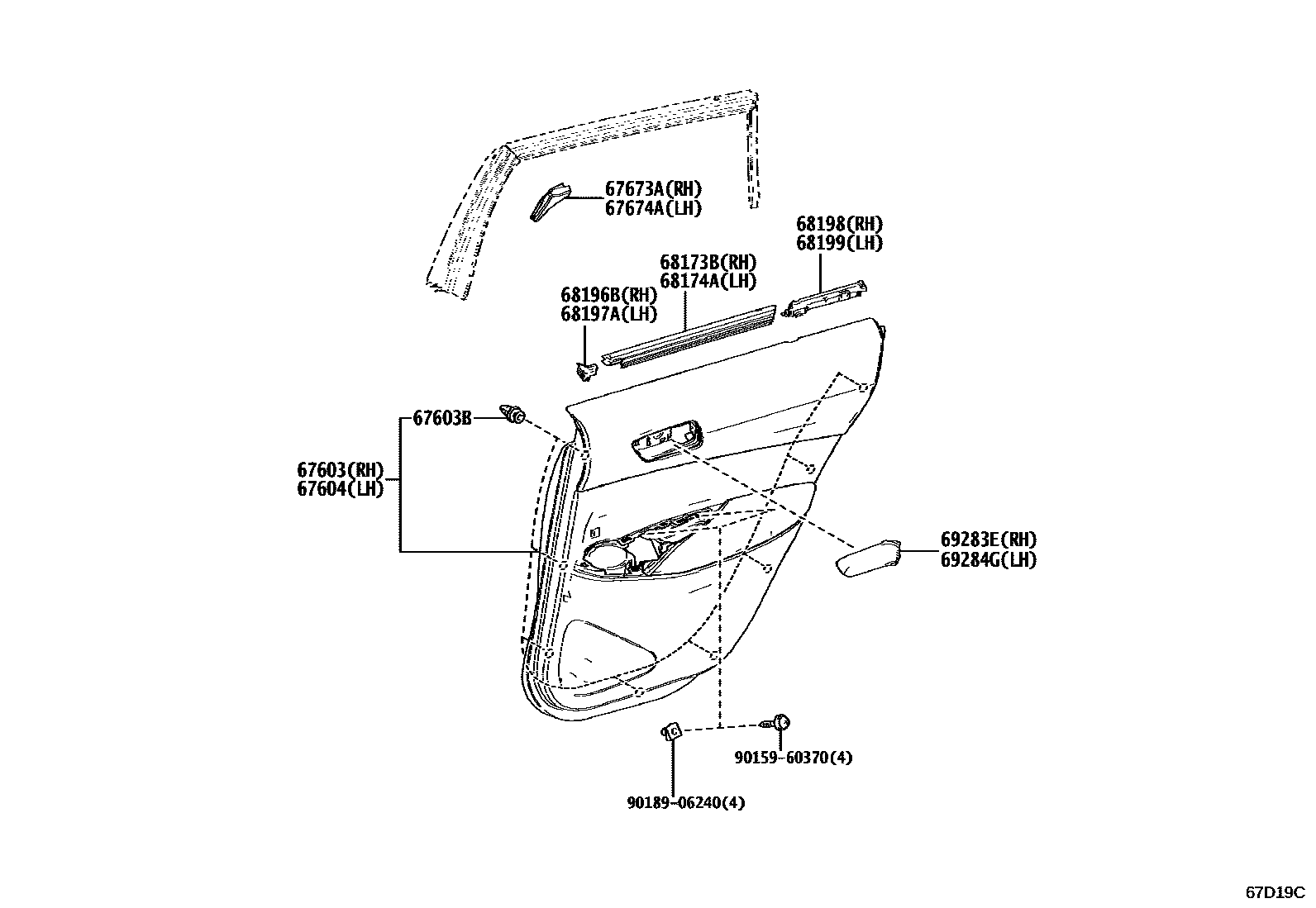

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0A120 |
| 67003C | Rear door panel cushion | 90541-09143 |
| 67004 | Left rear door panel sub-assembly | 67004-0A120 |
| 67113 | Right rear door outer panel | 67113-0A070 |
| 67114 | Left rear door outer panel | 67114-0A070 |
| 67407H | Right sliding door window divider sub-assembly | 67407-0A010 |
| 67408H | Left rear sliding door window divider sub-assembly | 67408-0A010 |
| 67603B | Catch (for rear door trim panel) | 90467-T0019 |
| 67673A | Right rear door frame decorative strip | 67673-0A010 |
| 67674A | Left rear door frame decorative strip | 67674-0A010 |
| 67837C | Rear door dust seal retainer | 67837-0K090 |
| 67841E | Right rear door access hole cover | 67841-0A140 |
| 67842E | Left rear door access hole cover | 67842-0A110 |
| 67845D | Right rear door front outer seal | 67845-0A010 |
| 67846A | Left rear door front outer seal | 67846-0A010 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67869D | Car door seal strip clip | 67869-20030 |
| 67871 | Right rear door sealing strip | 67871-0A110 |
| 67872 | Left rear door sealing strip | 67872-0A110 |
| 68103 | Right rear door glass sub-assembly | 68103-0A110 |
| 68104 | Left rear door glass sub-assembly | 68104-0A110 |
| 68123B | Right rear door corner window glass | 68123-0A150 |
| 68124B | Left rear door corner window glass | 68124-0A150 |
| 68142C | Right rear door glass lift slot | 68142-0A030 |
| 68152C | Left rear door glass lift slot | 68152-0A030 |
| 68173B | Right rear door glass inner sealing strip | 68173-0A020 |
| 68174A | Left rear door glass inner sealing strip | 68174-0A020 |
| 68188 | Right rear door corner window seal | 68188-0A030 |
| 68189 | Left rear door corner window seal | 68189-0A030 |
| 68196B | Right rear door beltline front seal | 68196-0A010 |
| 68197A | Left rear door beltline front seal | 68197-0A010 |
| 68198 | Right rear door beltline rear seal | 68198-0A010 |
| 68199 | Left rear door waistline rear seal | 68199-0A010 |
| 68630 | Rear door opening limiter assembly | 68630-0A020 |
