Toyota COROLLA 底板和底板装饰罩 — Figure 6404

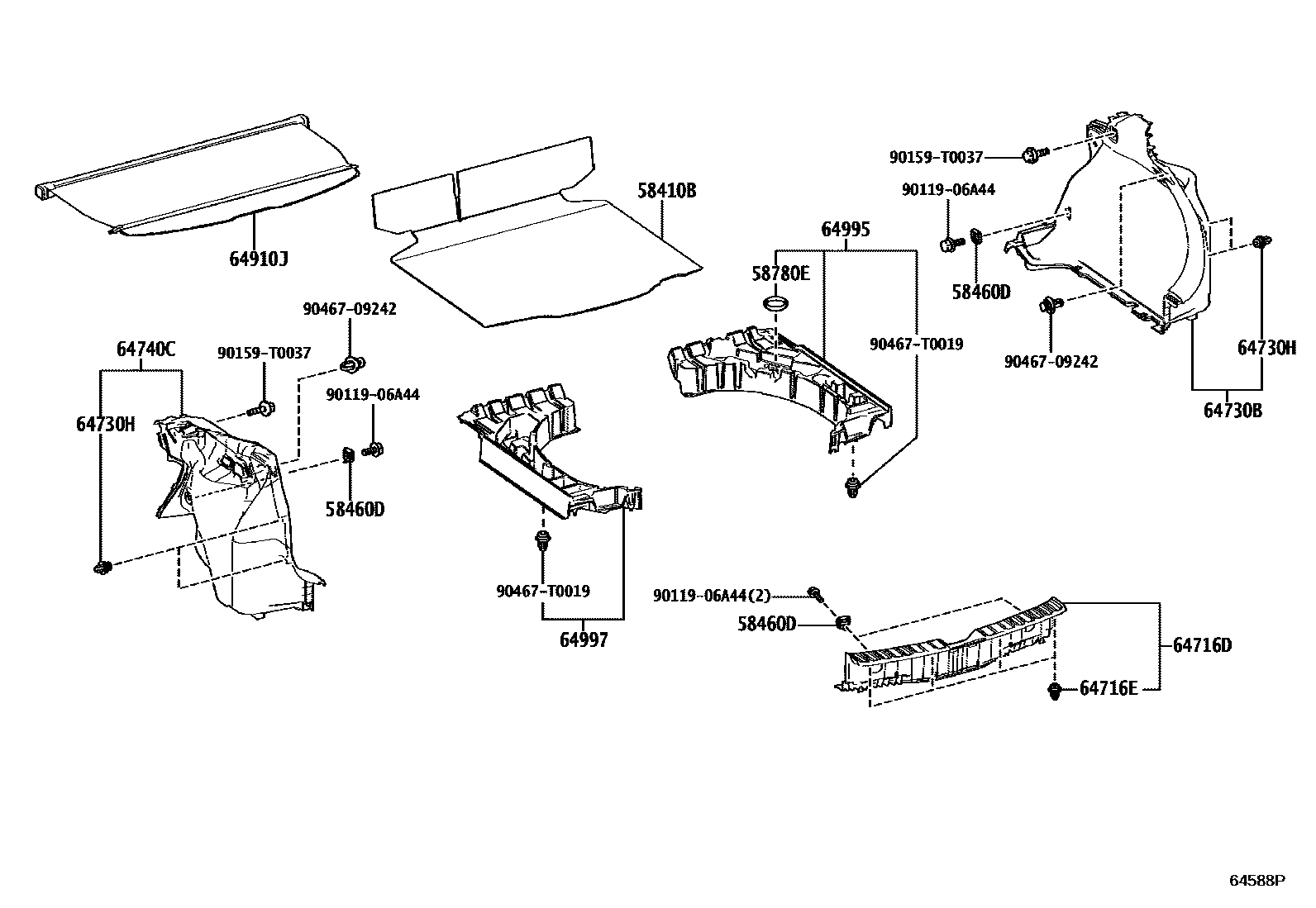

Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 58780E | Tool box strap assembly | 58781-52010 |
| 64716E | Clip (for rear floor decorative cover) | 90467-T0021 |
| 64730H | Clip (for bottom panel side decorative panel) | 90467-T0021 |
