Toyota COROLLA 地板垫和地毯 — Figure 5804

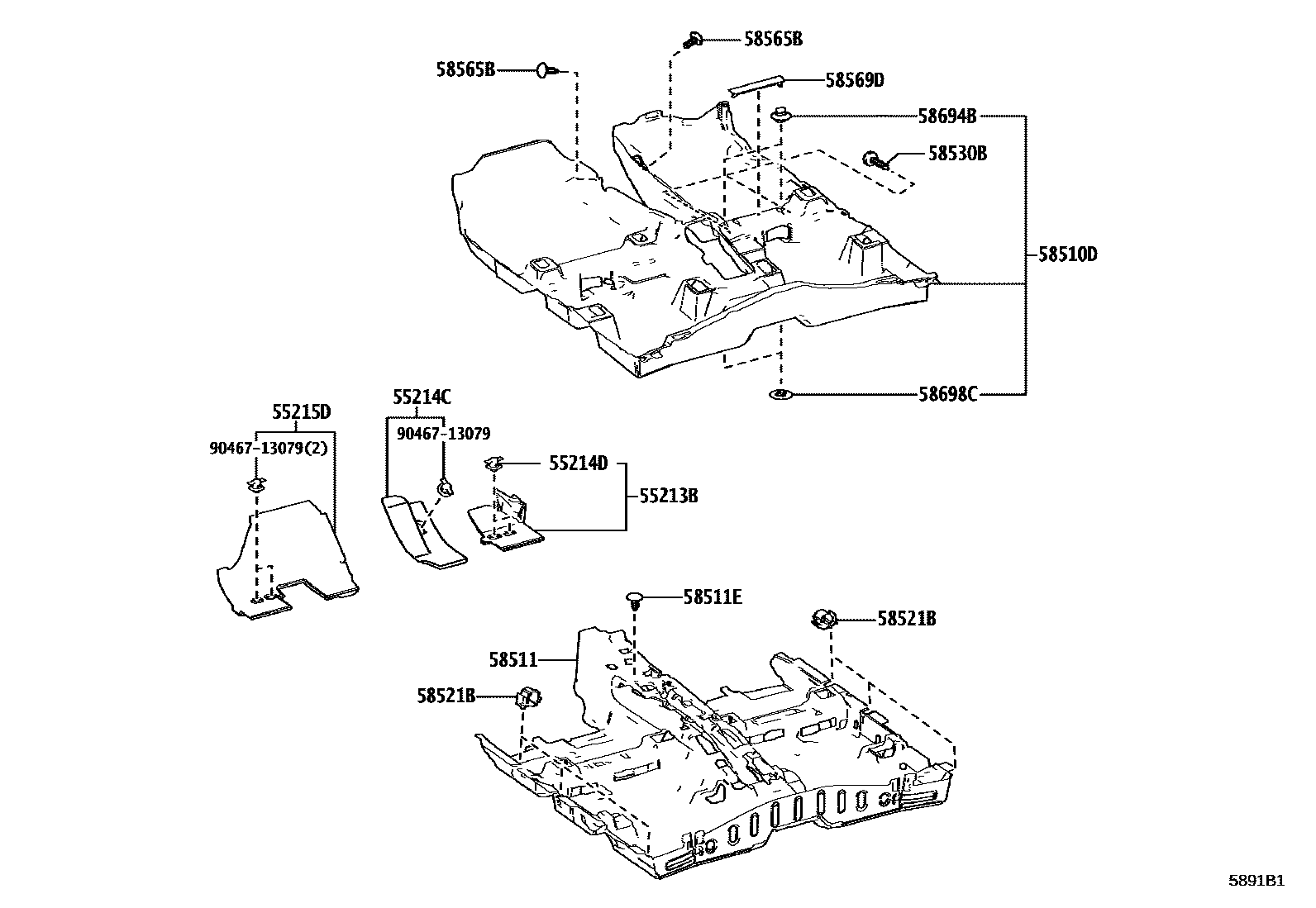

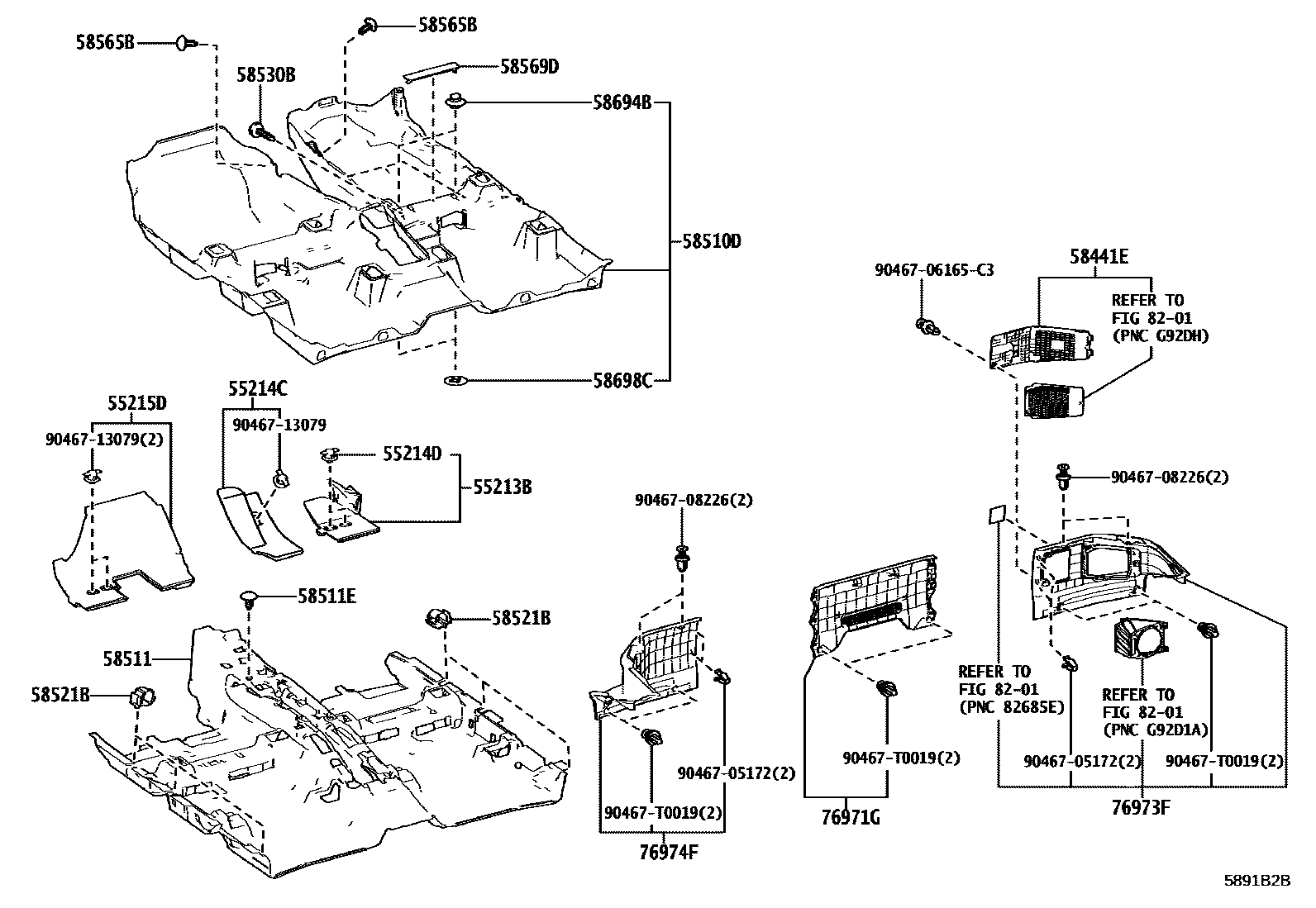

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55213B | No. 1 insulation pad for front wall panel | 55213-0A050 |
| 55214C | No. 2 insulation pad for front wall panel | 55214-0A030 |
| 55214D | Clip (for cowl insulation pad) | 90467-13079 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-0A030 |
| 58511 | front floor mat | 58511-0A180 · 58511-0A190 |
| 58521B | carpet hook | 58521-06170 |
| 58694B | Pad the fixing plate | 58694-0K010 |
| 58698C | Fixing plate under the pad | 58698-0K070 |
