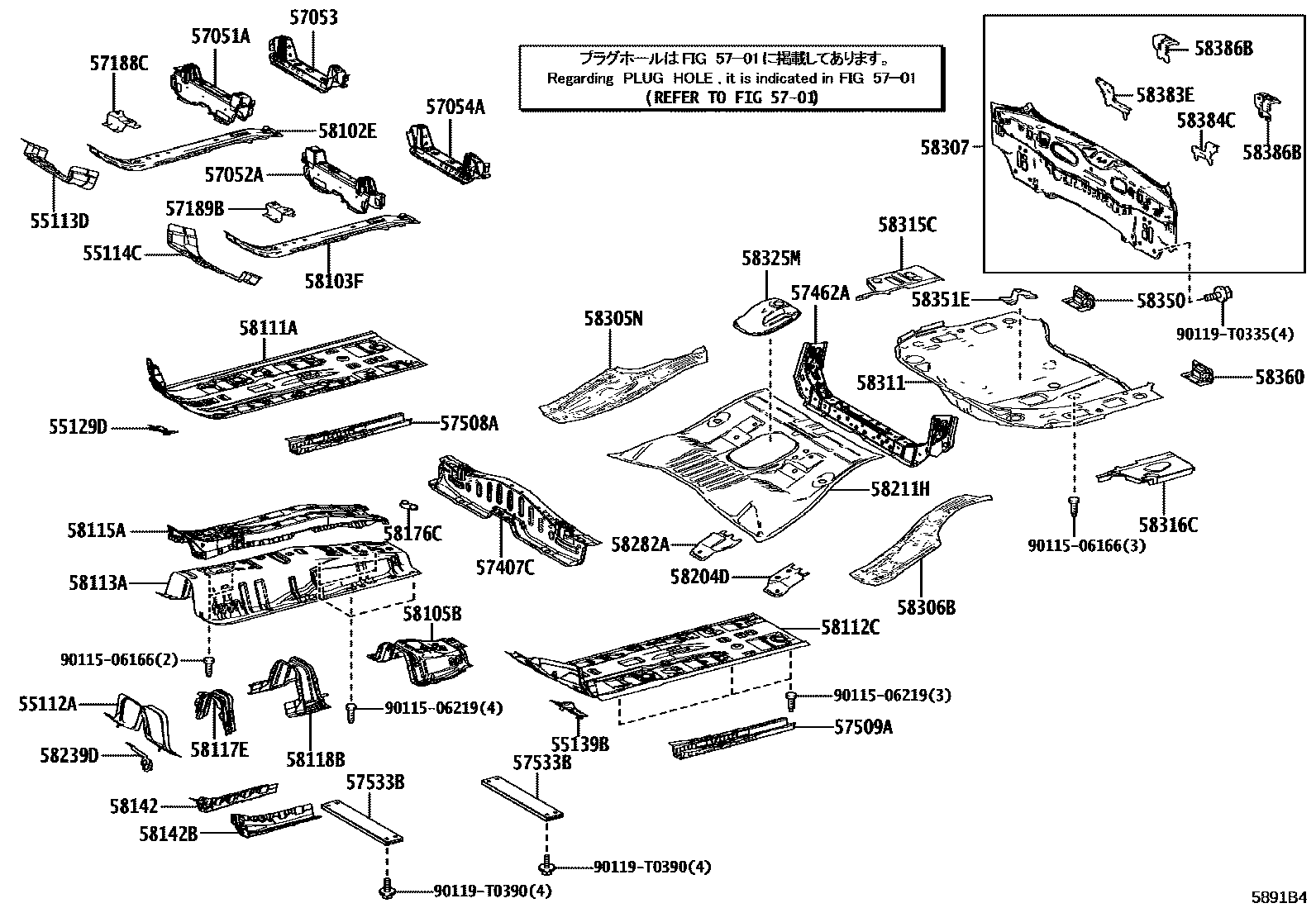

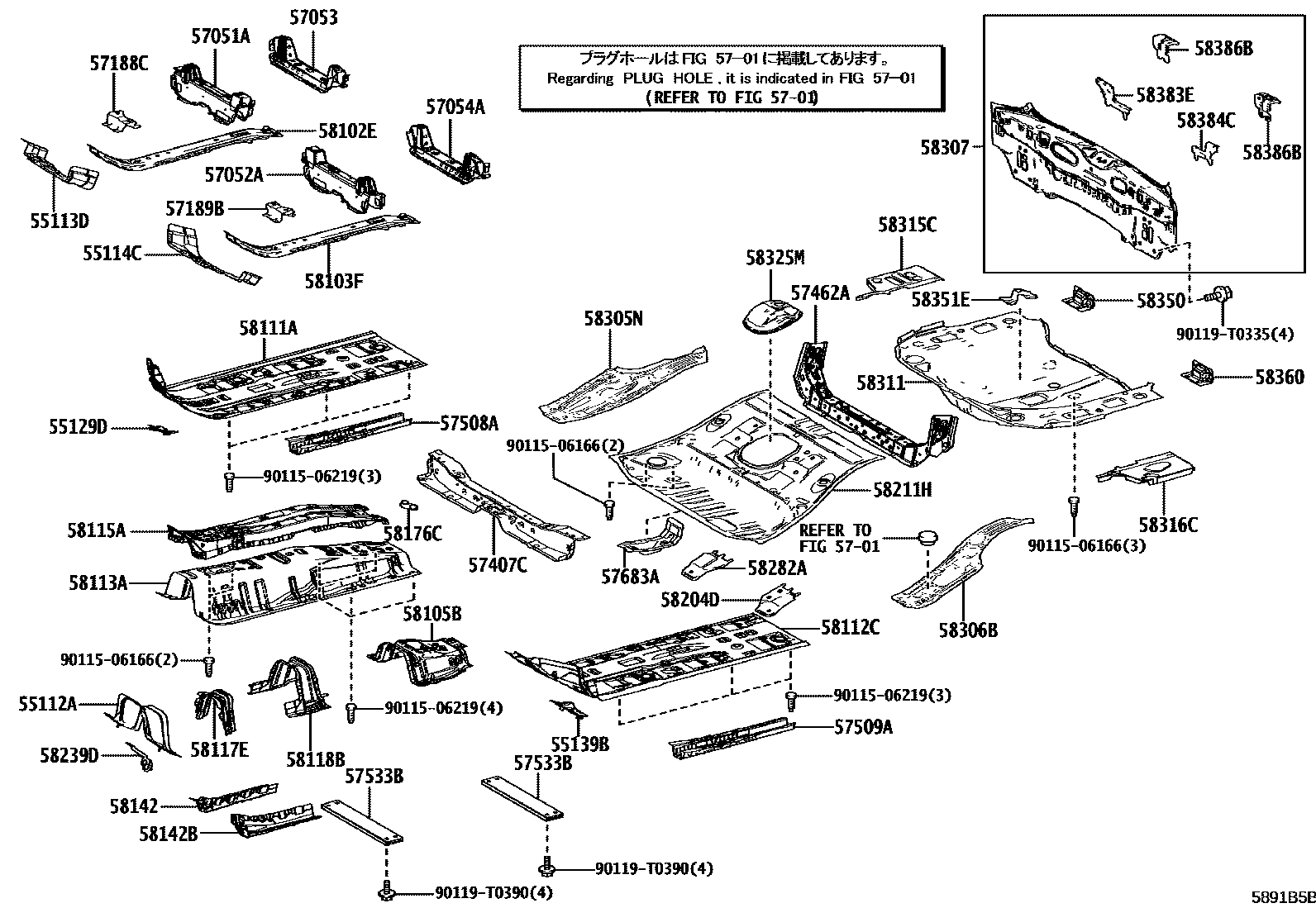

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55112A | No. 2 front panel | 55112-0A040 |
| 55113D | lower right cowl | 55113-02080 |
| 55114C | Lower left cowl | 55114-02120 |
| 55129D | Right front panel hole cover | 55129-F4020 |
| 55139B | Left front panel hole cover | 55139-F4020 |
| 57051A | Front floor right cross member sub-assembly | 57051-0A050 |
| 57052A | Front floor left cross member sub-assembly | 57052-0A050 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-0A080 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-0A080 |
| 57188C | Right front longitudinal beam extension reinforcement | 57188-02120 |
| 57189B | Left front longitudinal beam extension reinforcement | 57189-02100 |
| 57407C | Center floor No. 1 beam sub-assembly | 57407-0A070 · 57407-0A080 |
| 57462A | Center floor beam No. 2 | 57405-0A030 |
| 57508A | Front floor right reinforcement sub-assembly | 57508-0A050 |
| 57509A | Front floor left reinforcement sub-assembly | 57508-0A050 |
| 57533B | Front floor center bracket | 57533-F4030 |
| 57683A | No. 1 fuel tank mounting bracket | 57683-0A100 |
| 58102E | Front floor right reinforcement sub-assembly | 58102-0A030 |
| 58103F | Front floor left reinforcement sub-assembly | 58102-0A030 |
| 58105B | Front floor and rear upper sub-panel sub-assembly | 58105-0A060 |
| 58111A | Front floor right bottom panel | 58111-F4021 |
| 58112C | Front floor left bottom panel | 58112-F4021 |
| 58113A | front floor center panel | 58113-0A030 |
| 58115A | front floor reinforcement | 58115-0A070 |
| 58117E | Front floor sub-cover | 58117-F4021 |
| 58118B | Front floor reinforcement No. 2 | 58118-F4020 |
| 58142 | Floor stringers to floor base reinforcements | 58141-02120 |
| 58142B | Left front longitudinal beam to floor panel reinforcement | 58142-02130 |
| 58176C | Parking brake base No. 2 reinforcement | 58176-02080 |
| 58204D | Rear left seat outer hinge bracket sub-assembly | 58204-0A080 |
| 58211H | central floor base | 58211-0A070 · 58211-0A081 · 58211-0A082 |
| 58239D | Cable clip bracket | 58239-F4020 |
| 58282A | Right No. 3 seat belt anchor to floor base | 58282-0A090 |
| 58305N | Rear floor to right side wall extension sub-assembly | 58305-02220 · 58305-02230 |
| 58306B | Rear floor to left side wall extension sub-assembly | 58306-02230 · 58306-02241 · 58306-02242 |
| 58307 | Body lower back panel sub-assembly | 58307-0A020 |
| 58311 | rear floor pan | 58311-0A060 |
| 58315C | Rear floor right side panel extension | 58315-0A050 |
| 58316C | Rear floor left side panel extension | 58316-0A050 |
| 58325M | Rear floor manhole cover No. 1 | 58325-0A170 · 58325-0A180 |
| 58350 | Rear floor right reinforcement assembly | 58350-F4020 |
| 58351E | Spare tire clip bracket | 58351-02070 |
| 58360 | Rear floor left reinforcement assembly | 58350-F4020 |
| 58383E | Right body lower back panel reinforcement No. 2 | 58383-K1010 |
| 58384C | No. 2 reinforcement of left body lower back panel | 58384-K1010 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02120 |
