Toyota COROLLA 仪表板和手套箱 — Figure 5501

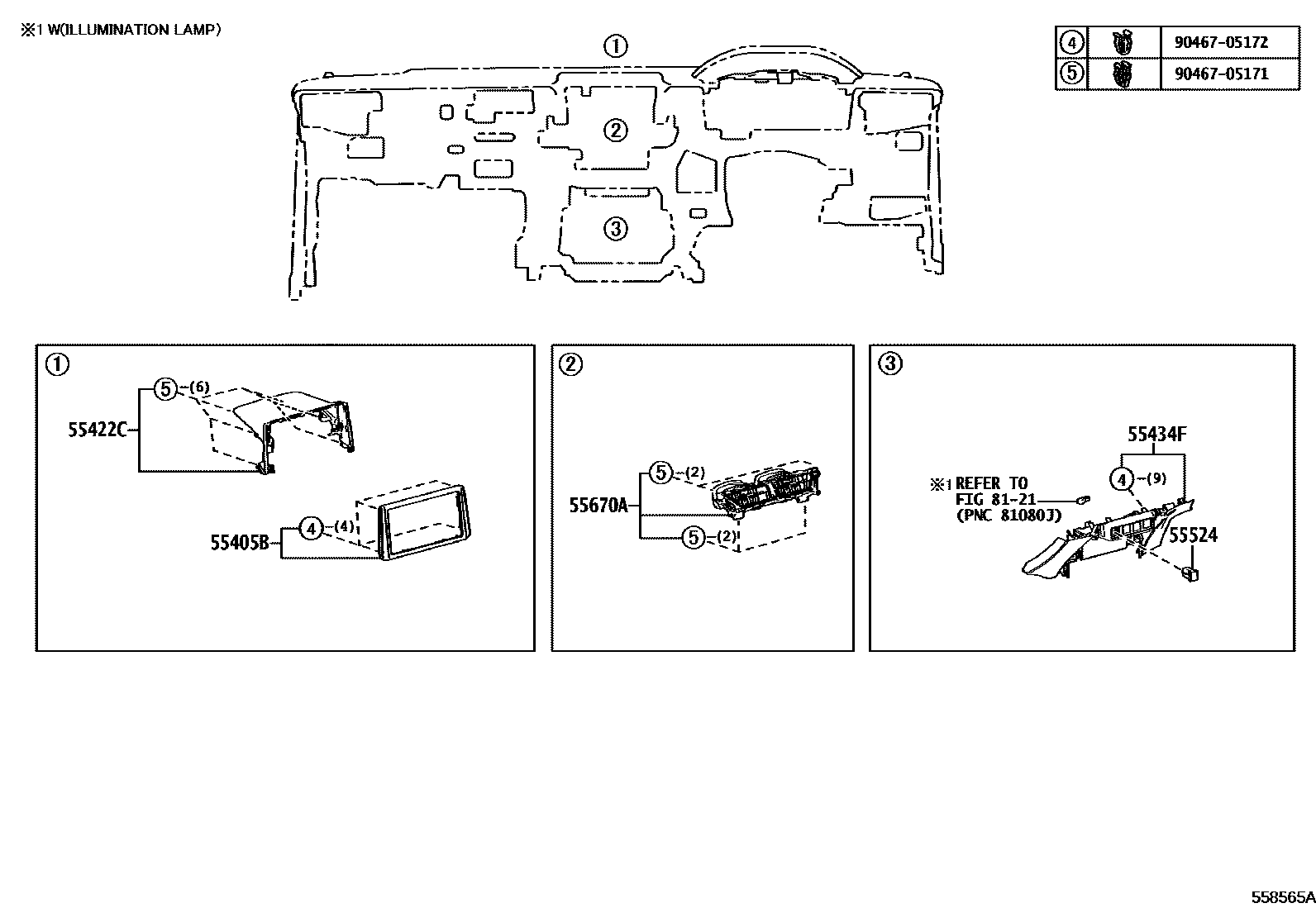

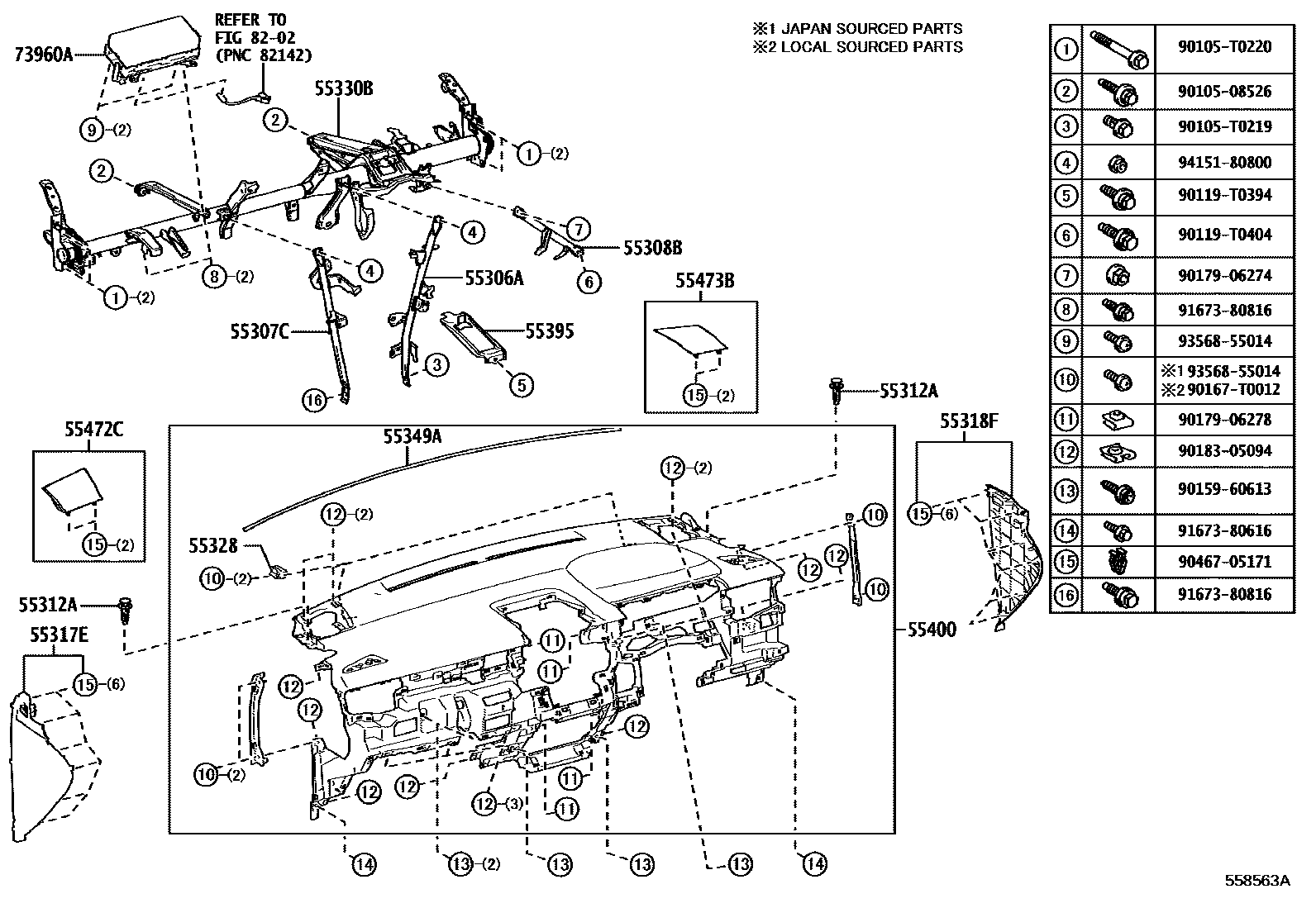

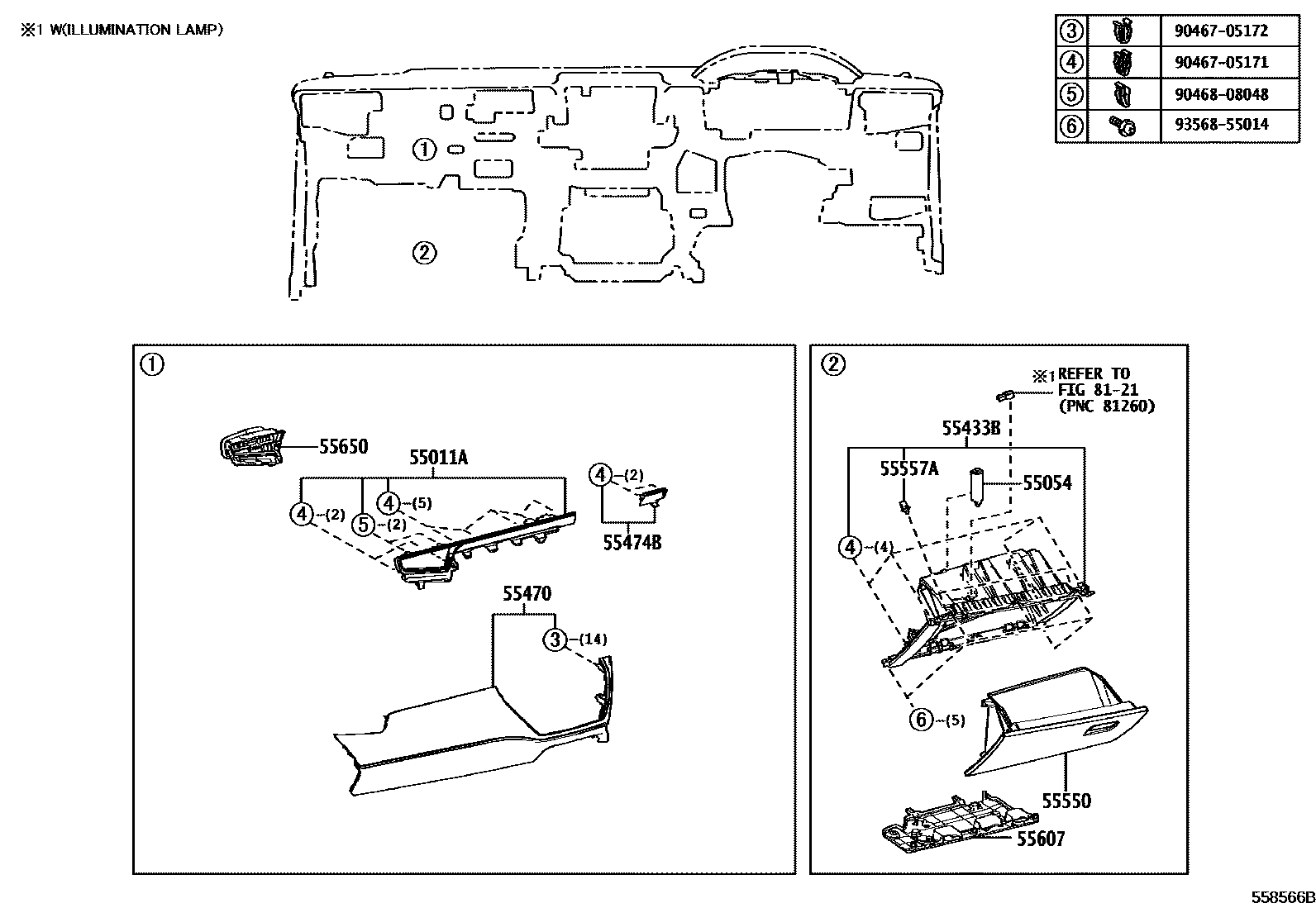

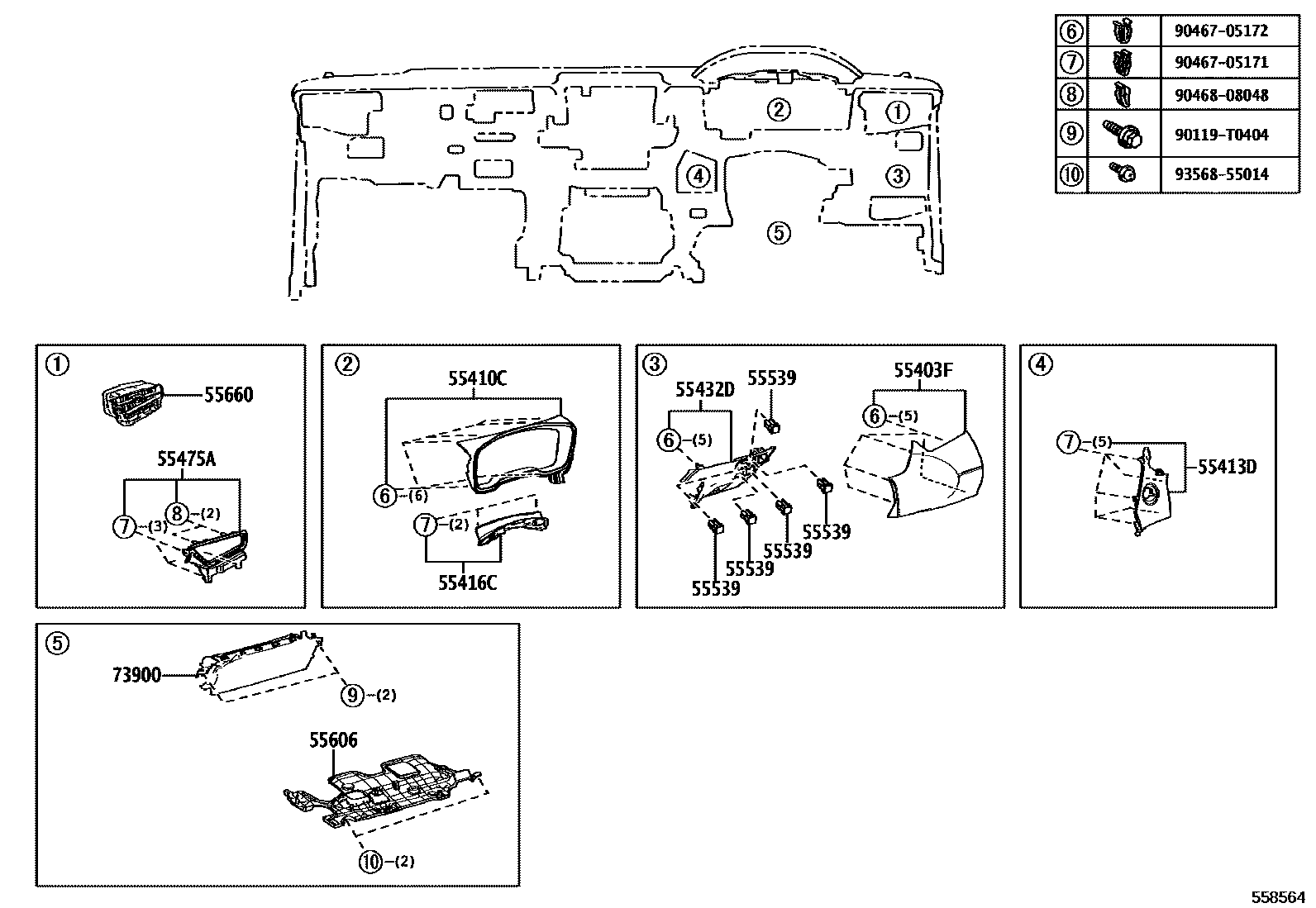

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0A110 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-0A140 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-0A090 |
| 55312A | Dashboard clip | 52161-0K040 |
| 55328 | Instrument panel pin 1 | 55328-12430 |
| 55330B | Instrument panel reinforcement assembly | 55330-0A150 |
| 55349A | Dashboard cushion | 55349-0D240 |
| 55395 | Dashboard to pedal bracket | 55395-10010 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02G90 |
| 55410C | Instrument cluster decorative panel assembly | 55410-0A170 |
| 55416C | Instrument cluster decorative panel fixings | 55416-02410 |
| 55422C | Center instrument cluster upper decorative panel | 55422-0A140 |
| 55539 | Spare switch hole cover | 55539-06130 |
| 55557A | Glove box cover limit pad | 55557-52030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0A040 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0A040 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-02890 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-02560 |
| 55670A | Instrument panel central air register assembly | 55670-02880 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0A010 |
