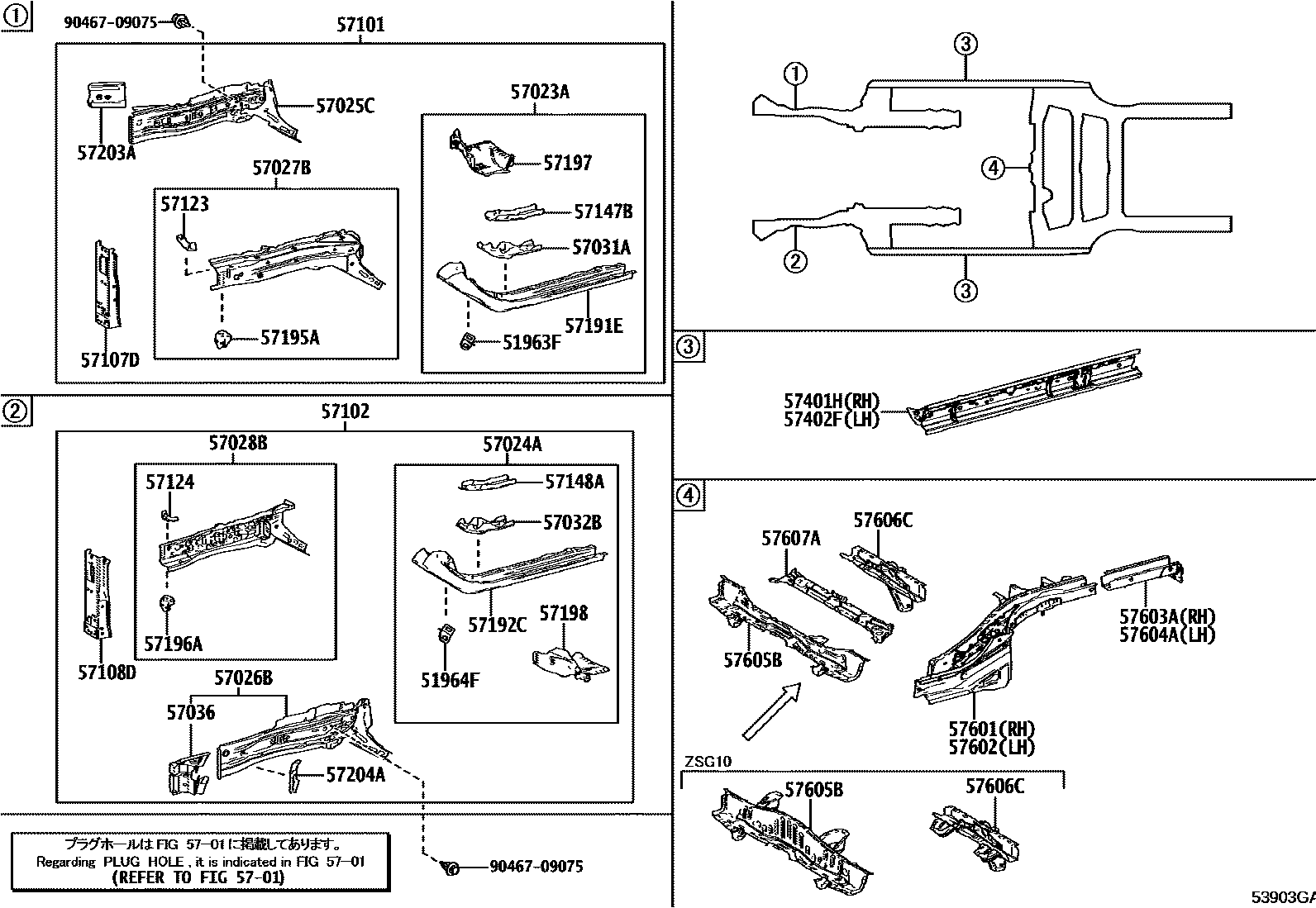

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51963F | transport hook | 51093-F4040 |
| 51964F | left transport hook | 51094-F4040 |
| 57023A | Right rear longitudinal beam sub-assembly | 57023-02140 |
| 57024A | Left rear longitudinal beam sub-assembly | 57024-02150 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-02110 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-F4020 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-02140 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-F4020 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-F4020 |
| 57032B | No. 2 left front longitudinal beam reinforcement sub-assembly | 57032-F4020 |
| 57036 | Left front running board panel sub-assembly | 57036-F4020 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-0A060 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-0A060 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57107-0A030 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57108-0A030 |
| 57123 | Right front longitudinal beam bracket | 57123-F4020 |
| 57124 | Left front longitudinal beam bracket | 57124-F4020 |
| 57147B | Right front longitudinal beam rear panel | 57147-02140 |
| 57148A | Left front longitudinal beam rear panel | 57148-02130 |
| 57191E | Right rear longitudinal beam sub-assembly inside front floor | 57191-F4020 |
| 57192C | Left rear longitudinal beam sub-assembly inside the front floor | 57192-F4020 |
| 57195A | Right front longitudinal beam front reinforcement | 57195-F4020 |
| 57196A | Left front longitudinal beam front reinforcement | 57196-F4020 |
| 57197 | Right front torsion box section piece | 57197-02180 |
| 57198 | Left front anti-torsion box section piece | 57198-02180 |
| 57203A | No. 2 right front longitudinal beam extension sub-assembly | 57215-02070 |
| 57204A | No. 2 left front longitudinal beam extension sub-assembly | 57204-F4020 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-0A100 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-0A110 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-0A120 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-0A130 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-0A100 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-0A110 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-0A150 · 57605-F4041 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-0A180 · 57606-0A190 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-0A010 · 57607-0A011 |
