Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

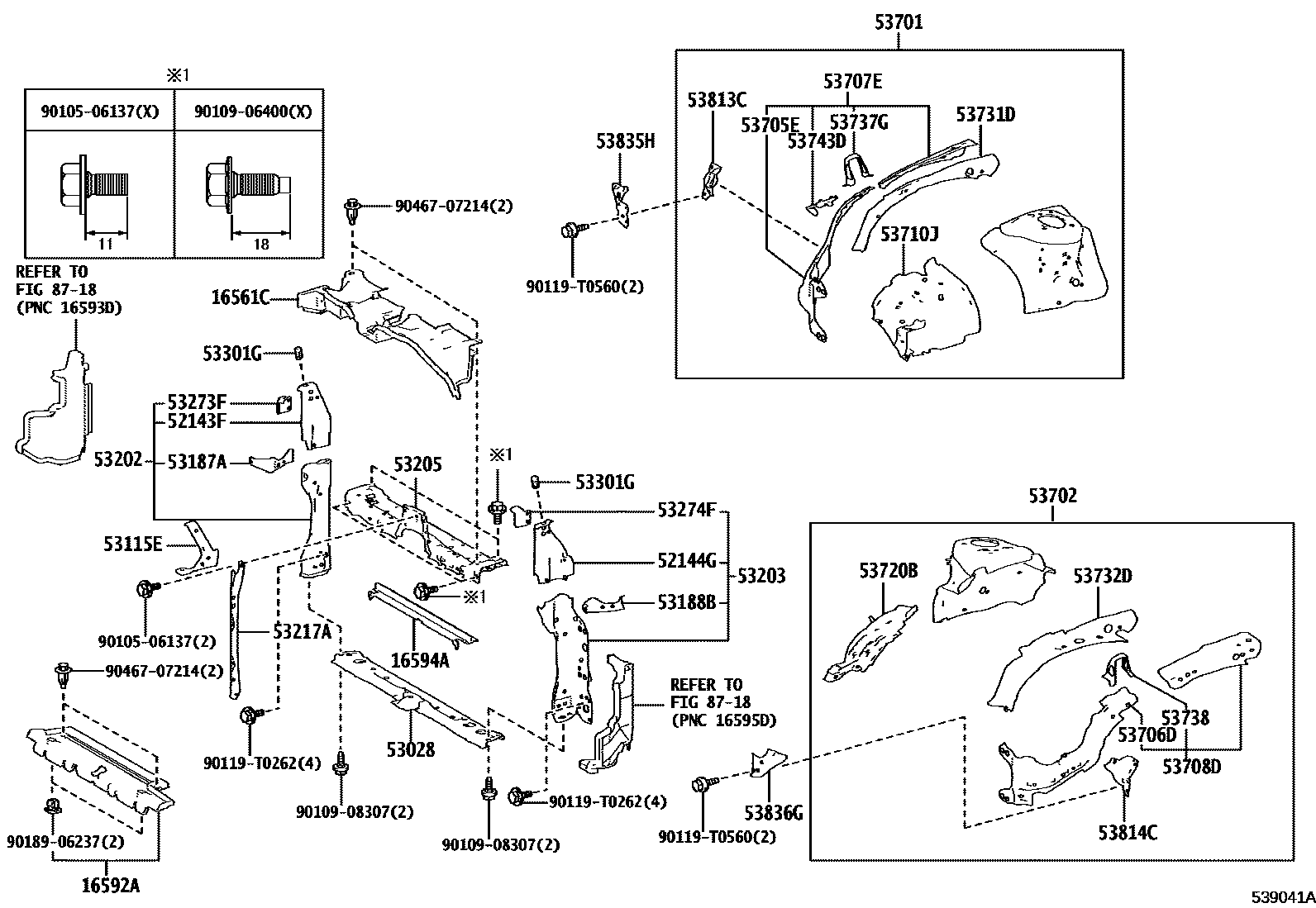

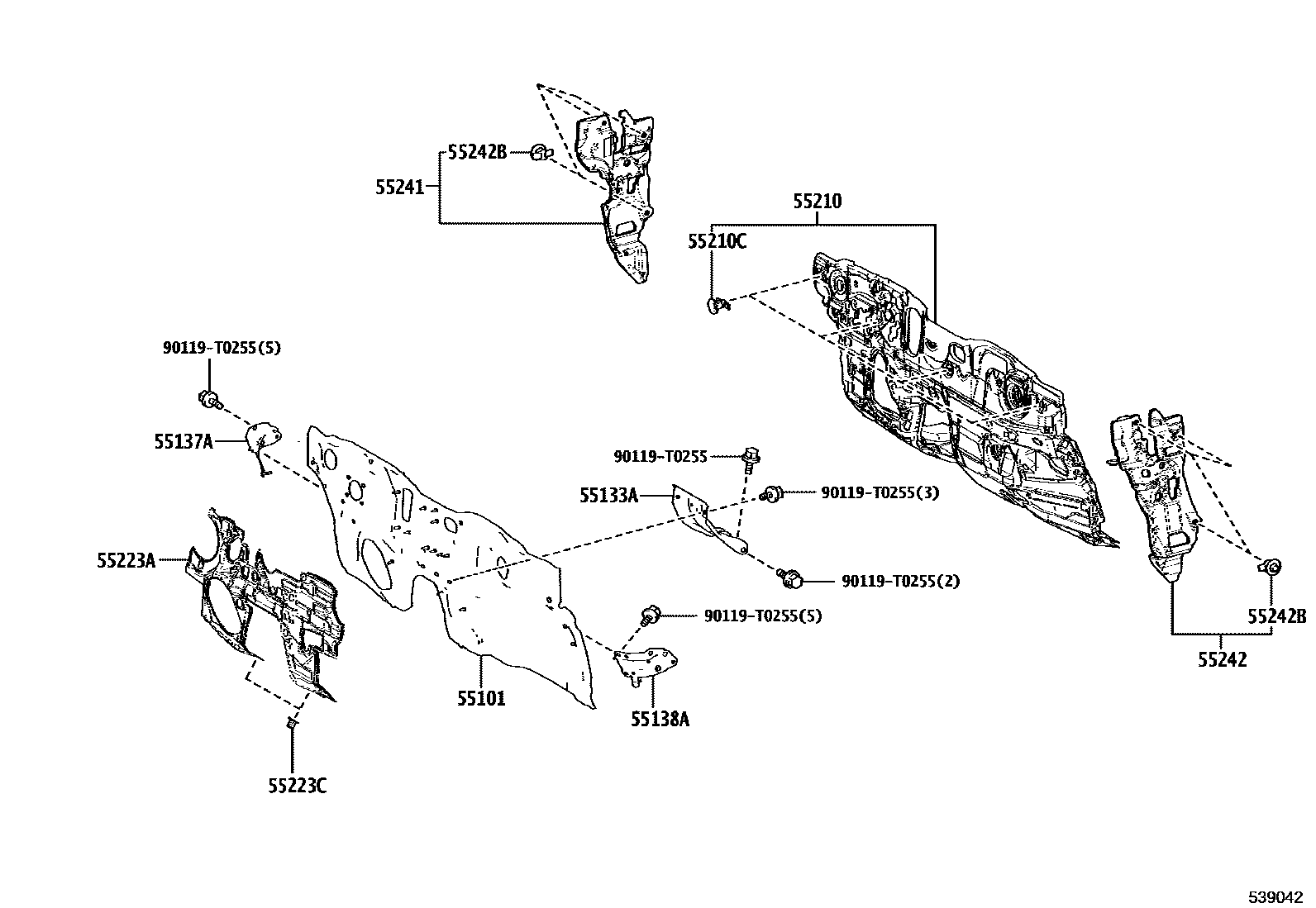

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16561C | Seal No. 1 (radiator to bracket) | 16561-0T320 |
| 16592A | Radiator deflector No. 3 | 16592-0T380 |
| 16594A | Radiator deflector No. 2 | 16594-0T230 · 16594-0T240 |
| 52143F | Front bumper right side bracket | 52143-0A040 |
| 52144G | Front bumper left bracket | 52144-0A040 |
| 53028 | Radiator lower bracket sub-assembly | 53028-02090 |
| 53115E | Radiator grille bracket | 53115-0A110 |
| 53187A | Radiator right side bracket stay | 53187-0A040 |
| 53188B | Radiator left bracket stay | 53188-0A040 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0A901 |
| 53203 | Radiator left bracket sub-assembly | 53203-0A901 |
| 53205 | Radiator upper bracket sub-assembly | 53205-0A020 |
| 53217A | engine cover lock bracket | 53217-0A090 |
| 53273F | Front bumper right fixed mounting bracket | 53273-0A040 |
| 53274F | Front bumper left fixed mounting bracket | 53274-0A040 |
| 53301G | engine cover cushion | 90541-15037 |
| 53701 | Right front fender fender sub-assembly | 53701-0A130 |
| 53702 | Left front fender fender sub-assembly | 53702-0A120 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-02130 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-02130 |
| 53707E | Fender right fender sub-assembly | 53707-0A010 |
| 53708D | Fender left fender sub-assembly | 53708-0A010 |
| 53710J | Right front fender fender assembly | 53710-0A040 |
| 53720B | Left front fender fender assembly | 53720-0A040 |
| 53731D | Right front fender to cowl side upper beam | 53731-0A030 |
| 53732D | Left front fender to cowl side upper beam | 53732-0A030 |
| 53737G | Right front fender to front wall side sill | 53737-0A040 |
| 53738 | Left front fender to front wall side sill | 53738-0A040 |
| 53743D | Right front fender fender front extension reinforcement | 53743-0A050 |
| 53813C | Right front fender extension | 53813-F4020 |
| 53814C | Left front fender extension | 53814-F4020 |
| 53835H | Right front fender to extension stay | 53835-0A040 |
| 53836G | Left front fender to extension stay | 53836-0A040 |
| 55101 | Front apron sub-assembly | 55101-0A180 |
| 55133A | Right reinforcement (front wall to floor) | 55133-F4020 |
| 55137A | Right side bracket (front wall to frame) | 55137-02160 |
| 55138A | Left side bracket (front wall to frame) | 55138-02150 |
| 55210 | Front wall insulation pad assembly | 55210-02720 · 55210-02800 |
| 55210C | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-F4030 |
| 55223C | clip | 90467-06197 |
| 55241 | Front panel No. 1 right side silencer | 55241-02080 |
| 55242 | Front panel No. 1 left side silencer | 55242-02070 |
| 55242B | Front panel side muffler clip | 90467-13079 |
